Fieldbest laser power meter tech features
Detector Type: Thermal
Wavelength: 100 nm - 20 um (step 100 nm)
Measuring range: 0.01 - 50 W
Measurement accuracy: 0.01W
Sensor active area: D20 mm
Sensor inlet: D18 mm

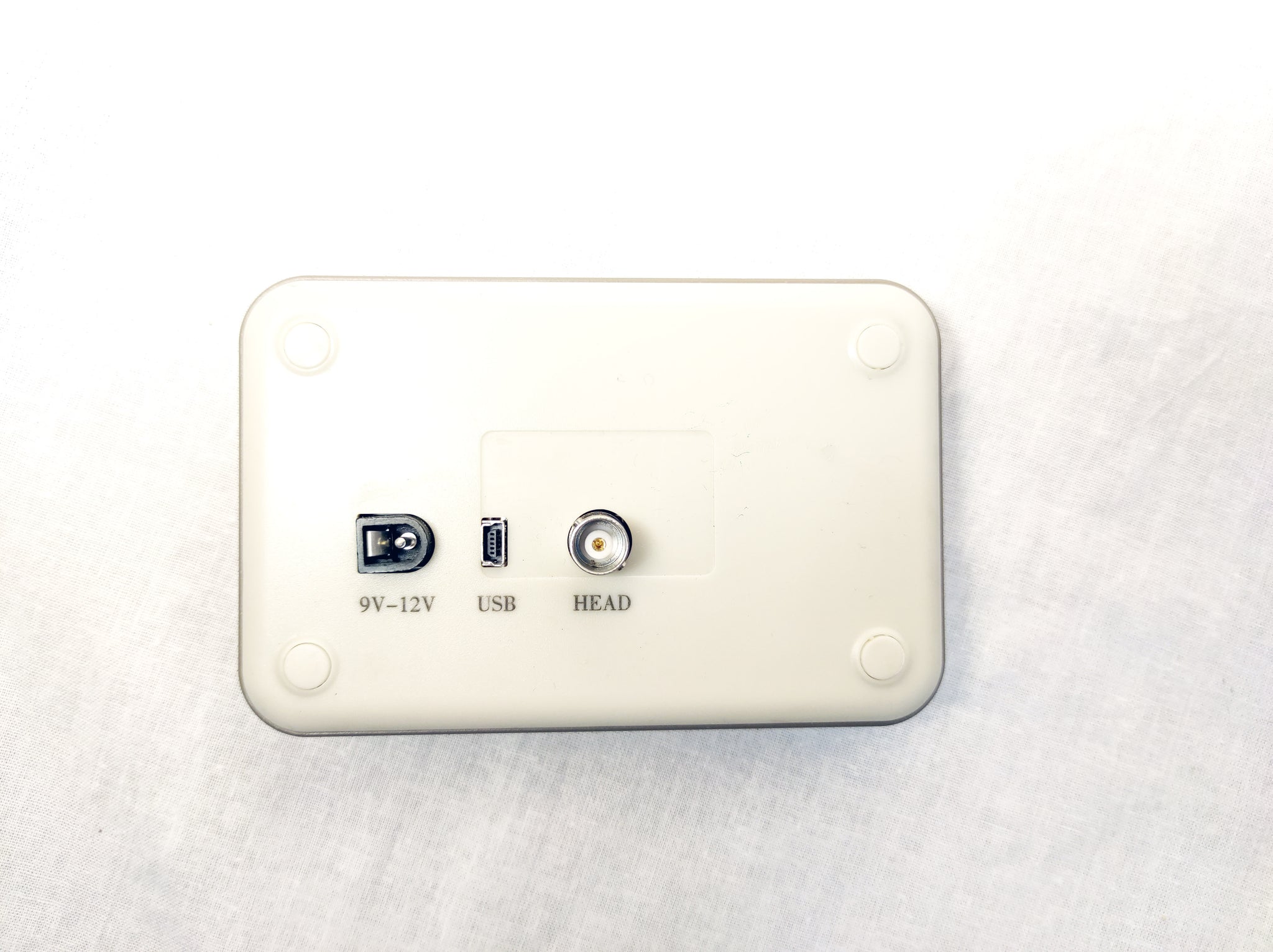

Supply voltage: 9-12V
The detector has an M6 threaded hole for mounting on a tripod.
Device
size 125x80x29 mm
weight 170 g

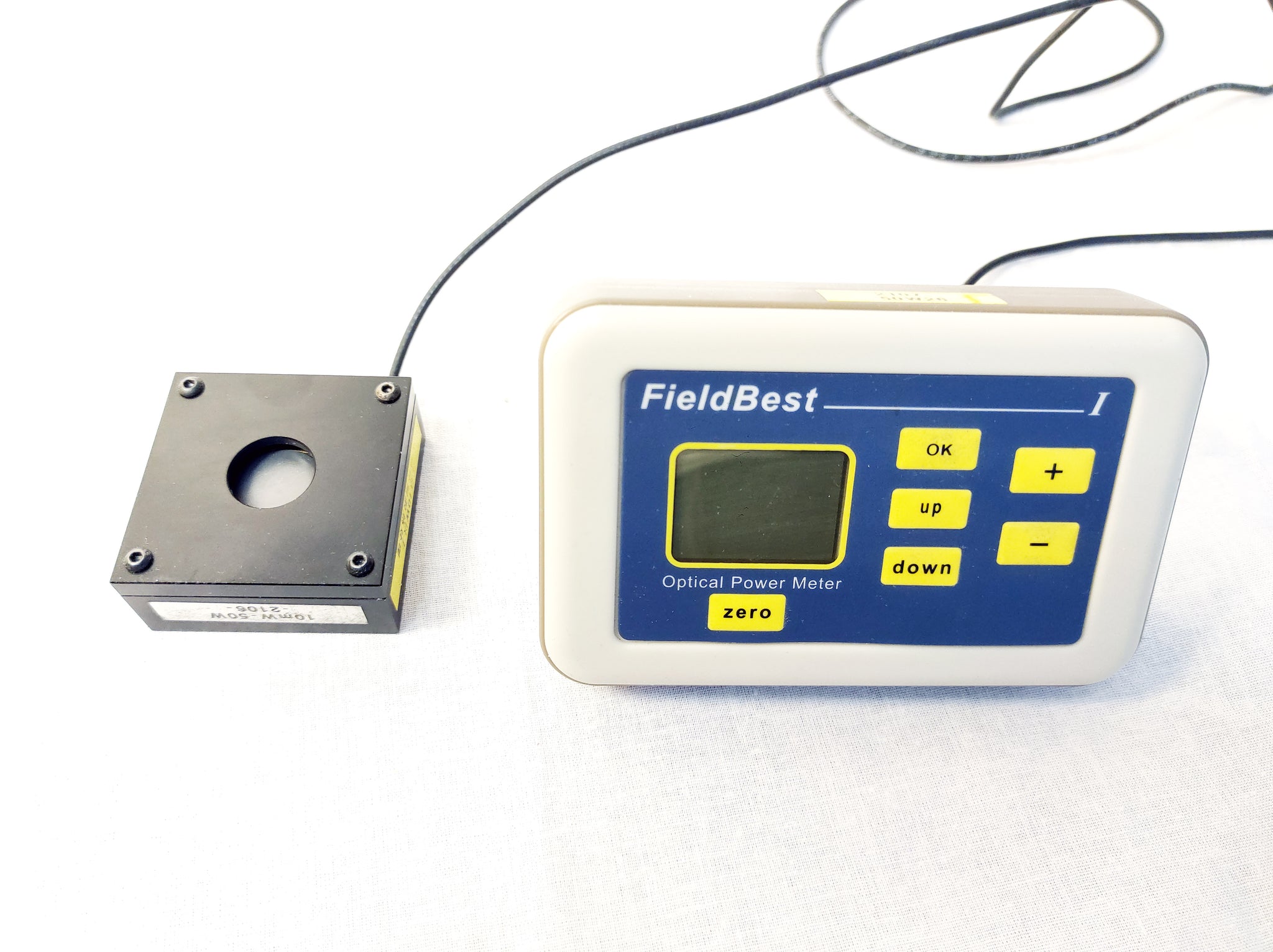

Detector
size 54x54x24 mm
weight 150 g
Wavelength: 100 nm - 20 um (step 100 nm)
Measuring range: 0.01 - 50 W
Measurement accuracy: 0.01W
Sensor active area: D20 mm
Sensor inlet: D18 mm
Supply voltage: 9-12V
The detector has an M6 threaded hole for mounting on a tripod.
Device
size 125x80x29 mm
weight 170 g
Detector
size 54x54x24 mm
weight 150 g
1 Range: 10mW~50W, Note: For long-term measurement of laser power above 10W, it is necessary to add a heat sink (air cooling or water cooling) to the probe. There are four M3 screw holes on the back of the probe to fix the heat sink.
2 Effective photosensitive aperture of the probe: 18mm
3 Wavelength response range: 150nm~20um, no need to calibrate power for wavelength
4 The minimum resolution of the meter display is: 0.01W
5 The user can connect the meter head to the computer, so that the laser power can be recorded to the computer hard disk, and the long-term power recording can be realized for an unlimited time.
