Material: Aluminum
Total weight: 98g
Minimum distance from the body of the DPSS laser to the lens: 46.1 mm

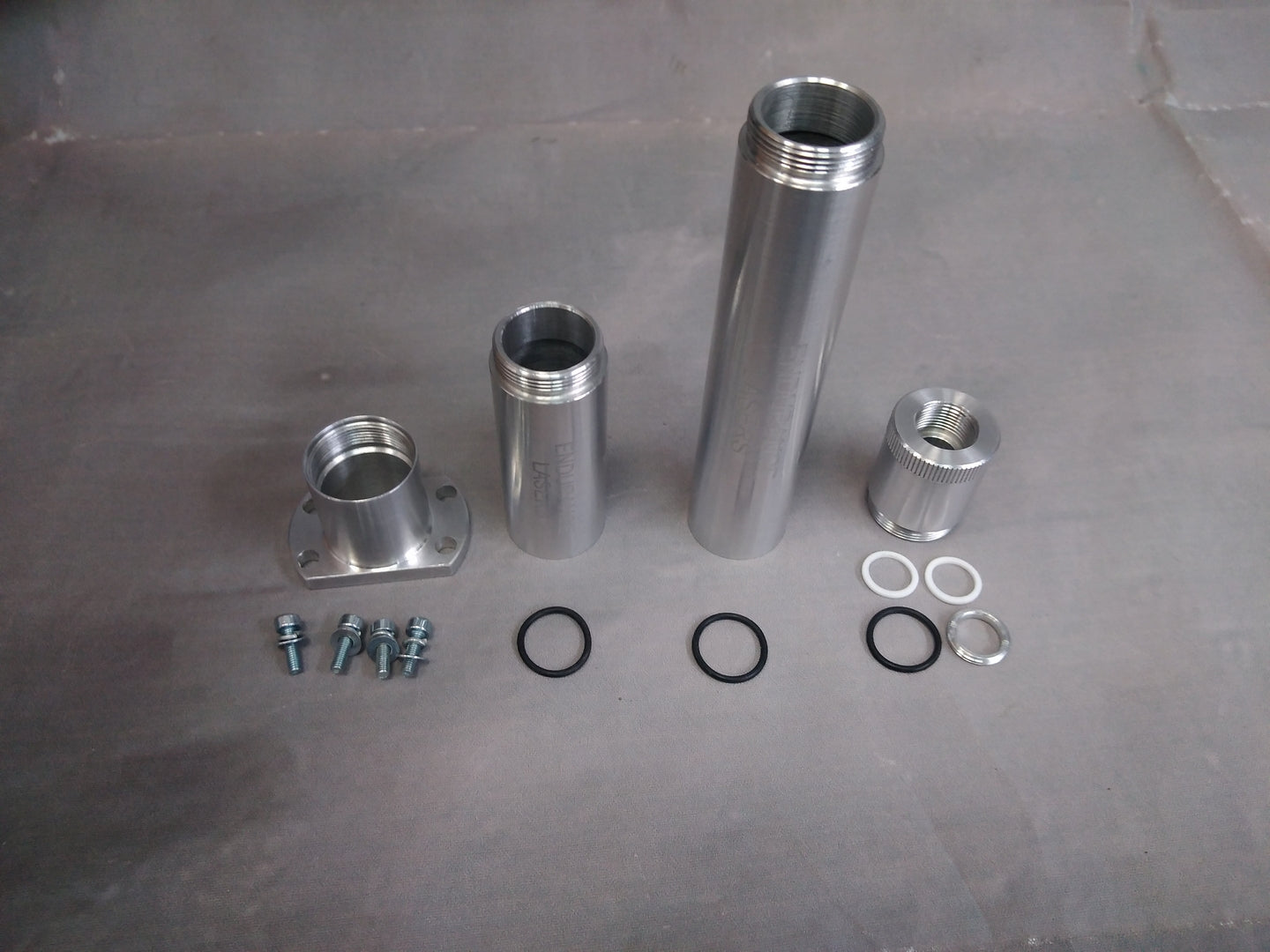

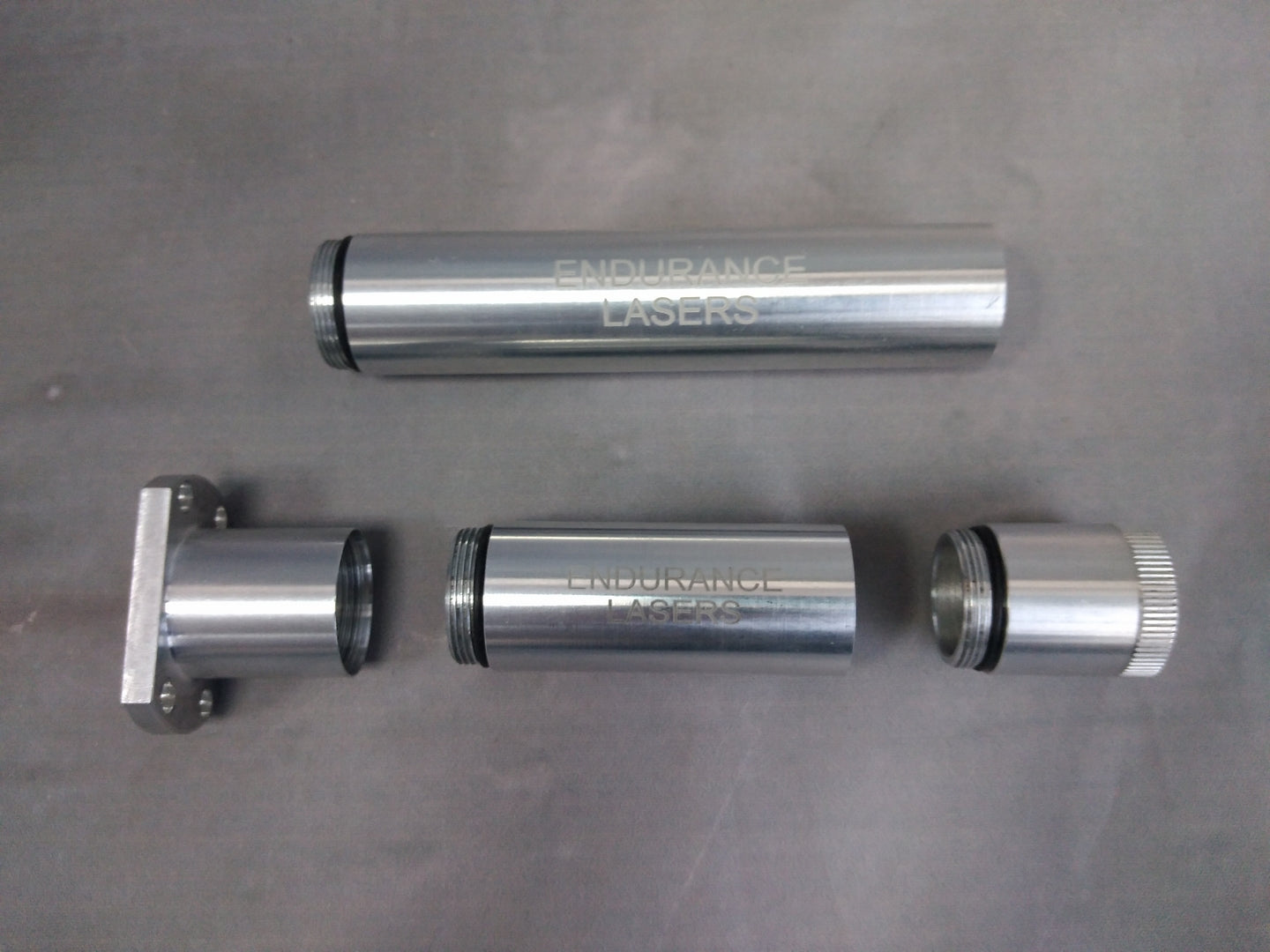

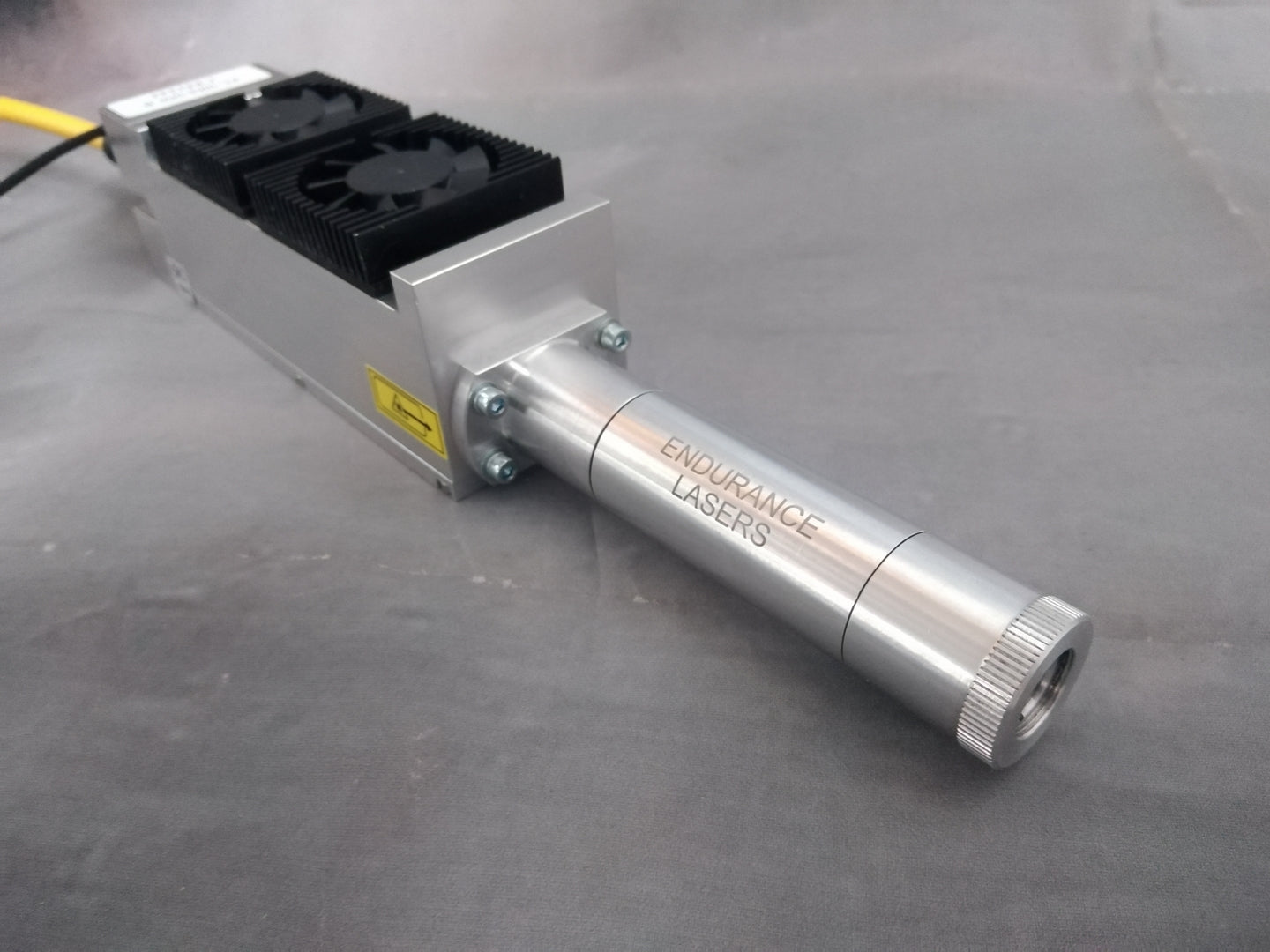

Kit composition:

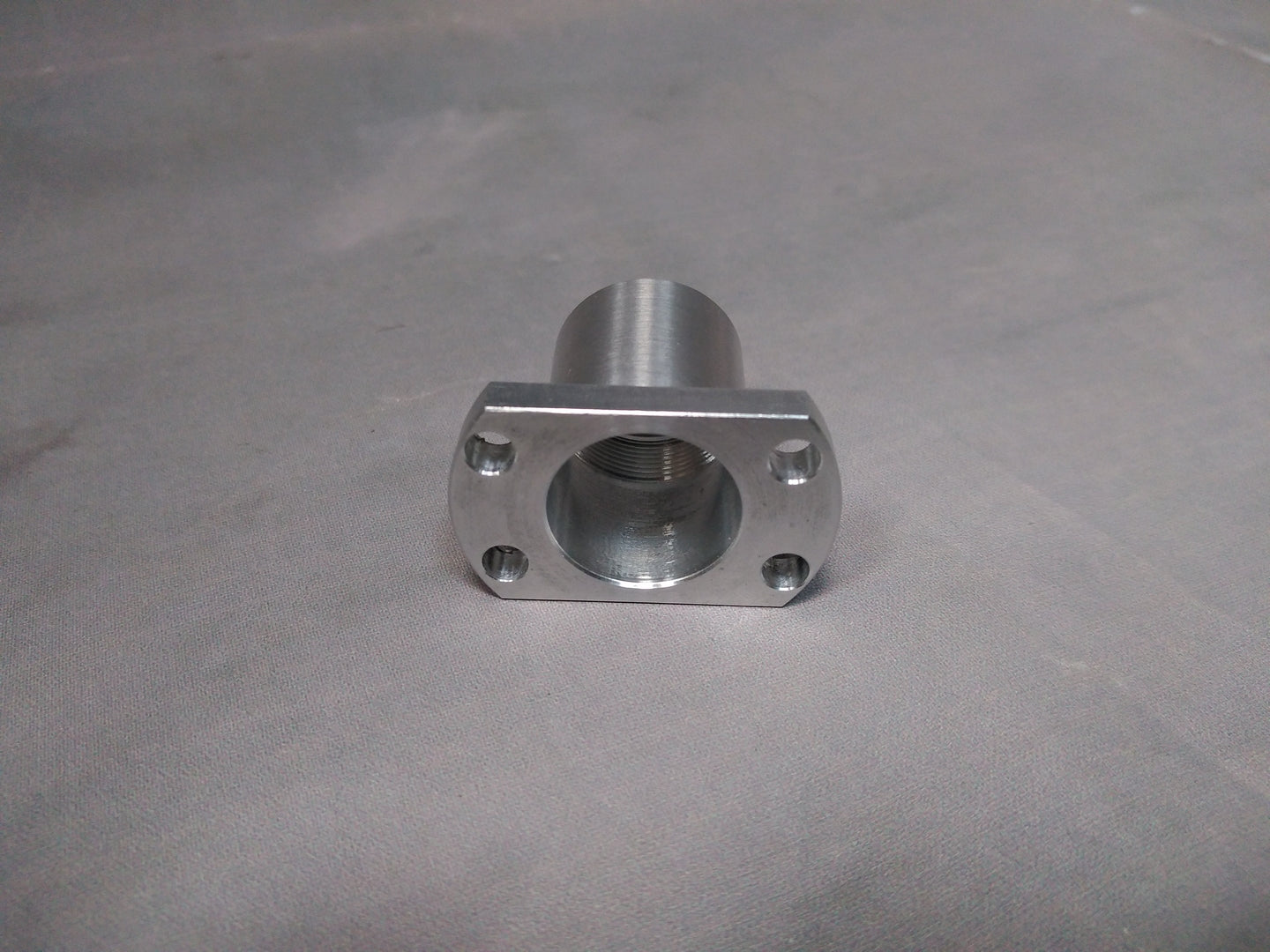

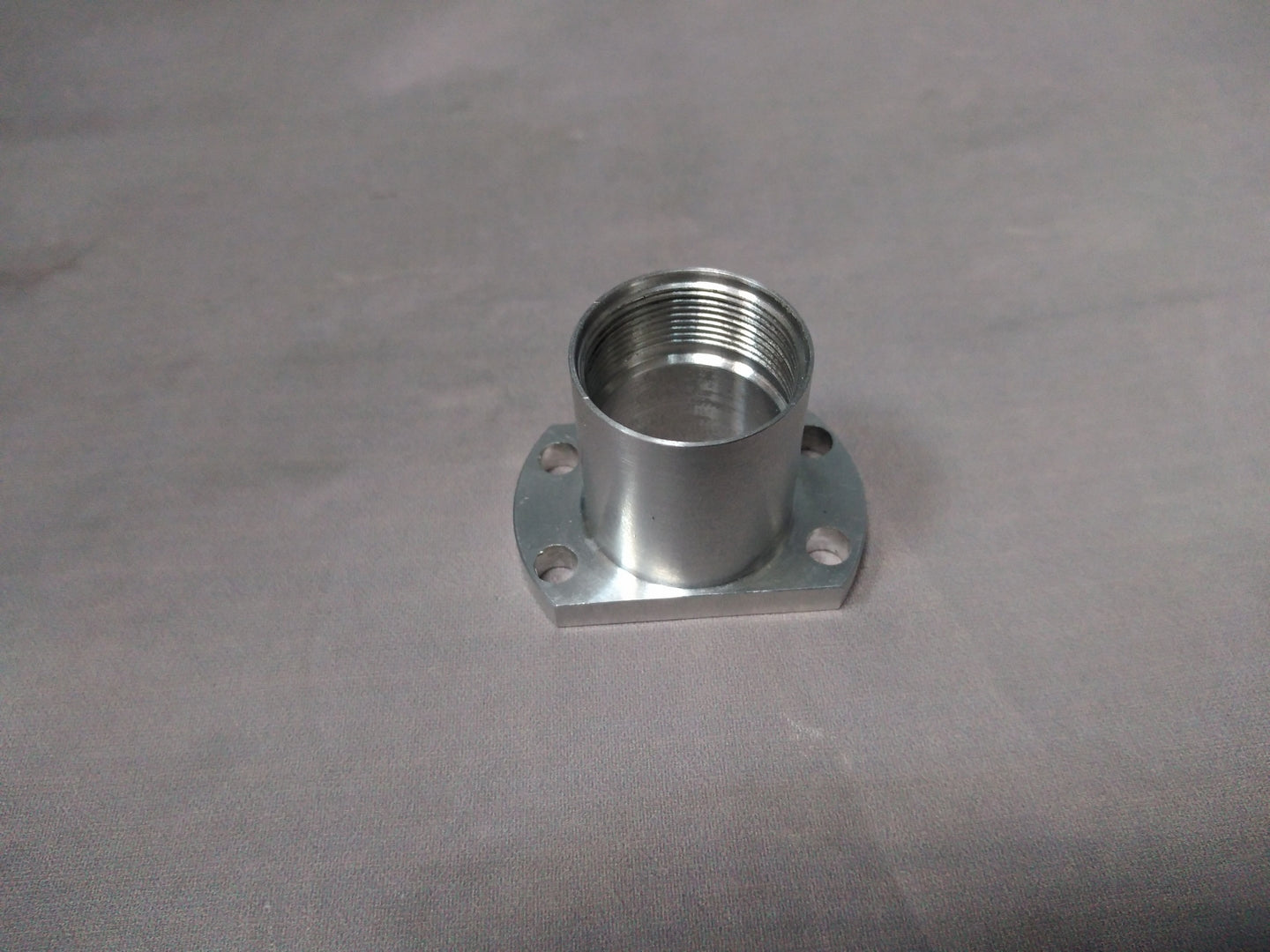

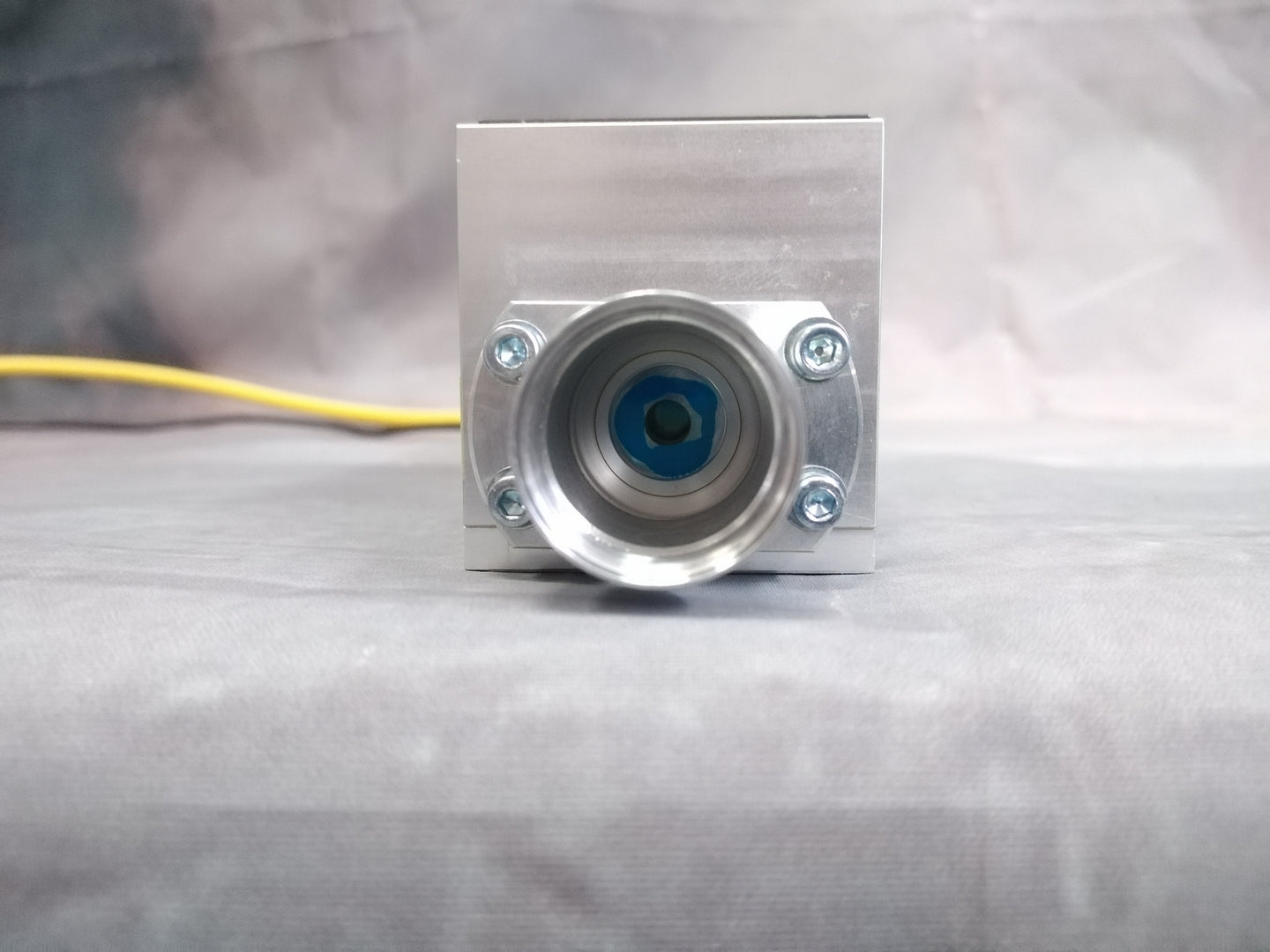

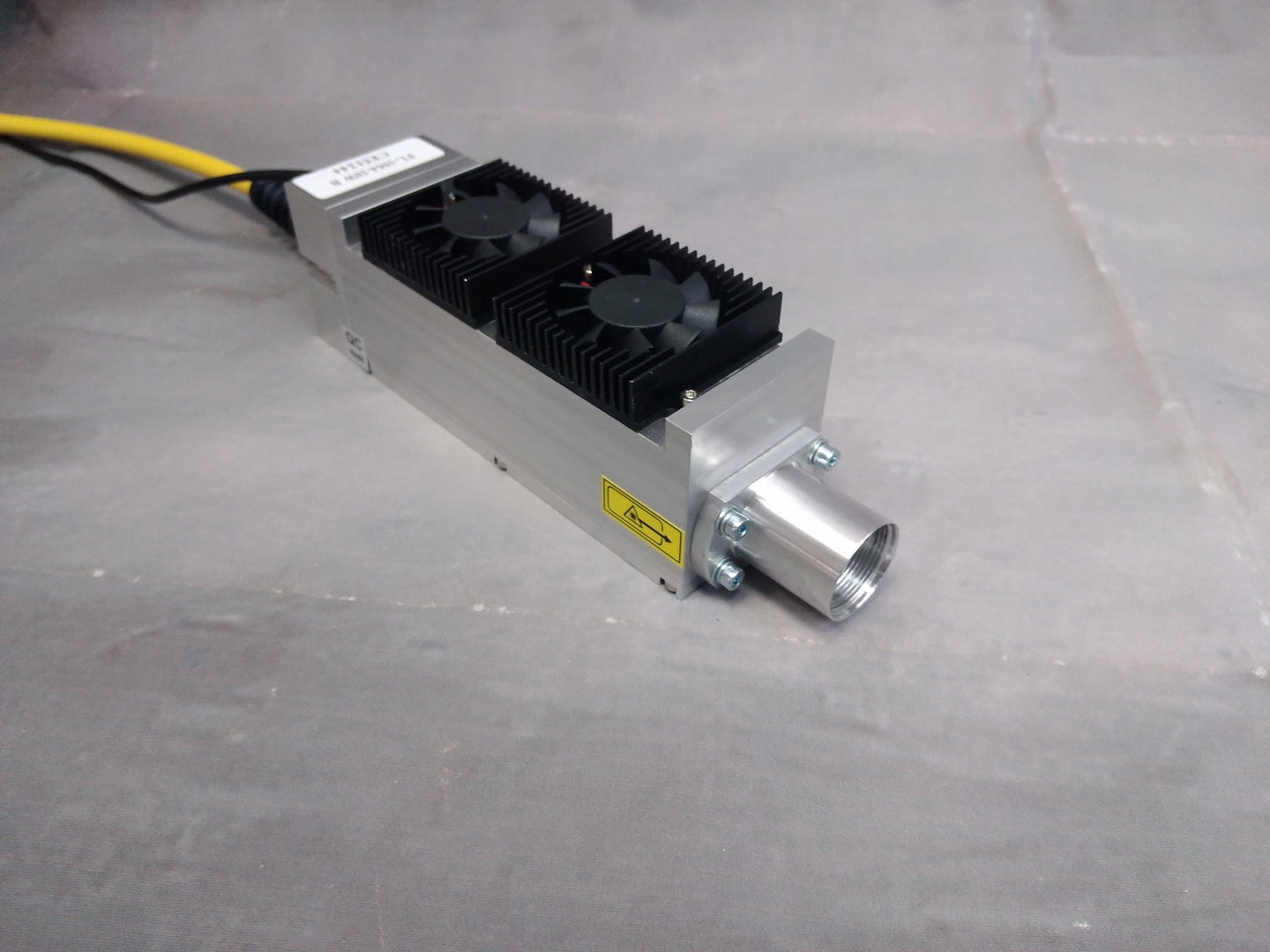

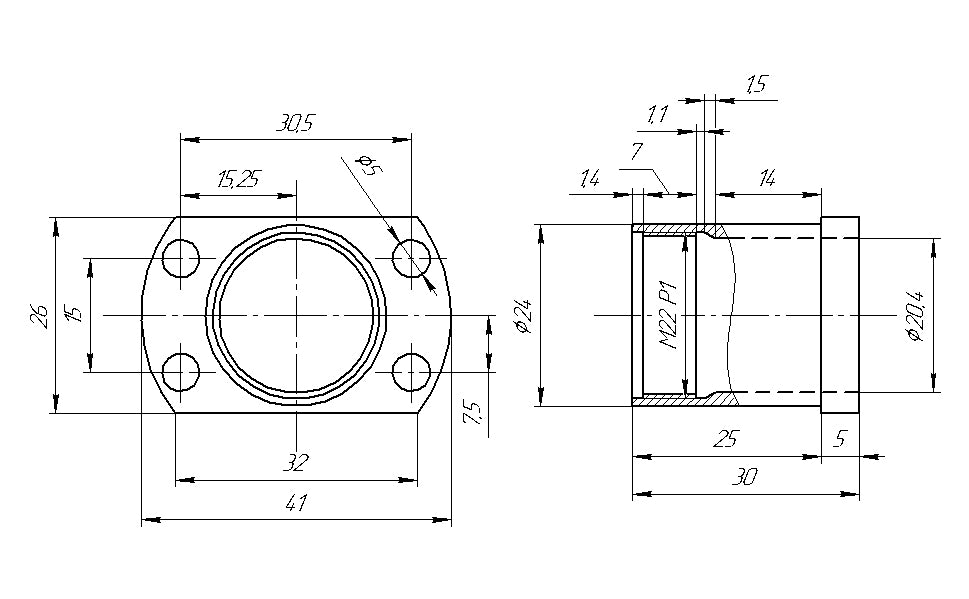

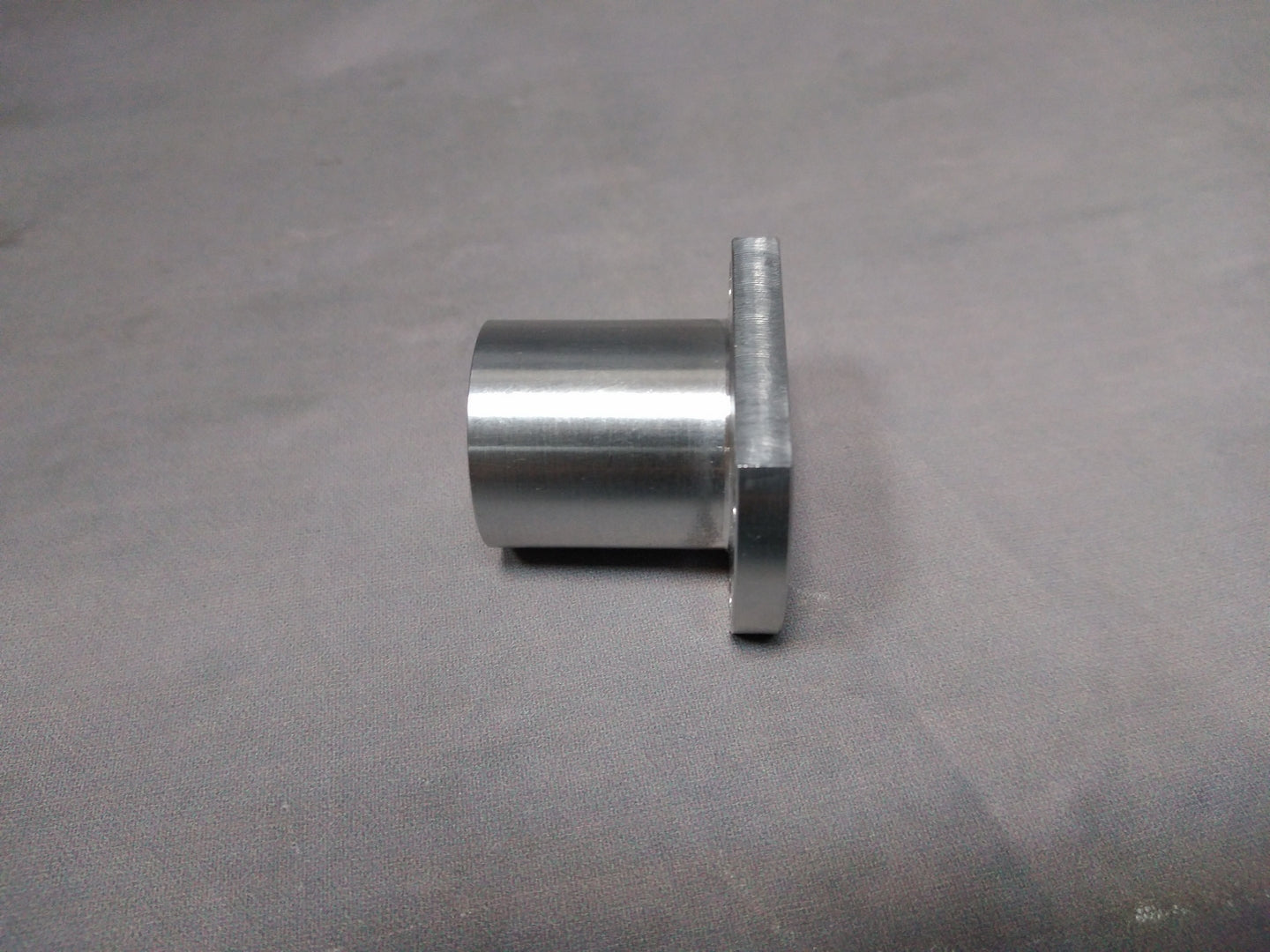

The foundation:
External dimensions: 41x26x30 mm
Weight: 14g

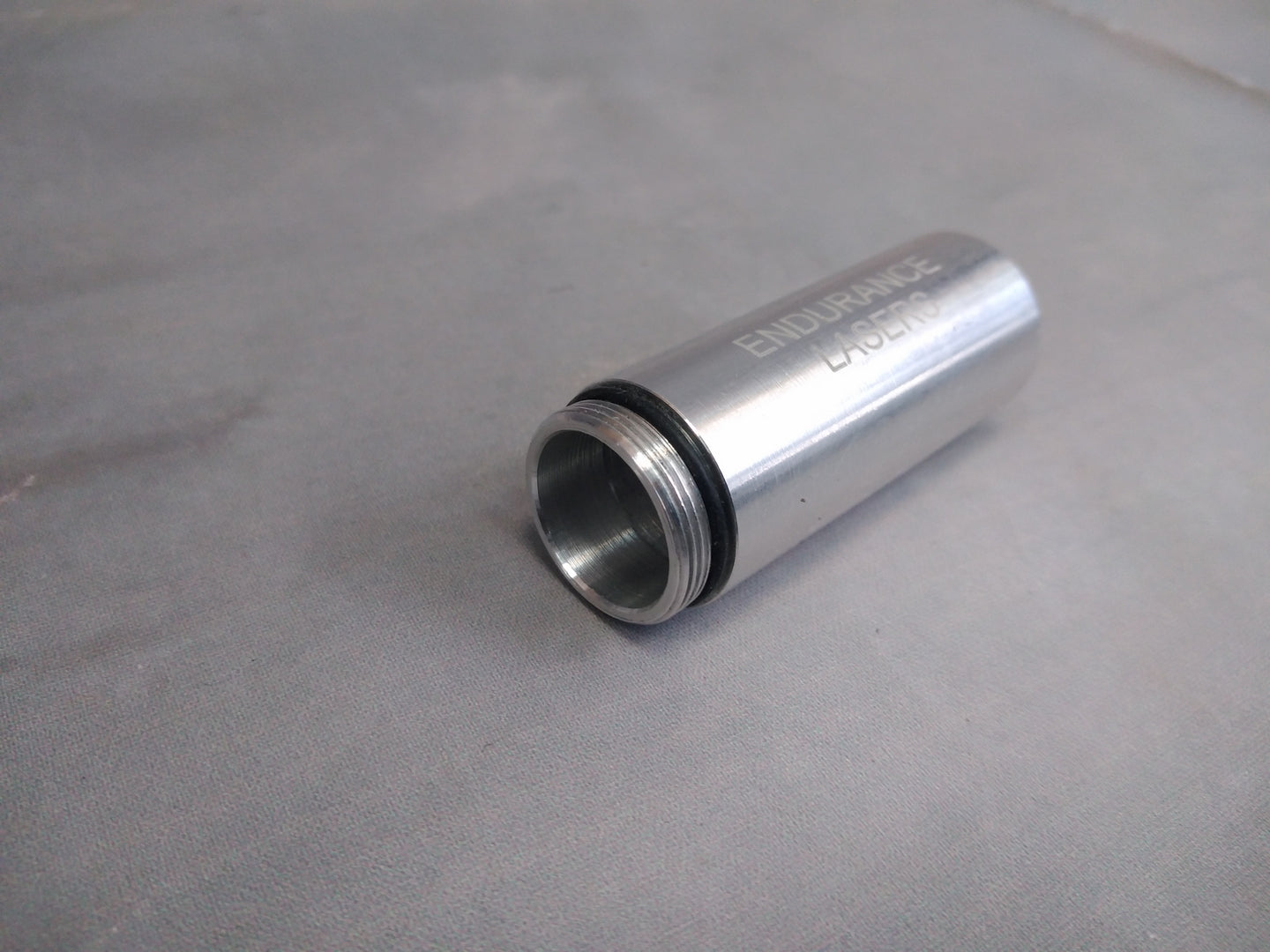

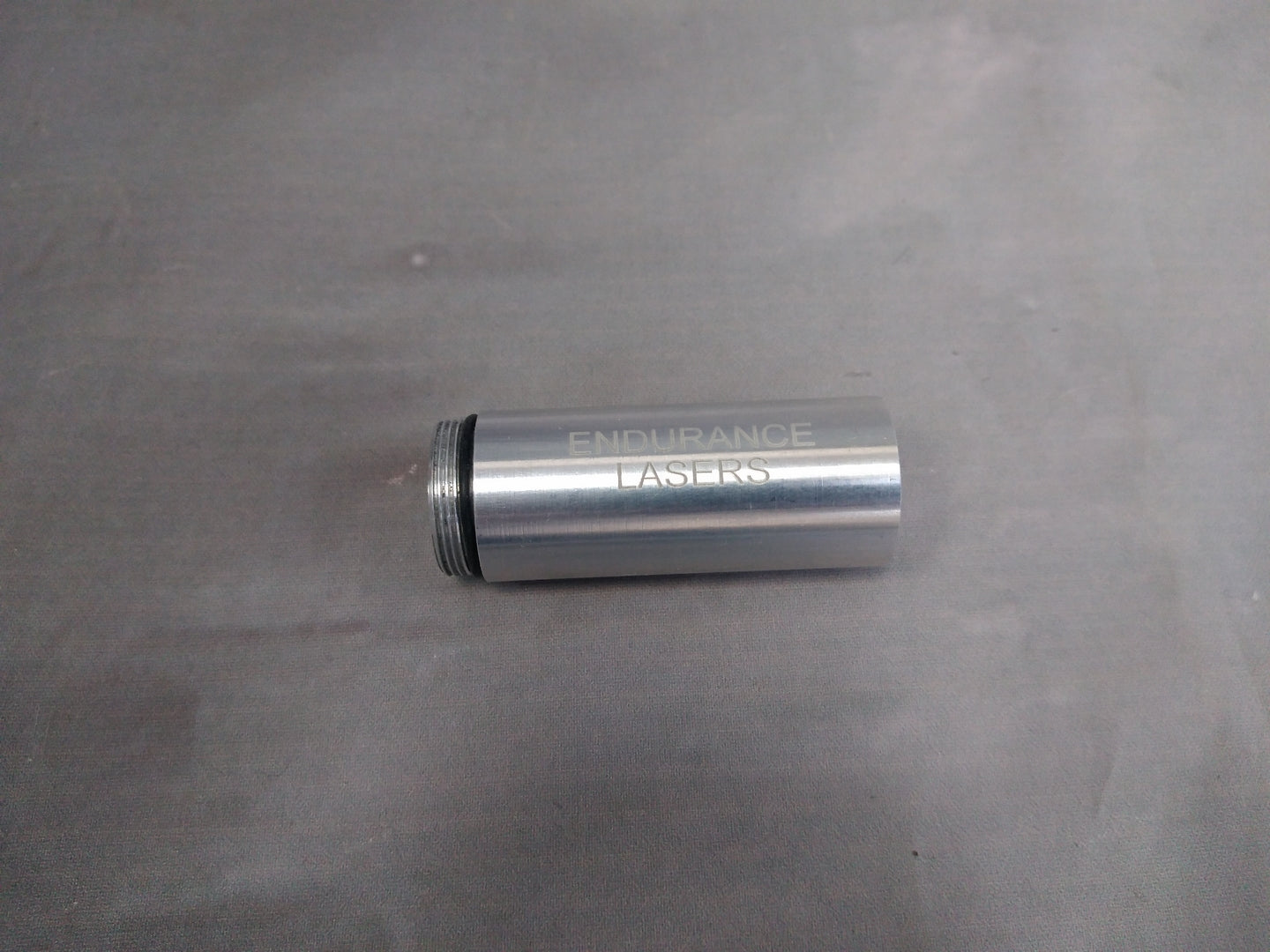

Extension tube (short):
External dimensions: D24x61 mm
Weight: 21g
Increase the distance from the DPSS laser body to the lens by 55 mm

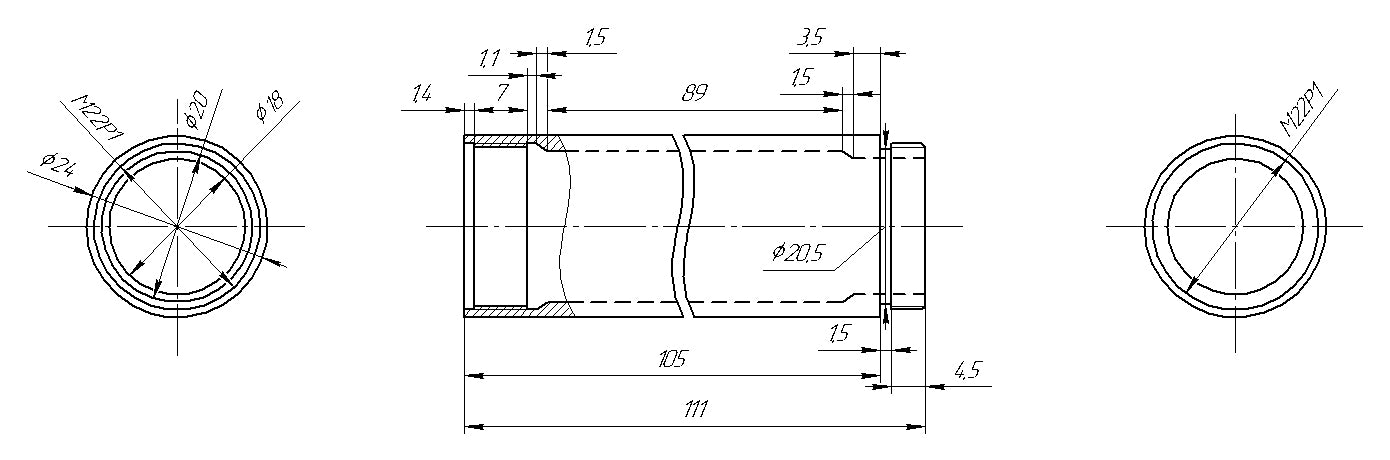

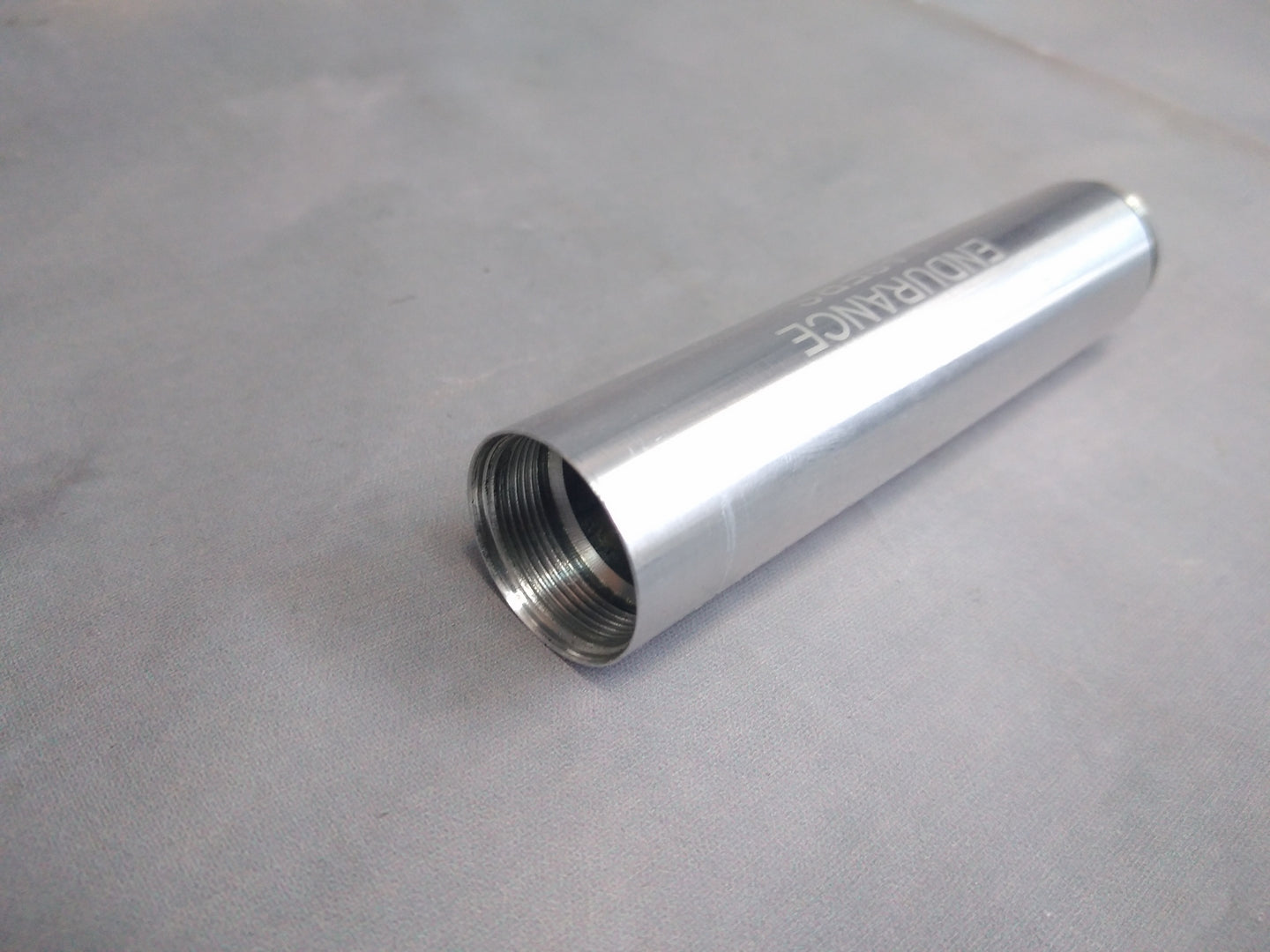

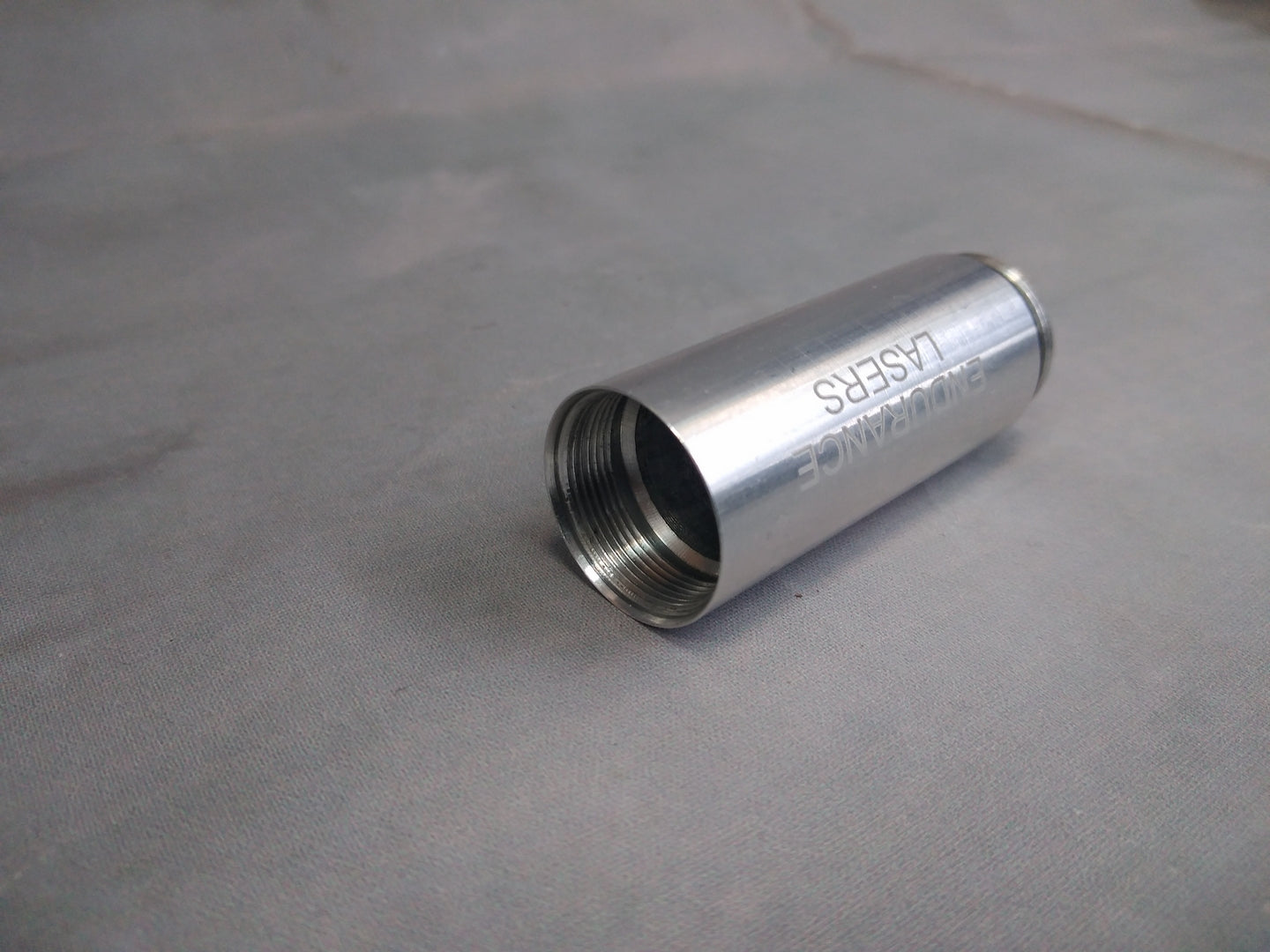

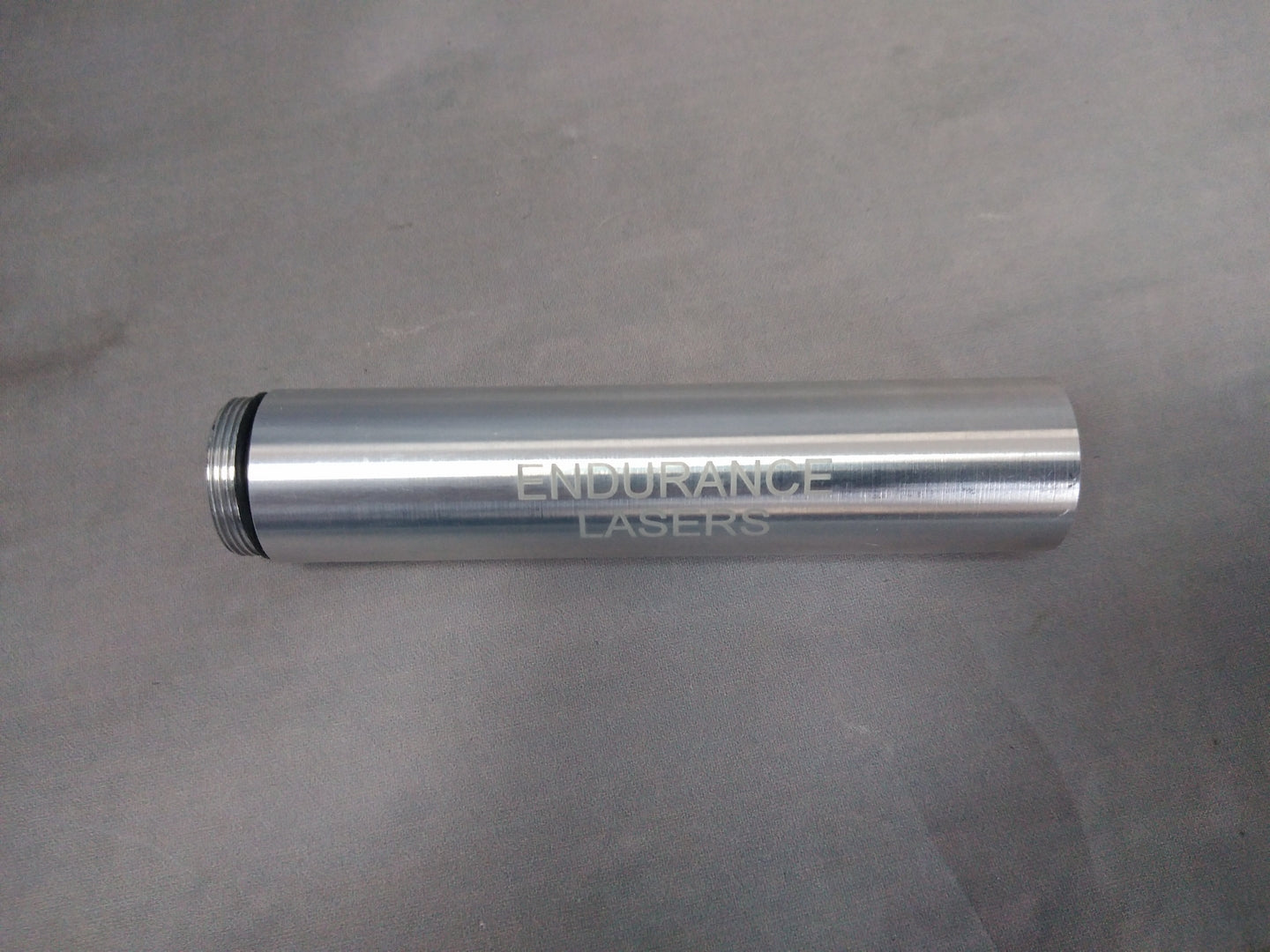

Extension tube (long):
External dimensions: D24x111 mm
Weight: 39g
Increase the distance from the DPSS laser body to the lens by 105 mm

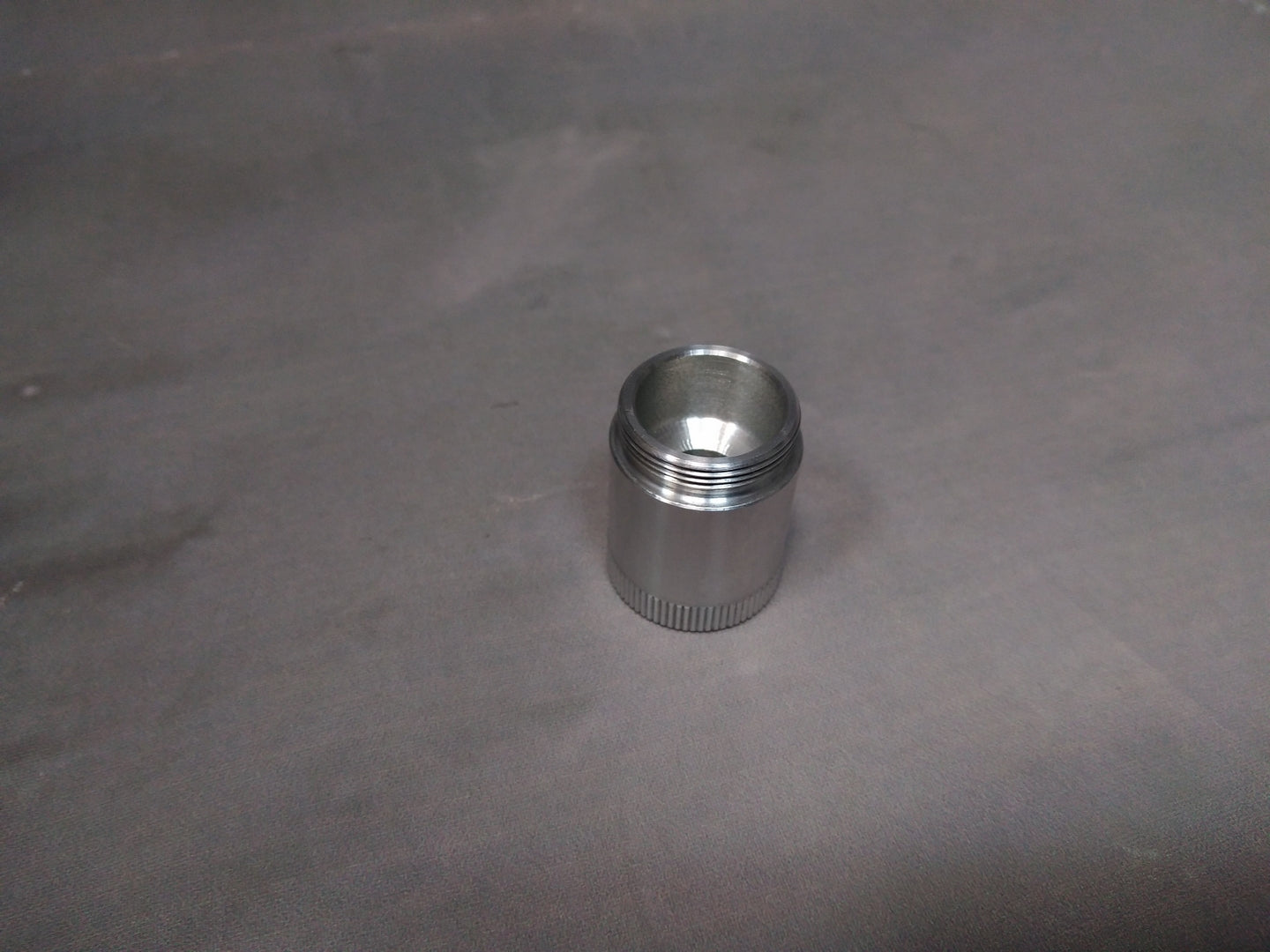

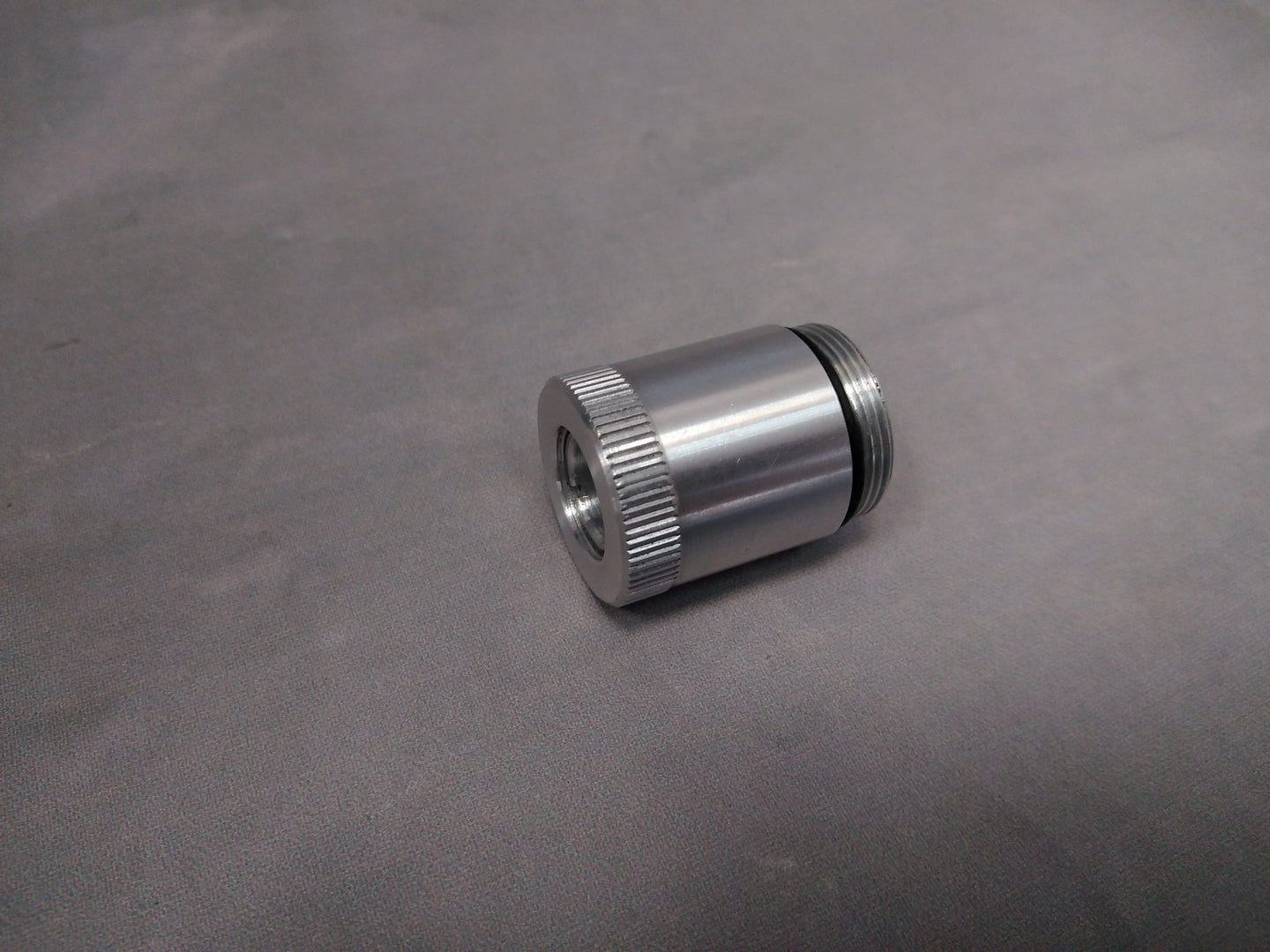

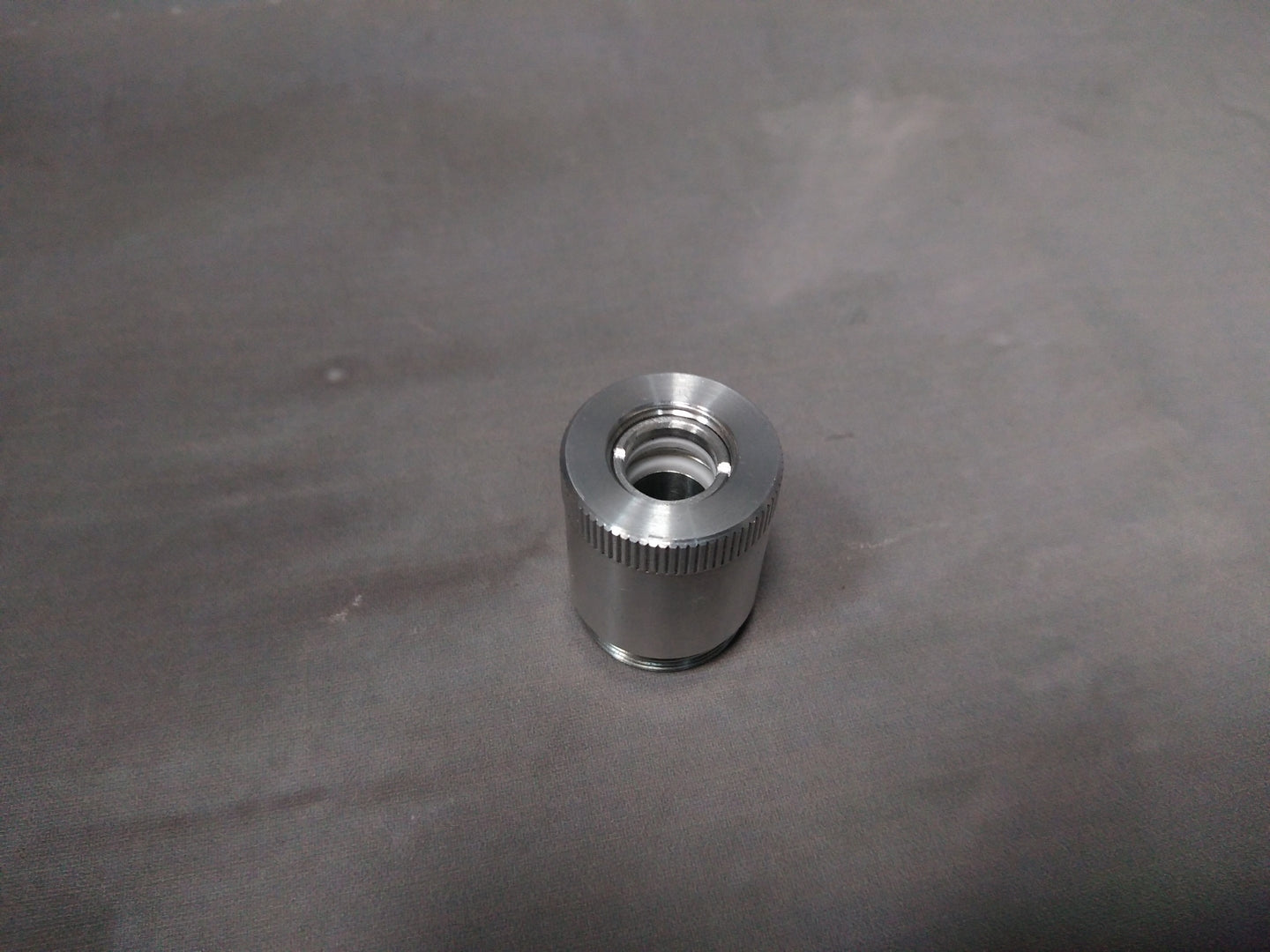

12.5 mm (½ inch) lens holder:
External size: D24x31mm
Weight: 23g

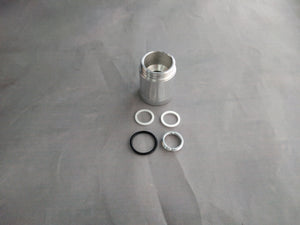

Screws with washers and grovers for attaching to the laser - 4 pcs
Rubber o-rings - 3 pcs
Fluoroplastic gaskets 1.1 mm thick for the lens - 2 pcs

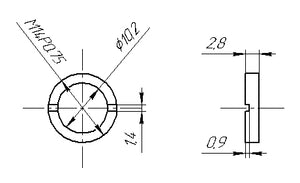

Clamping ring for the lens - 1pc

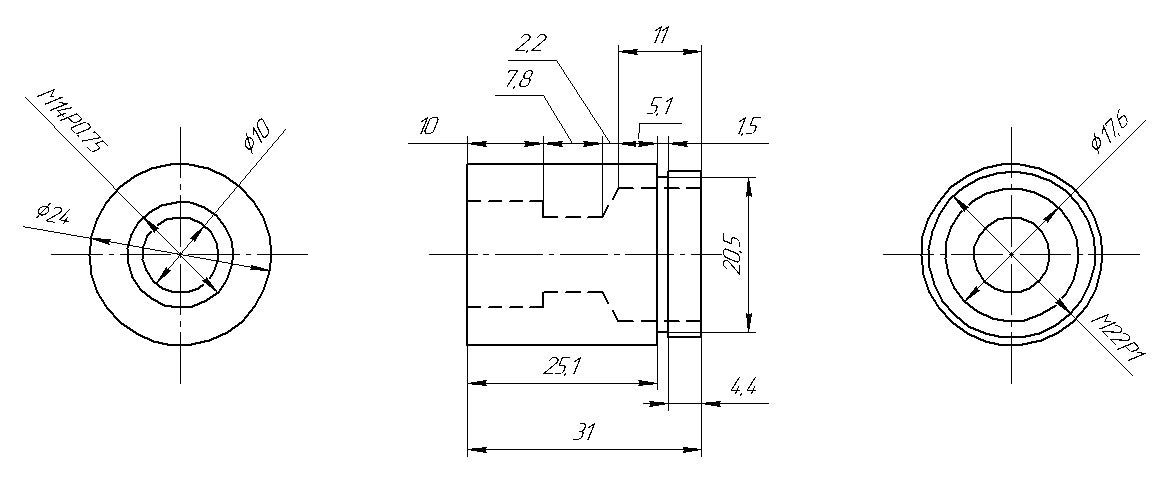

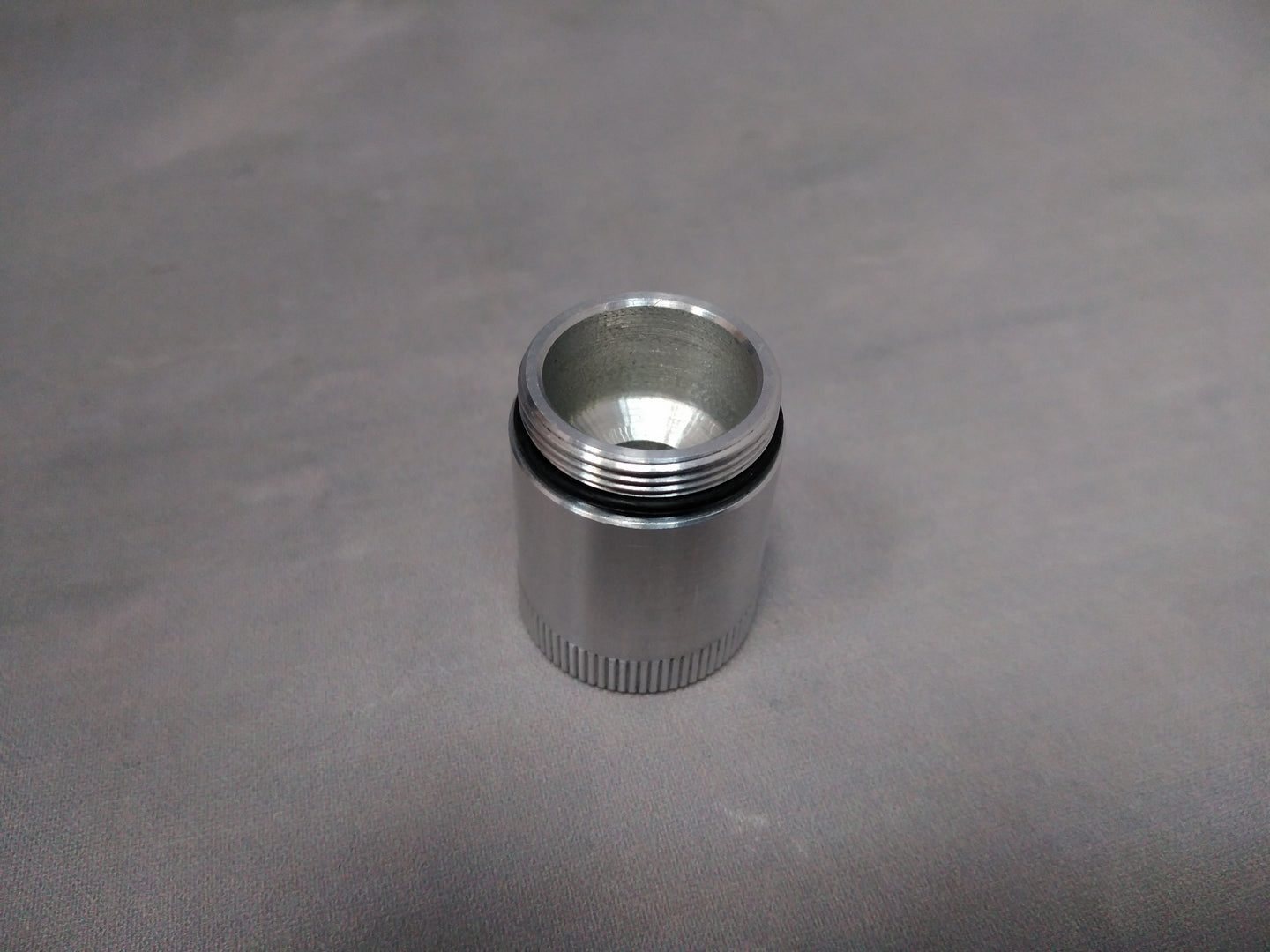

Lens holder, for Endurance optical system, for DPSS lasers 10W, 4W.
External size: D24x31mm
Weight: 23g
Material: Aluminum
Designed to fit a 12.7 mm (½ inch) lens
