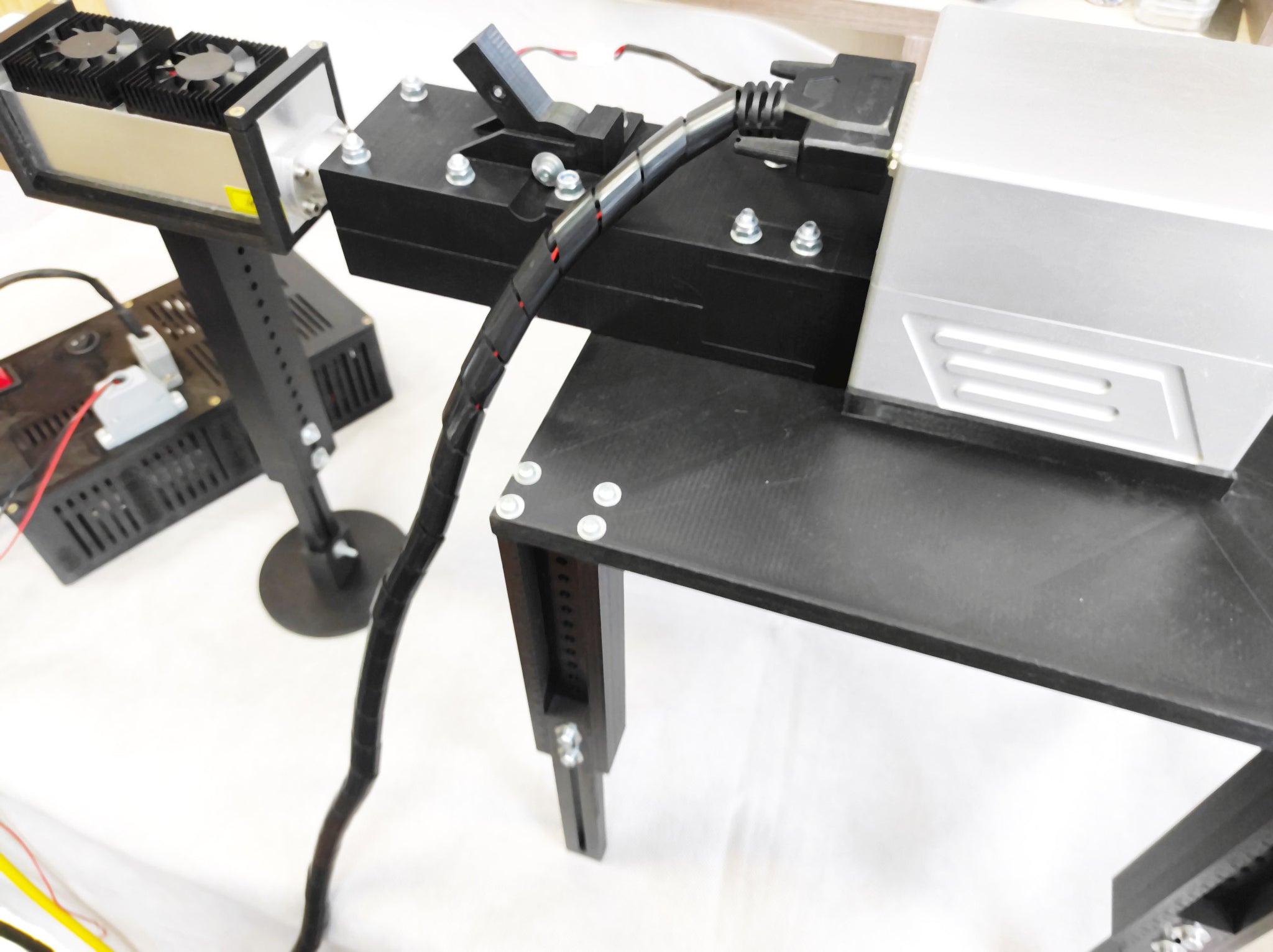

Endurance lasers present a new DIY laser marking frame with Sino galvo galvoscanner for efficient and ultra-fast metal marking/engraving with different laser emitters.

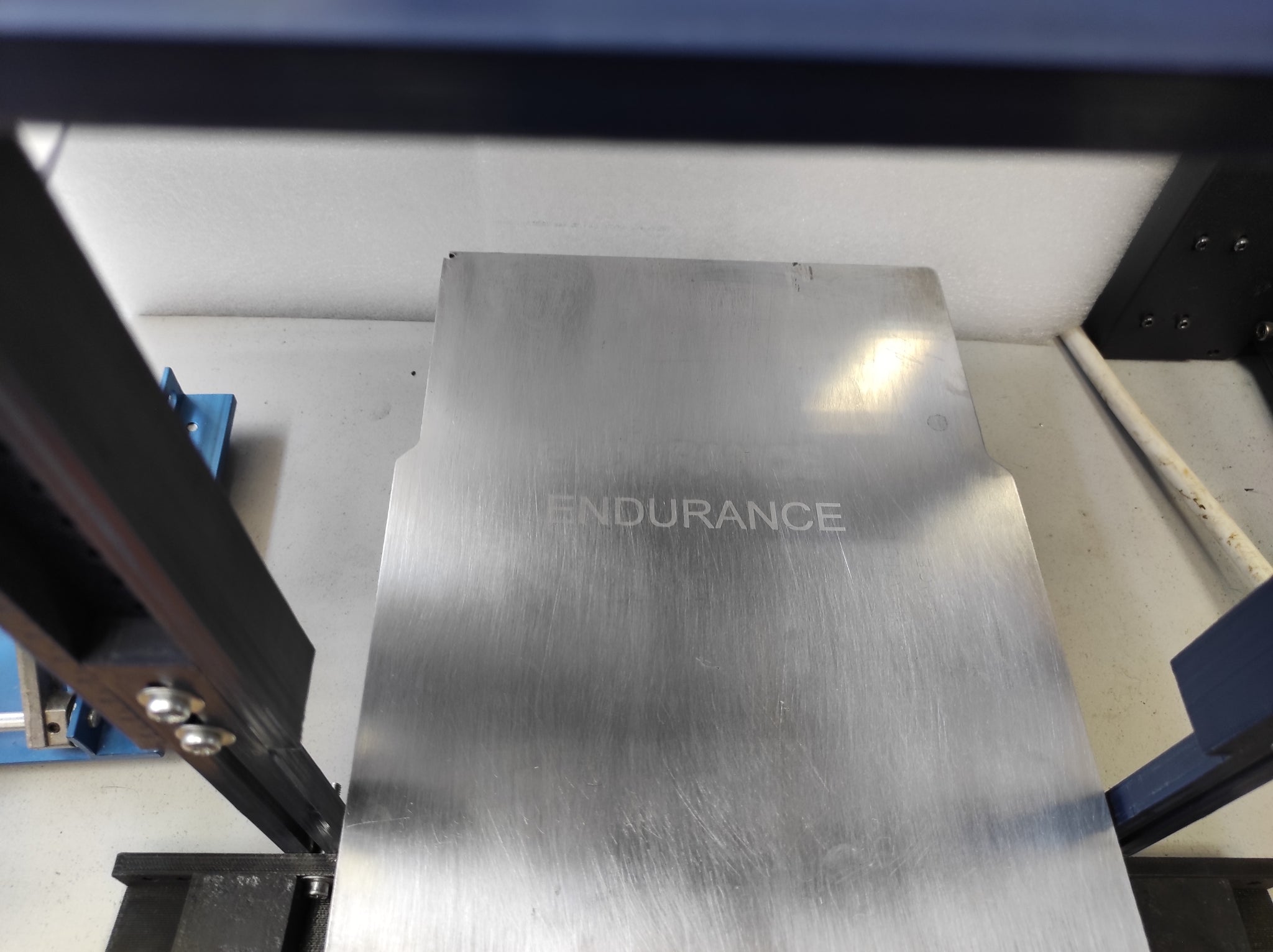

Adding additional letter on Apple Macbook using Endurance 10 watt DPSSL
0.5-0.75 mm aluminum laser cutting with 50 watt Raycus emitter
0.75 mm aluminum laser cutting
Option 1
Laser speed 800 mm / sec
100% power
35 repeats
Option 2 (6 loops)
Speed 5 mm /sec
100% power
+cleaning parameters +
Speed 5000 mm /sec
Power 35%
PLA plastics laser engraving
- Works with free EzCad FREE software.
- Ultra - fast engraving (up to 1000 mm / sec).
- Portable.
- Fully 3D printed.
- Light.
Impressive laser engraving/marking results with an Endurance DIY galvoscanner machine
Color laser engraving "tint colors" (YETI) on titanium!
Ray Johnson says on Facebook:
An industrial laser marking tool - fully 3D printed laser engraving / marking machine.
An aluminum laser marking
2D laser engraving (marking) inside 6 mm transparent acrylic with a galvoscanner
An original acrylic badge.
"Yes You Can" acrylic/plexiglass sign.
Mirror engraving (marking) with an Endurance DIY galvo laser marking system.
A thin metal cutting (0.5 mm - brass, aluminum) with an Endurance galvo system (SINO galvo head)
Photoengraving inside a transparent acrylic - engrave inside the material.
Photoengraving on PLA plastic using 4 watt DPSSL!
Amazing photo on plastics (PLA).
Painted glass laser engraving - foto.
Photoengraving inside thick 25 mm (1") transparent acrylic
We offer 4 types of DIY galvo engraving/marking machines with different laser emitters (4-50 real watt power output):
Components - get all you need to get started.

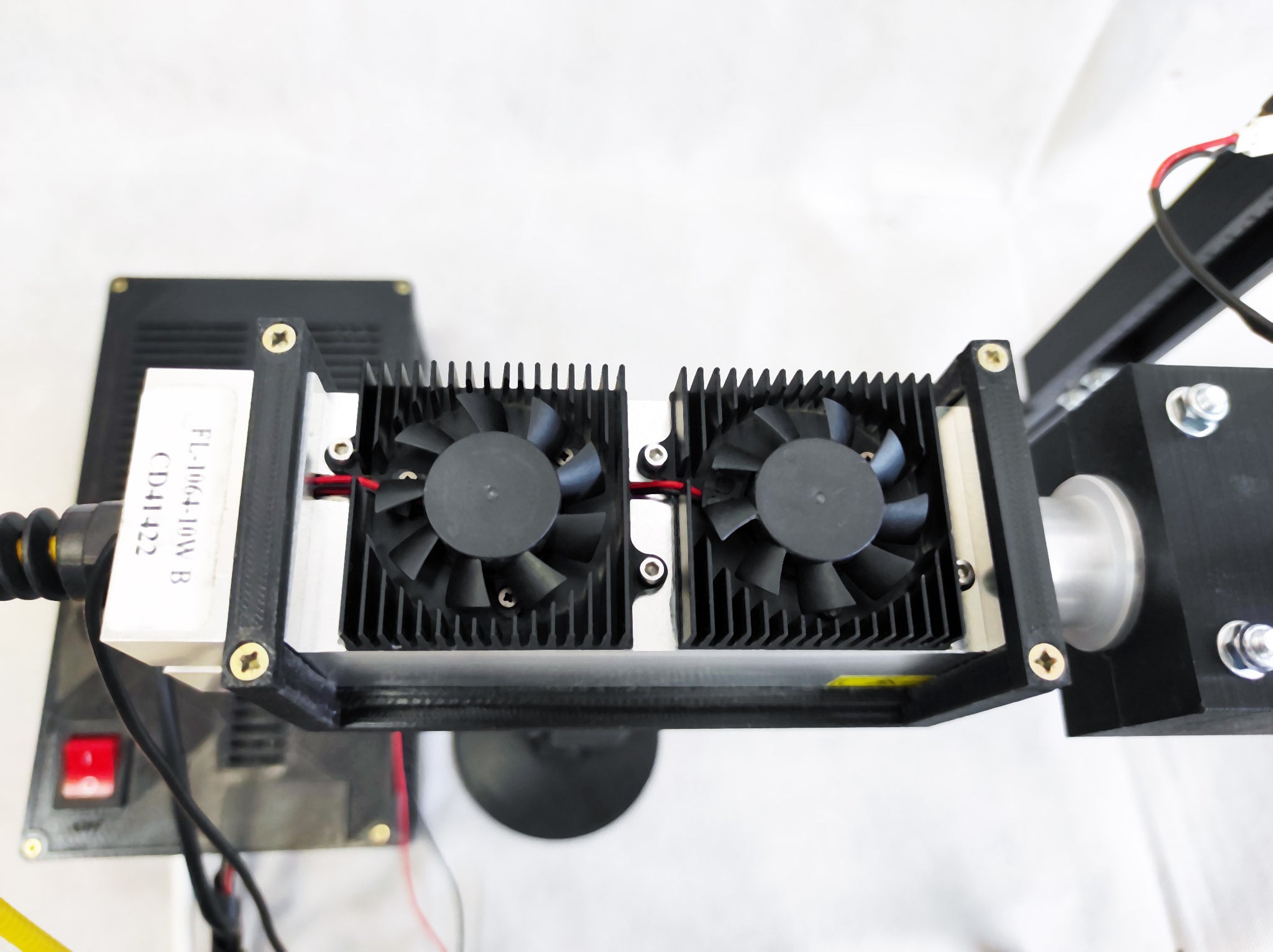

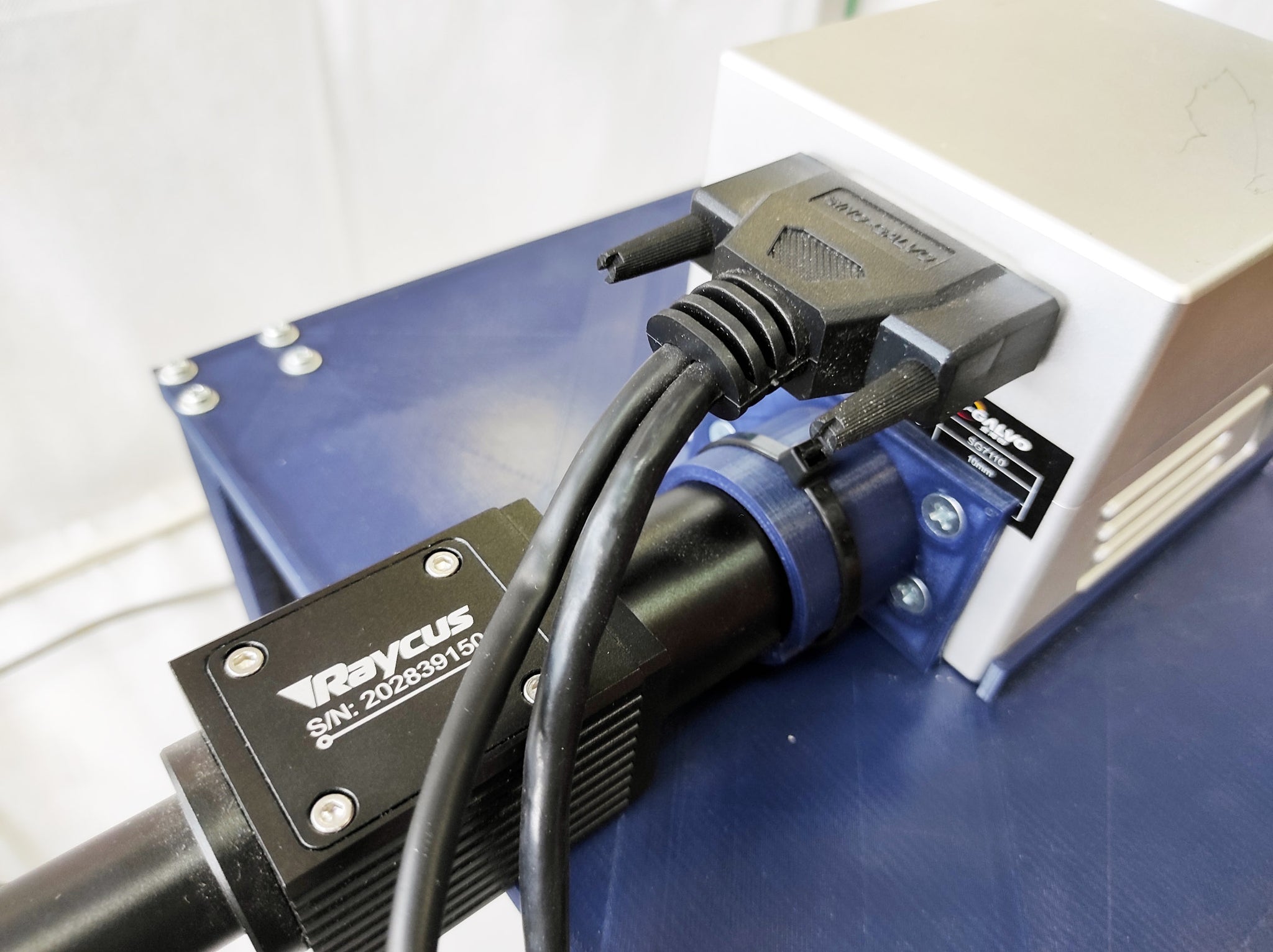

1. Laser emitter with the laser driver (Endurance or Raycus laser emitters)

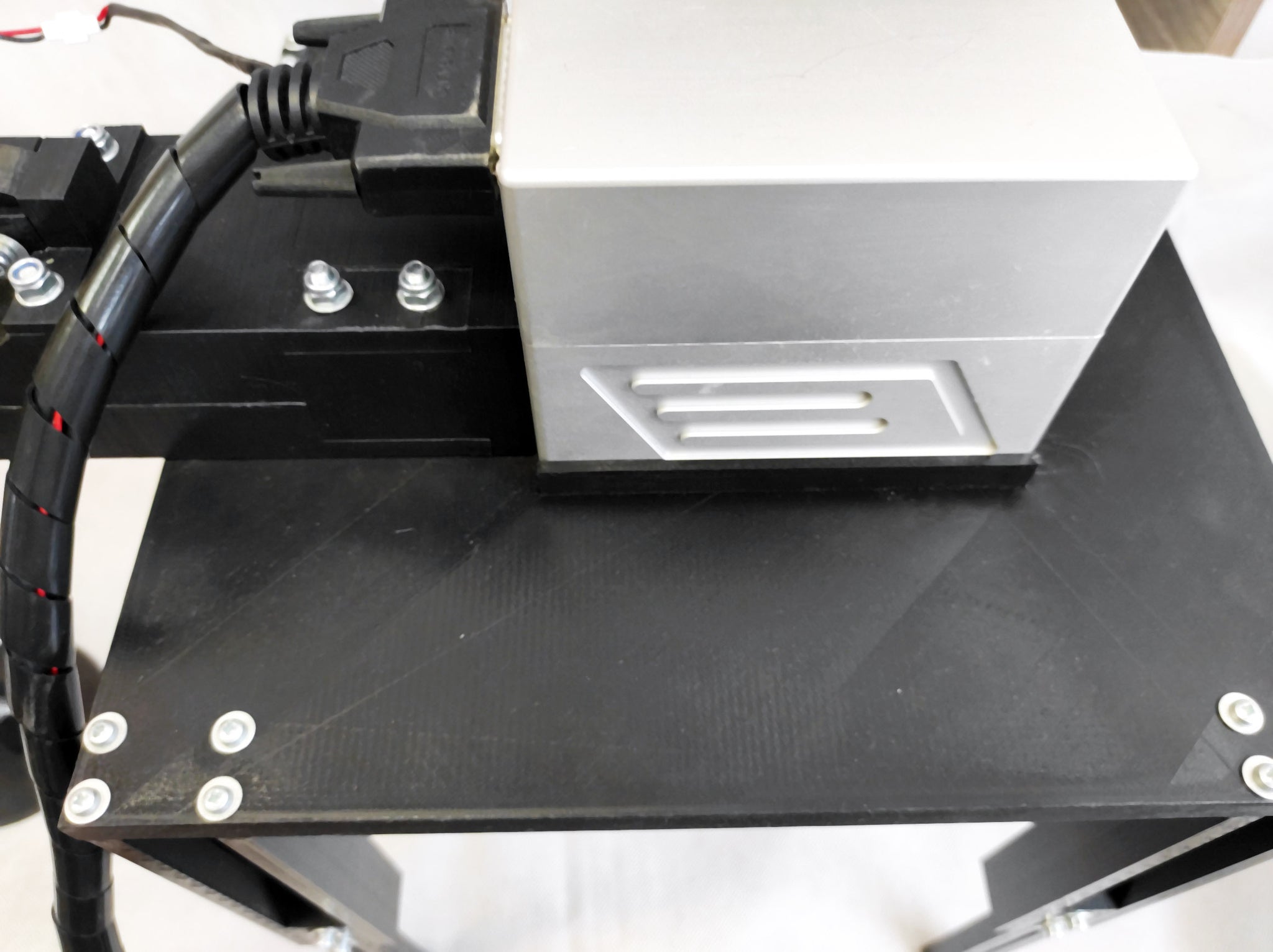

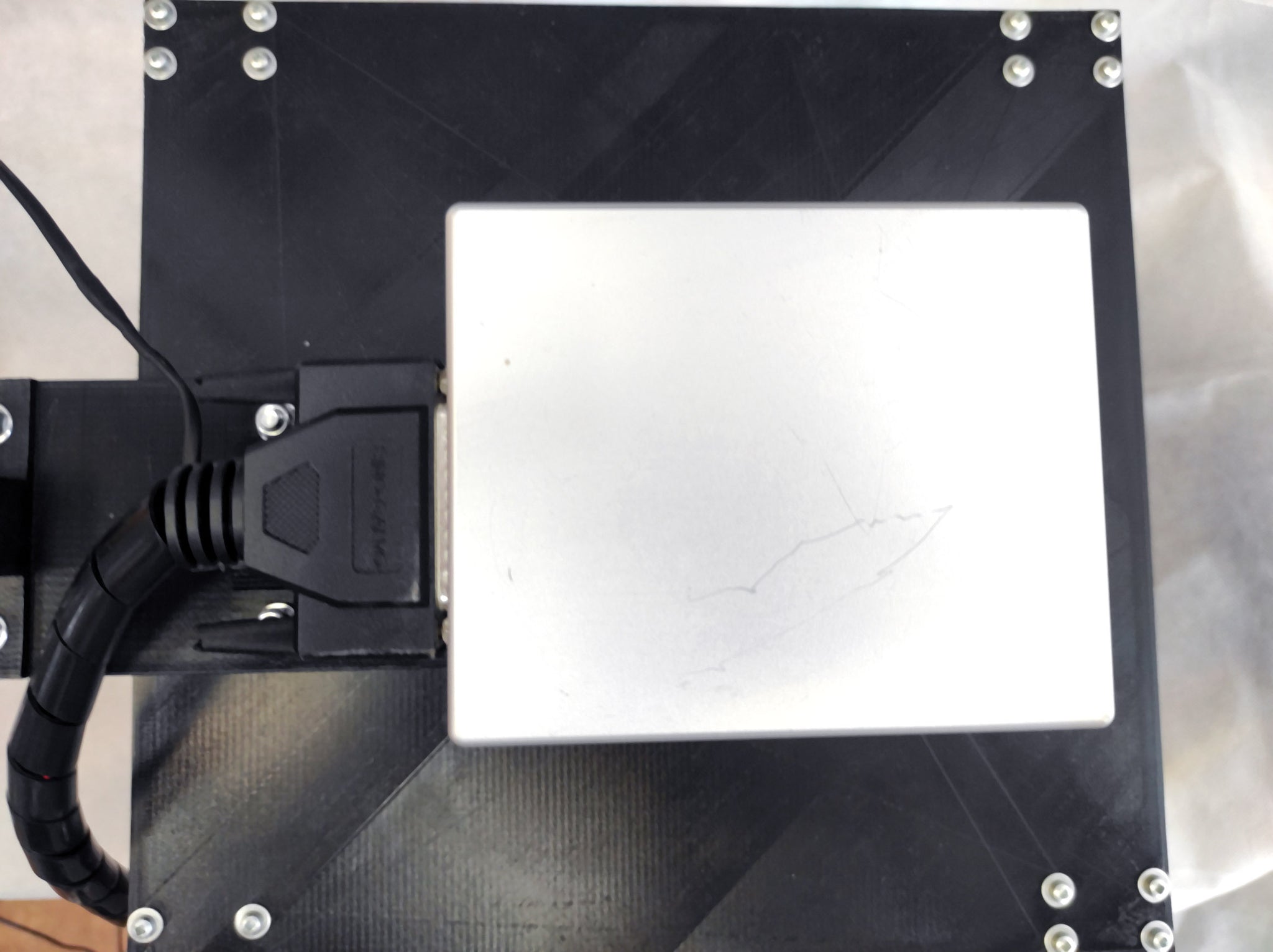

2. Galvo scanner (Sino galvo head)

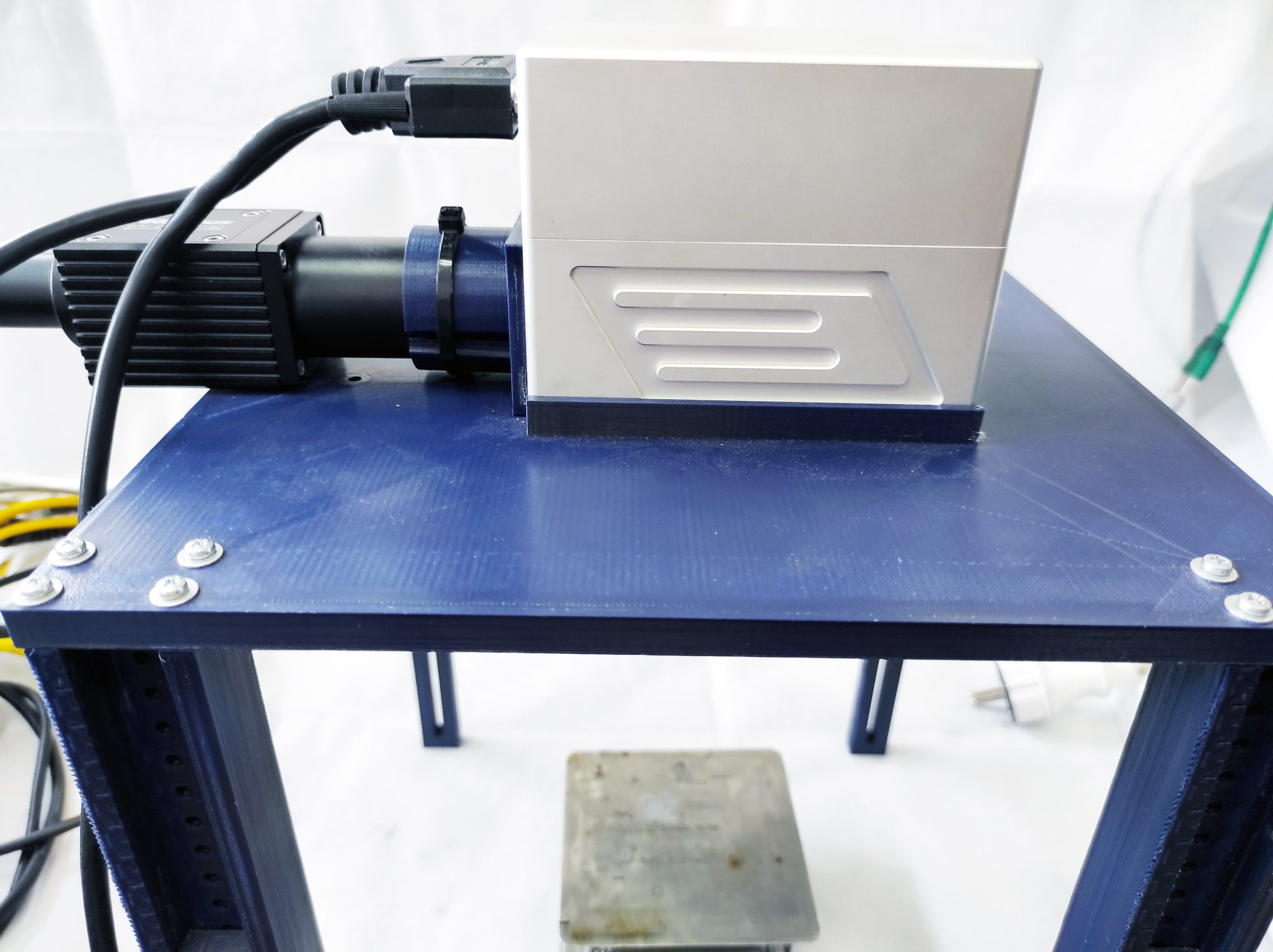

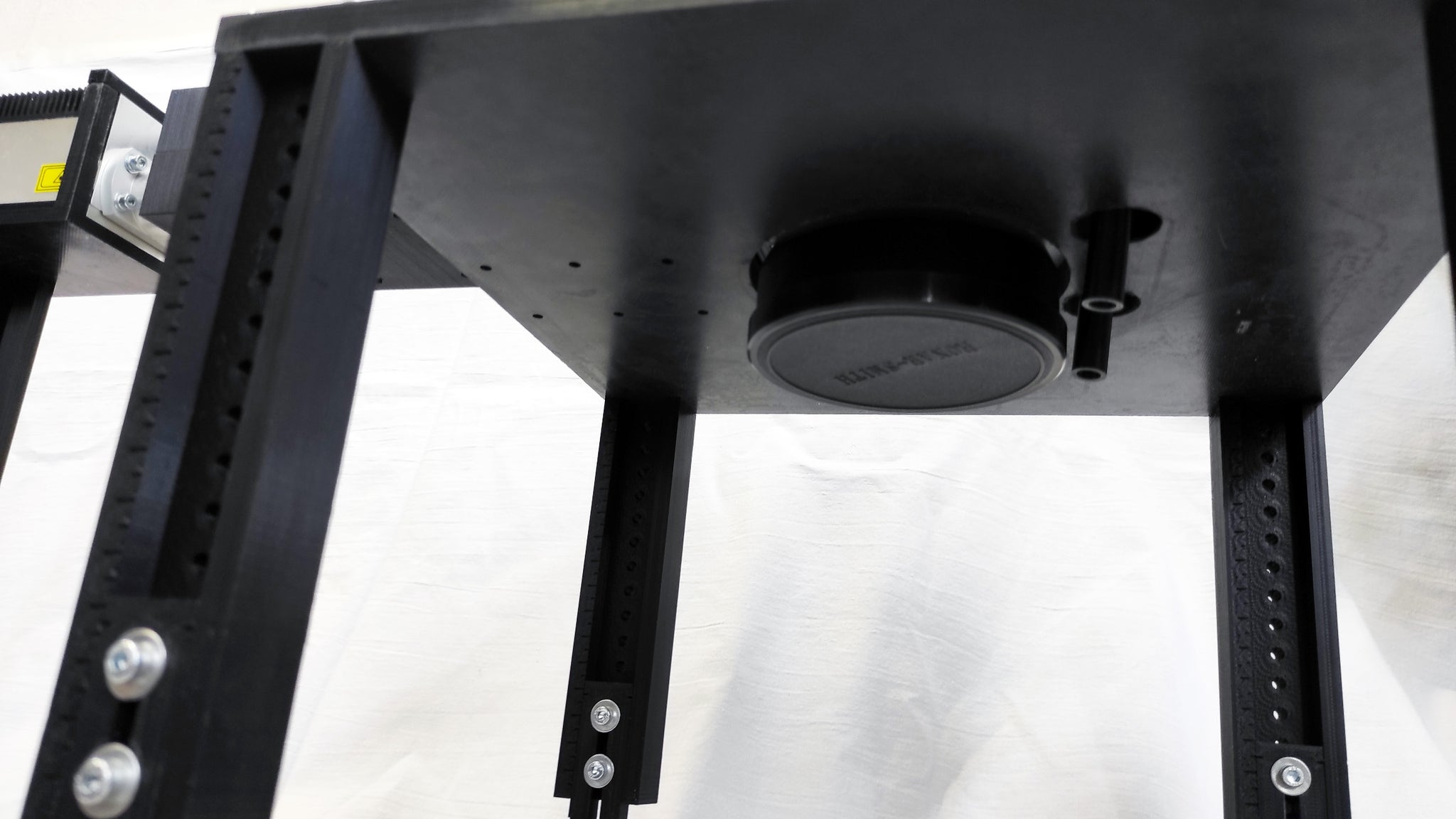

3. Holder for the galvo scanner (3d Printed_
4. Controller for the galvo (BJJCZ LMCV4-FIBER-M)

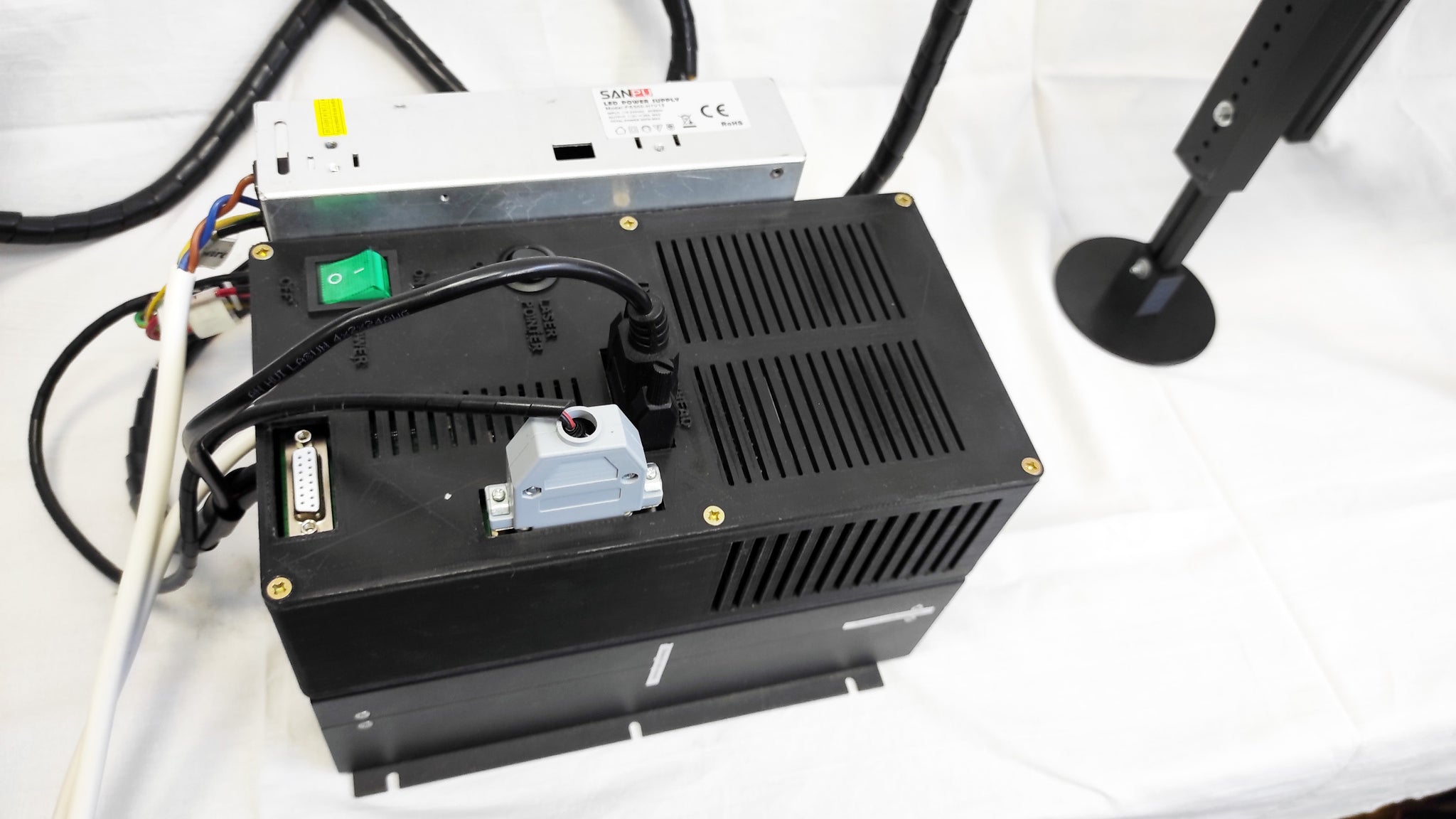

5. AC/DC for the laser (110-220V)
6. AC/DC for the galvo (110-22v)

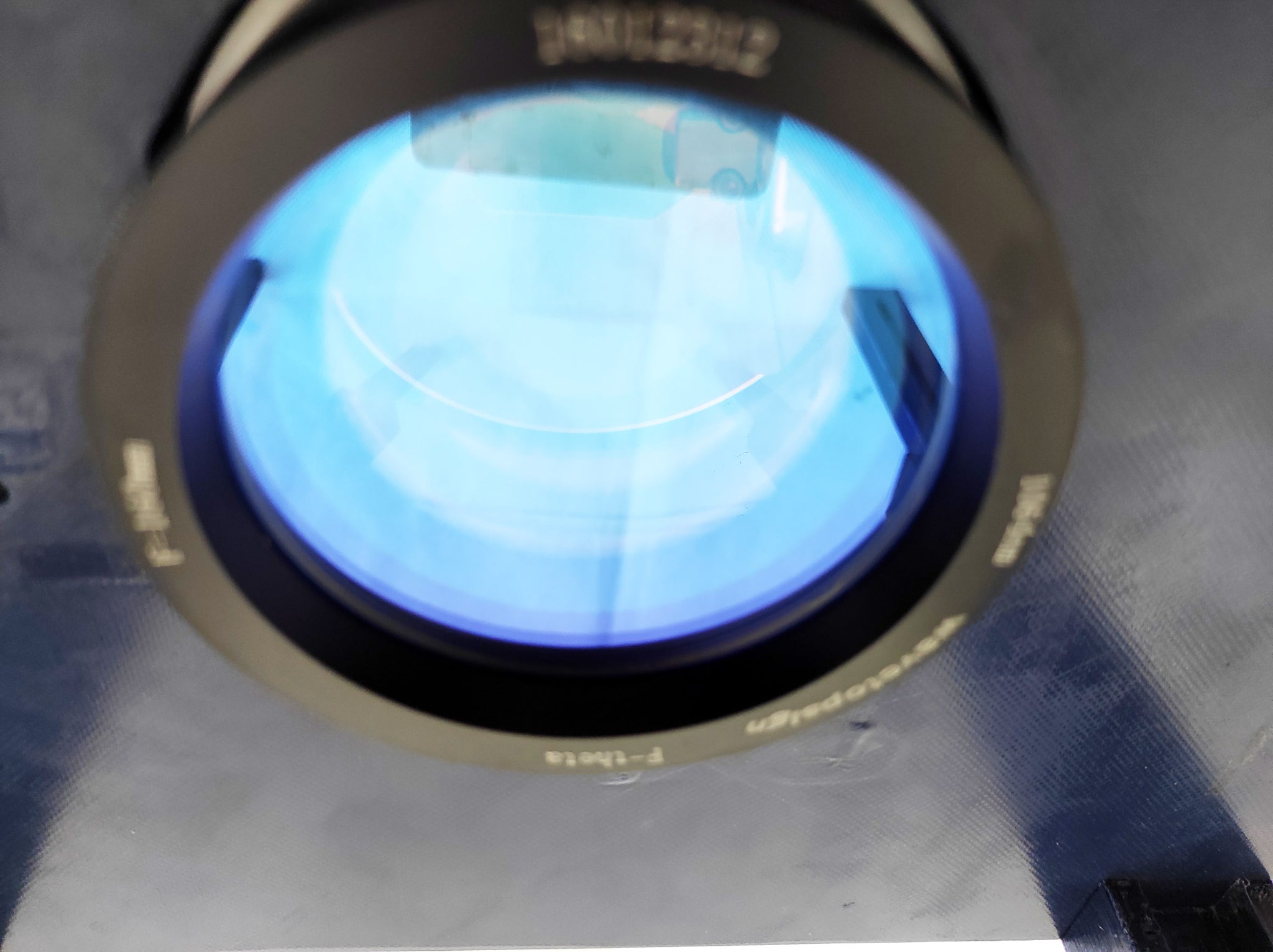

7. Focusing lens for the galvo (theta lens)
Mirror engraving using a galvoscanner.
A perfect laser marking /engraving machine for your business. More affordable than anything on the market.
Mark your tags for your production.
Titanium color engraving (done on a DIY galvonometer)
Stainless steel color engraving "YETI" colors.
Black engraving on stainless steel - an advanced marking instrument.
Leather engraving + leather cutting
1 mm aluminum metal cutting with Raycus 30 watt laser emmiter
Metal cutting with 30 watt Raycus laser emitter
Cutting of 0.5 mm stainless steel with 30 watt fiber laser
0.5 mm aluminum laser cut
0.5 mm brass laser cut (in-depth marking)
0.5 mm copper laser cut (small heart shape)
Laser stone (rock, granite) engraving
4 watt DPSS tech specs
Items of specs | Testing |
Rep. rate | 19.01kHz |
Pulse duration | 7.2ns |
Average power | 4.27W |
Ave power stability
(over 4 hours) |
0.585% |
Transverse mode | Multimode |
Beam diameter | ~6mm |
Beam divergence, full angle | <1.5mrad |
Beam height from base | 16.5mm |
Dimensions of Laser Head | 297×45×53.8mm3 |
Weight of Laser Head | 0.86kg |
Power Supply | 12V/25A DC |
Integrated Driver | PSU-FL-OEM |
10 watt DPSS tech specs
20-50 watt fiber Raycus tech specs
Model | RFL-P20QB | RFL-P30QB | RFL-P50QB |
Wavelength(nm) | 1060~1085 | 1060~1085 | 1060~1085 |
Polarization | Random | Random | Random |
Optical Isolator | Yes | Yes | Yes |
Nominal Average Output Power (W) | ≥20 | ≥30 | ≥50 |
Single Pulse Energy (mJ) | 1@20kHz | 1@30kHz | 1@50kHz |
Beam Quality(M2) | <1.5 | <1.5 | <1.6 |
Beam Diameter(mm) | 7±1 | 7±1 | 6~8 |
Pulse Duration(ns) | <120@20kHz | <120@20kHz | <150@50kHz |
Pulse Repetition Rate(kHz) | 20-60 | 30-60 | 50-100 |
Output Power Tunability(%) | 10-100 | 10-100 | 10-100 |
Output Fiber Cable Length(m) | 2.0 | 2.0 | 2.0 |
Working Voltage(VDC) | 24±1 | 24±1 | 24±1 |
Power Consumption(20℃)(W) | 200@20℃ | 300@20℃ | 340@20℃ |
Cooling | Forced Air Cooled | Forced Air Cooled | Forced Air Cooled |
Dimension W×D×H(mm) | 215×286×95 | 215×286×95 | 260×391×120 |
Operating Temperature(℃) | 0℃~40℃ | 0℃~40℃ | 0℃~40℃ |
Store Temperature(℃) | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ |
Humidity(%) | ≤80% | ≤80% | ≤80% |
A DIY PCB. Make your own circuits with an Endurance DIY galvo engraving system.
You get all you need to start your laser marking/engraving process right away!
What's inside the set:

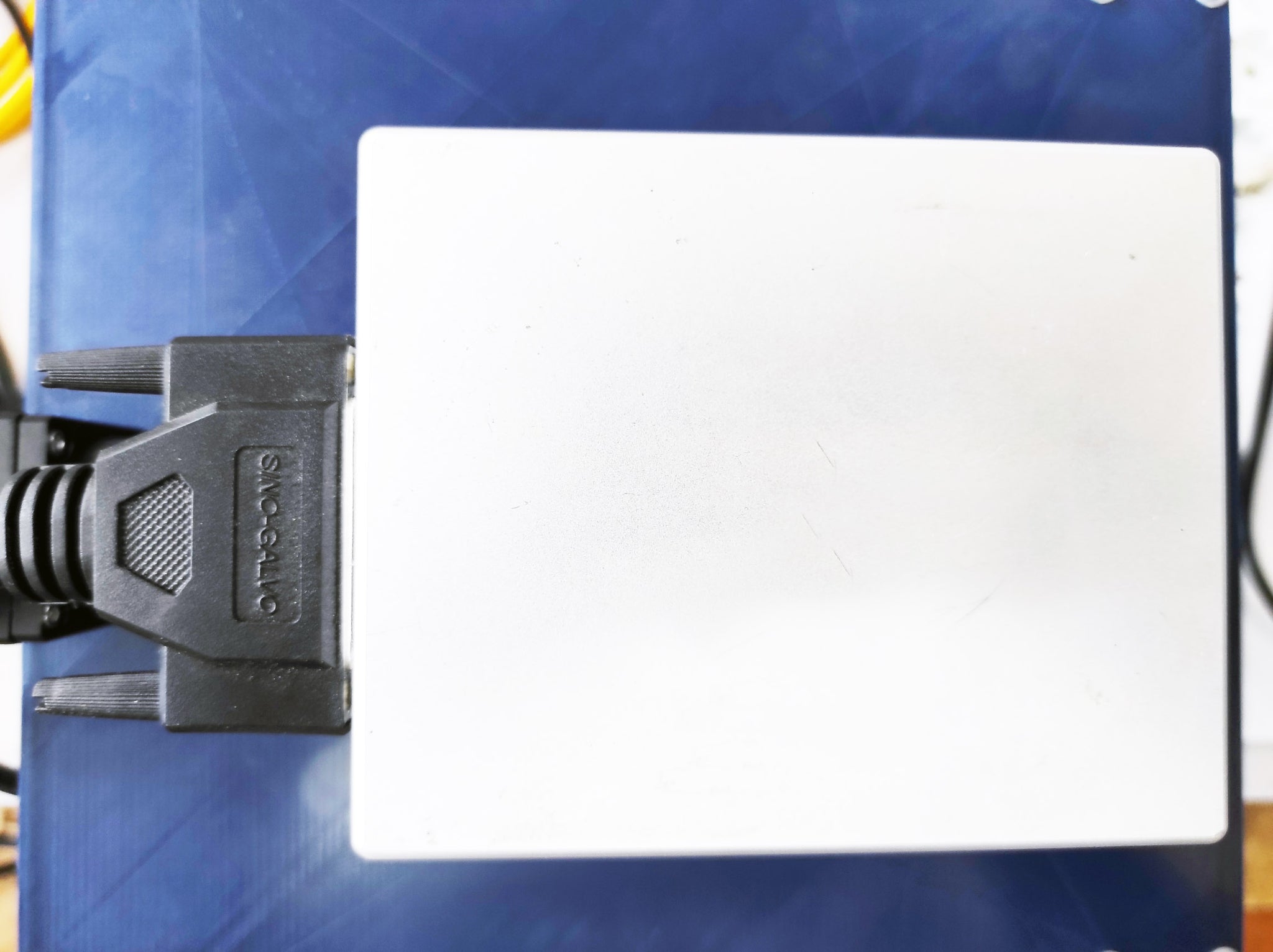

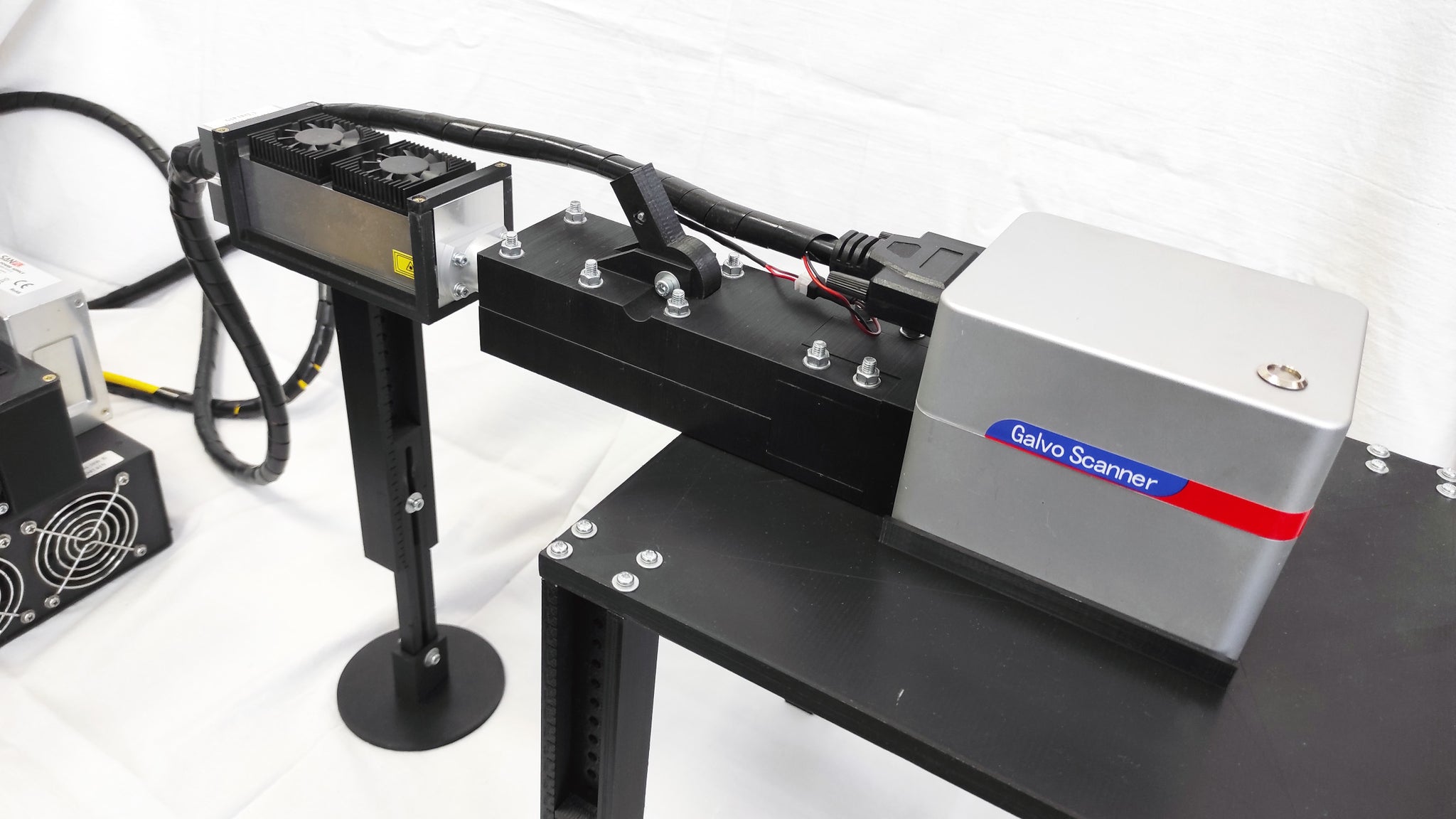

Sino galvo
Galvanometer connection wires
Control Board for Sino Galvo
Power supplies for galvanometer and control board

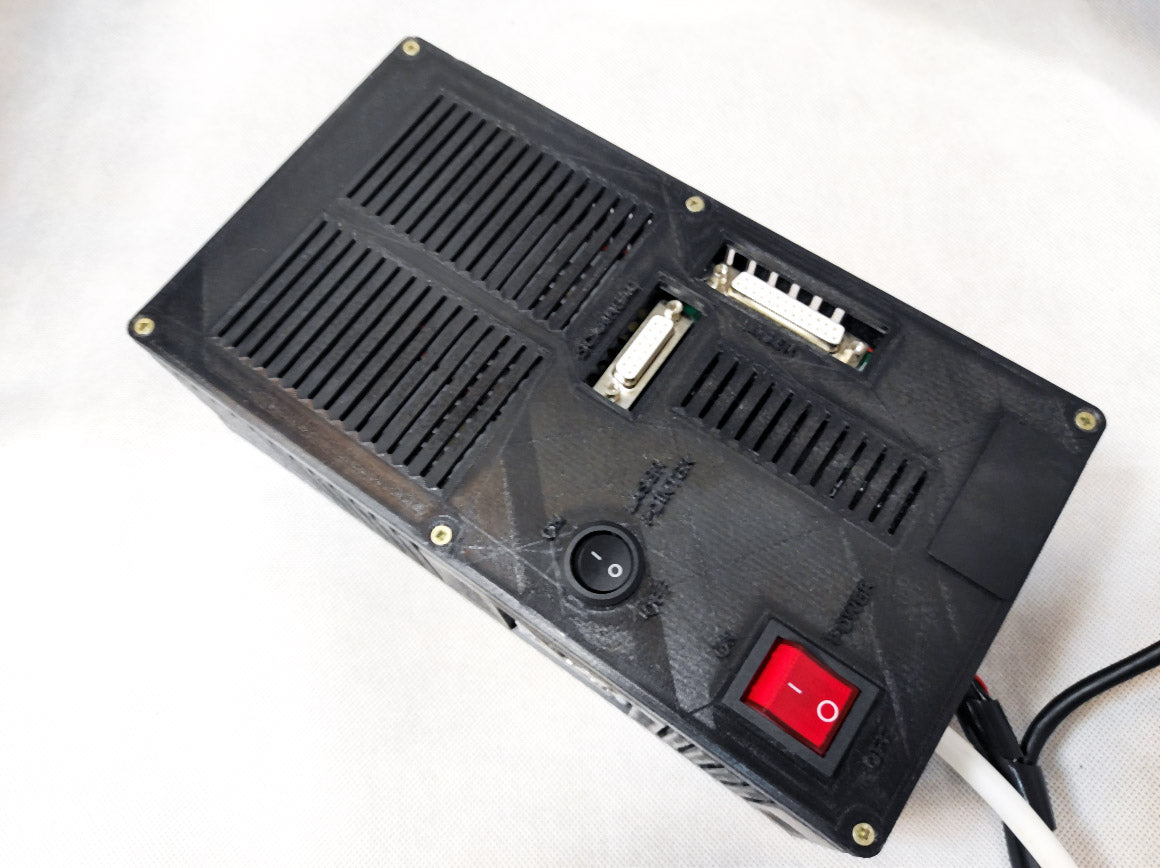

Enclosure for power supplies and control board
Telescope (DPSS only)

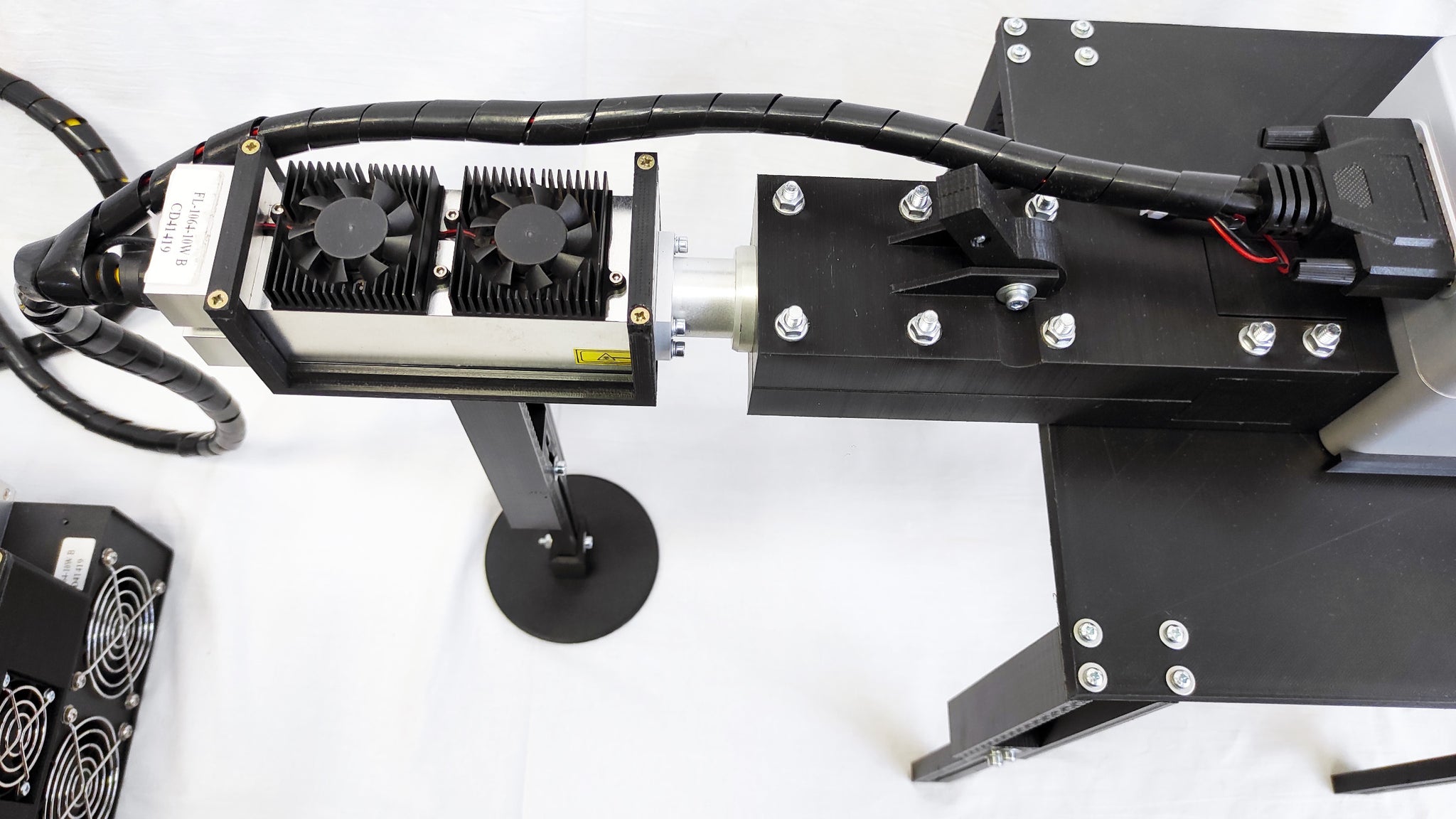

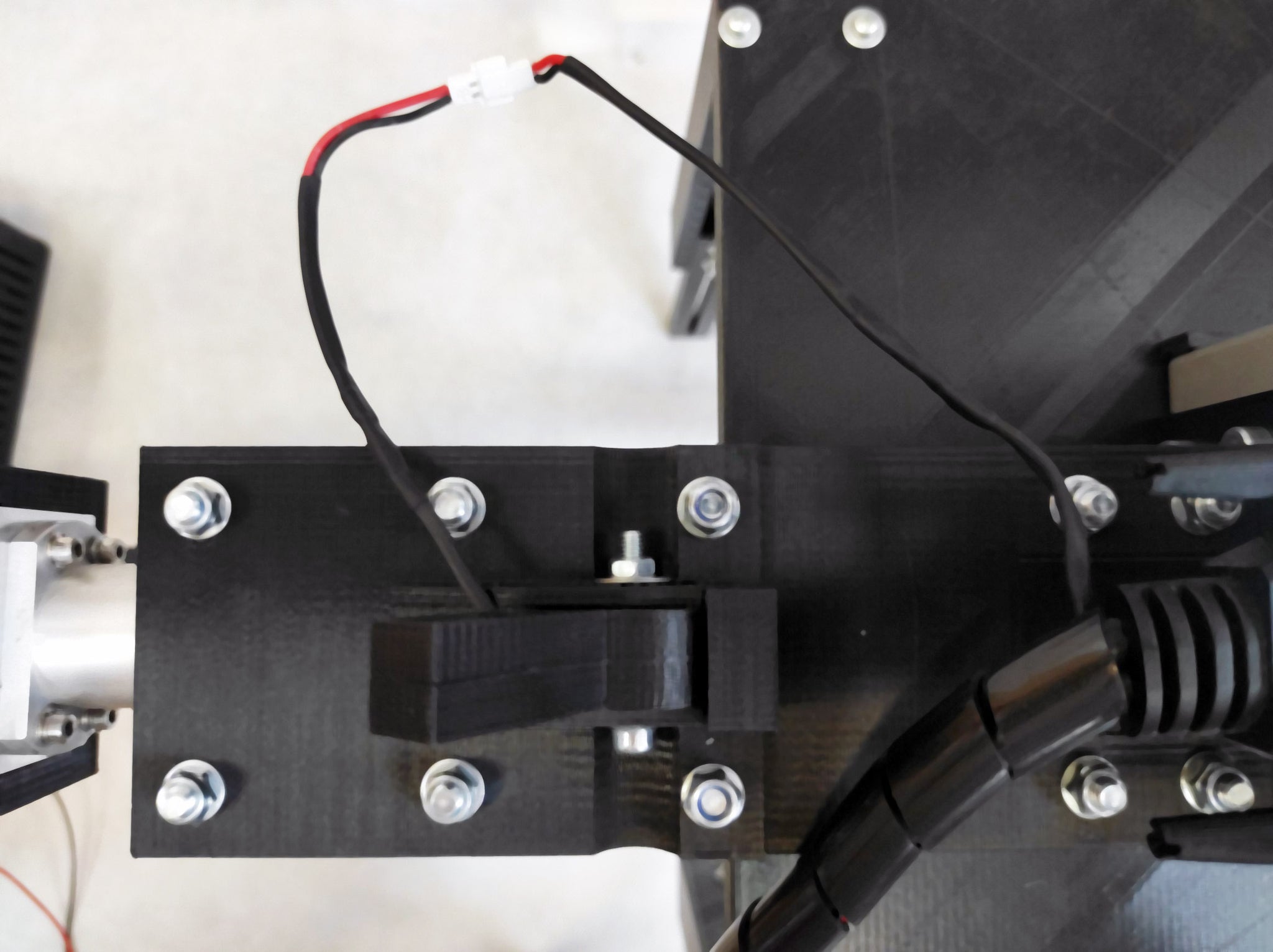

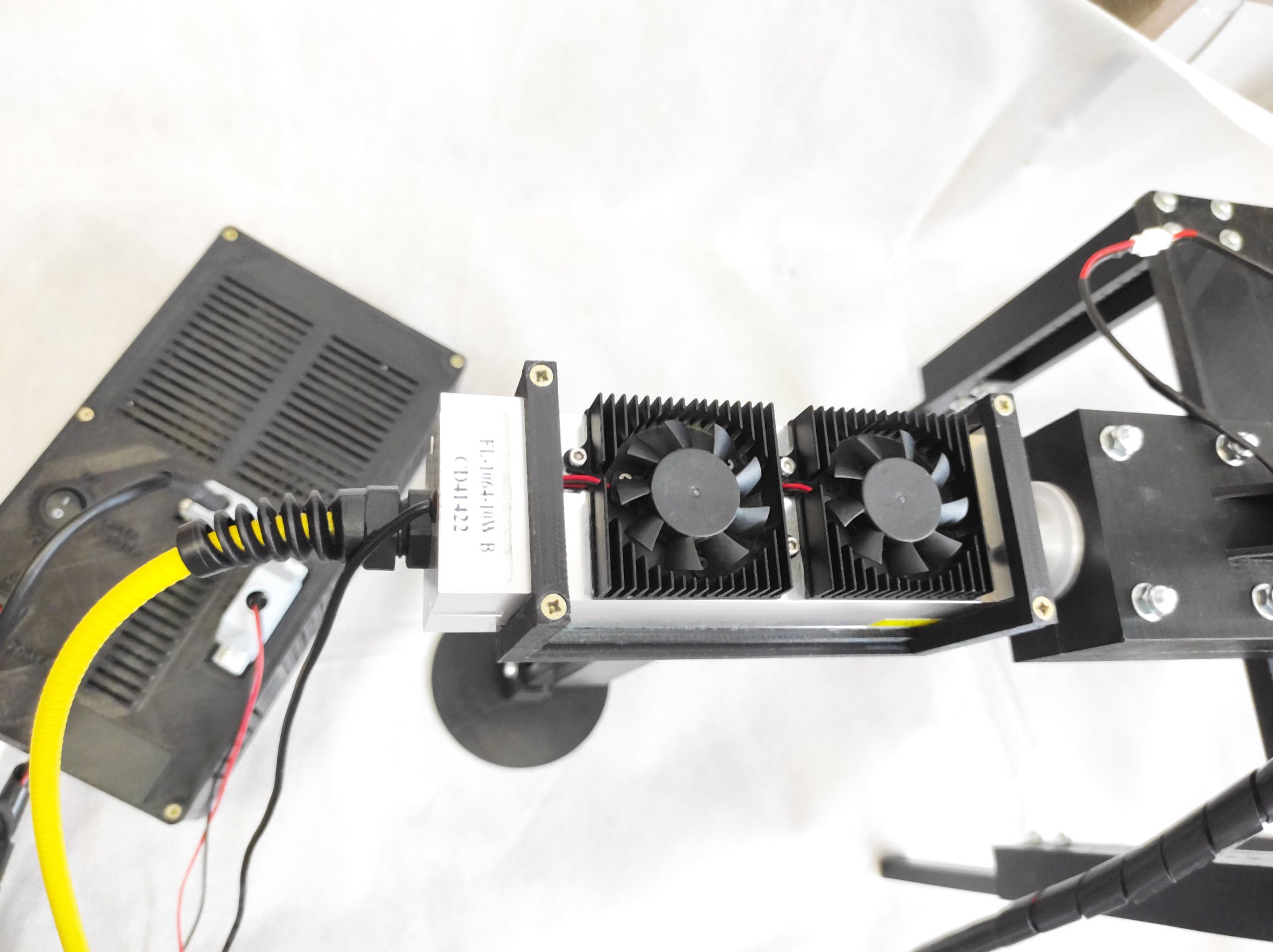

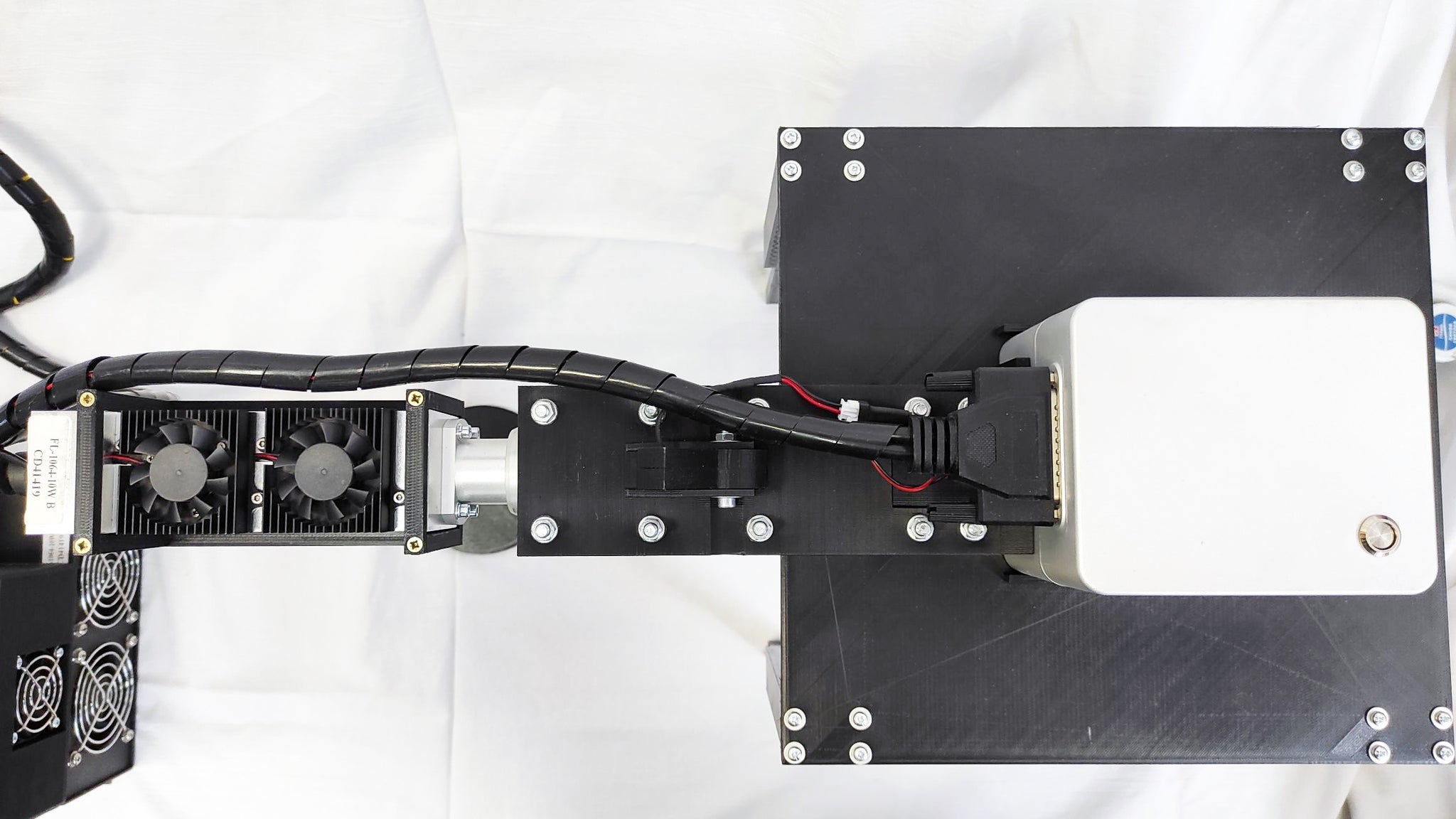

Fastening the DPSS to the galvanometer
Connector for connecting DPSS to the board

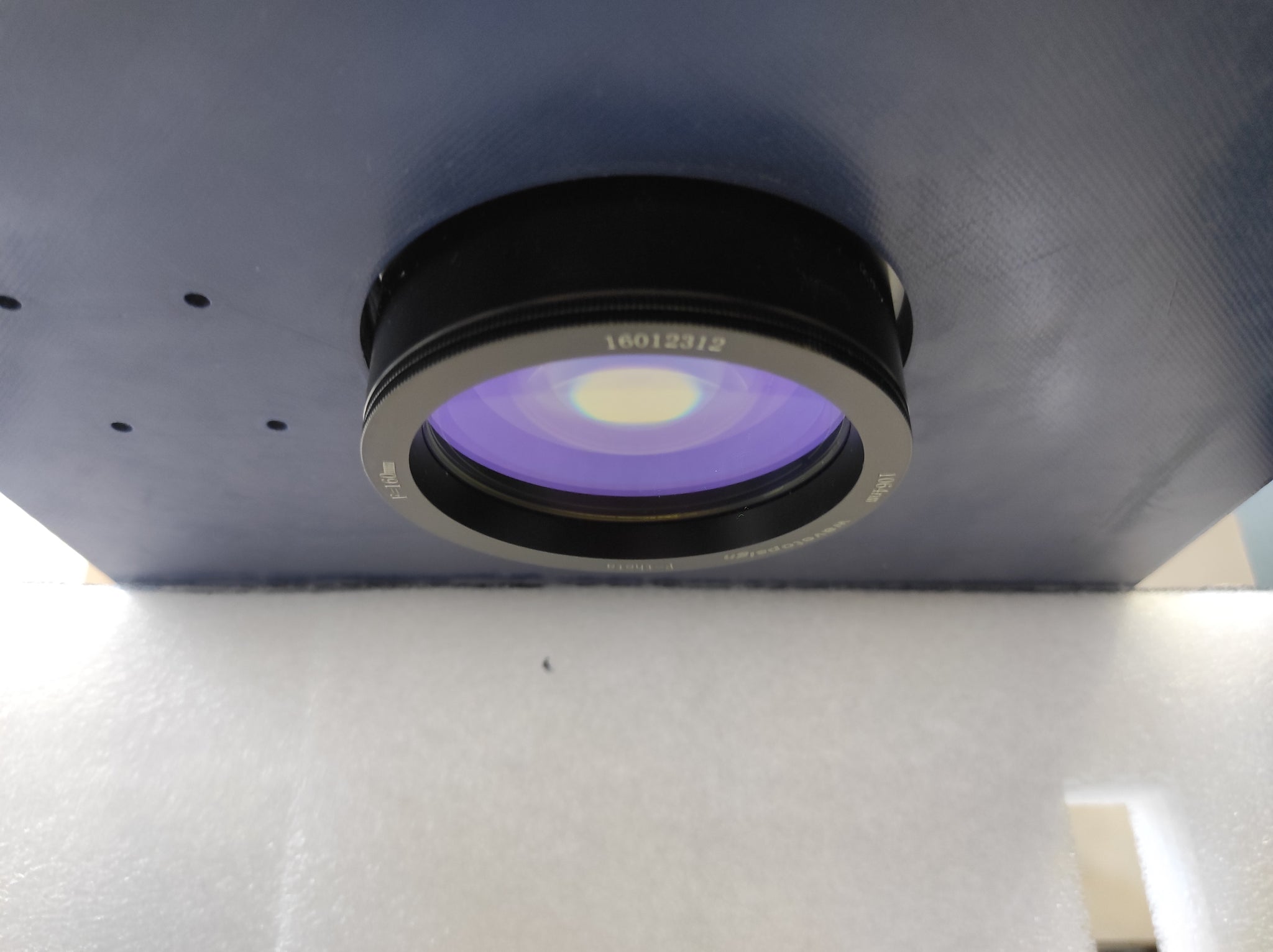

Galvanometer lens

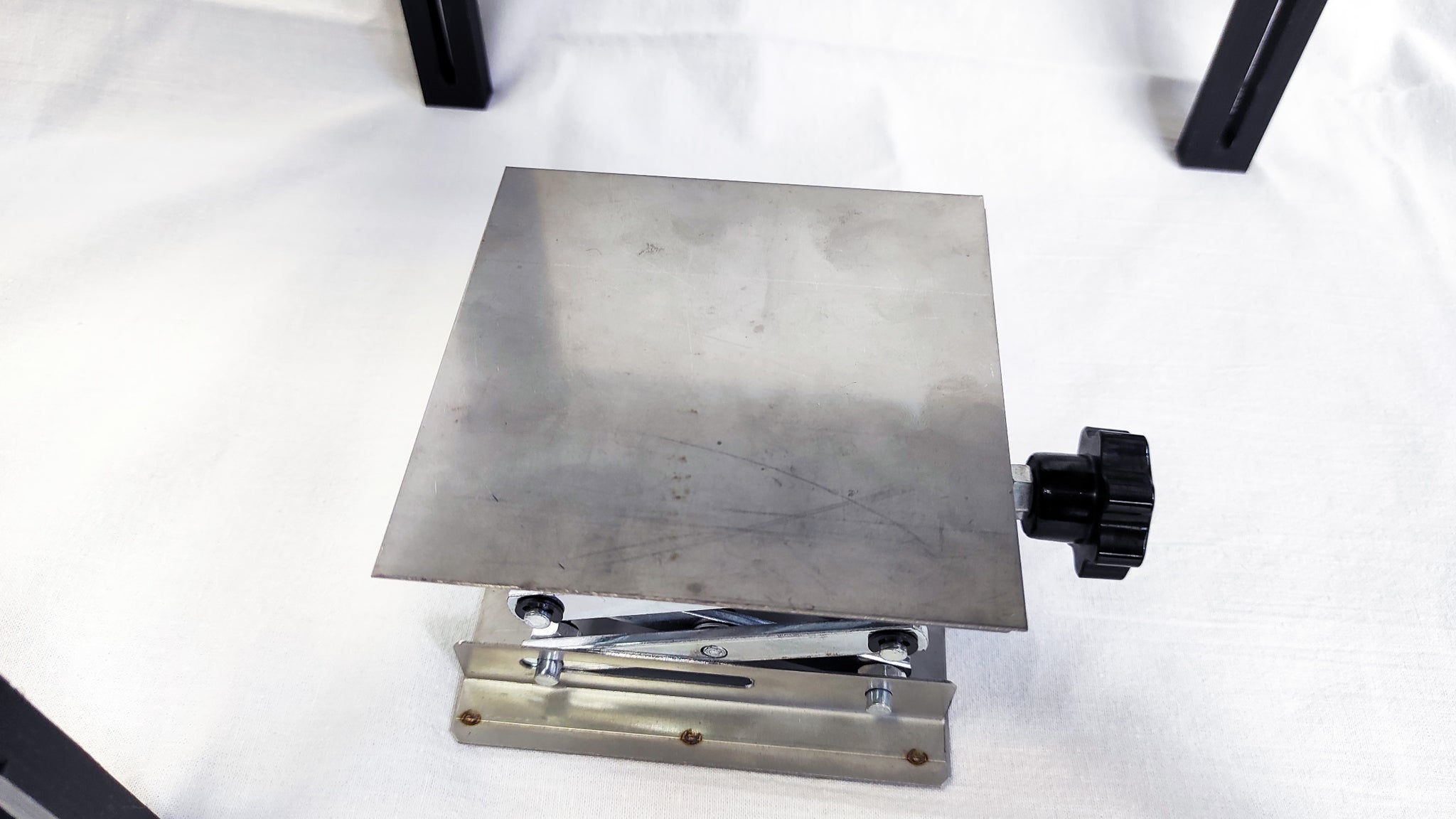

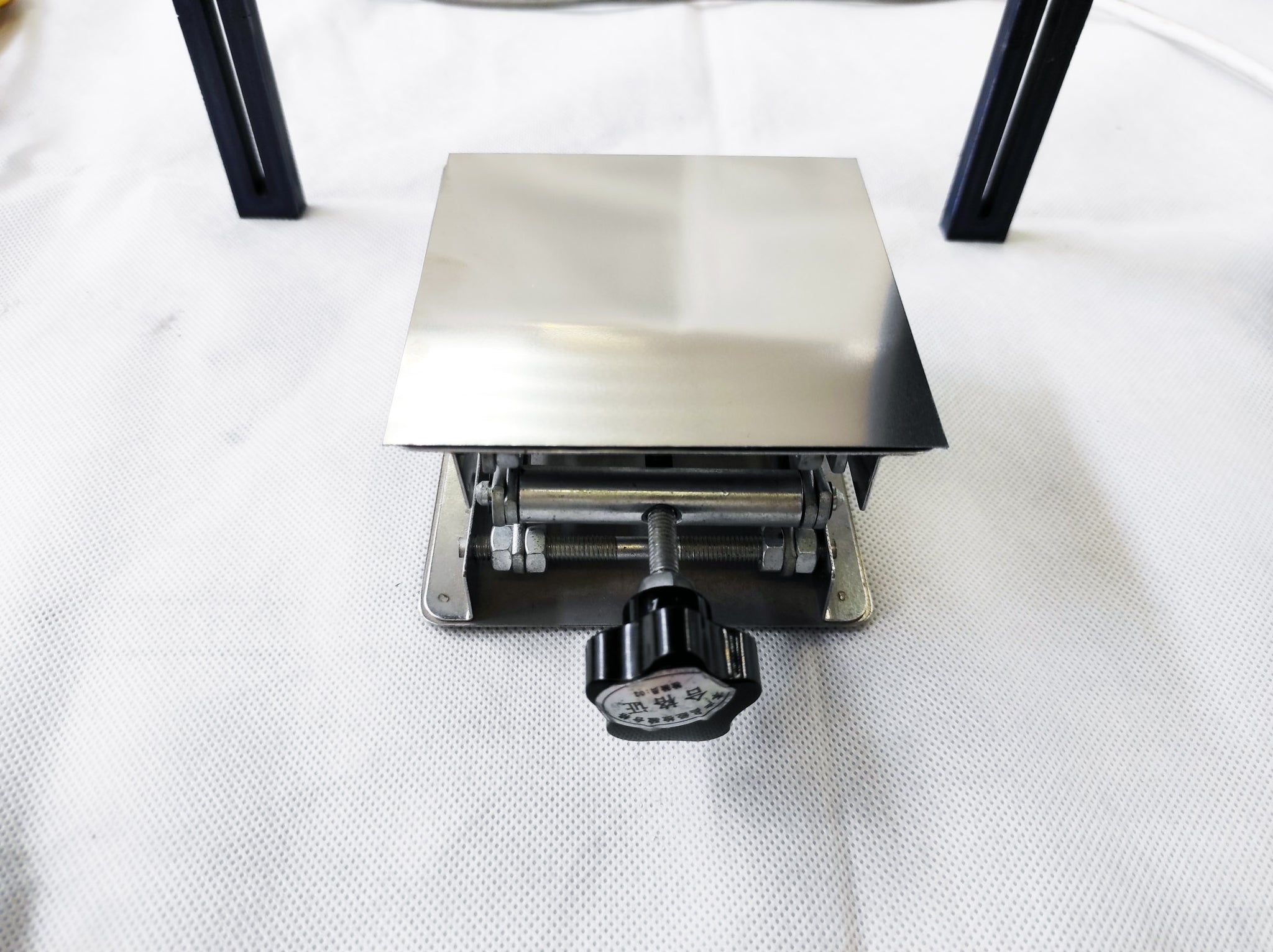

Galvanometer worktop
Tabletop legs
DPSS stand
Pilot laser (red laser to define the engraving area)
How to define what parameters do you need for cutting or engraving?
When engraving, there are several main parameters that affect the quality:
- Power
- Speed
- Fill density
- Pulse frequency
- Number of passes
These parameters are specific to each laser and material. In cases where you mainly work with one machine and with one material, there is nothing difficult in the selection of parameters. You need to determine the optimal parameters once, and then use them always.
If you often have to deal with new materials, then determining the parameters will take you a lot of time. Similar tables can be used to automate this process.
Using our table, you can test 100 engraving parameters at once, with a fill density of 0.02 mm.
The X-axis changes the power from 10% to 100% (10% step)
The Y-axis changes the speed from 600 mm / s to 3300 mm / s (step 300 mm / s)
After finishing the work of the machine, you will receive ready-made examples for 100 modes, from which you can easily choose the one that suits your particular case.
Some laser engraving / cutting parameters
4 watt DPSSL module
Material |
Speed mm / sec |
Power, % |
Loops |
Black PLA plastics
|
1800 |
70 |
1 |
10 watt DPSSL module
Material |
Speed mm / sec |
Power, % |
Loops |
Black PLA plastics |
1500 |
50 |
1 |
Granite |
250 |
100 |
1 |
Engraving inside 4mm transparent acrylic |
500 800 |
50 50 |
4 4 |
Black paint removal from the glass |
600 |
40 |
3 |
Jewelry (silver, gold, palladium) |
500 |
30 |
1-2 |
30 watt Raycus laser emitter
Material |
Speed mm / sec |
Power, % |
Loops |
Frequency |
2D acrylic laser engraving inside (25 mm)
|
800 |
100 |
3 |
60 |
Pure aluminum |
2000 |
100 |
1 |
60 |

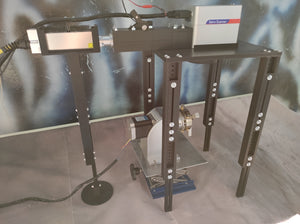

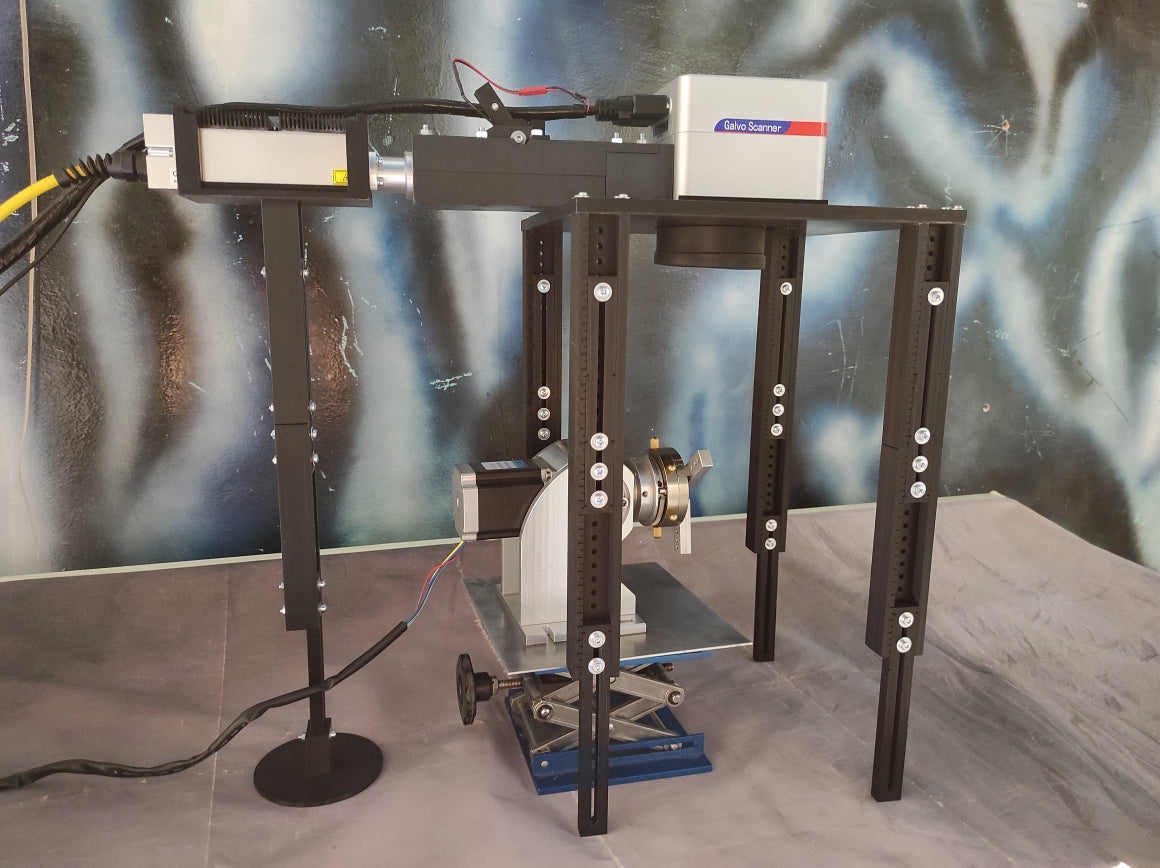

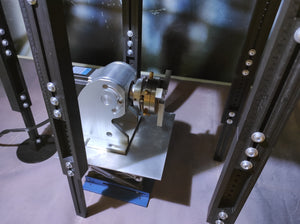

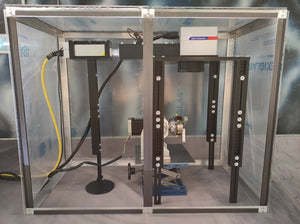

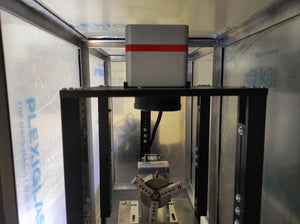

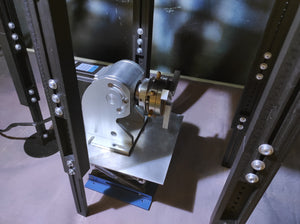

Endurance customer's installation (upgraded with a camera)
