Endurance offers custom Galvo heads for your fiber / DPSS laser source (1064 nm wavelength) equipped with beam 6-12X beam expander.
High-quality Theta lenses:
CSDQ-1064-110-160B
CSDQ-1064-150-210C
CSDQ-1064-200-290
CSDQ-1064-250-380
CSDQ-1064-300-430
Universal galvo scanner heads
SG7110
RC1001
SG7110 datasheet
Wavelength: 1064 nm
Aperture: 10 mm
Marking Speed: 5000 mm/s
Positioning speed: 8000 mm/s
Input Voltage: +-15 VDC
Rated Current: 2 A
Interface signal: Digital XY2-100
Working Temperature: 0-45 C
Dimension: 118.5x96.5x93.6 mm
Weight: 1.65 Kg
RC1001 datasheet
Wavelength: 1064 nm
Aperture: 10 mm
Marking Speed: 8000 mm/s
Positioning speed: 10000 mm/s
Input Voltage: +-15 VDC
Rated Current: 2 A
Interface signal: Digital XY2-100
Working Temperature: 0-45 C
Dimension: 100×95×120 mm
Weight: 0.85 Kg
Lenses options
F-Theta lens 1064nm f=160mm
Wavelength: 1064 nm
Focal Lengft: 160 mm
Marking size: 110x100 mm
Mounting Thread: M85x1
Lens Housing Diameter at Largest Point: 90 mm
Lens Length: 47 mm
Weight: 300 g

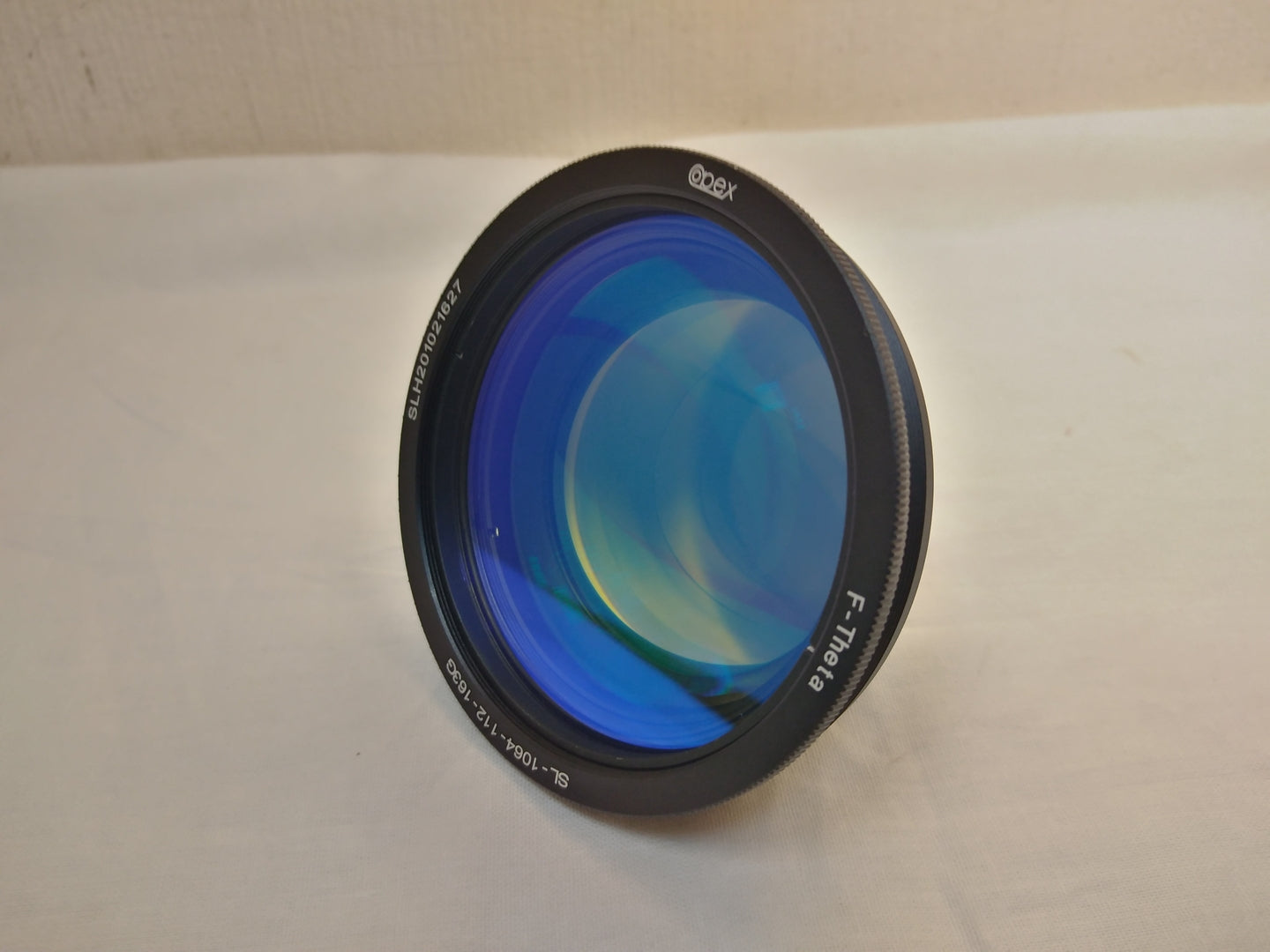

F-Theta lens SL-1064-112-163G
Wavelength: 1064 nm
Focal Lengft: 163 mm
Marking size: 112x112 mm
Mounting Thread: M85x1
Lens Housing Diameter at Largest Point: 90 mm
Lens Length: 44 mm
Weight: 325 g
F-Theta lens 1064nm f=430mm
Wavelength: 1064 nm
Focal Lengft: 430 mm
Marking size: 300x300 mm
Mounting Thread: M85x1
Lens Housing Diameter at Largest Point: 90 mm
Lens Length: 46.6 mm
Weight: 310 g
Detalied galvoscanner + laser lens specs
| Par No. | Wavelength (nm) | Marking size (mm) | Focal Lenght (mm) | Lens Housing Diameter at Largest Point (mm) | Length (mm) | Mounting Thread (mm) |
| CSDQ-1064-110-160B | 1064 | 110x110 | 160 | 88 | 49 | M85x1 |
| SL-1064-112-163G | 1064 | 112x112 | 163 | 88 | 44 | M85x1 |
| CSDQ-1064-150-210C | 1064 | 150x150 | 210 | 88 | 47.7 | M85x1 |
| CSDQ-1064-200-290 | 1064 | 200x200 | 290 | 88 | 49.5 | M85x1 |
| CSDQ-1064-250-380 | 1064 | 250x250 | 380 | 88 | 47.7 | M85x1 |
| CSDQ-1064-300-430 | 1064 | 300x300 | 430 | 88 | 52.7 | M85x1 |
