A brand new 10 watt water cooler laser module

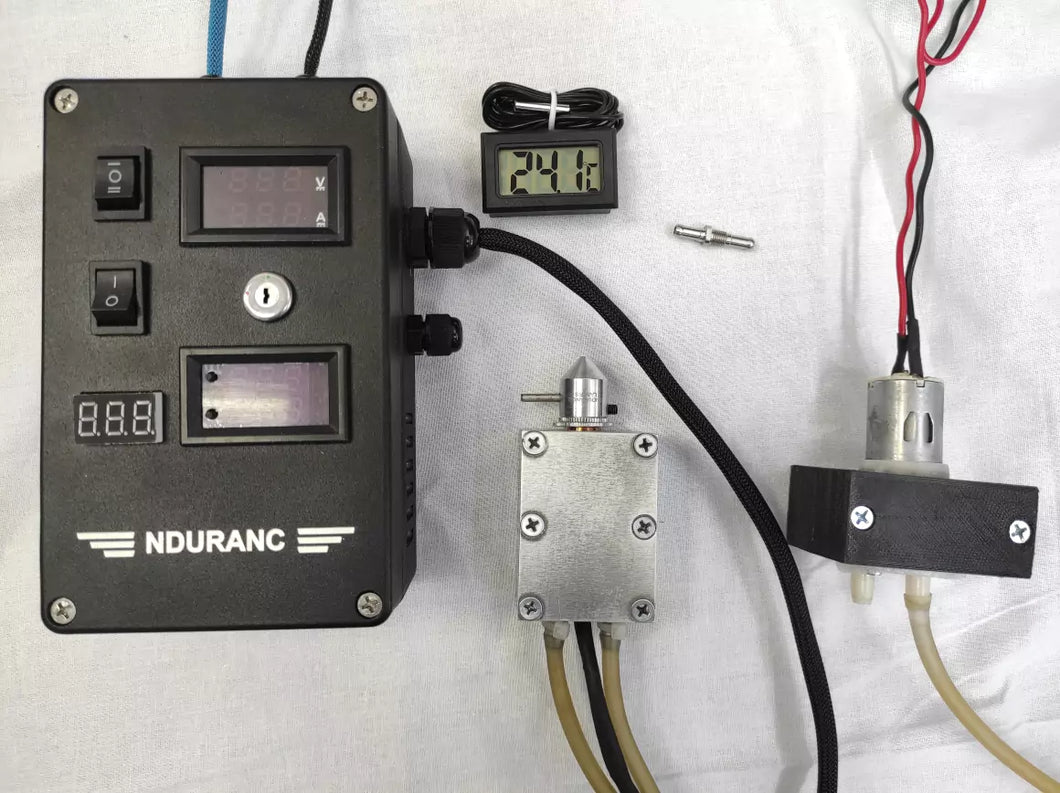

Get all you need in the package

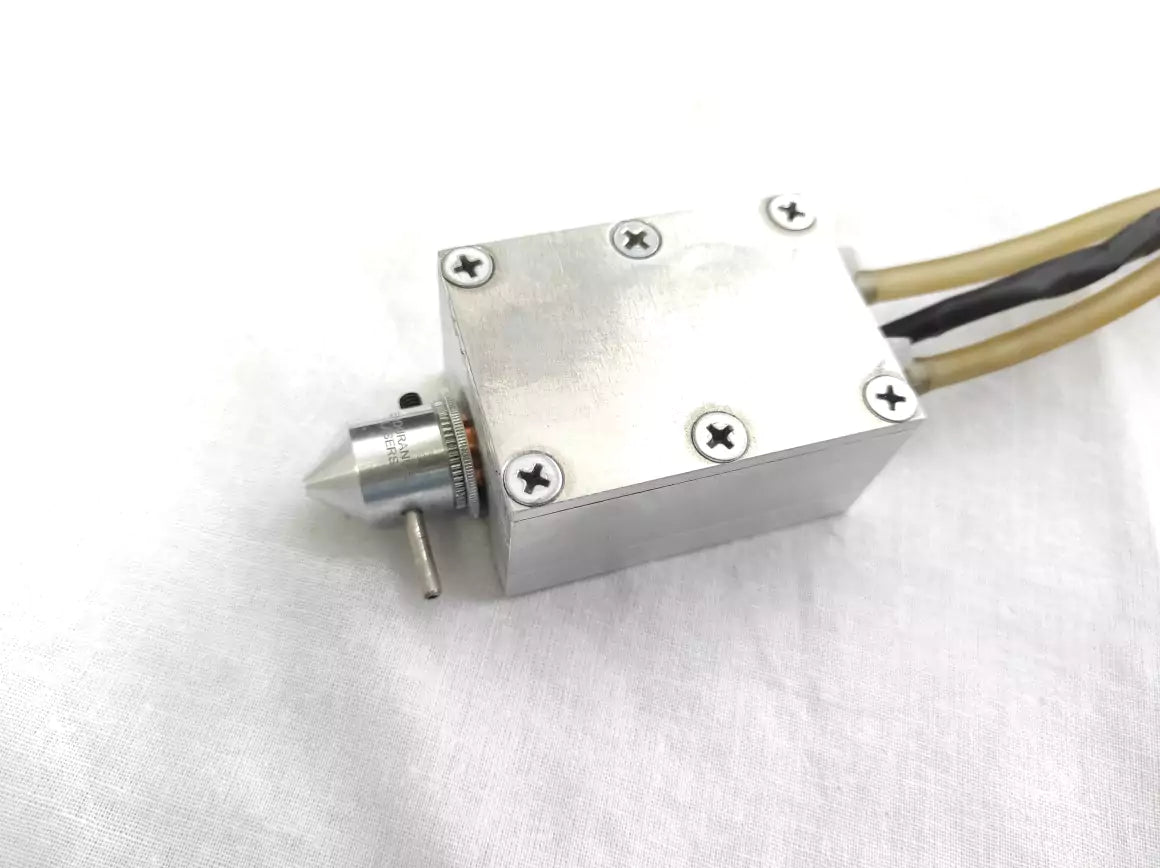

- Laser module with a water-cooled heatsink
- Laser box ver 2.0
- Water pump
- Thermometer
- Silicon tubes
445nm 10000mW Laser Module with water Heatsink TTL/PMW + Analog 0-10V for DIY 3D Printer | Laser CNC machines

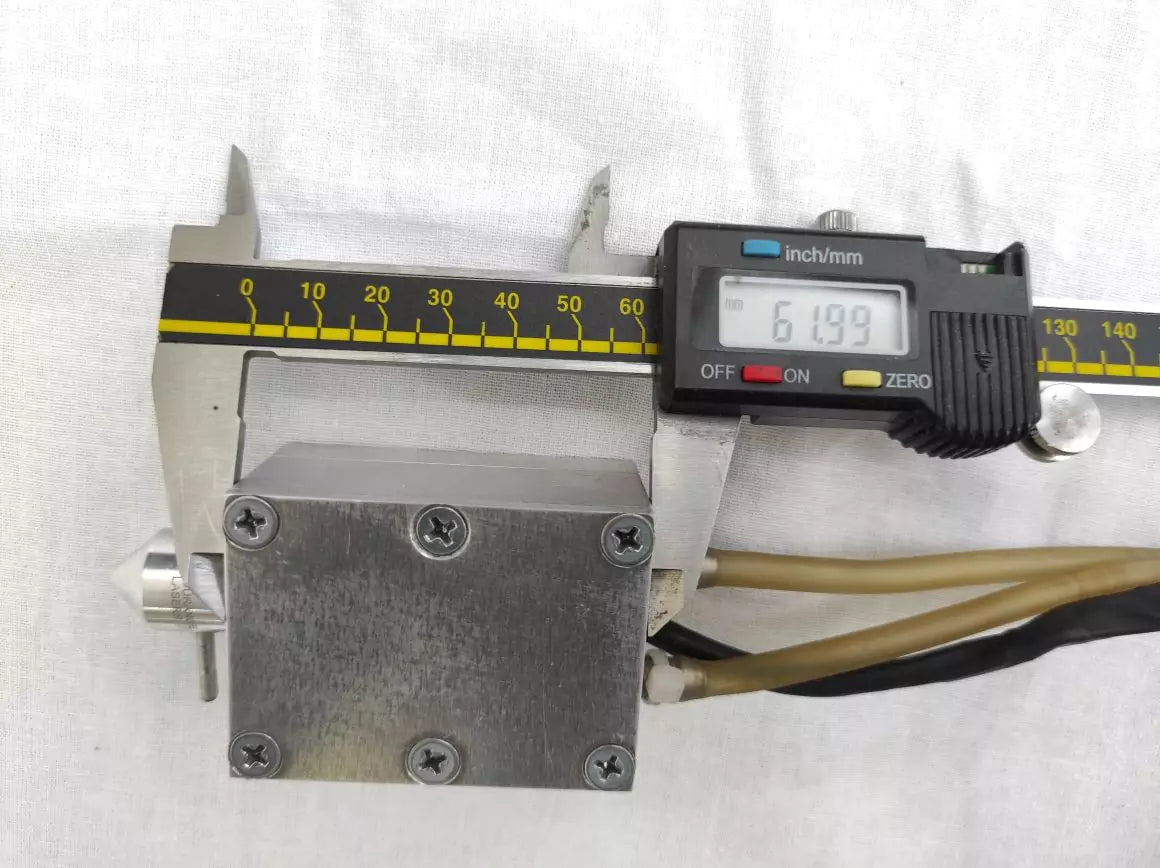

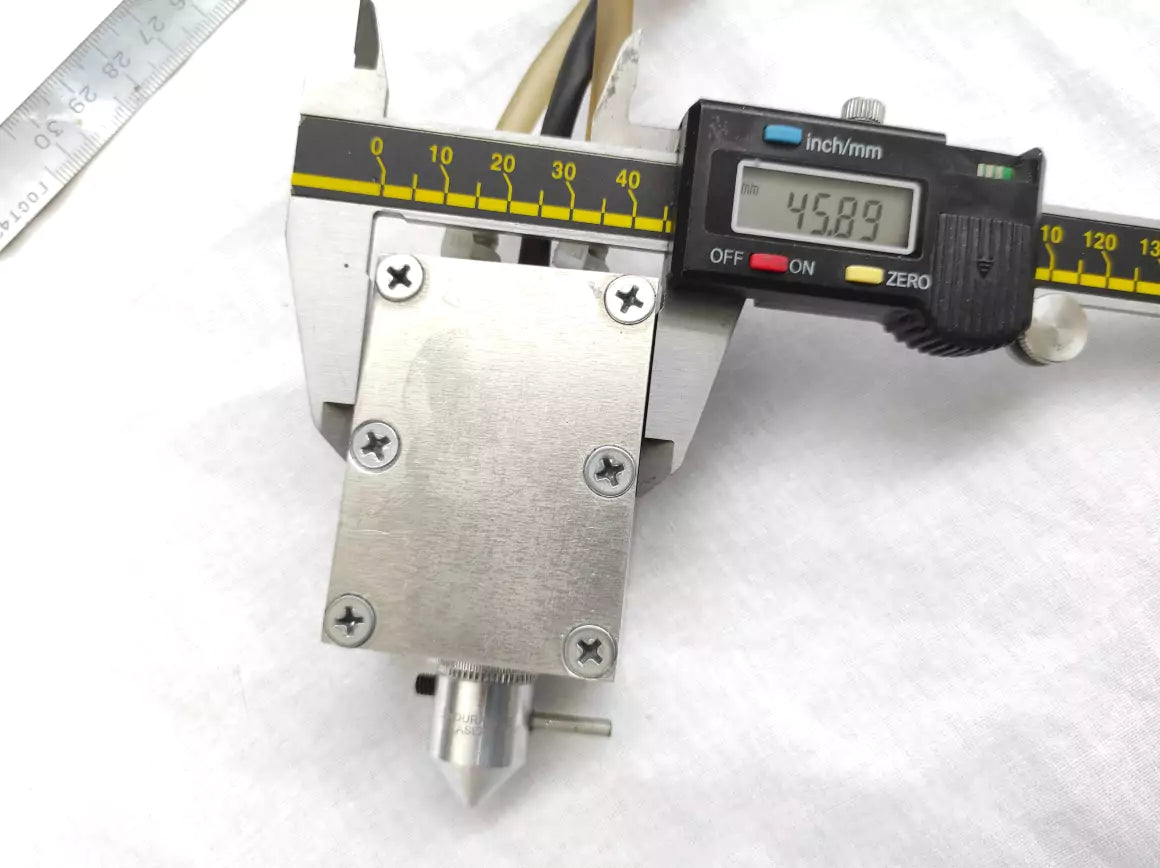

Size: 33*46*62 mm
Laser wavelength: 445 +-2 nm
Power supply voltage: 12VDC (9-16VDC）
Supply current:> 4A
The laser beam form: Dot (small rectangle 63 * 133 um) ,focusable, adjustable
Lens Material: Optical glass coated with AR coating (G2 lens)
Shell Material: Polished aluminum
Cooling method: water
Tested for 168 hours nonstop
Lifetime warranty.
Can Engrave on:
Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/anodized Aluminum/ Metal/Glass/Stone/Ceramics/PCB/
CW Optical power output: 8.2-8.5W (8200-8500mW)
Impulse pptical power output: 9-11W (9000-11000mW)
Safe temperature range: <60 ℃
Manual PWM control: YES
Temperature display: YES
Can Cut: MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper
