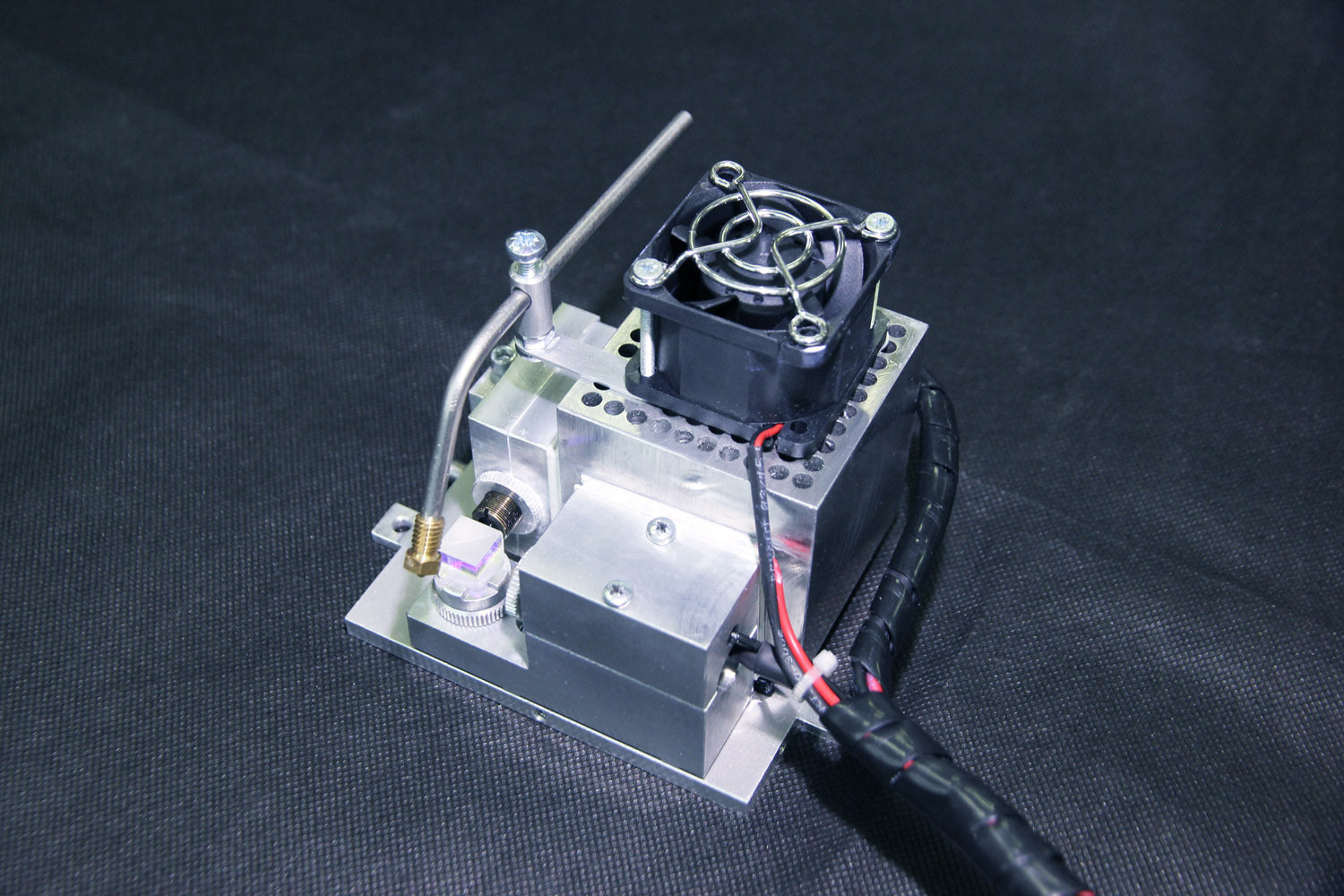

The Endurance 15 (15000 mW) watt "Duos" laser beam head. Version 1.0
The Endurance 15 (15000 mW) watt "Duos" laser beam head. Version 1.0
The Endurance 15 (15000 mW) watt "Duos" laser beam head. Version 1.0
The Endurance 15 (15000 mW) watt "Duos" laser beam head. Version 1.0
The Endurance 15 (15000 mW) watt "Duos" laser beam head. Version 1.0
The Endurance 15 (15000 mW) watt "Duos" laser beam head. Version 1.0
The Endurance 15 (15000 mW) watt "Duos" laser beam head. Version 1.0
The Endurance 15 (15000 mW) watt "Duos" laser beam head. Version 1.0
The Endurance 15 (15000 mW) watt "Duos" laser beam head. Version 1.0
The Endurance 15 (15000 mW) watt "Duos" laser beam head. Version 1.0
The Endurance 15 (15000 mW) watt "Duos" laser beam head. Version 1.0
The Endurance 15 (15000 mW) watt "Duos" laser beam head. Version 1.0
The Endurance 15 (15000 mW) watt "Duos" laser beam head. Version 1.0
The Endurance 15 (15000 mW) watt "Duos" laser beam head. Version 1.0
The Endurance 15 (15000 mW) watt "Duos" laser beam head. Version 1.0
The Endurance 15 (15000 mW) watt "Duos" laser beam head. Version 1.0
The Endurance 15 (15000 mW) watt "Duos" laser beam head. Version 1.0
The Endurance 15 (15000 mW) watt "Duos" laser beam head. Version 1.0
The Endurance 15 (15000 mW) watt "Duos" laser beam head. Version 1.0
The Endurance 15 (15000 mW) watt "Duos" laser beam head. Version 1.0

The Endurance 15 (15000 mW) watt "Duos" laser beam head. Version 1.0

Vendor
Endurance lasers
Regular price
$1,295.00
Sale price
$999.00
Tax included. Shipping calculated at checkout.
Quantity must be 1 or more

Infinite laser power. Improve your 3D printer / CNC gantry / XY plotter.

Dual laser beam system. 15 watts (15 000 mW) of real optical laser power. Laser attachment for your 3D printer / CNC machine.

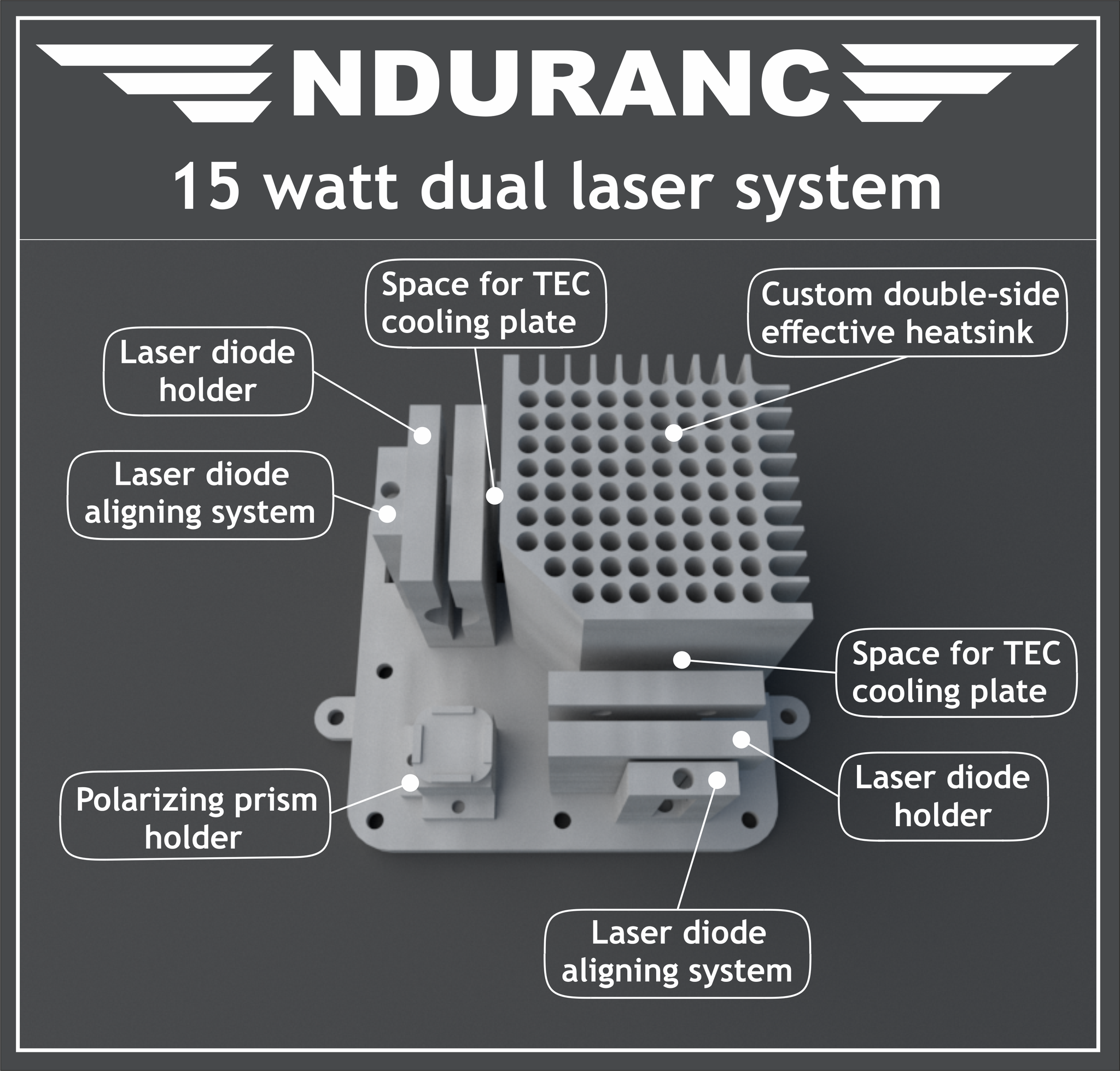

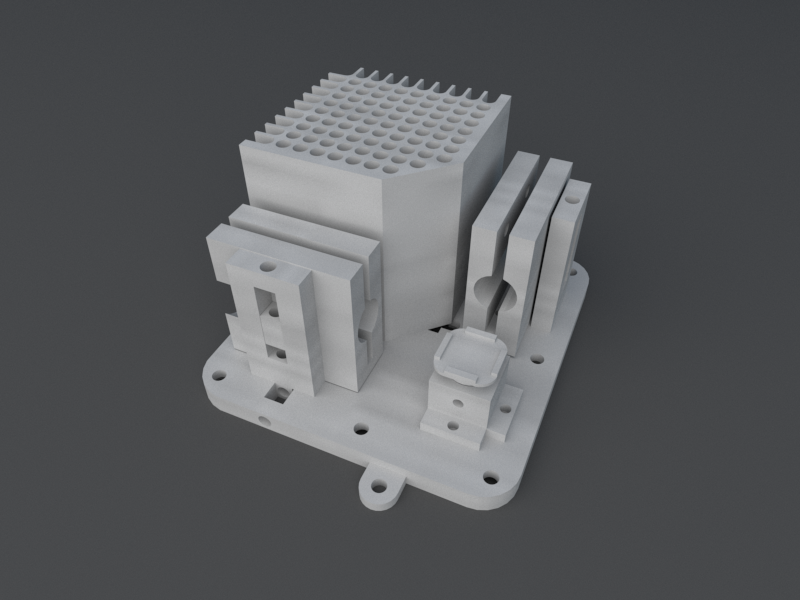

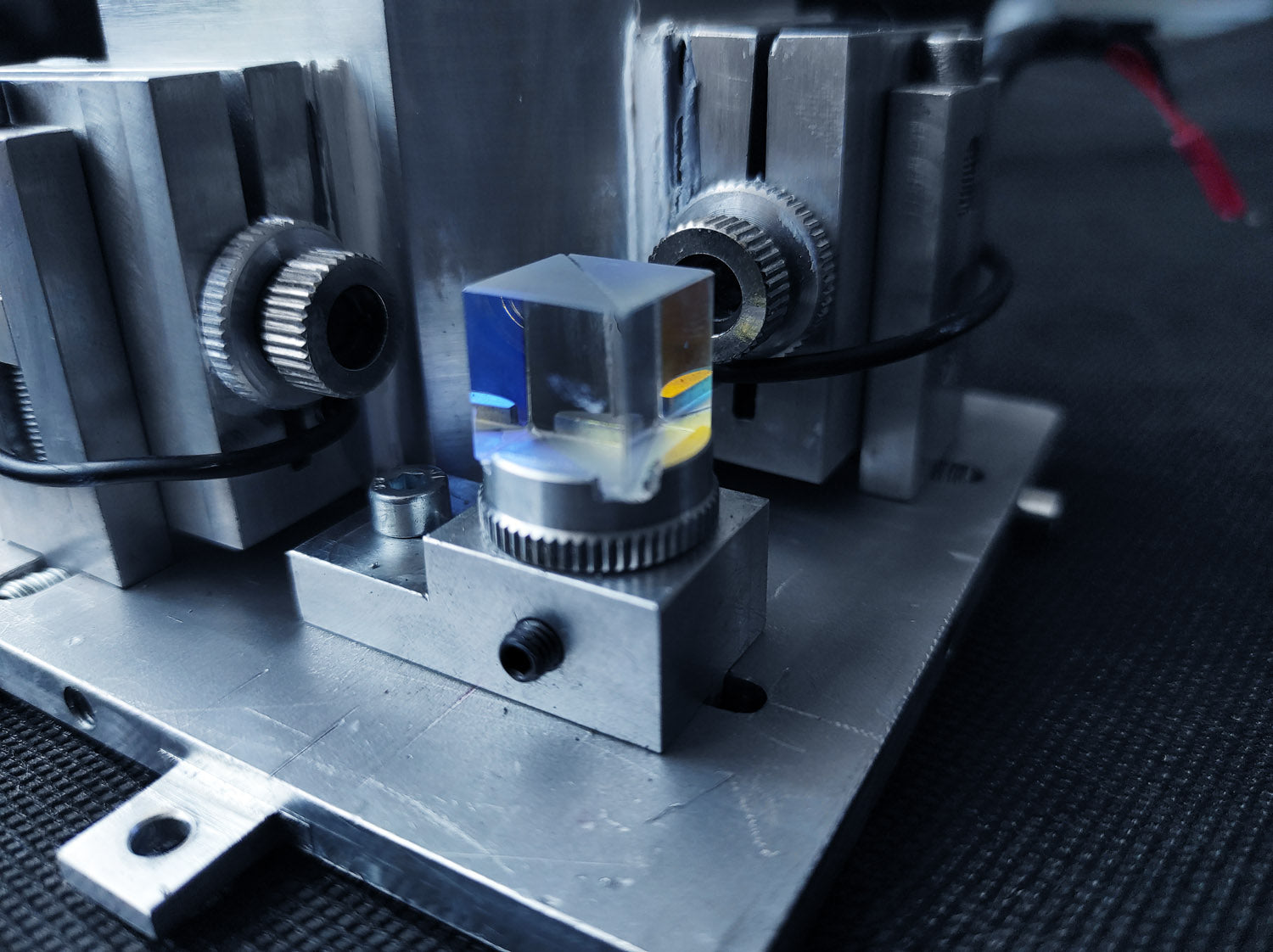

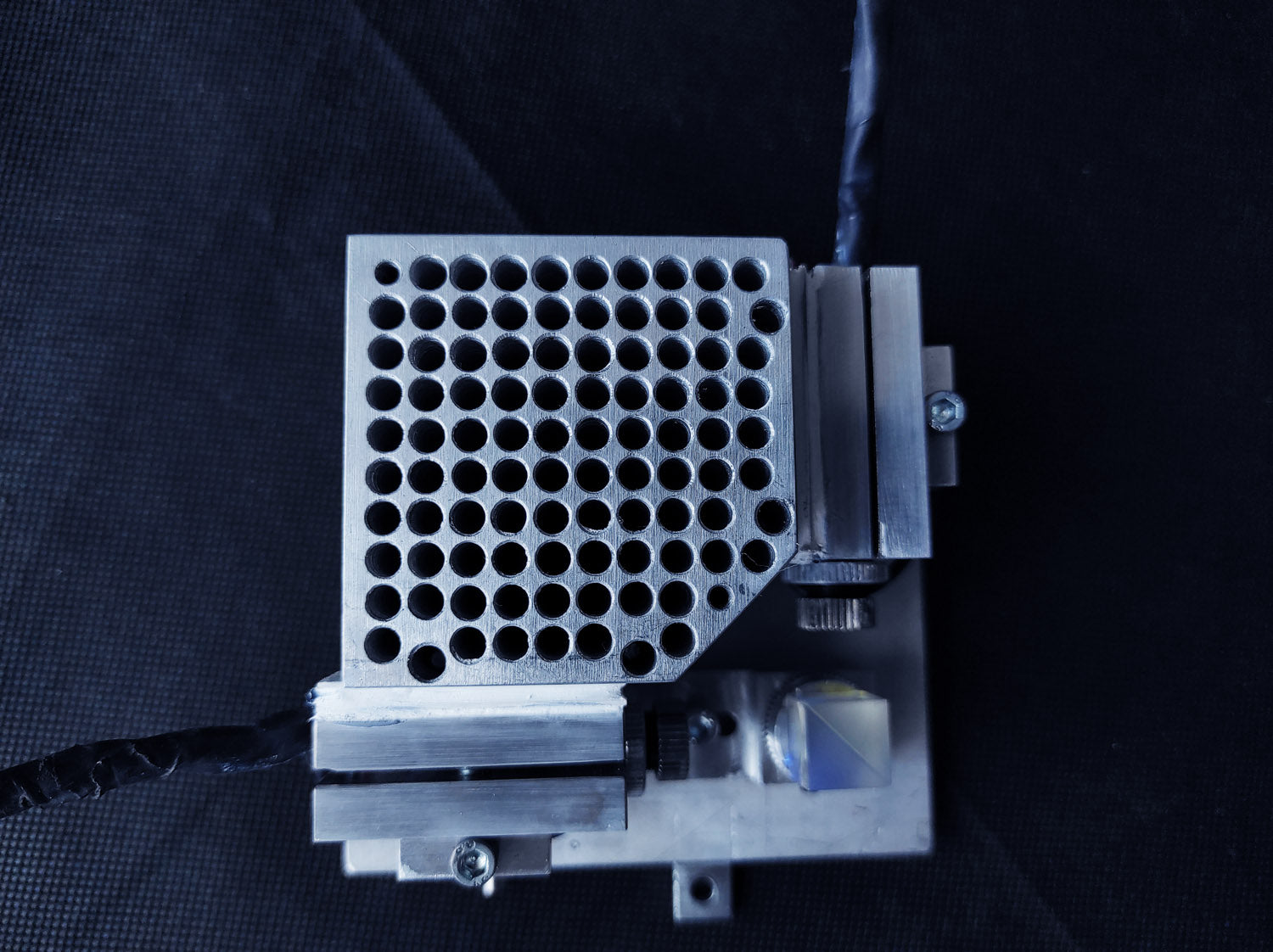

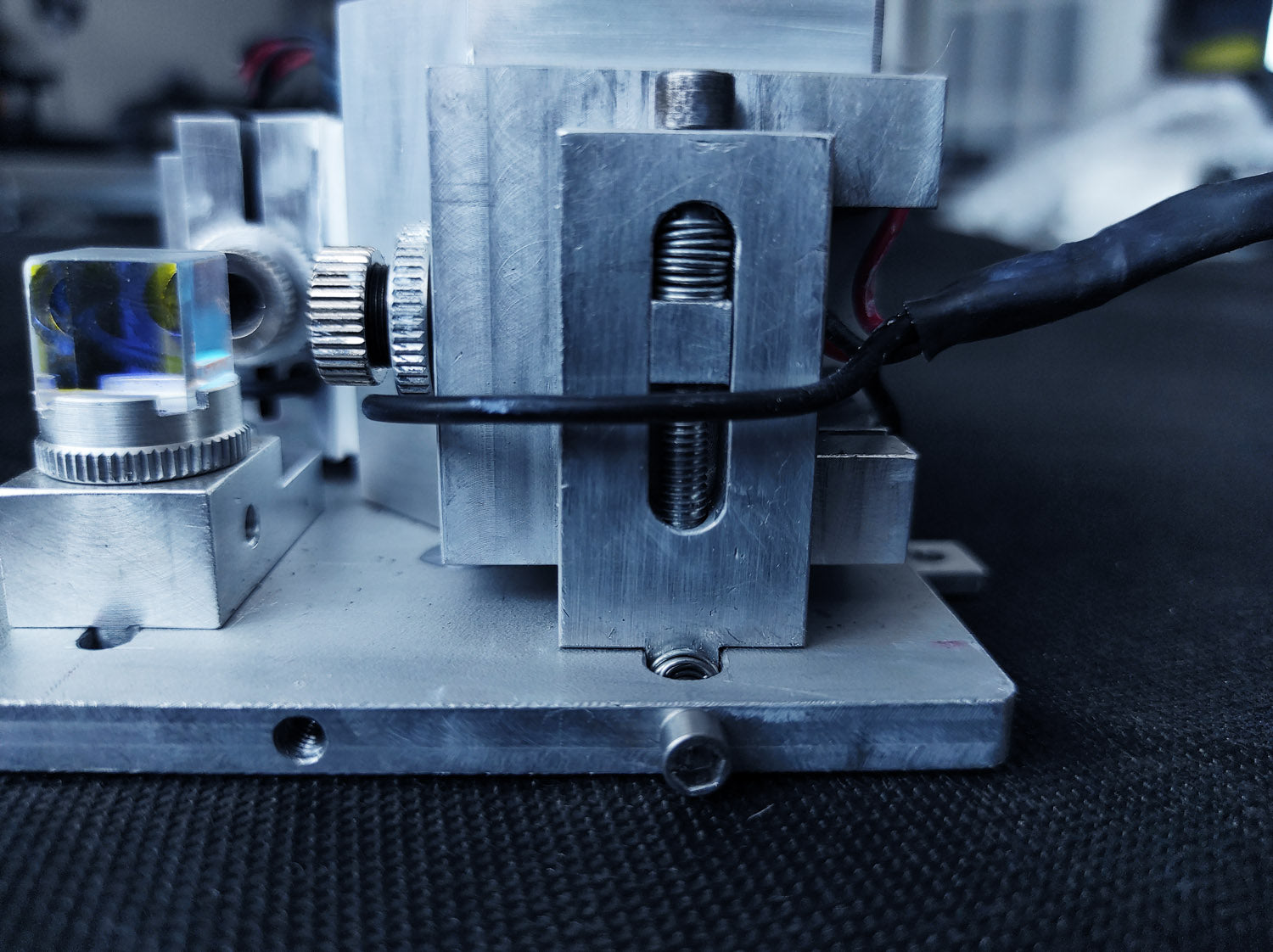

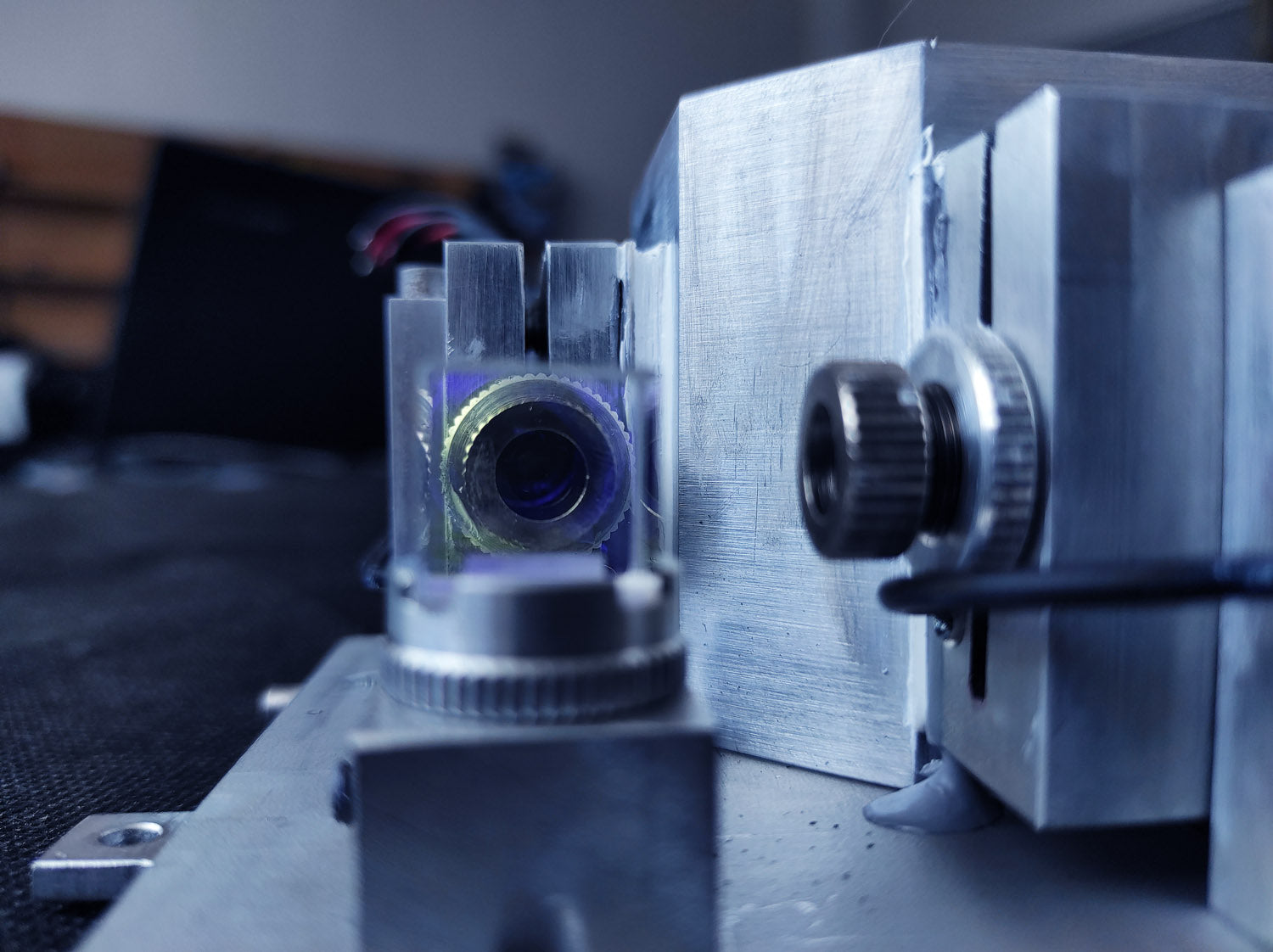

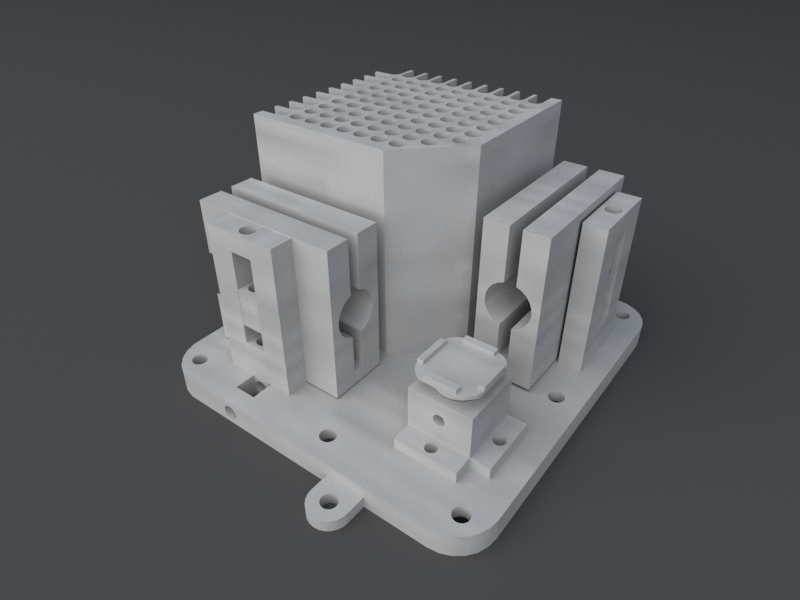

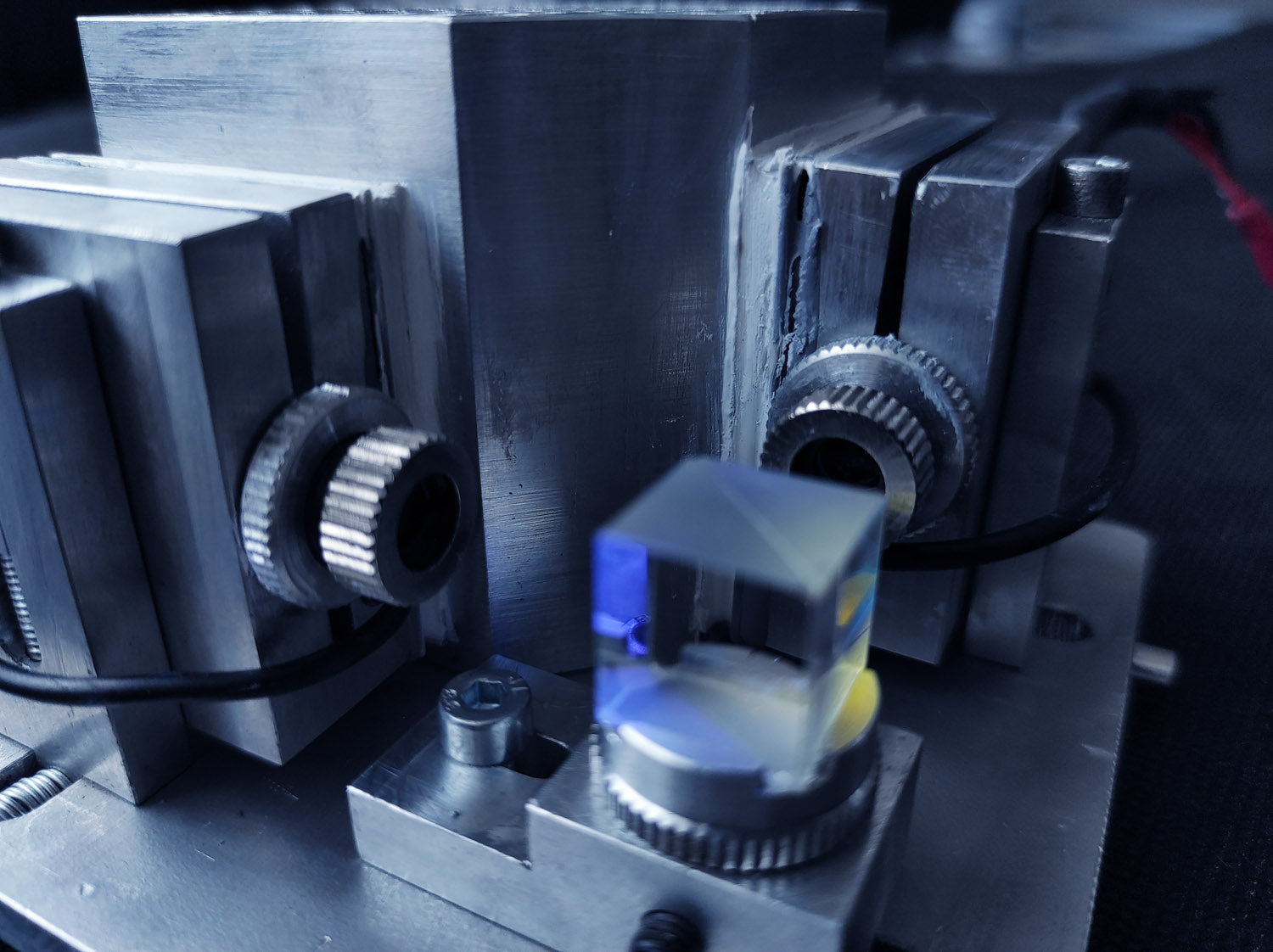

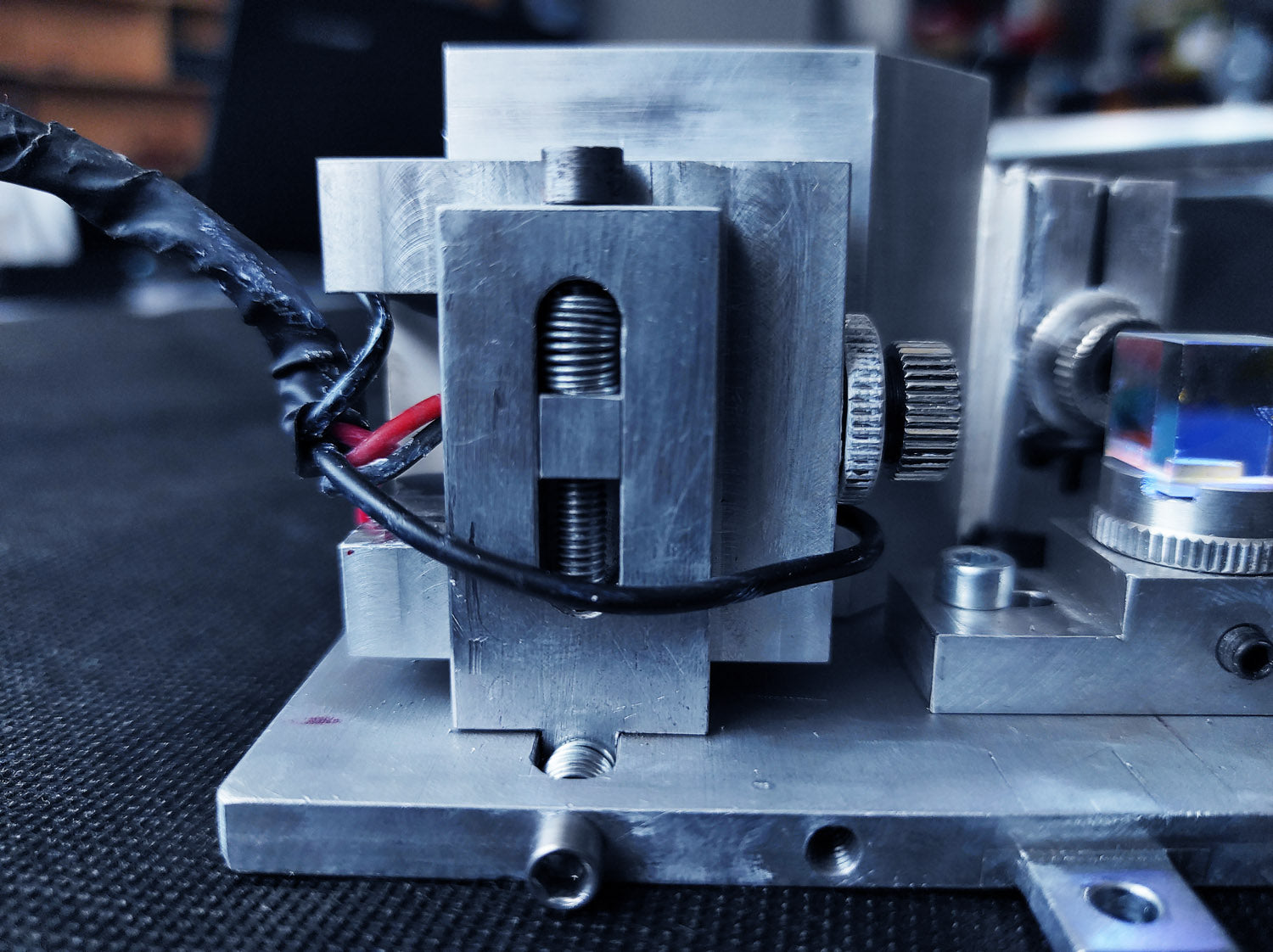

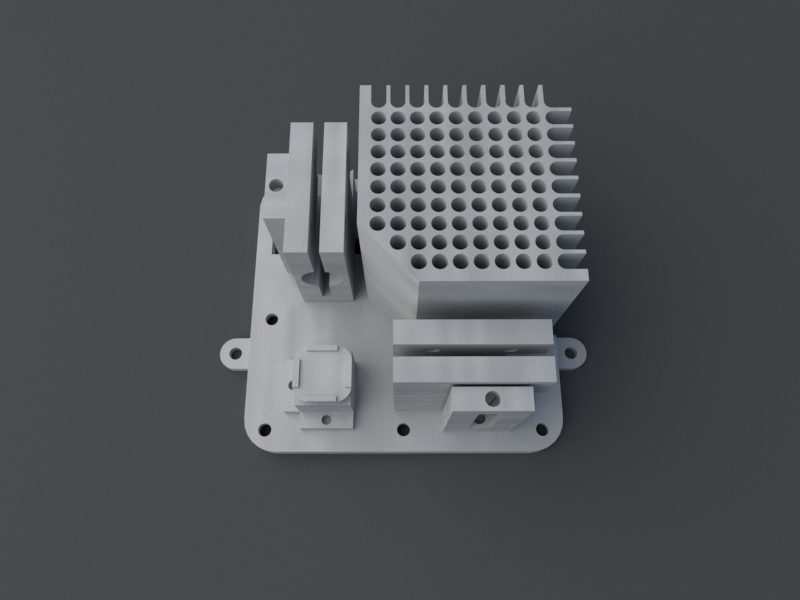

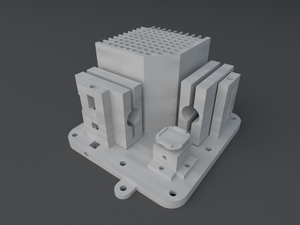

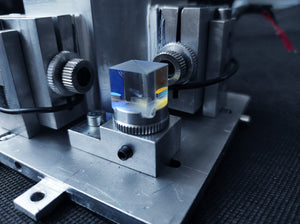

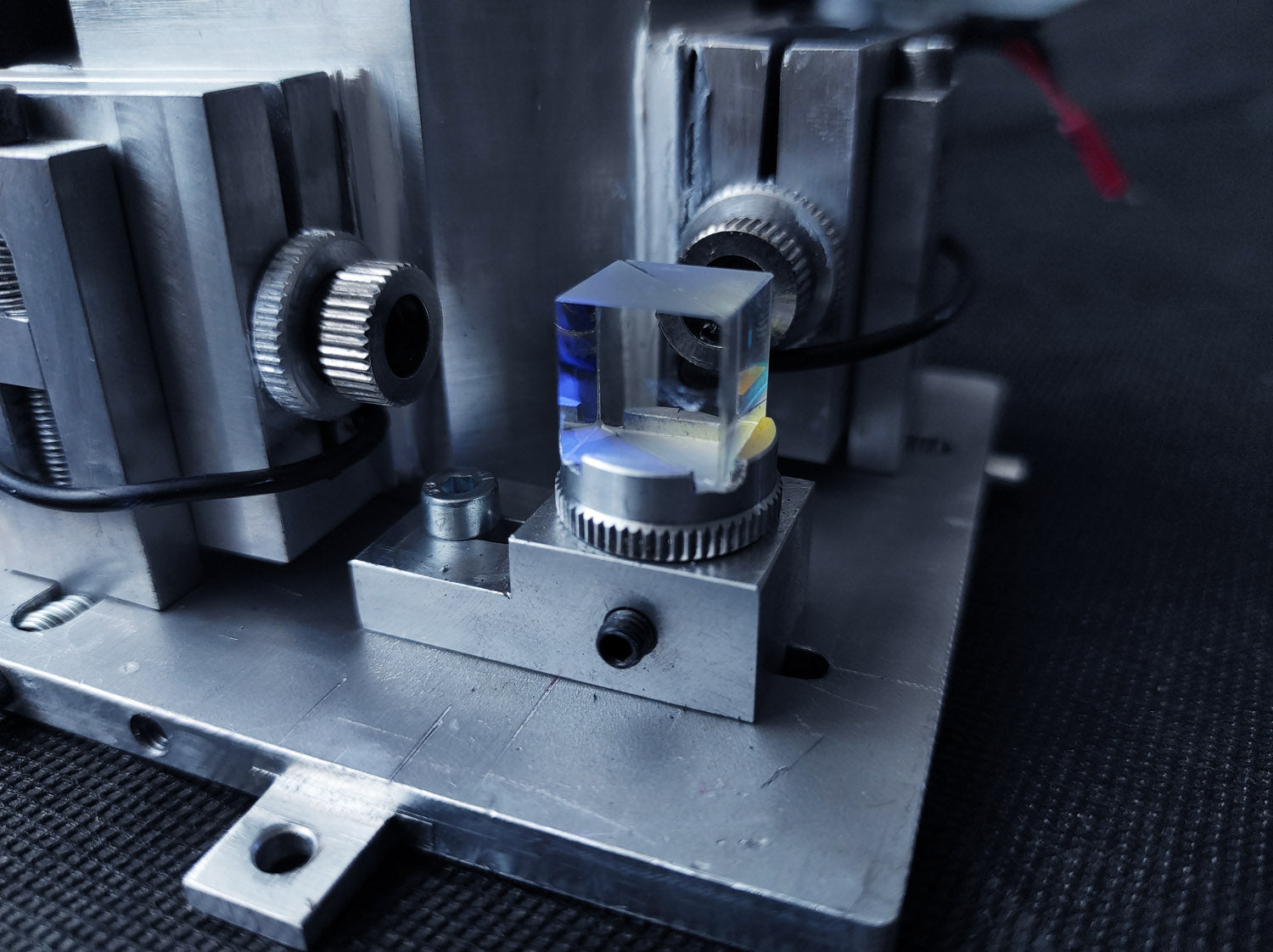

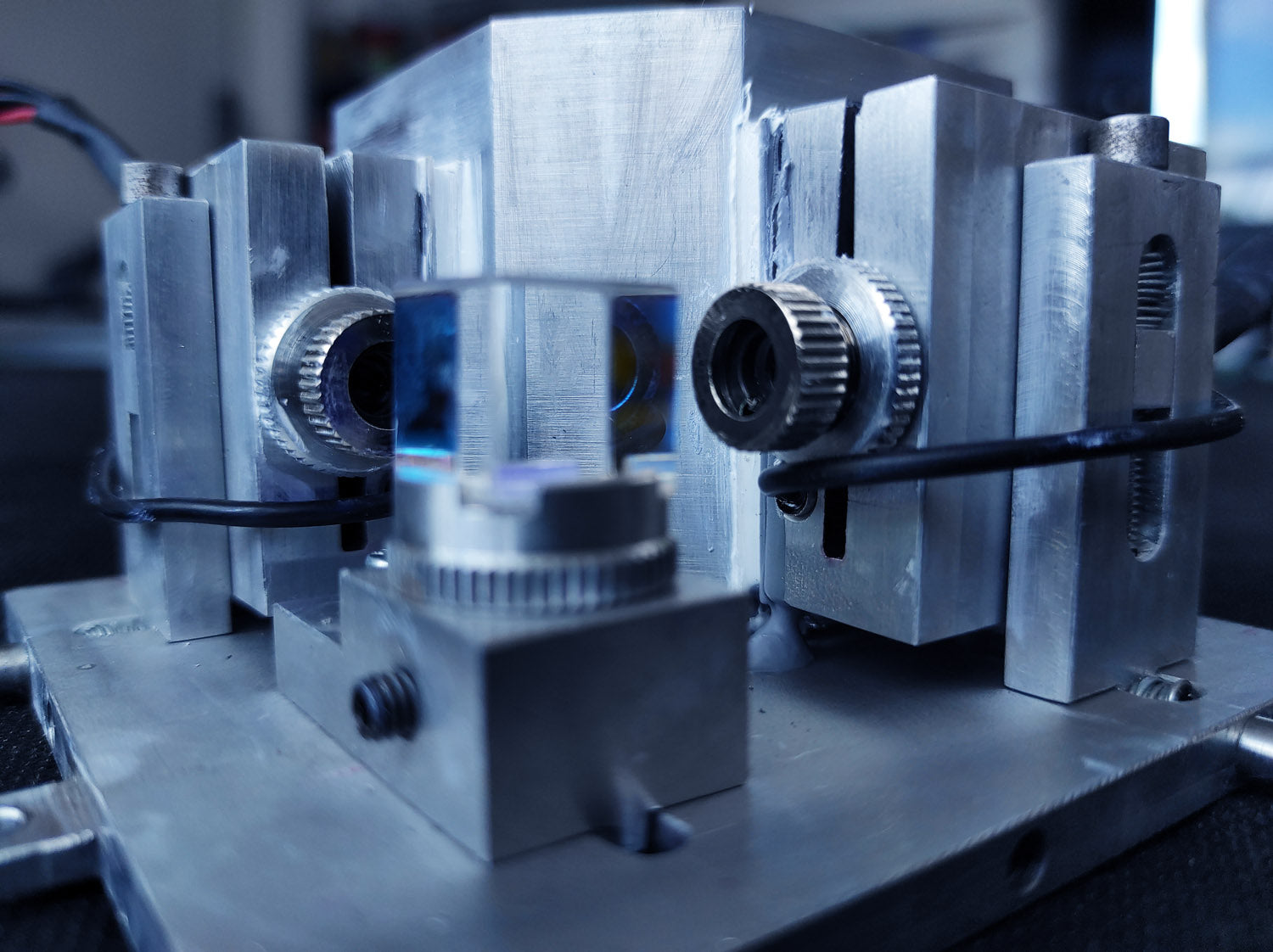

Inside the 15 watt "DUOS" laser

Easy mounting. Easy wiring. Pre-set focus!



Metal engraving test with 15 watt "Duos" laser installed on CNC 3018 machine.



Plywood & MDF cutting with an Endurance 15 watts "Duos" laser.



Engraving on metals using thermal grease

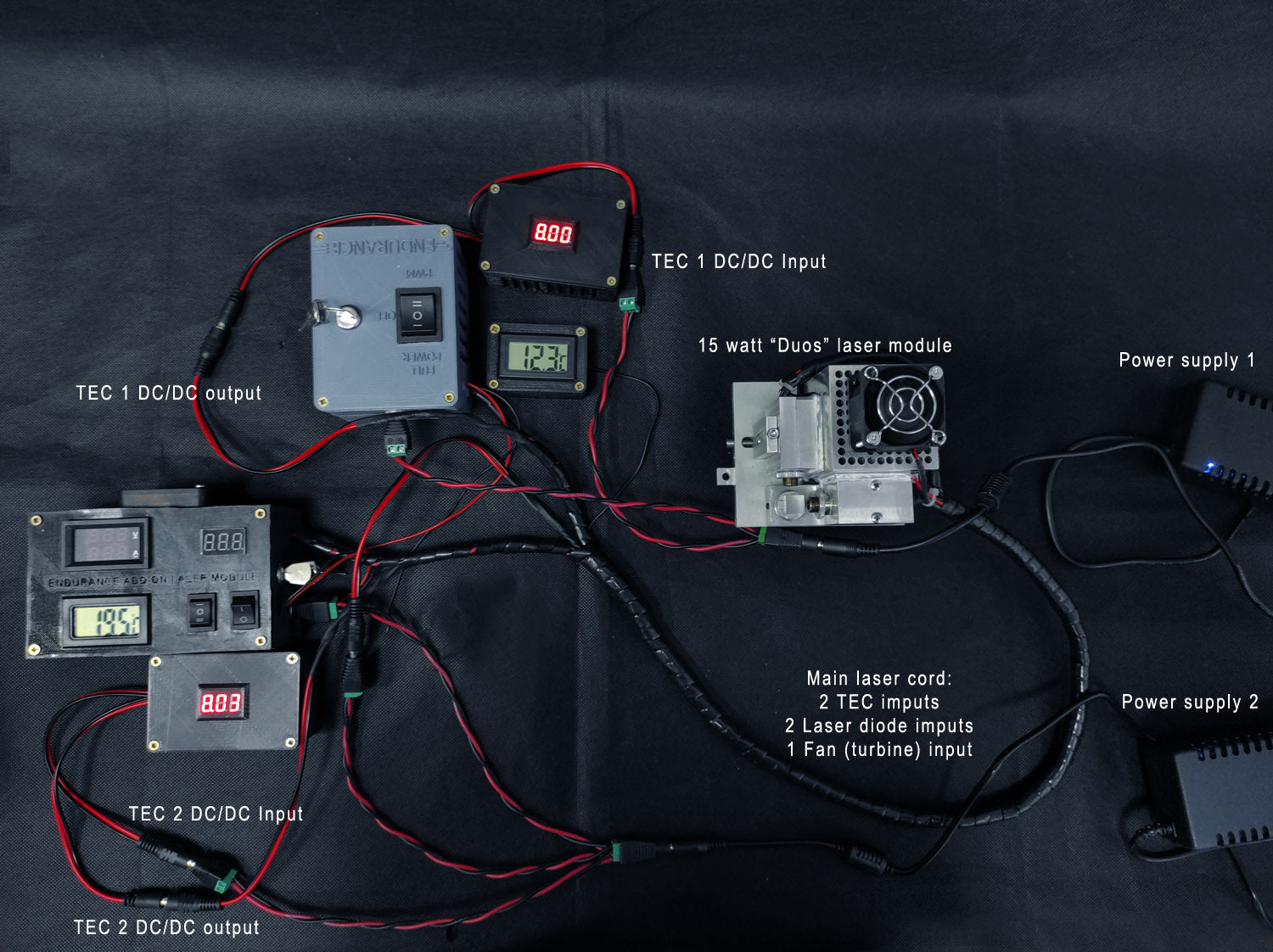

What do you get in the package:

  1. 1 x 15 watt "Duos" laser beam system. ver 1.0.
  2. 1 x a small & a big laser boxes (with Mo1 PCB).
  3. 2 x DC/DC converters for the TEC cooling setup.
  4. 2 x power splitters.
  5. 2 x PSU (12V 8A AC/DC).
  6. Protective goggles.
  7. Focusing plate.
  8. Protective gloves.
  9. Stickers.















Getting started with an Endurance 15 watt DUOS laser ver 1.0



Engrave on stainless steel, acrylic, ceramics as a professional!










The laser beam spot is 0.12-0.125 mm (120-125 uM)

Ultra-high precision for effective laser cutting and laser engraving.



Comparing 15 watt vs. 10 watt diode laser.

2 beams are always better for cutting



Power: 100%
Speed cutting: 500 mm / min
Air assist: 60 Litres per min (Hailea air compressor)
Type of material Repeats
Name Thickness Density 15 watt (15000 mW) “Duos” laser system 10 watt (10000 mW)
Mm | inch g / cm^3 Min Max Min Max
Cedar plywood 3.5 | 1/7’’ 0.39 2 2 3 4
Moroccan plywood (3 ply) 2.5 | 1/10’’ 0.48 2 2 3 4
Birch plywood (3 ply) 3.5 | 1/7’’ 0.7 4 5 6 8
Marine Plywood (3-ply) 1 |1/25’’ 0.85 4 5
MDF 3 | 1/8’’ 0.87 9 10



Engraving on acrylic and glass.



Leather and ceramics engraving



Technical information

Version  1.0
Laser Type Diode laser
Diode type NUBM44 / NUBM47
Laser Optical Peak Power Output (Impulse) 15000mW ± 10%
Laser Optical Average Power Output (CW) 12000mW ± 15%
Focal Range 40 mm
Laser Wavelength 445 nm
Laser wavelength tolerance  +- 2 nm

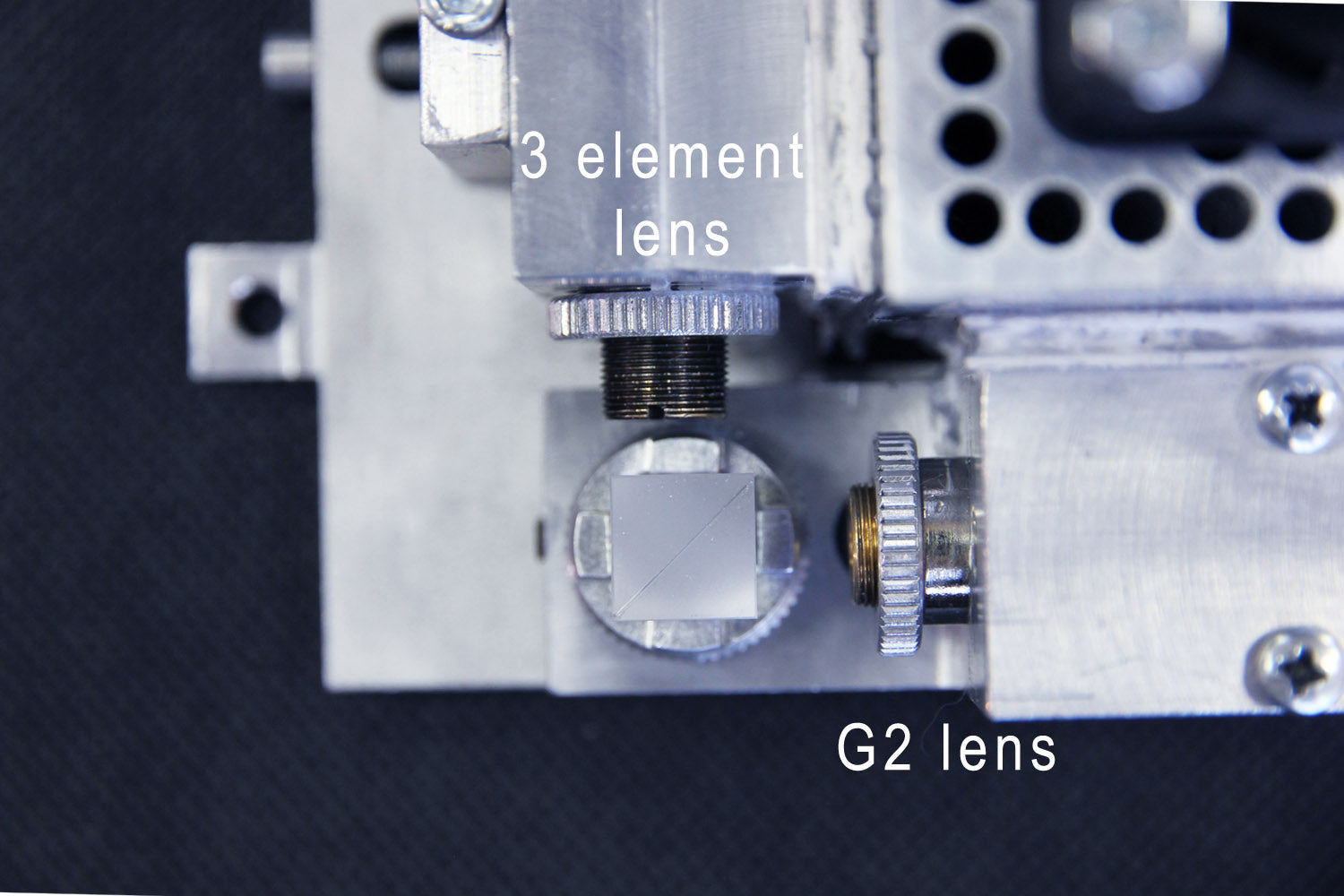

Lens Type 2x 3 element lens (G2+ 3 element can be made upon request)
Operation Time Tested 48-72 hours continuous
Heatup time 1 s
Voltage 9-18V DC
Total current consumption 18A (12V)
Cooling Effective fan (turbine) + double TEC cooling (adjustable)

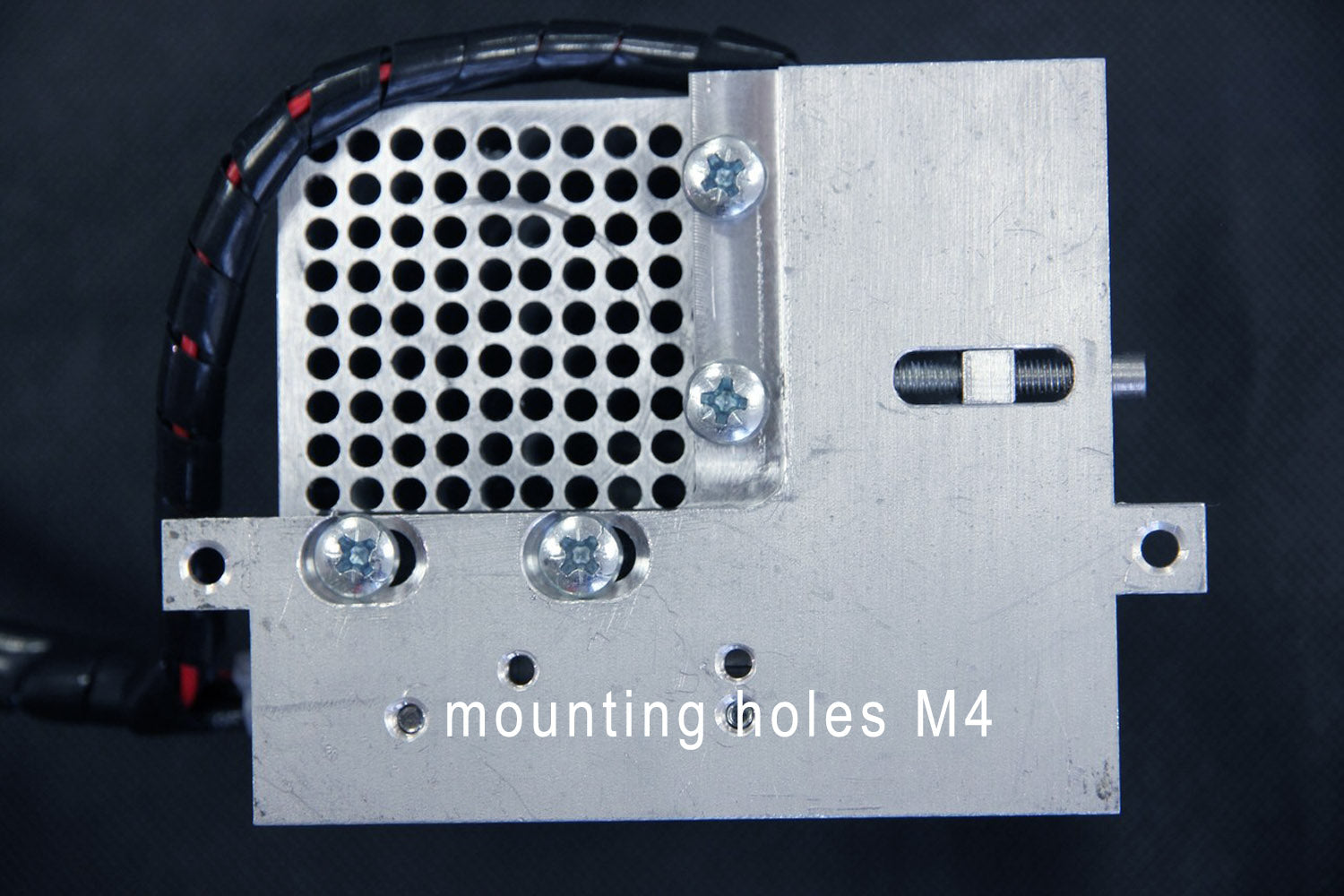

Mount M4 holes on the back
Installation Process
Laser beam spot  120-125 uM (microns)
Power adjustment Endurance Mo1 PCB

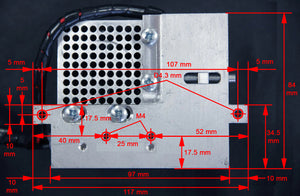

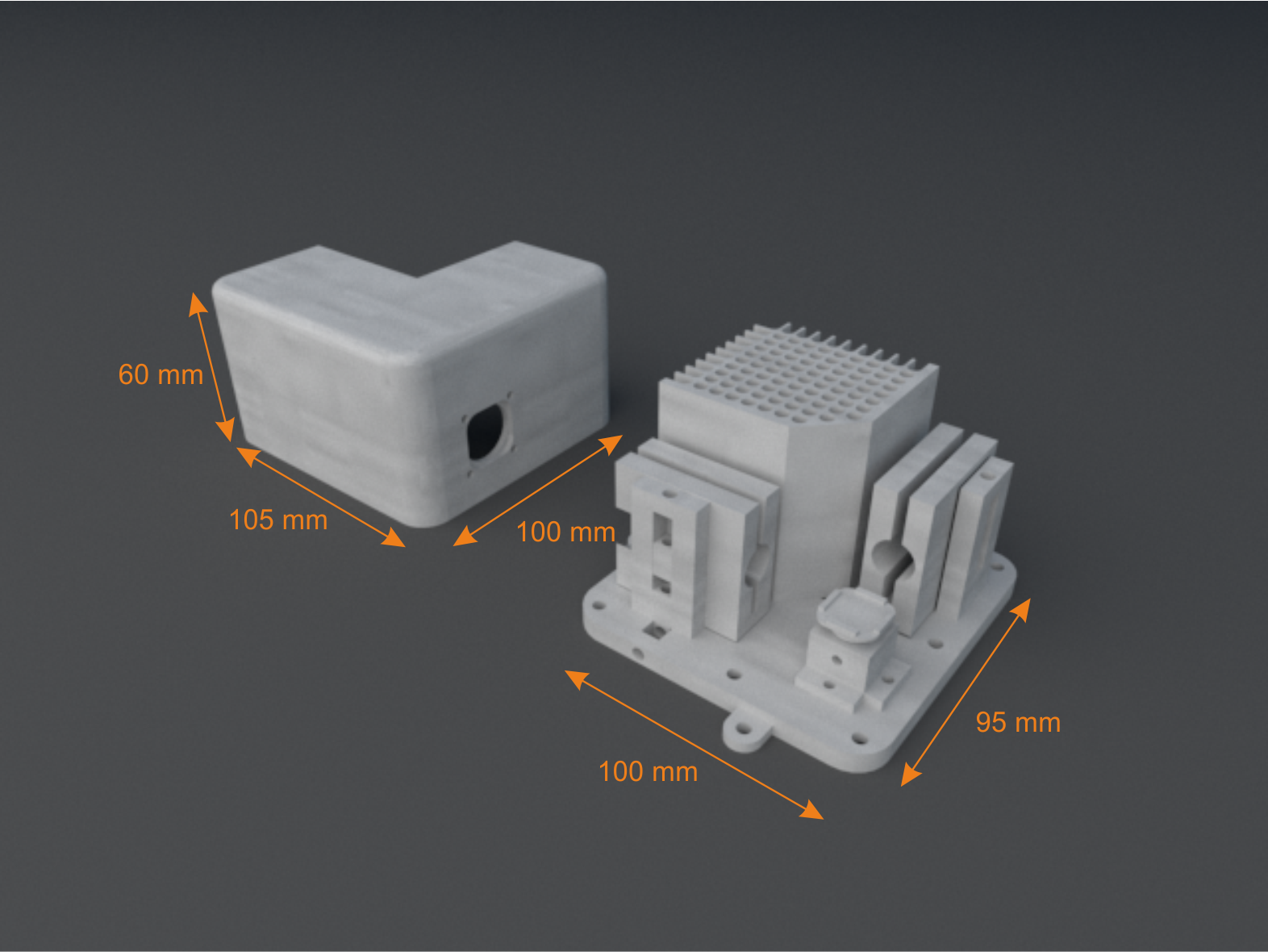

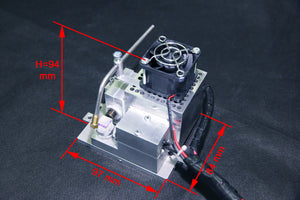

Laser Dimensions (W x L x H) mm 117x84x96
Laser Weight 741 g (1.6 pounds)
Laser Driver External laser control box (small + big)
Lifetime 10 000 hours
Maintenance Keep the prism (PBS) clean. Clean with ethanol.

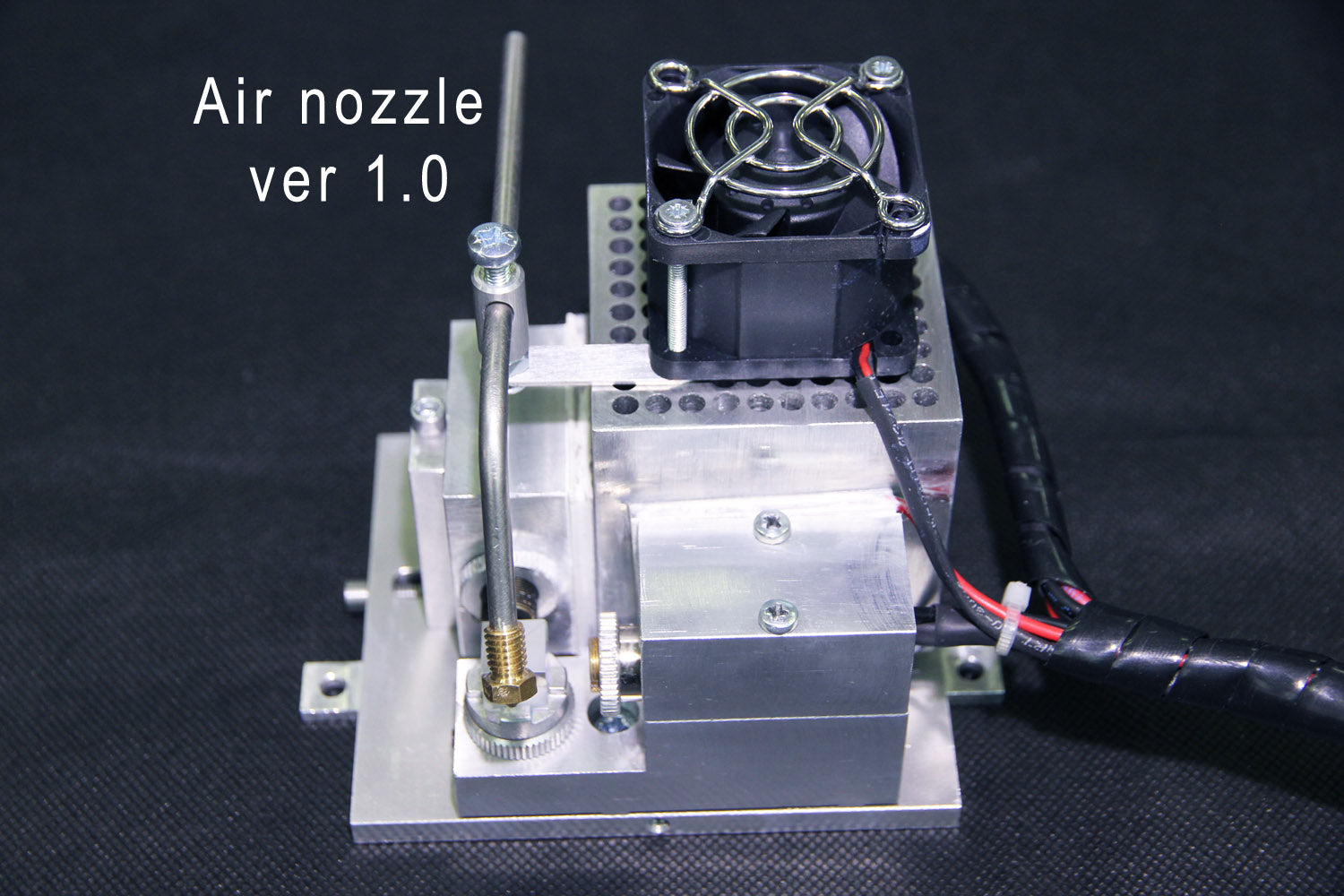

Air assist can be added upon request
The critical temperature for operating the laser 45-50C
Idle temperature 15-25C





Our customer's installation
