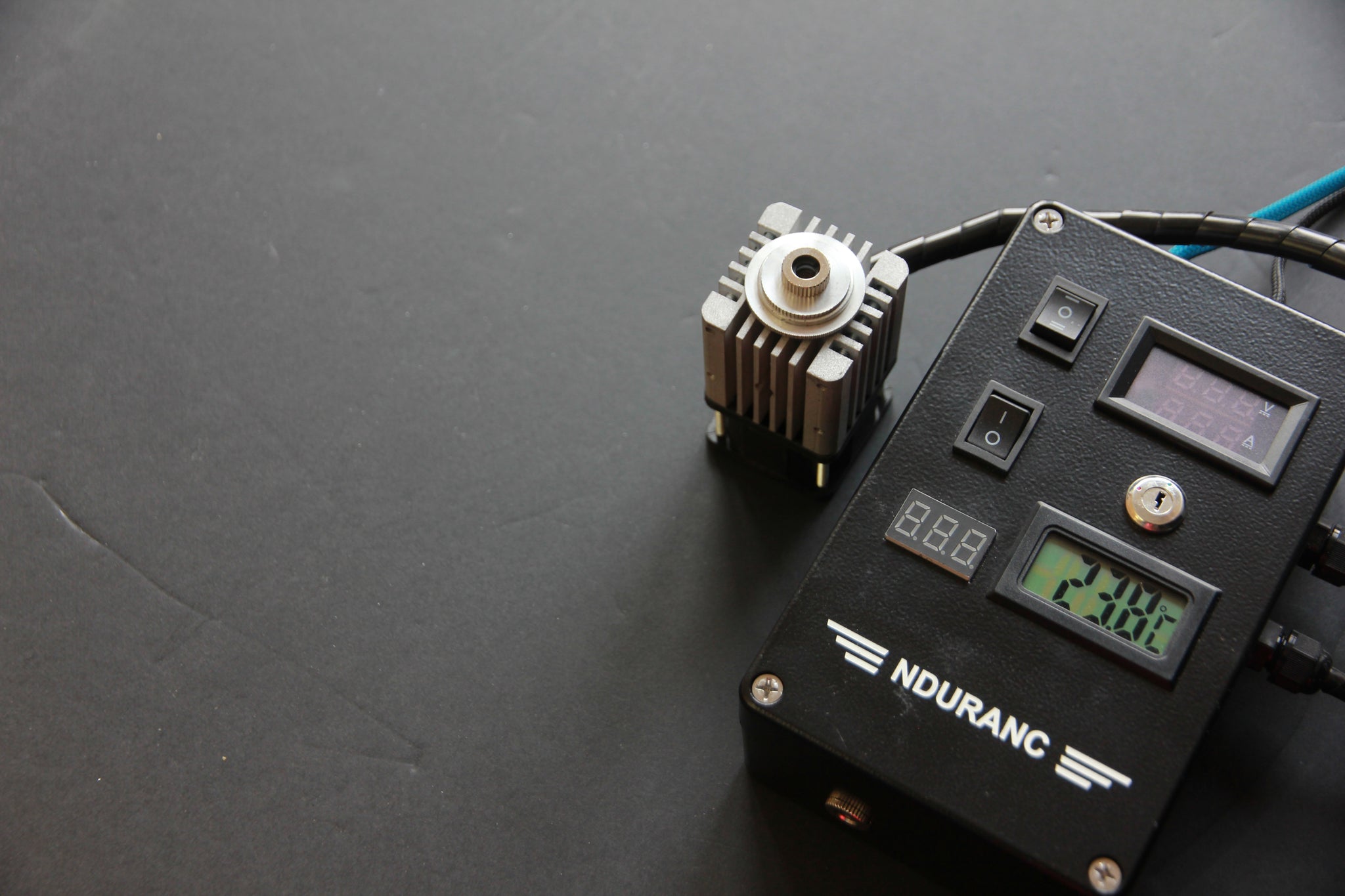

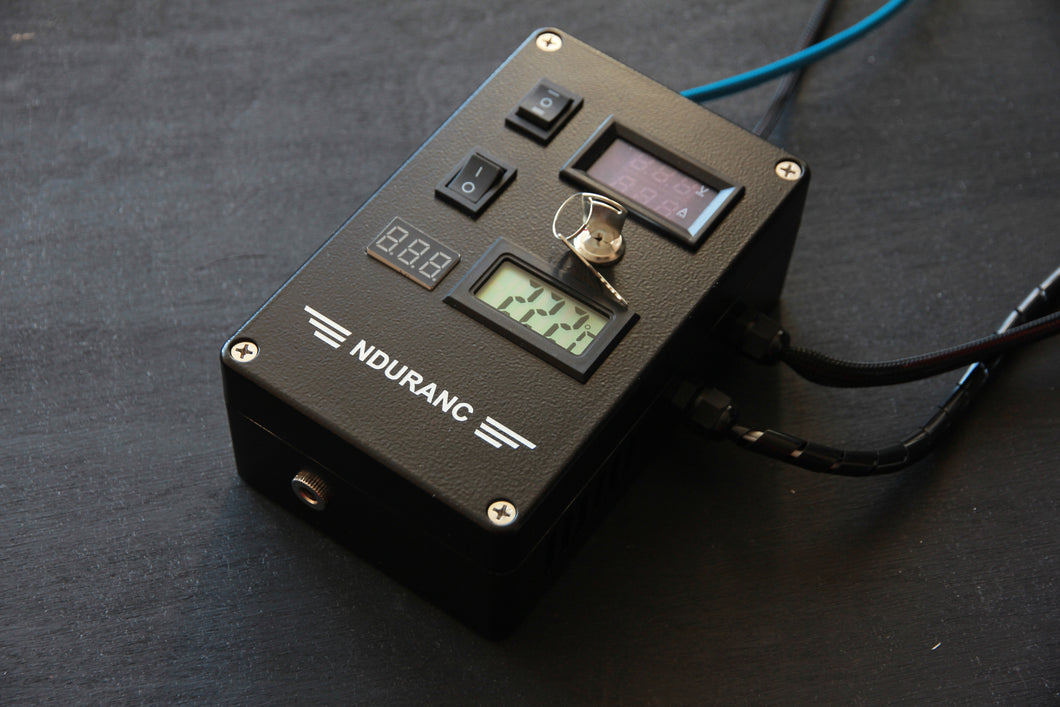

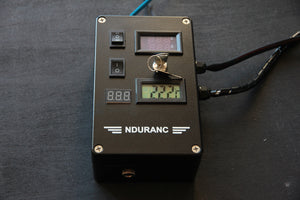

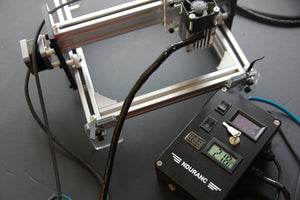

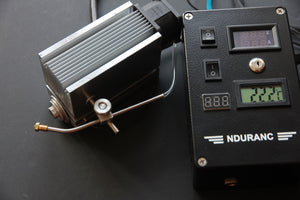

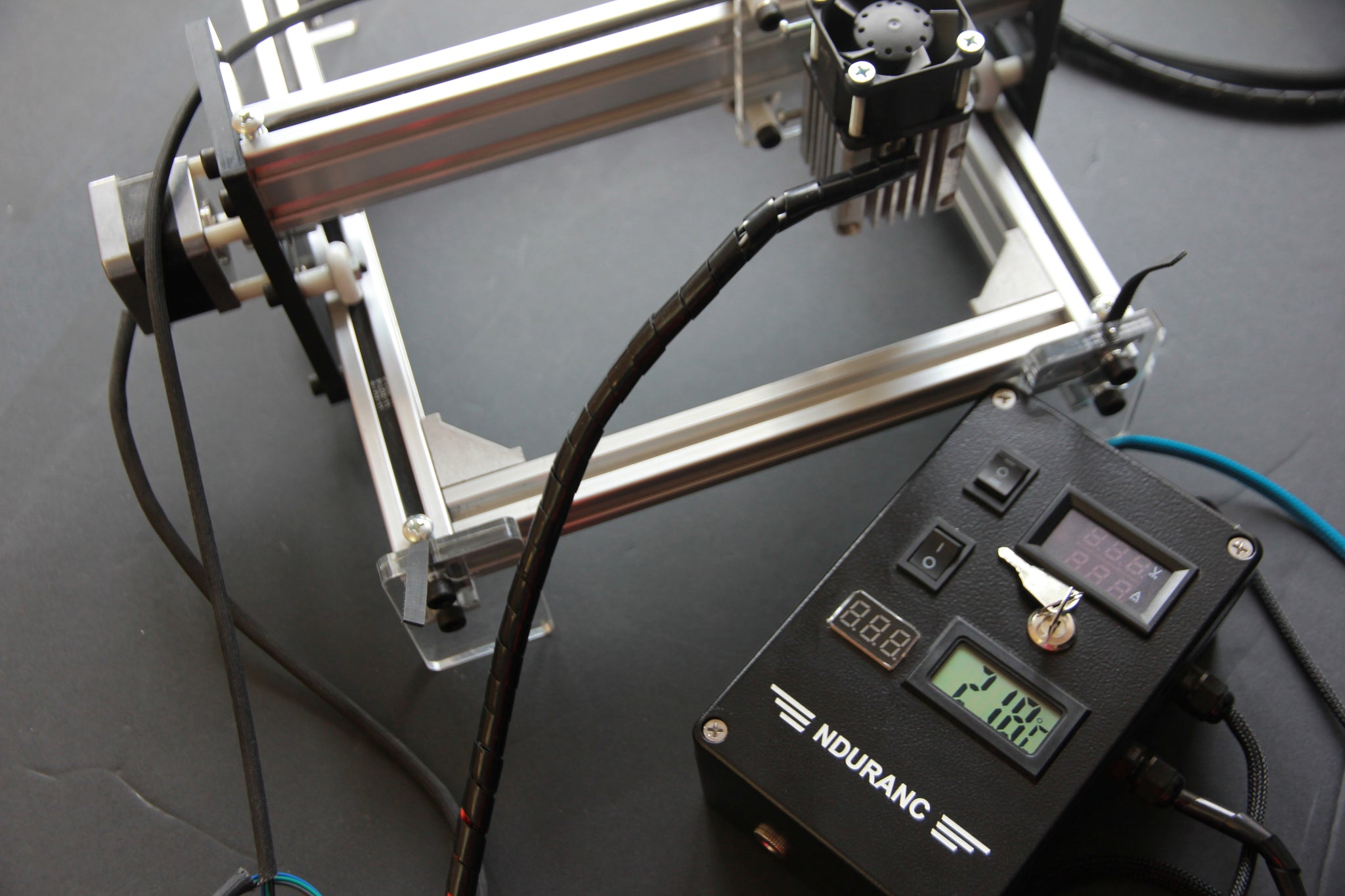

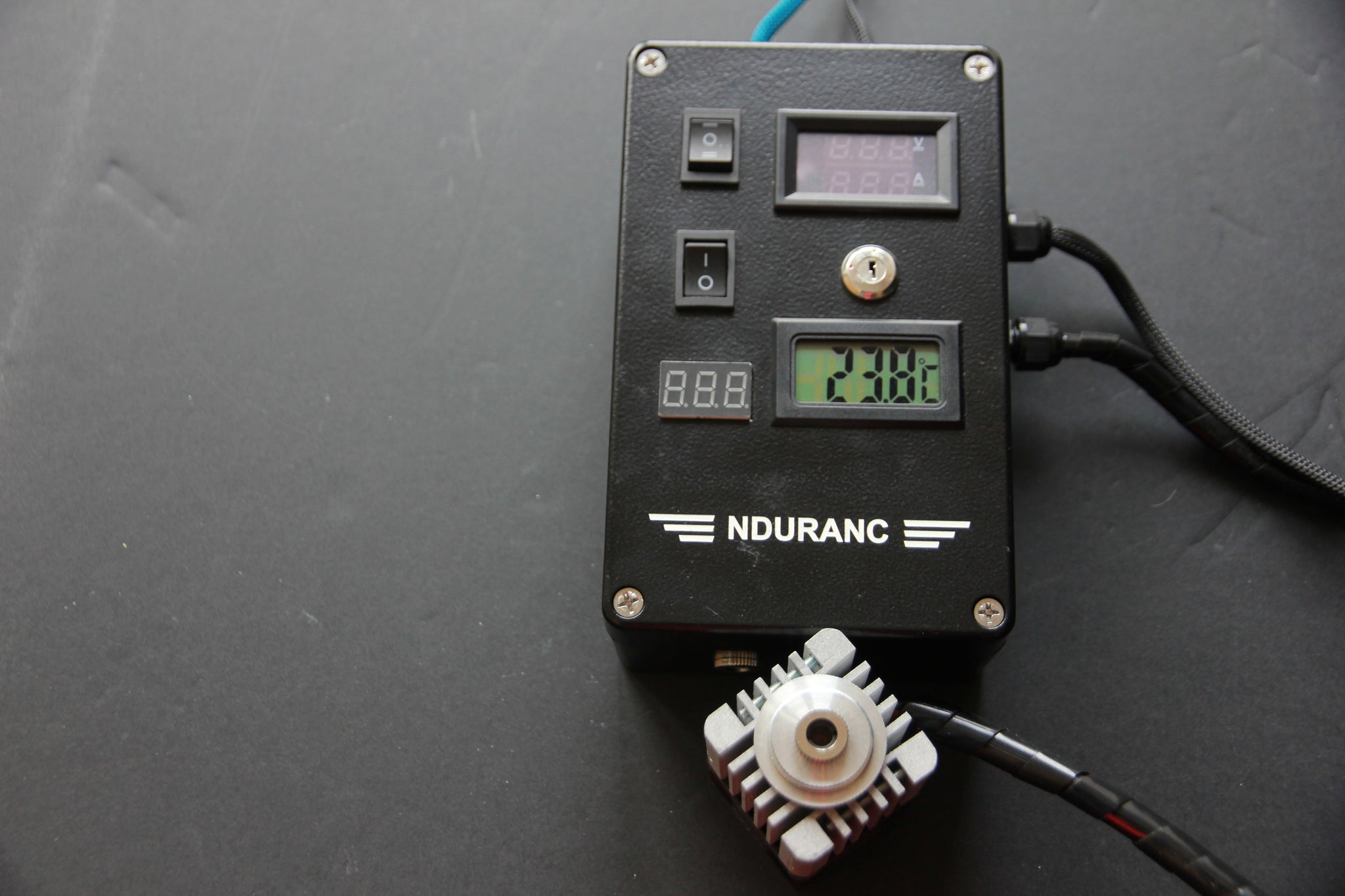

An Endurance Laser driver MO2 PCB


Key features of an Endurance MO2 PCB:
1. Analog input 0-10 PWM output 0-100%.
2. TTL input up to 24V PWM output.
3. Focusing mode laser PWM 0.1%.
4. Adjustable laser voltage threshold of 4.5 to 5.5V
5. Protection against reverse polarity reversal of analog, comparator and TTL inputs.
6. The delay in applying the voltage to the laser when the unit is turned on 1.5 sec.
7. Ability to install both large and small box without modifications of the printed circuit board.
8. Ability to run an impulse mode with a wide variety of frequency and duration width.





(requires a laser DC/DC converter)



Lead time - 1 day

DHL express worldwide delivery - 3-5 days

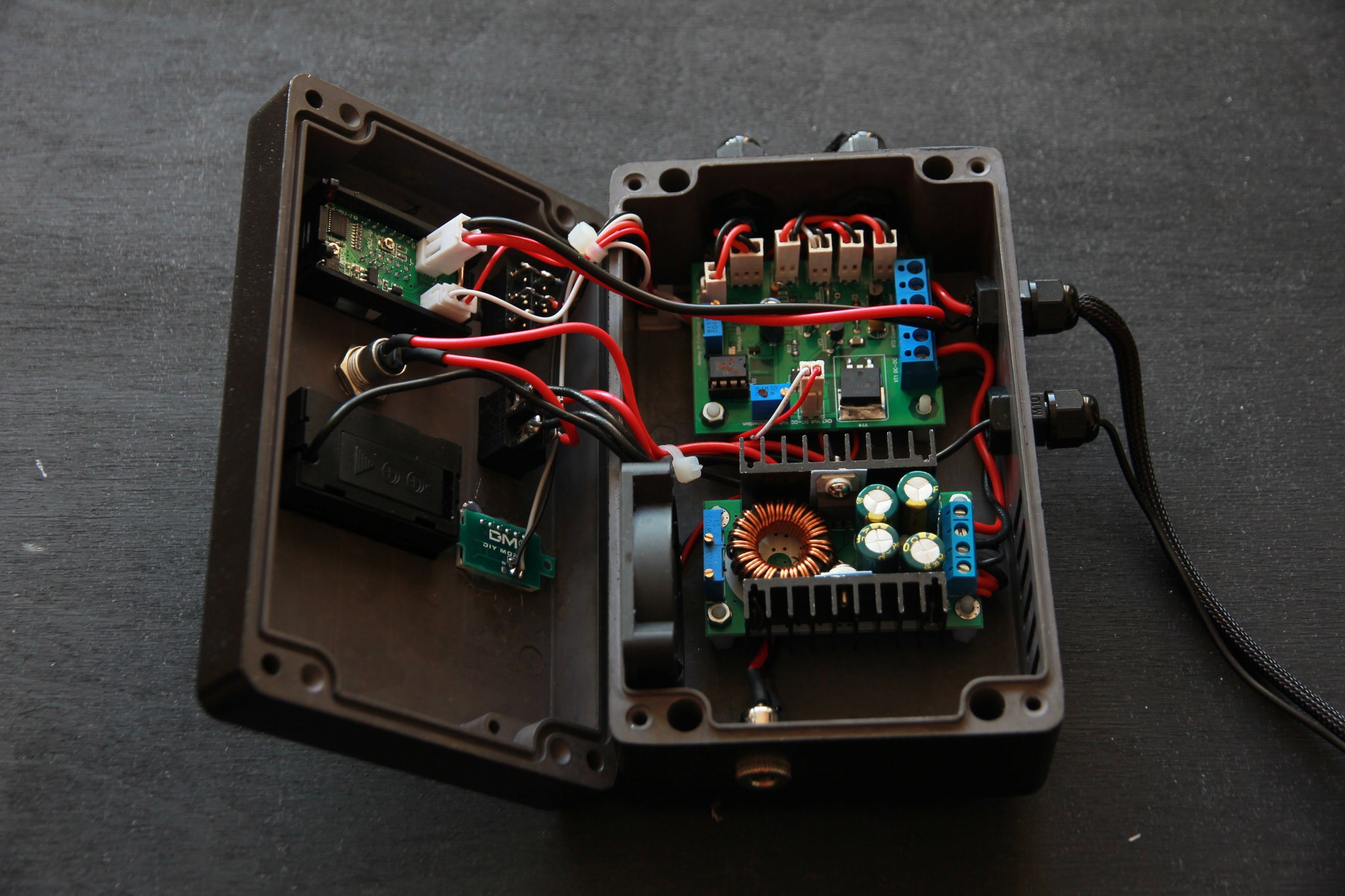

CN1 – Power Board +12V
CN2 – Analog Input/Inverted input
CN3 – Mode select switch SW1
CN4 – PWM Input
CN5 – Fan
CN6 – Input Voltage Voltmeter
CN7 – DC-DC output voltage voltmeter

XT1 – DC-DC
XT2 – Laser
XT3 – Laser current measurement. Ammeter



 Running a laser in impulse mode with Mo2 PCB







Technical Data for an Endurance Mo2 PCB

Supply voltage 12 VDC+-10%
Minimum Current Power Supply (For laser diodes up to 10W)          5 A+-10%
Rated Output Current (For laser diodes up to 10W)          5 А
Max Output Current (Power supply current must be at least 10A) 8 А
Laser diode voltage max 5.5V
Laser diode voltage min 2V
Laser diode current  1A - 6A
Laser diode current max 8A*
Max. PWM  Frequency 50 KHz
Min. PWM Frequency 90 Hz
(You need to know if you connect to a 3D printer controller)
Maximum PWM duty cycle 99,90%
(PWM frequency over 90Hz)
PWM Input Voltage (Left, Blue wire) 3V - 12V
(Left, Blue wire)
PWM Input Voltage (Right, black wire) 3V - 24V


Rise Time 300 nS
(In relation to the input pulse of the PWM)
Analog Input Voltage 0V - 10V
PWM Duty Cycle Based on Analog Input Voltage 0% - 99,9%
PWM frequency when working with analog input 500 HZ
Laser focus mode PWM Duty 0,1%
Protection of the output voltage of the laser diode min 4.5V
Protection of the output voltage of the laser diode max 5.5V
Delay range before the start the laser: 1.5 sec
