Combine your existing laser and get 2 x power output.

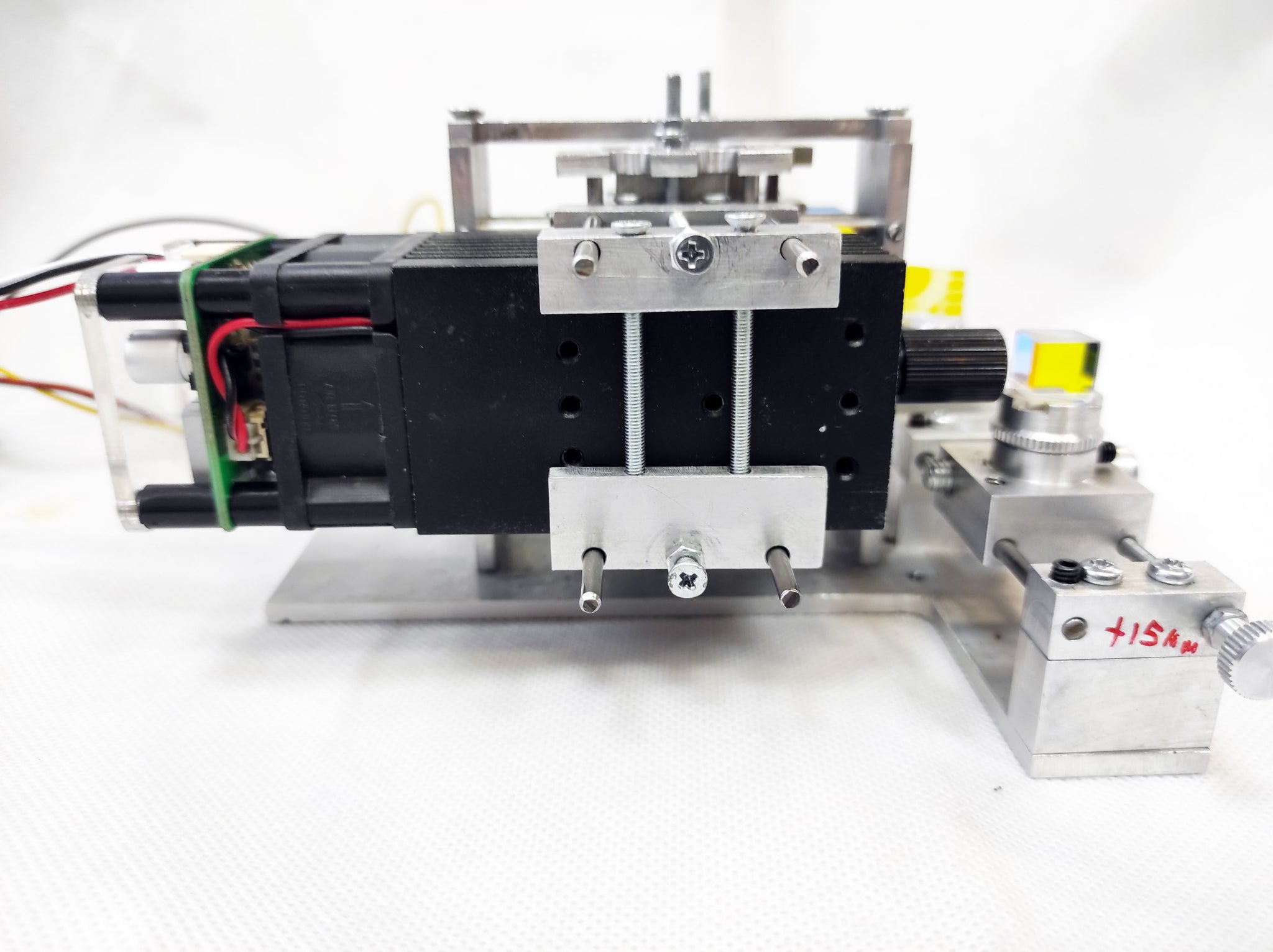

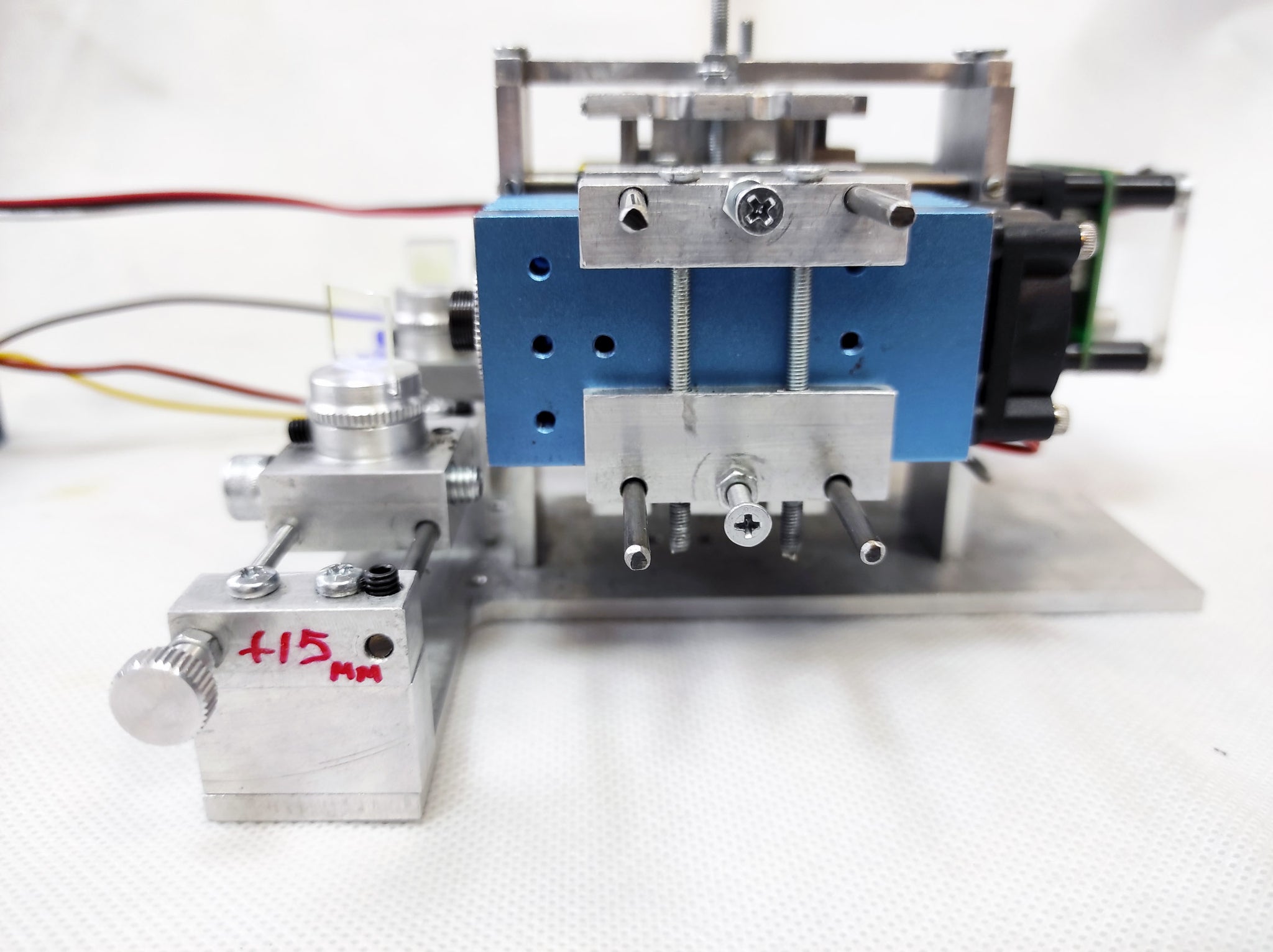

An Endurance lasers beam combiner. Combine 2 laser beams. Get 2x power.
If you already have one diode laser - you can now get another one and combine 2 beams in one.

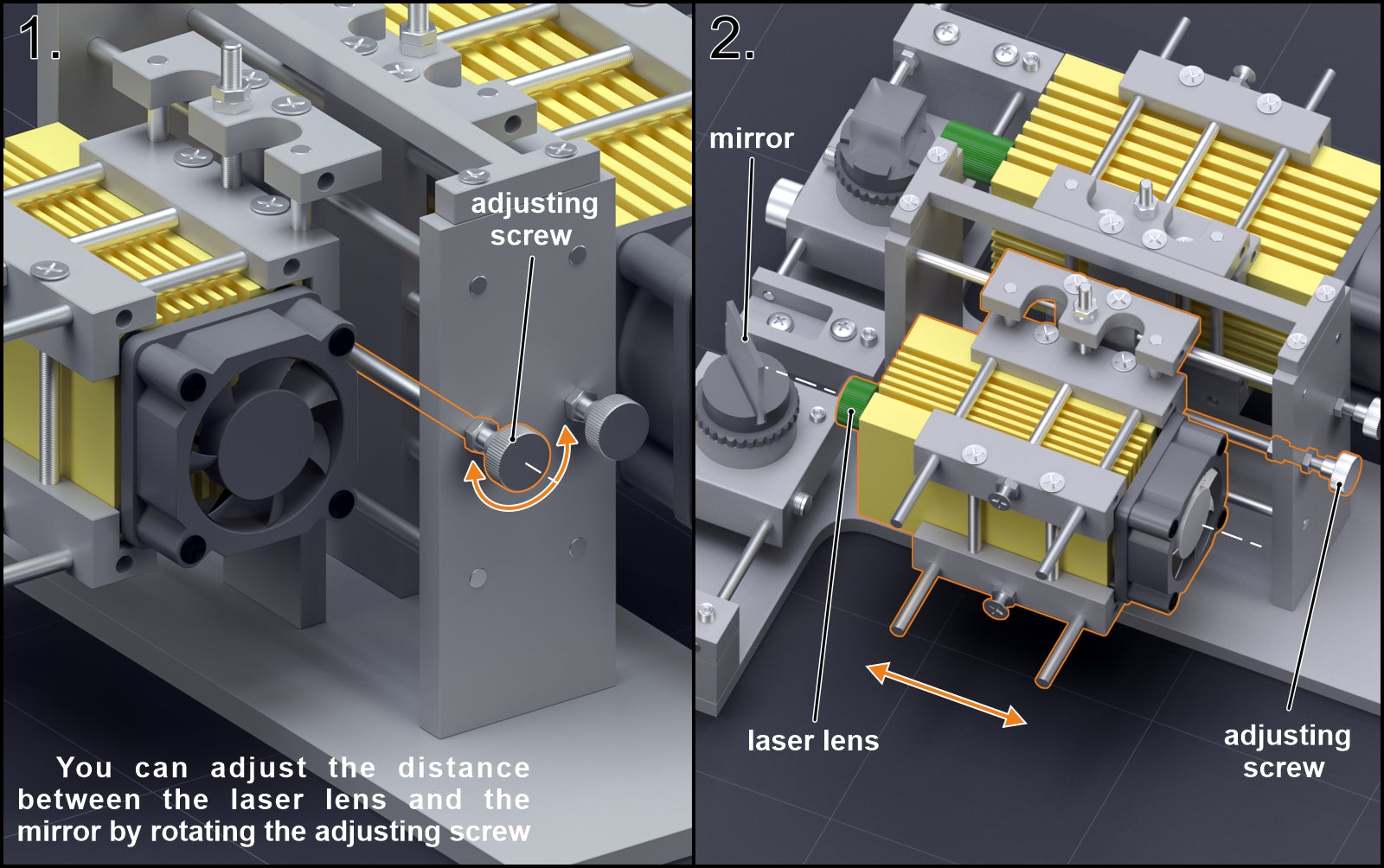

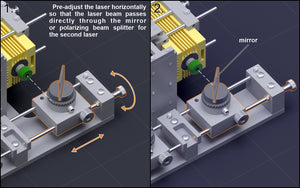

How to assemble your own laser beam combiner. Combine your 2 laser modules
Fully compatible with Endurance lasers, Optlasers, J Tech Photonics, Neje, SainSmart, (Genmitsu), Ortur, Atomstack, Insma, Universal laser engraver, and Eleksmaker and many other non branded Chinese units.

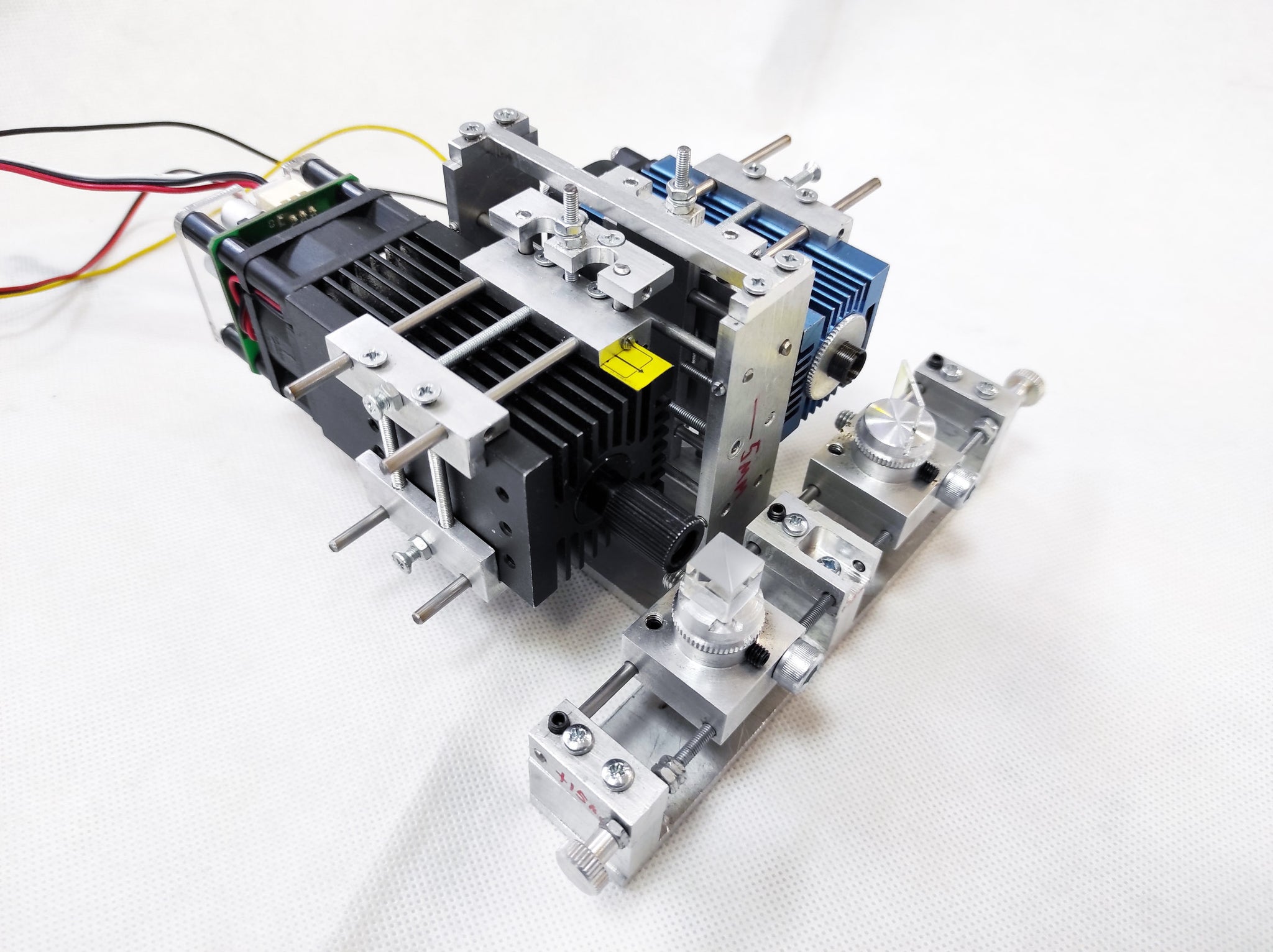

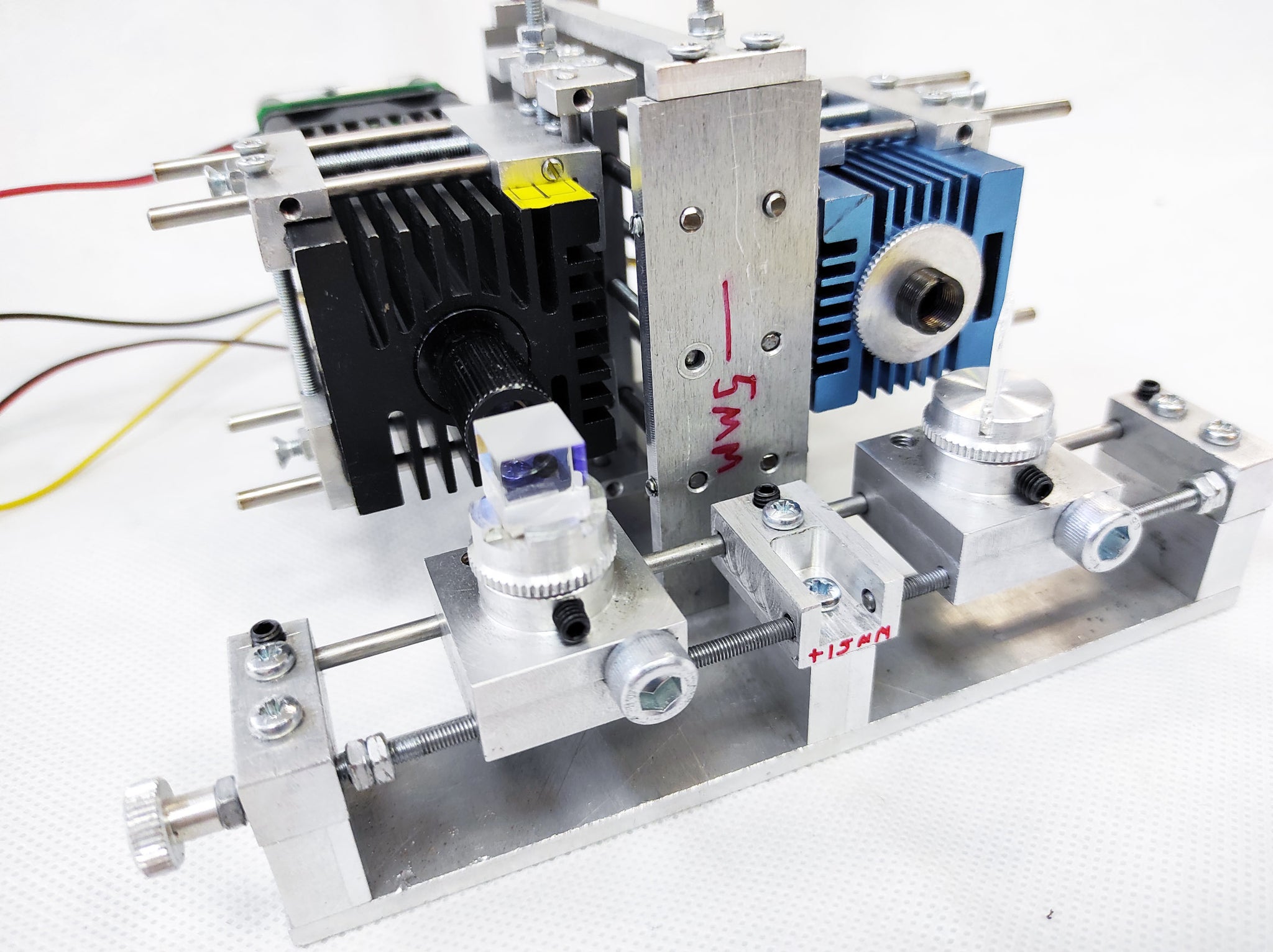

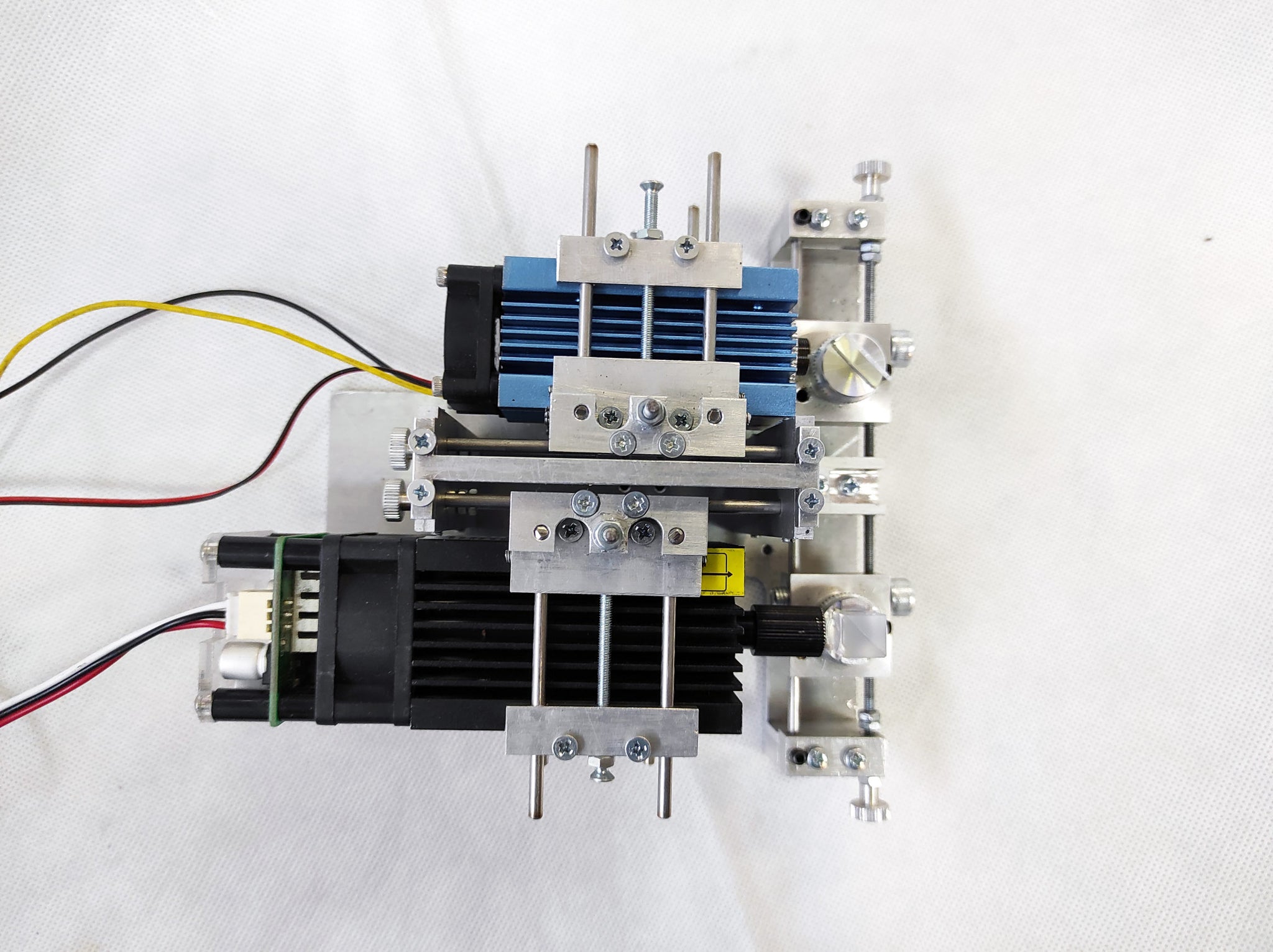

Laser beam combiner abilities (Ortur + SainSmart laser modules)
|
Material |
Power |
Speed mm / min |
|
Plywood 3 mm (3/16’’) (density 0.7 g/ Cm^3 (cutting) |
100% |
280 х 3 loops |
|
Plywood (engraving) |
36% |
1500 |
|
Leather 2 mm (cutting) |
100% |
600 |
|
Leather (engraving) |
15% |
1500 |
|
Stainless steel (engraving) |
100% |
180 |
|
Paper |
60% |
1500 |
Ortur laser standalone unit (5.5 watt)
|
Material |
Power |
Speed mm / min |
|
Plywood 3 mm (3/16’’) (density 0.7 g/ Cm^3 (cutting) |
100 |
100 х 4 loops |
|
Leather 2 mm (cutting) |
100 |
220 |
|
Stainless steel (engraving) |
100 |
50 |

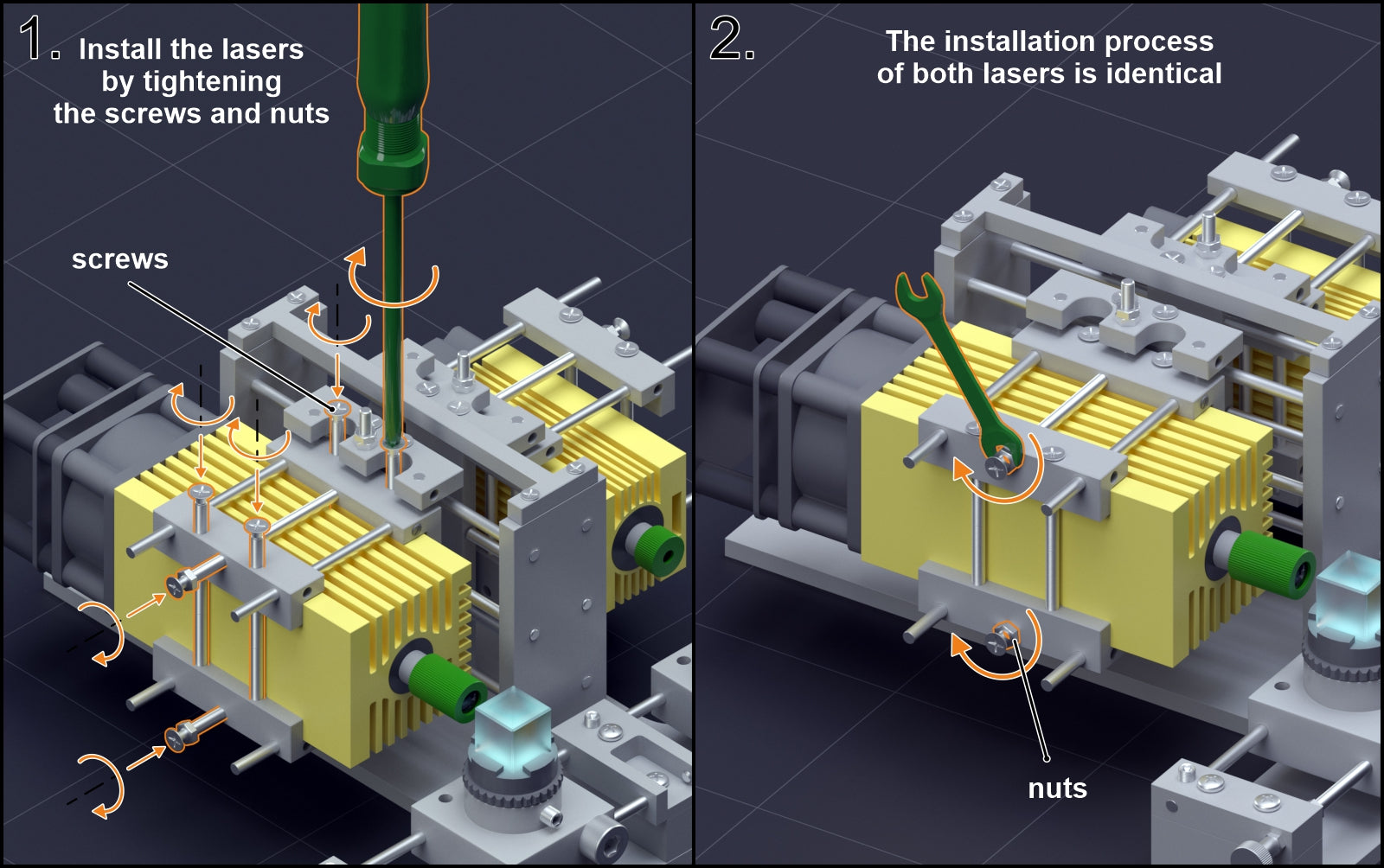

Getting started with an Endurance laser beam combiner system - installing on Ortur, Universal engraver (Eleksmaker frame) and CNC 3018 by SainSmart (Genmitsu)

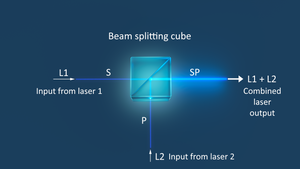

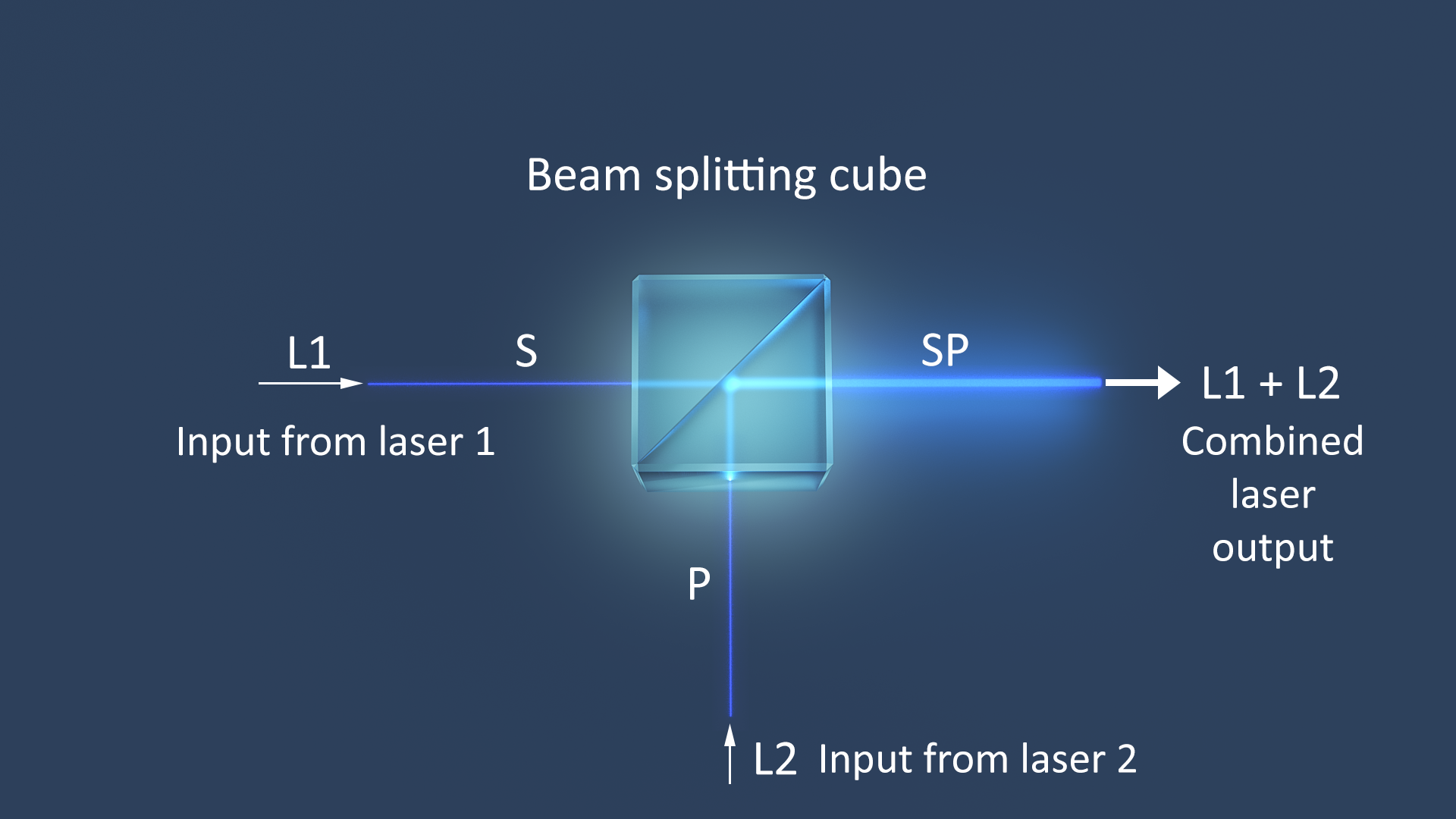

The Endurance laser beam combiner combines one beam with an S polarization vector and a P polarization vector.
Compatible with all types of laser lenses.
Keep in mind that the laser beam combiner goes without lasers. You must have 2 laser modules already or you may order Endurance lasers as well!

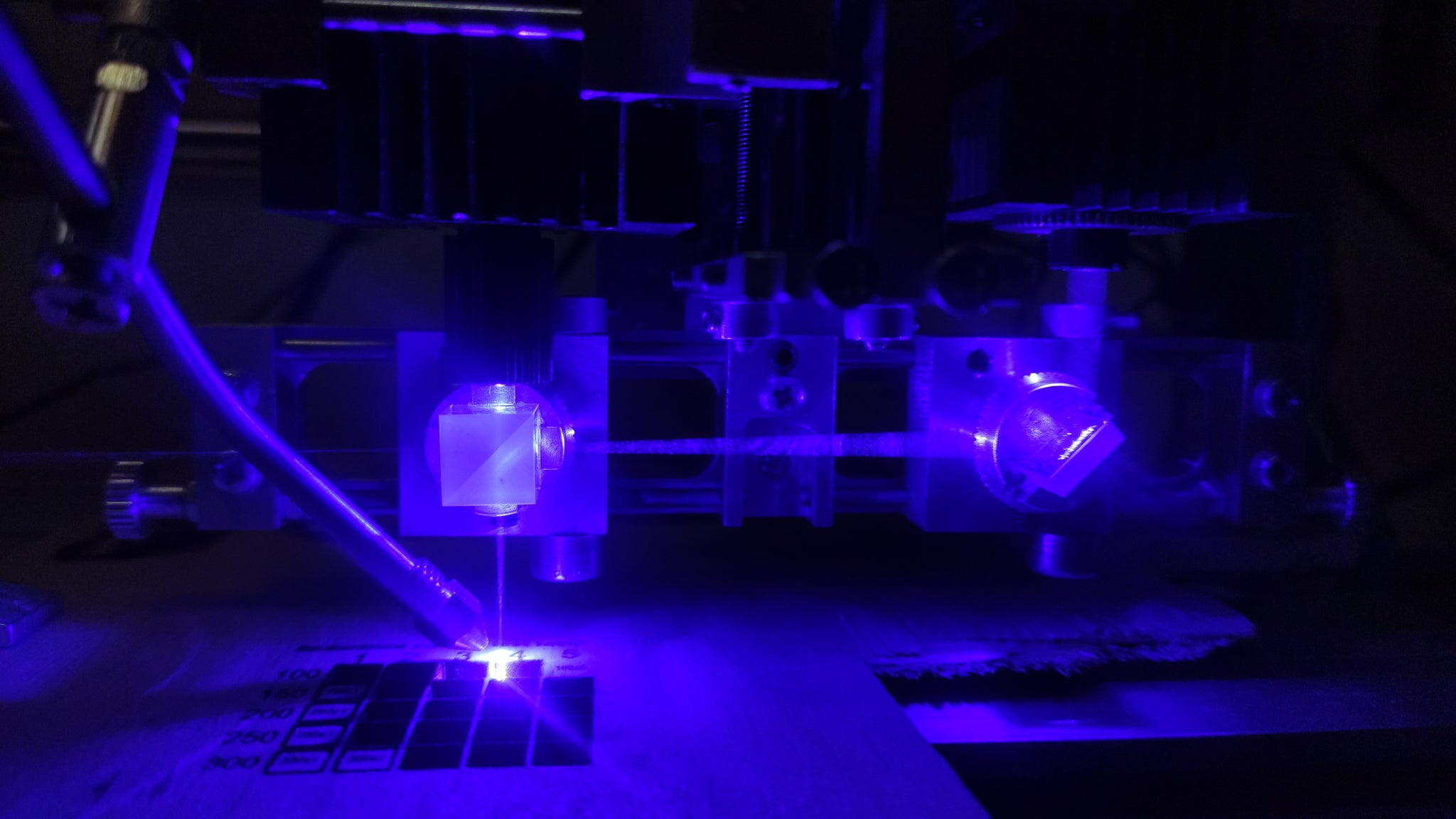

Fast and efficient plywood laser cut
Leather laser cut
Our customers are happy with our Laser beam combiner!
