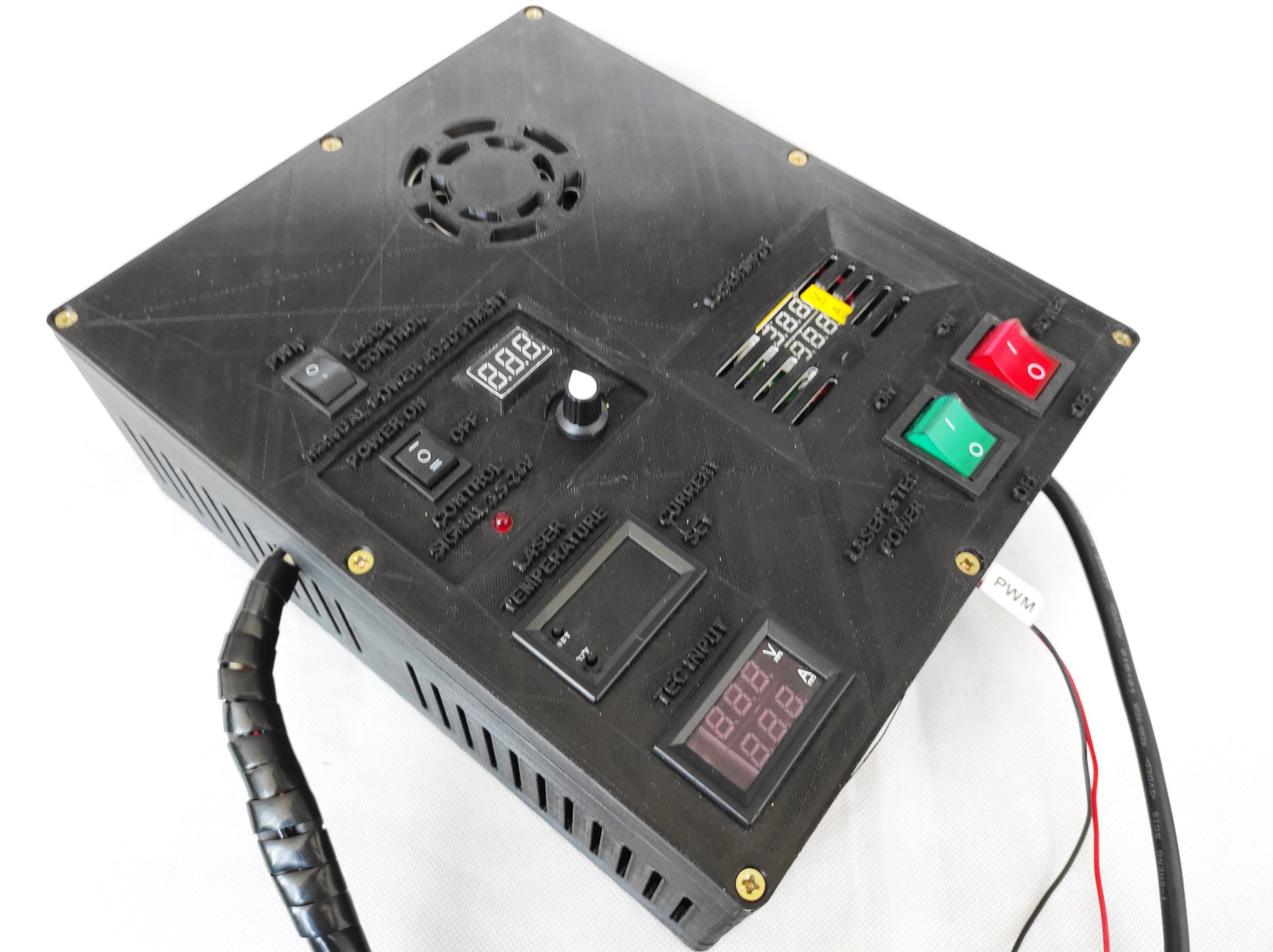

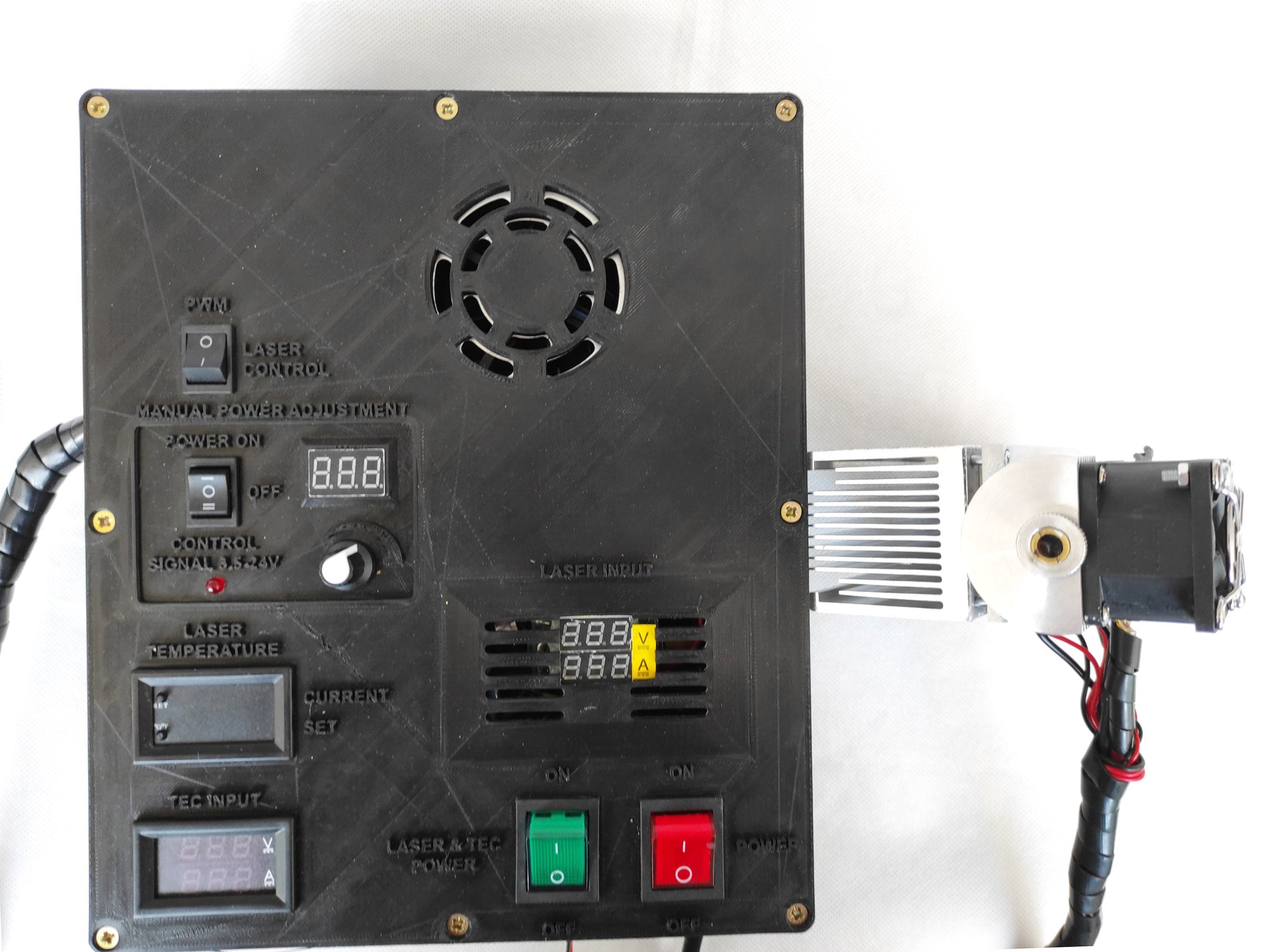

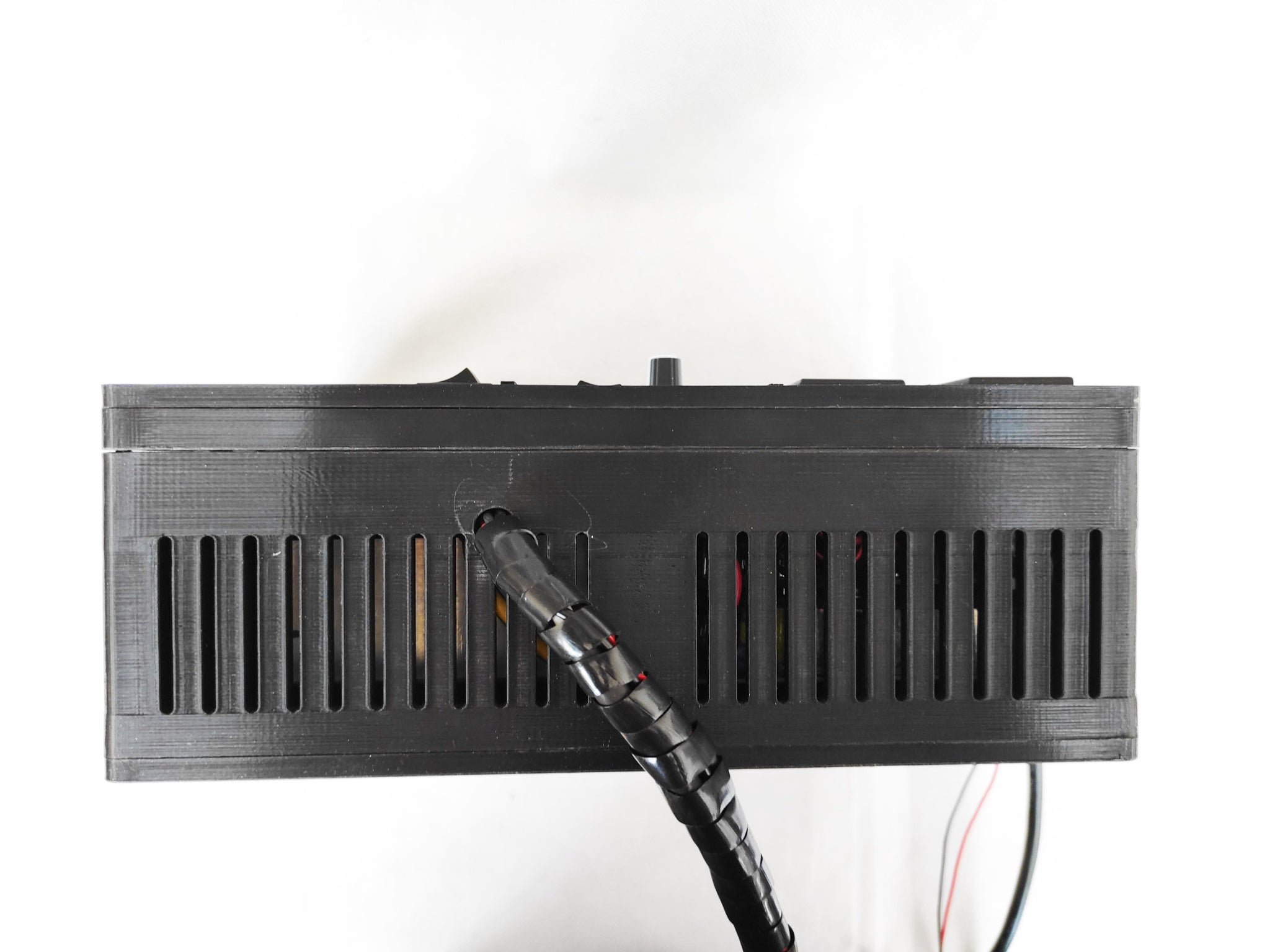

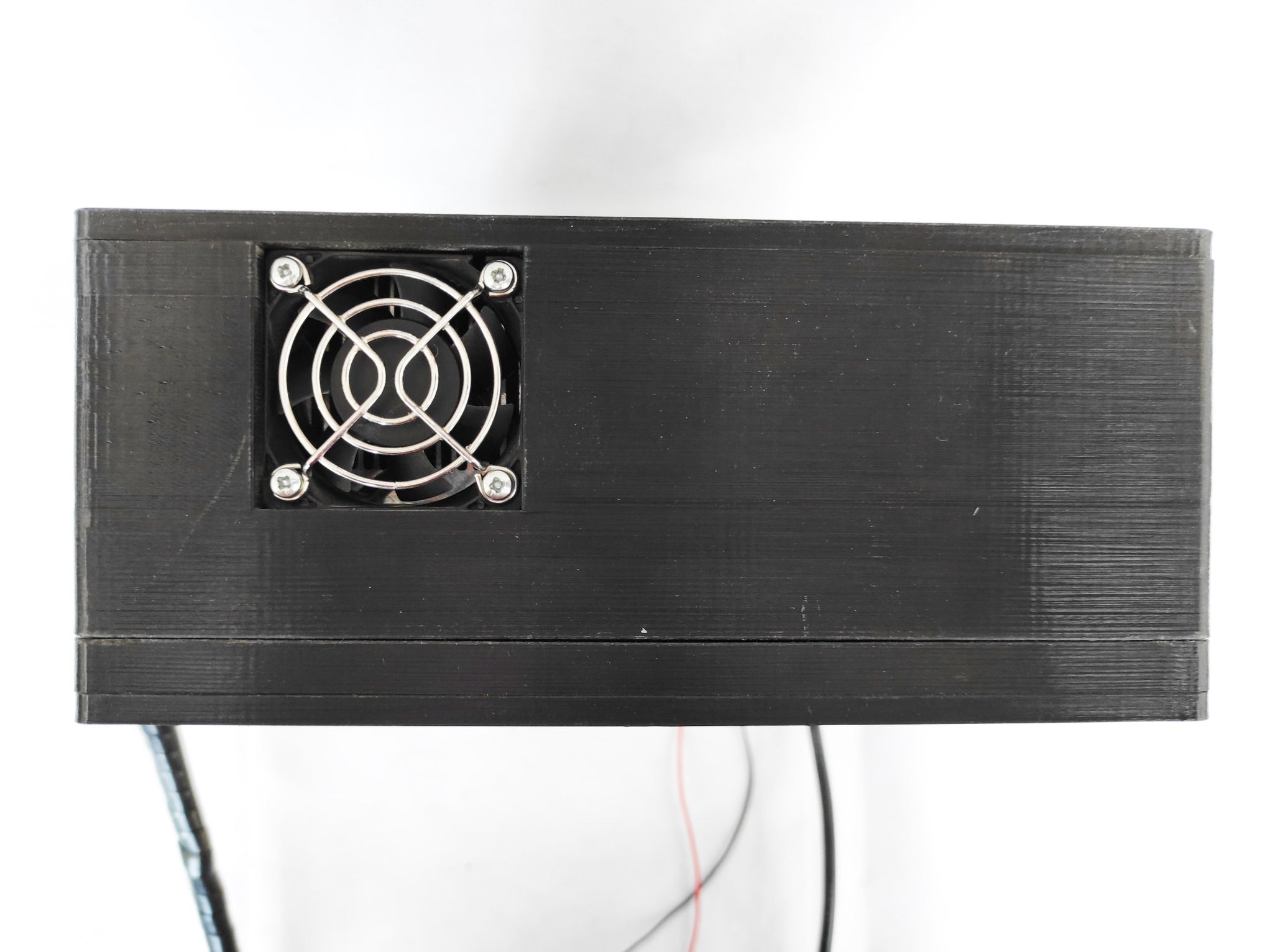

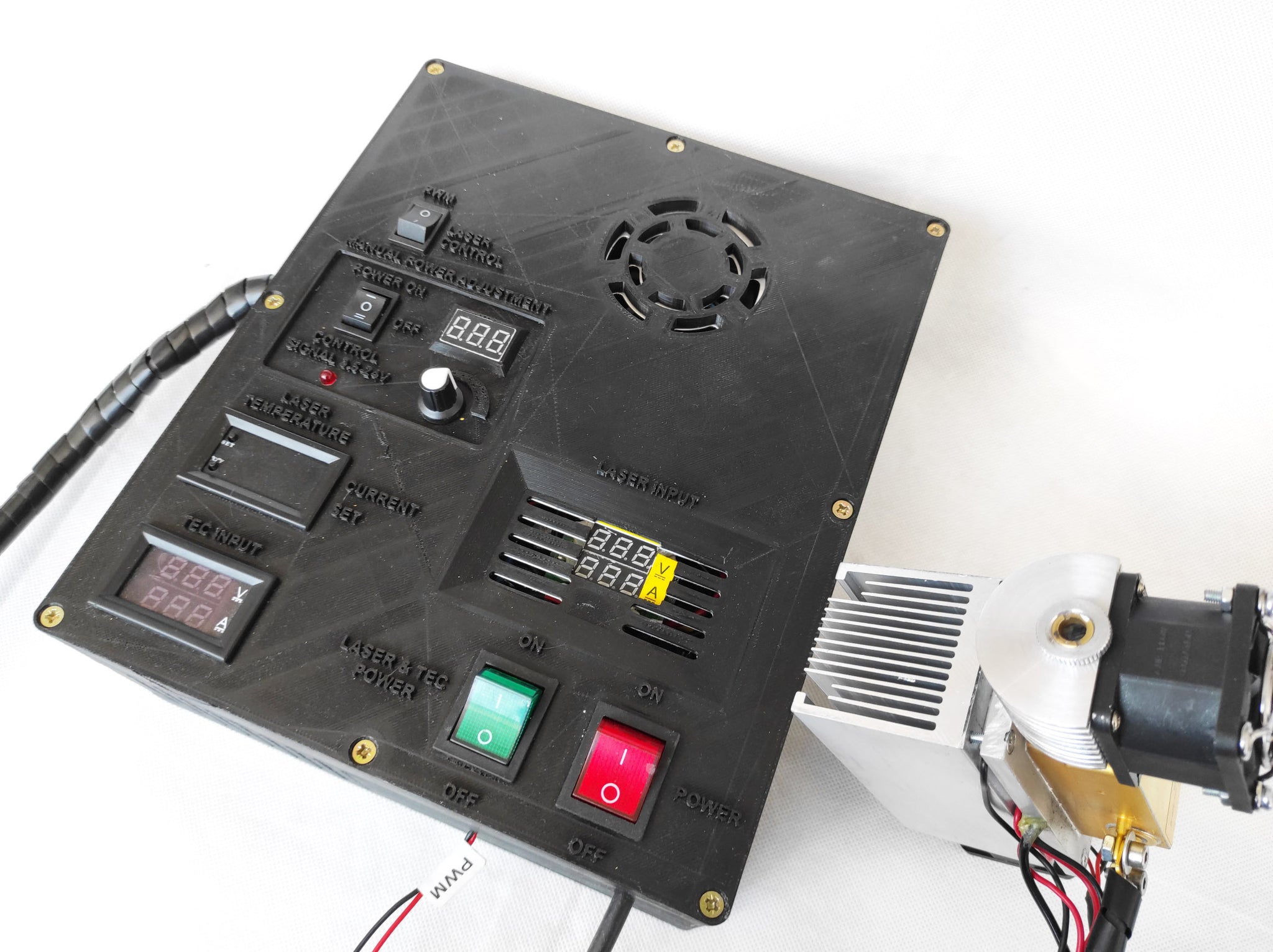

An Endurance FAP 800 Coherent laser control box
An Endurance FAP 800 Coherent laser control box
An Endurance FAP 800 Coherent laser control box
An Endurance FAP 800 Coherent laser control box
An Endurance FAP 800 Coherent laser control box
An Endurance FAP 800 Coherent laser control box

An Endurance FAP 800 Coherent laser control box

Vendor
Endurance Lasers + Coherent
Regular price
$995.00
Sale price
$795.00
Tax included. Shipping calculated at checkout.
Quantity must be 1 or more

Endurance offers a laser box for running FAP800 Coherent laser diode module



Getting started with a laser control box



Inside the laser box

  • An AC/DC 2V 30A power supply (PSU).
  • A driver controlling the laser with PWM signal (3.3-12V).
  • our own TEC controller system that allows keeping the temperature around 15C.
  • A dynamic PWM module that allows changing laser power with a potentiometer.
  • Voltmeter + ammeter that allows checking the laser power.



Technical specs of an Endurance FAP 800 laser module

Laser type: FAP Coherent

Power: 15-50 W

Consumption: 1.83V, 30А

Laser operating temperature: -20 – 30°C

Cooling controller: 2 TEC-12706

Laser control: PWM 3.3-12V or control signal 3.5-24V with manual power control

Wire length from the control box to the laser head: 1.1 m (~3.6′)

Input voltage: 220-240V (AC)

Control box size: 260x220x96 mm









Wiring and schematic

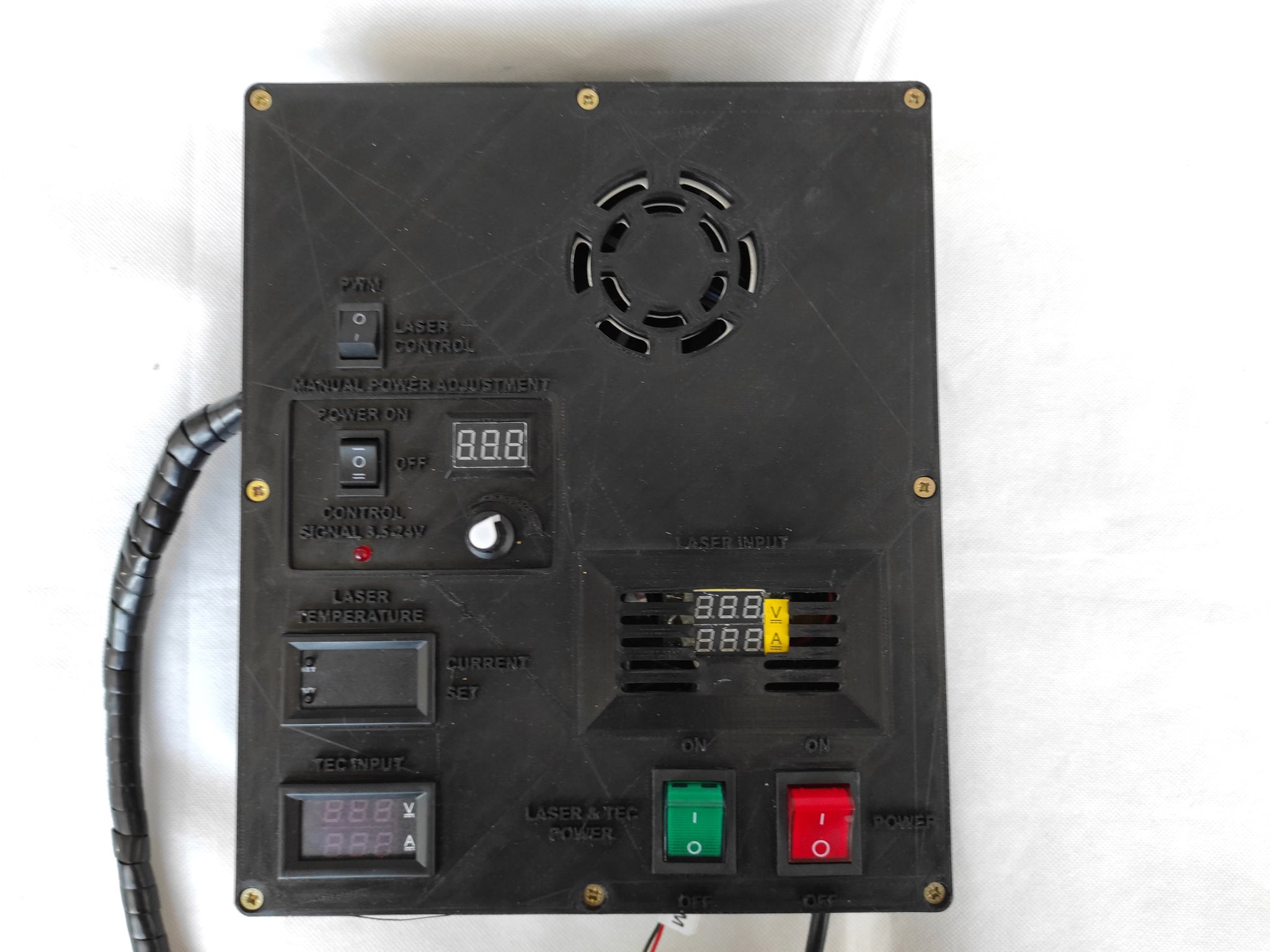

On the control and indication elements on the cover from the FAP and how to call it all:
1 – General food. I guess “Power (ON / OFF)”
2 – Laser power supply and Peltier. I think something like “Laser & TEC Power (ON / OFF)”
3 – Volts/amperes on the laser. I guess “Laser Input”
4 – Volts/amperes per Peltier. I guess “TEC Input”
5 – Thermal relay
Current temperature. I guess “Current Temperature”
Set temperature. I guess “Set Temperature”
6 – Working with PWM
Mode “0” – work from PWM directly from the machine
Mode “1” – work from PWM through the regulator.

7 – Regulator block. I don’t know if it is necessary to separate it and somehow sign it separately.
8 – Regulator modes.
Mode “0” – The regulator is off. Here it is clear “OFF”.
Mode “1” – The laser is always on. The power is set by the regulator.
Mode “2” – Through the PWM wires from the machine, on which there is no PWM, a voltage of 3.5-24V is supplied, through which the laser is turned on. The power is set by the regulator.
9 – The handle of the regulator. I don’t know if I need to sign it.
10 – Power indicator.
11 – LED that turns on when voltage is supplied from the machine through the PWM wires. Works only in mode “2”
