Endurance lasers present a new 5/5.5/5.6 Watt (5000/5500/5600 mw) diode blue 445 nm laser module
Ultra-light. Ultra compatible. Ultra endurable!
Getting started with an Endurance 5/5.5/5.6 Watt (5000/5500/5600 mw) diode laser module
Â

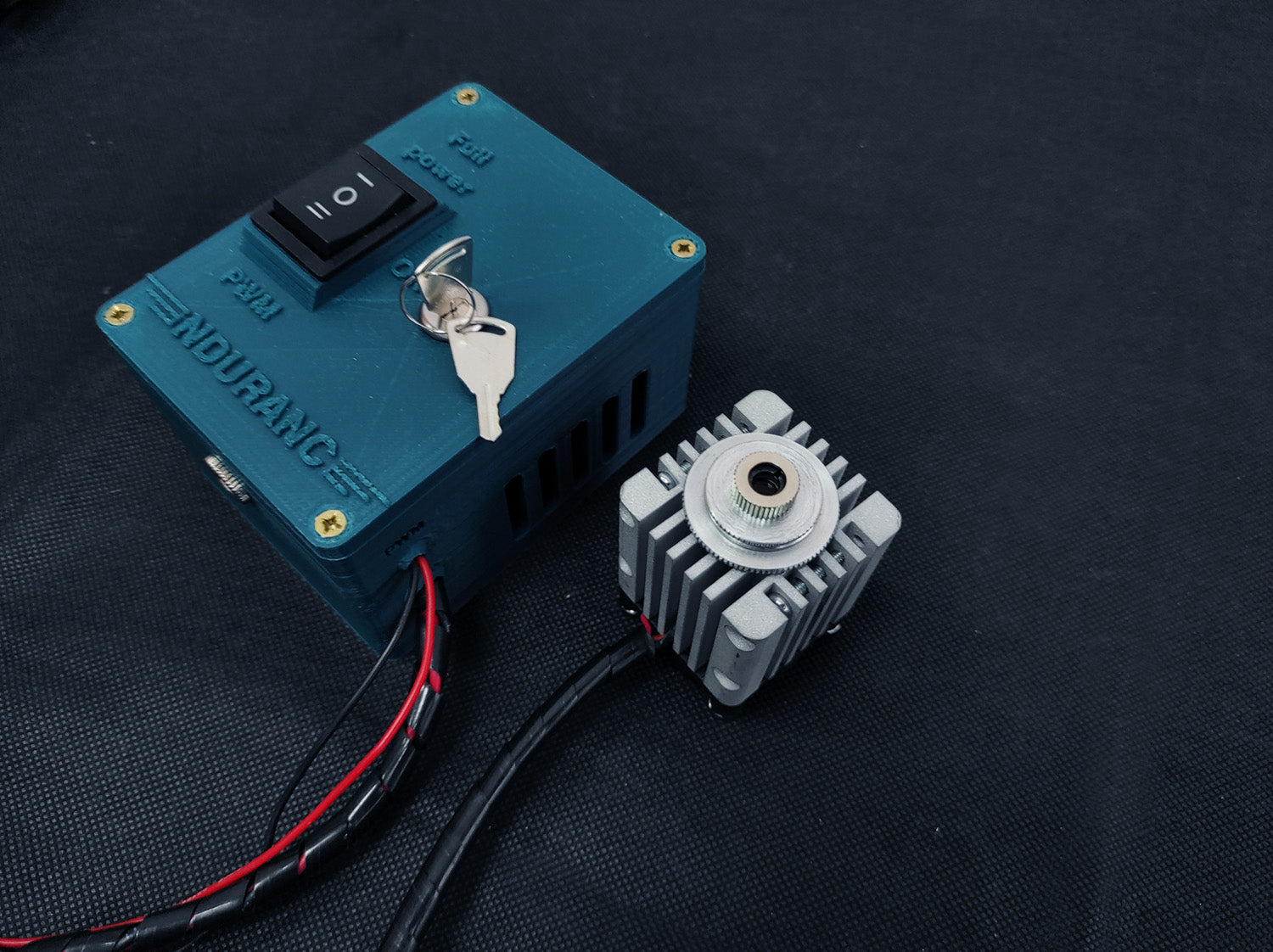

Get all you need in the package to get started:
1. 5/5.5/5.6 Watt (5000/5500/5600 mw) real rated power output in CW mode
2. Laser controller (driver) with Mo1 PCB.
3. Protective goggles.
4. Power supply AC/DC 12V 4A.
5. Focusing plate + protective glovers &Â stickers,Â
5/5.5/5.6 Watt (5000/5500/5600 mw) in action (older design)
What is 5/5.5/5.6 Watt (5000/5500/5600 mw) laser upgade kit good for?
Â
-
Engraves on stone, glass, and painted metals.
-
Can cut 2-3 mm (1/8'') of wood and plywood with one pass.
-
Can cut 4 mm (1/6'') of dark acrylic with one pass.
-

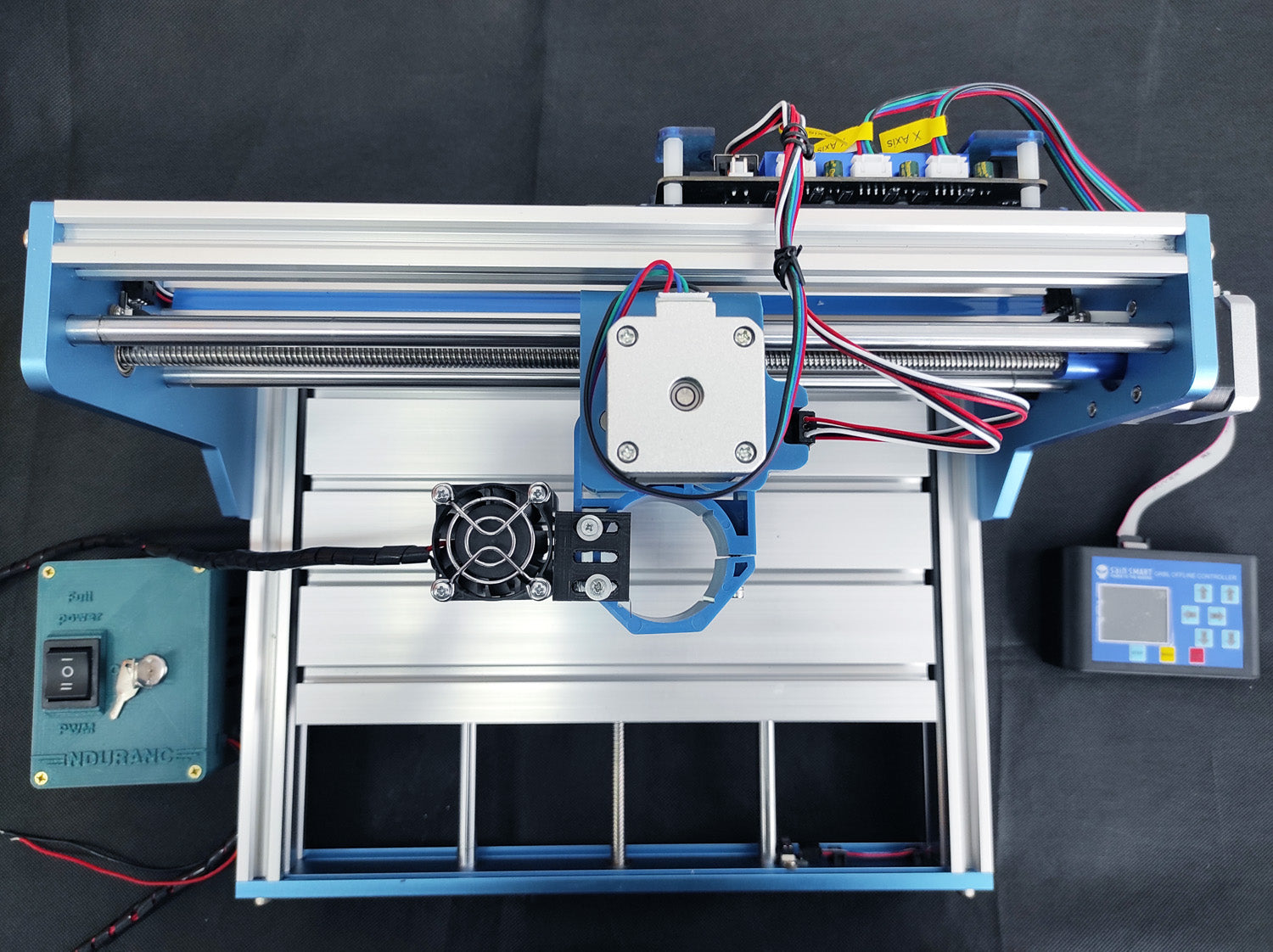

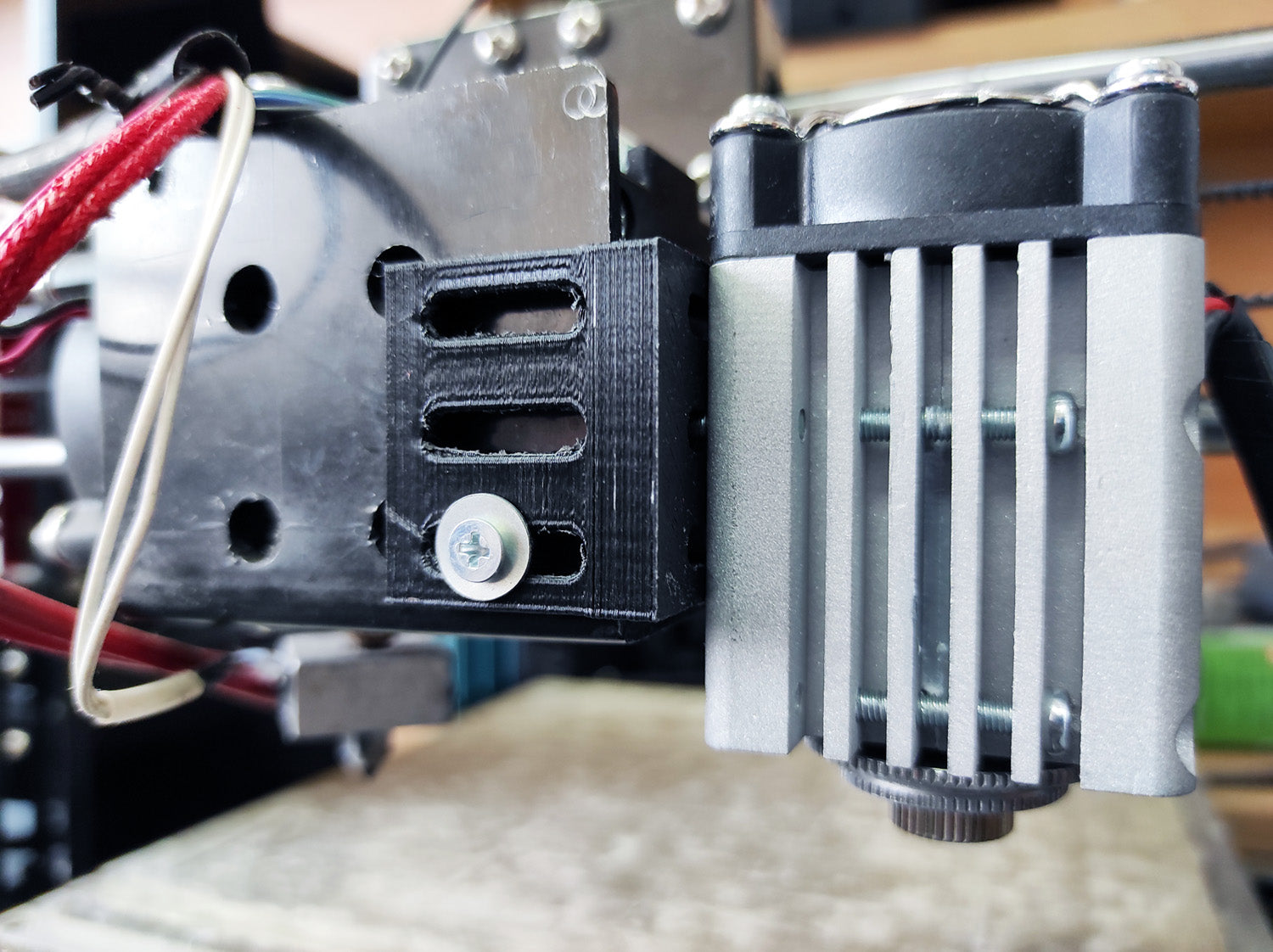

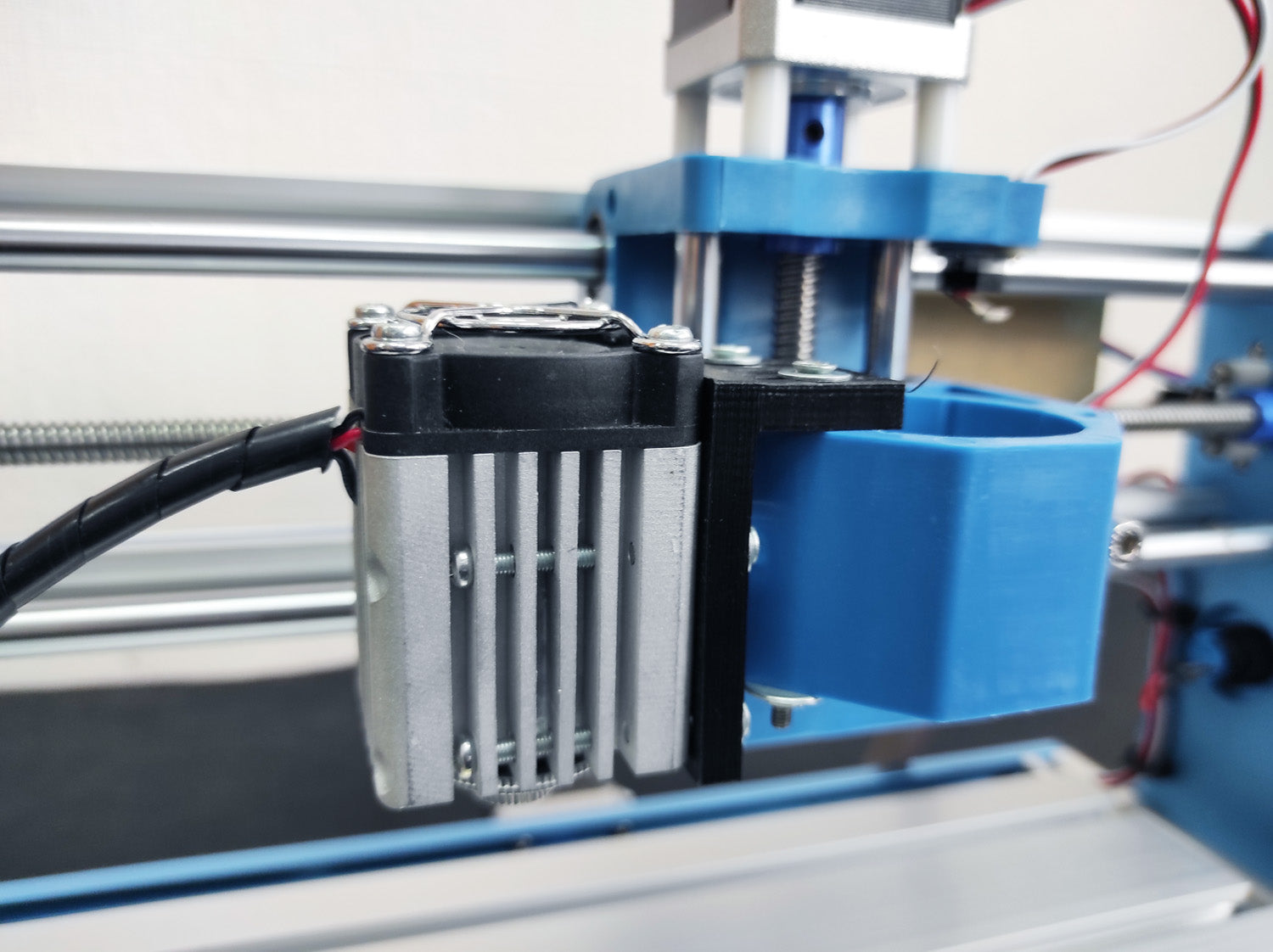

A powerful tool for any 3D printer or CNC router.
-
Compatible with most 3D printers and CNC machines.
Â

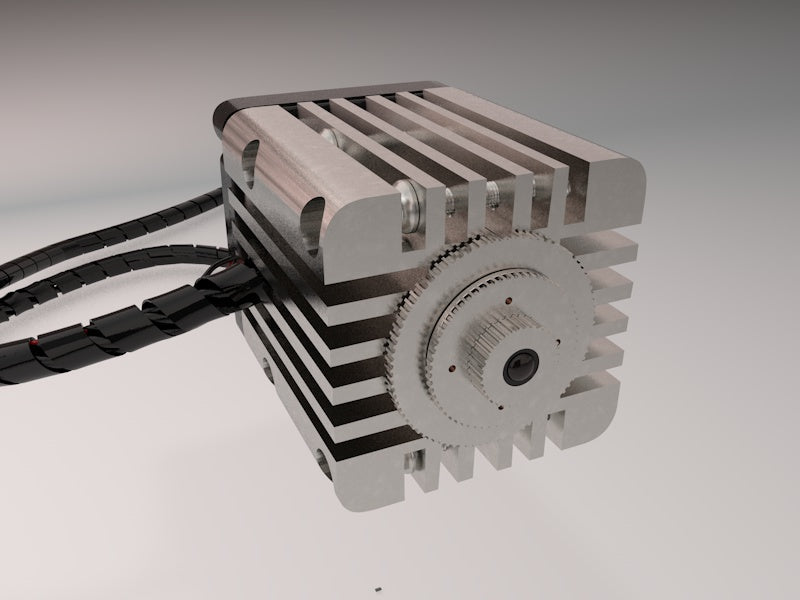

About 5/5.5/5.6 Watt (5000/5500/5600 mw)diode laser head
Â
The Endurance 5.6 watt laser attachment for your 3D printer / CNC mill. A perfect tool for laser cutting/engraving. Light and portable. Easy to use and to control.
Â
Tech data specs of an Endurance 5/5.5/5.6 Watt (5000/5500/5600 mw) laser attachment
Laser Type:Â Nichia diode
Laser Optical Power Output: 5600mW ± 10%
Focal Length:Â 2-10 cm (variable) for 3 element lens | 2-10 mm (variable) for G2 lens
Laser Wavelength:Â 445+-2 nm
Lens Type:Â 3 elements long focal lens / G2 short focal lens / G7 / G8 lens
Operation Time:Â Tested 48-72 hours continuous
Voltage:Â 9-16V DC (step-down DC/DC converter available upon request)
Current:Â 3-4 Amps
Cooling: Active air blowing with 1 fan

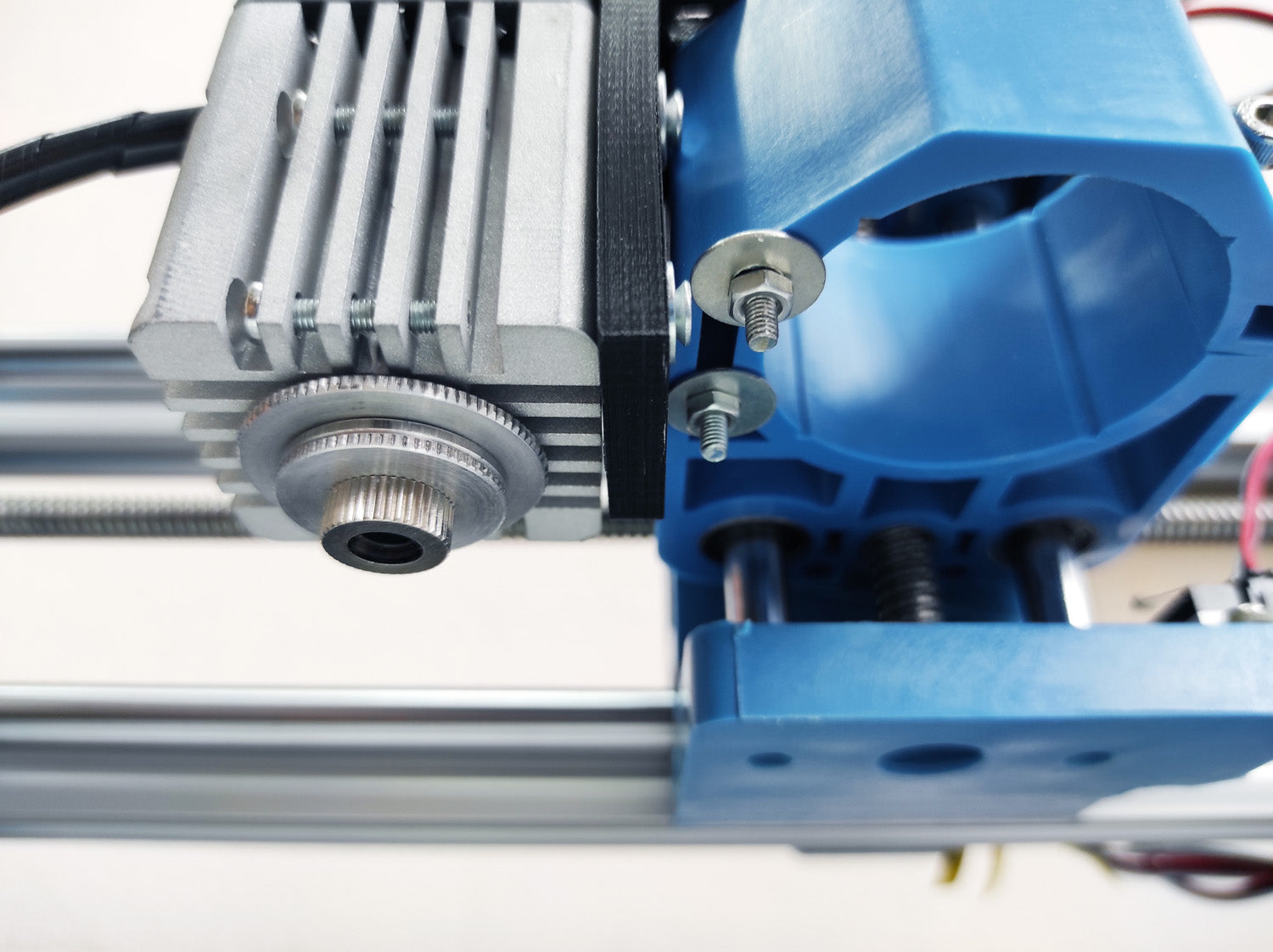

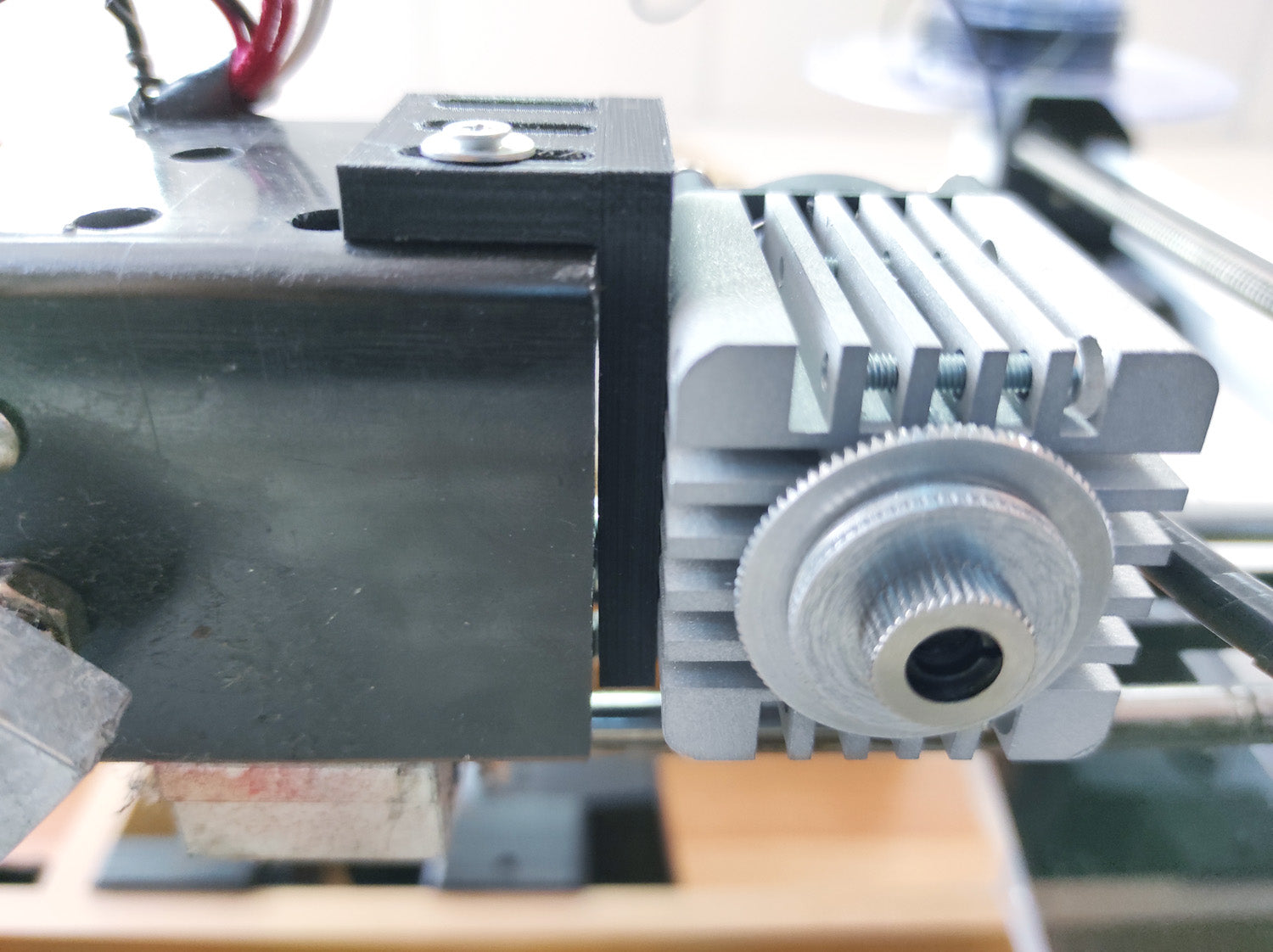

Mount:Â Compatible and universal (M3, M6 threads)
Minimum Laser Pixel (spot) Size:Â 0.1 mm (100 uM)
Power adjustment:Â Additional wire TTL/PWM control (3.5-12V)
Laser Dimensions (W x L x H): 40 x 55 x 40 mm
Laser Weight: 100 gramms (1/4’’ lbs)
Laser Driver: External in the laser box
Lifetime:Â 10 000 hours
Maintenance:Â Keep the laser lens clean.
Technological advantages of 5/5.5/5.6 Watt (5000/5500/5600 mw) laser unit

- Tested for 48-72 hour nonstop operation.
- Stylish and advanced industrial design.
- Effective cooling system preventing the diode from overheating.
- True constant rated power output.
- Very efficient and reliable laser controller board.

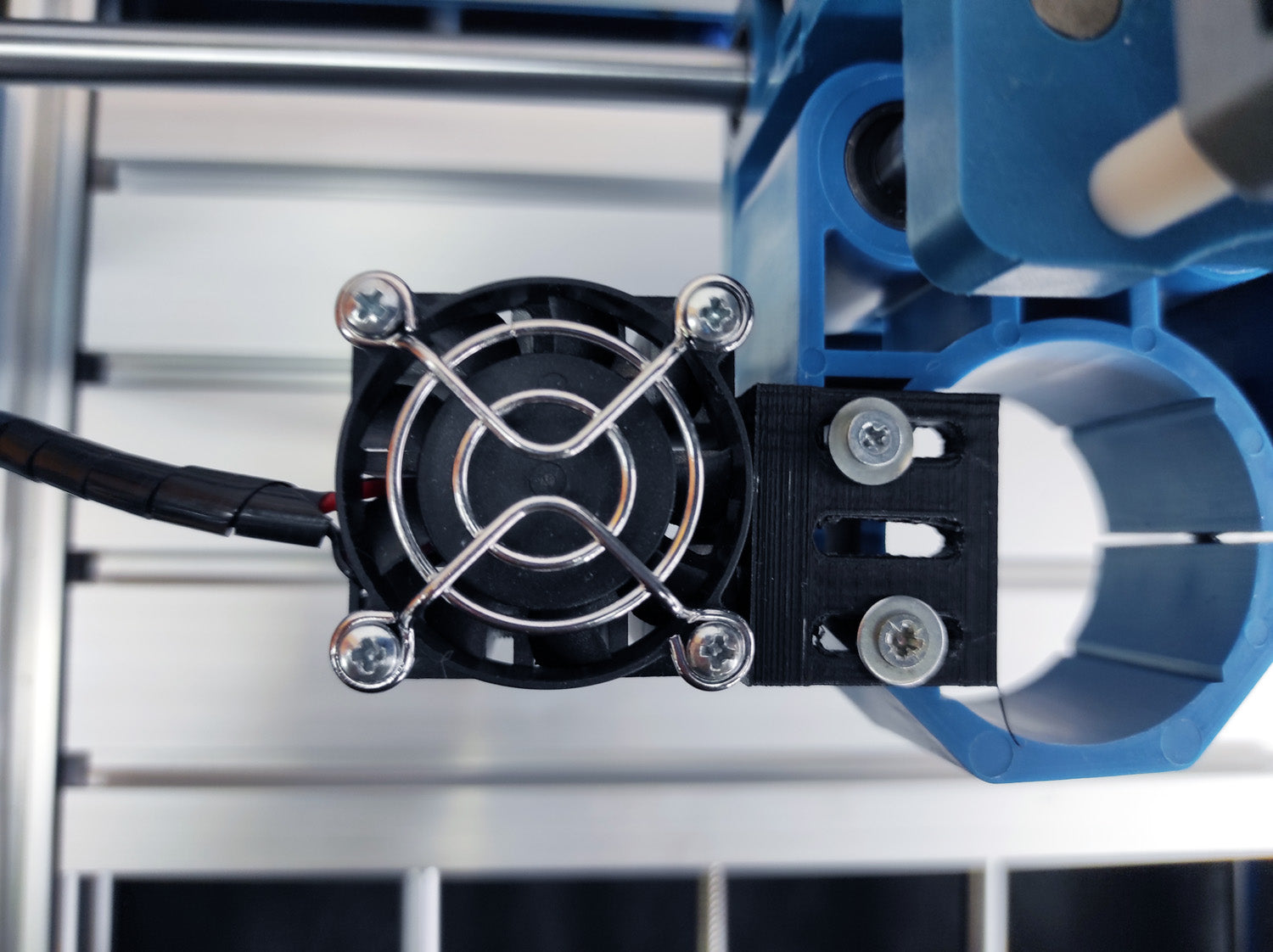

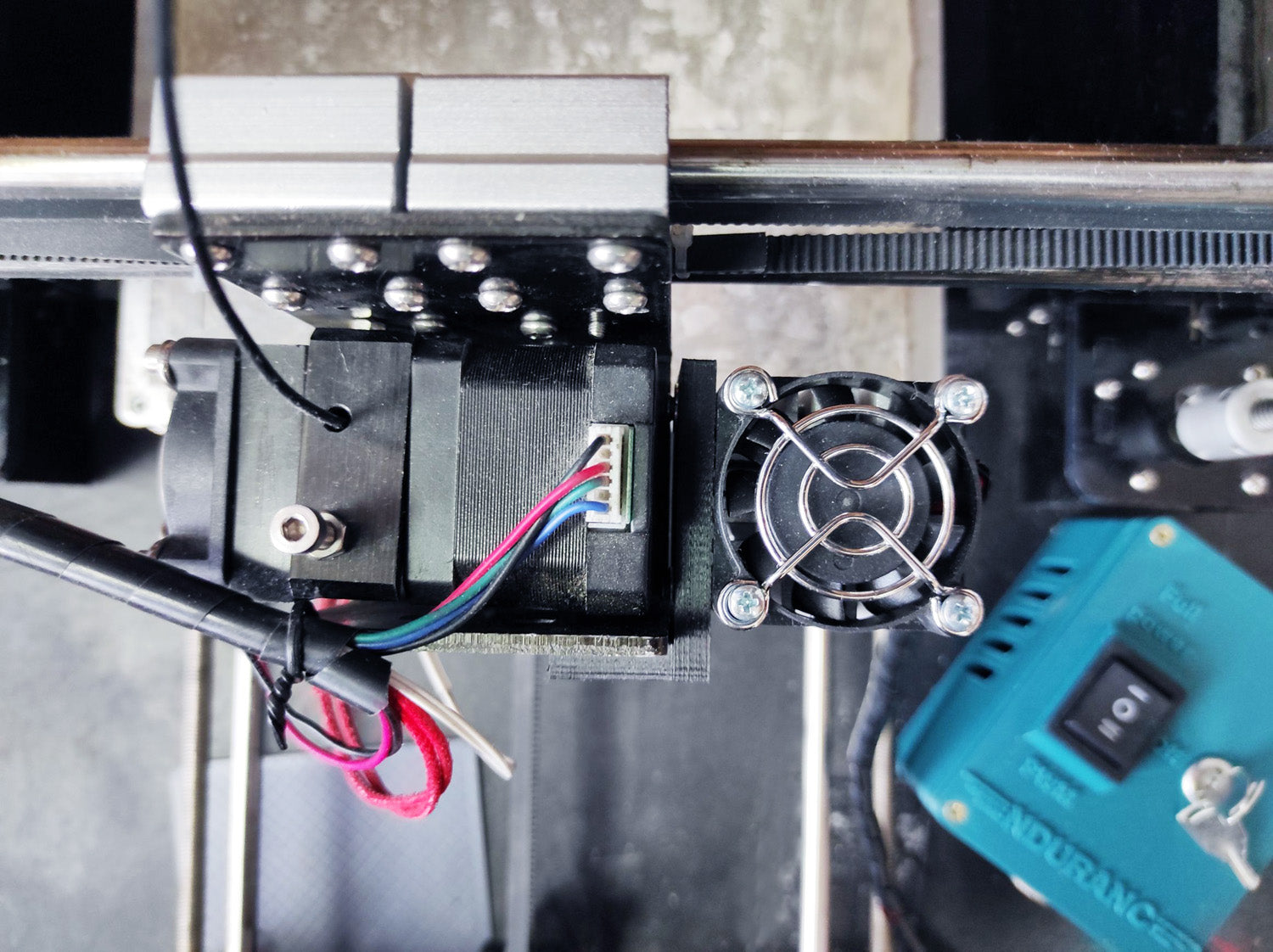

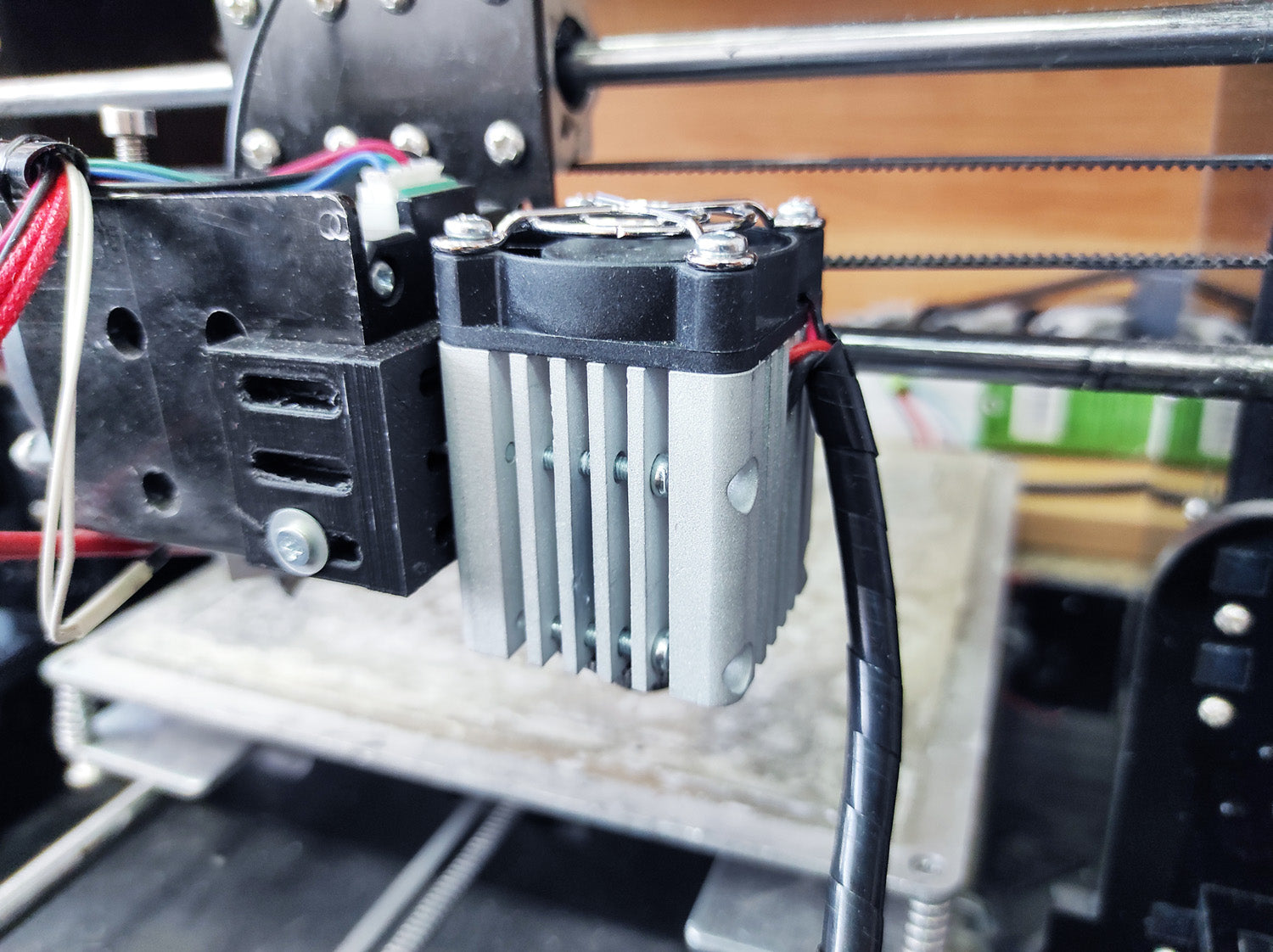

- Compatible mounts with most 3D printer / CNC machines.
- Adjustable laser power via TTL.
- Preset and tested laser focus.
- Works out of 9-16 volts. (Step-down converter available upon request).
- Lifetime warranty!
Â
Â

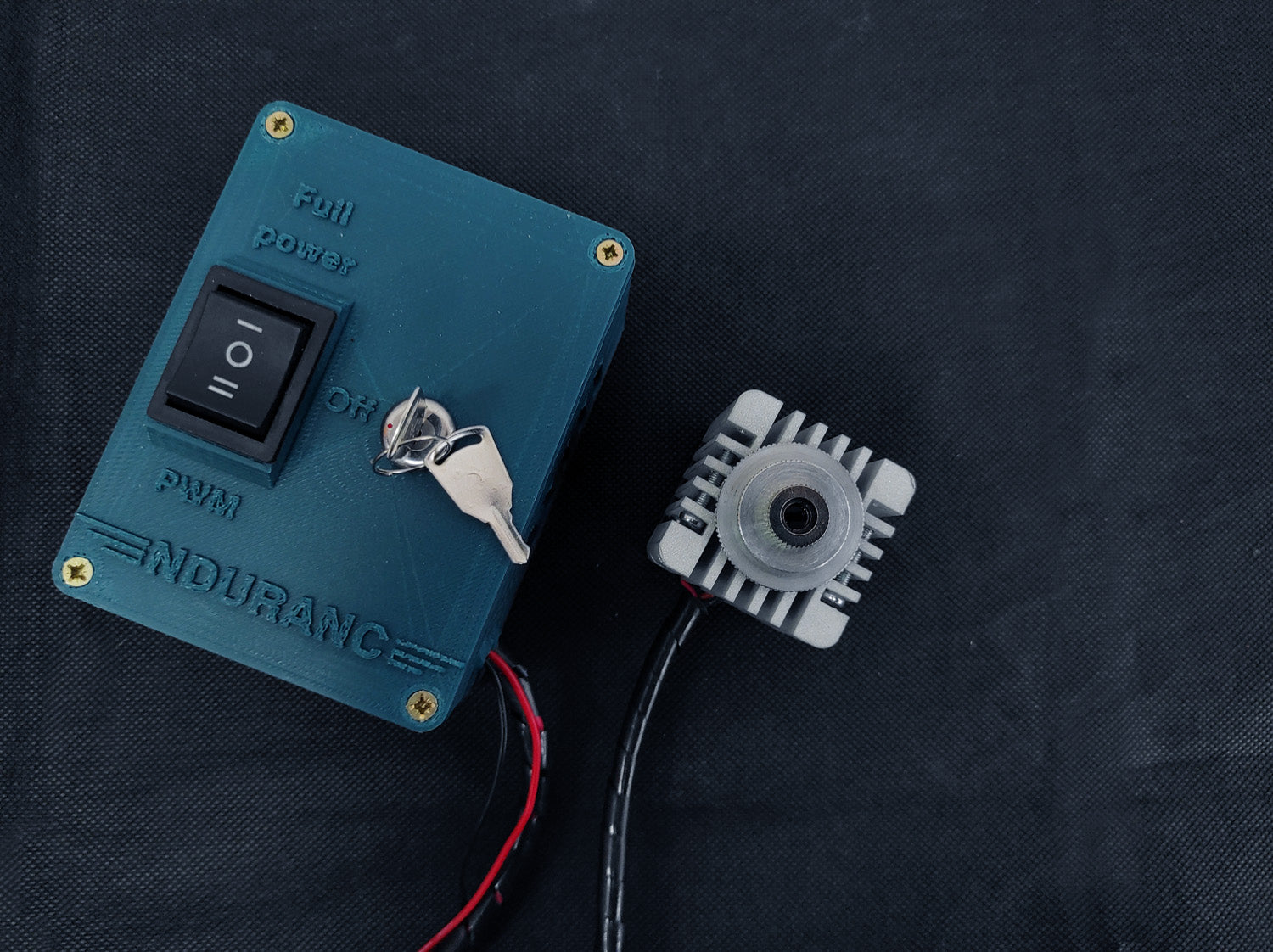

In the parcel
We ship everything you need to get started. It will take 5-15 minutes to mount and wire the laser to your 3D printer or CNC machine.
Â
Endurance provides the best tech support for our customers.
1. Prompt responses about how to connect the laser to your 3D printer / CNC machine or XY plotter (Whatsapp, Viber, Telegram, Facebook messenger, Twitter, Skype, E-mail).
2. Full and detailed guidance of how to prepare a G-code for laser cutting / laser engraving (video playlist).
3. Friendly and dedicated Endurance community.
3. Friendly and dedicated Endurance community.
Â
Laser cut with 5/5.5/5.6 Watt (5000/5500/5600 mw) diode blue laser device.
Â
5/5.5/5.6 Watt (5000/5500/5600 mw) laser cutting examples.Â
Acrylic & plywood laser cutting
5.6 watt | Laser cutting parameters | Laser engraving parameters | ||
Material | Speed mm / min | Amount of repeats | Speed mm / min | Amount of repeats |
Wood / Plywood 2 mm | 75-150 | 1 | 150-300 | 1 |
Wood / Plywood 3 mm | 75-150 | 2-3 times | 150-300 | 1 |
Wood / Plywood 4 mm | 75-150 | 5-8 times | 150-300 | 1 |
Wood / Plywood 5 mm | 75-150 | 10-15 times | 150-300 | 1 |
 |  |  |  |  |
Dark acrylic 2 mm | 100-200 | 1 | 200-400 | 1 |
Dark acrylic 3 mm | 100-200 | 1-2 | 200-400 | 1 |
Dark acrylic 5 mm | 100-200 | 3-4 times | 200-400 | 1 |
Dark acrylic 8 mm | 100-200 | 4-5 times | 200-400 | 1 |
 |  |  |  |  |
Stone | - | - | 25-75 | 1 |
Glass | - | - | 25-75 | 1 |
Stainless steel | - | - | - | - |
Copper | - | - | - | - |
Brass | - | - | - | - |
Anodized / painted aluminum | - | - | 25-50 | 1 |
Polished aluminum | - | - | - | - |
