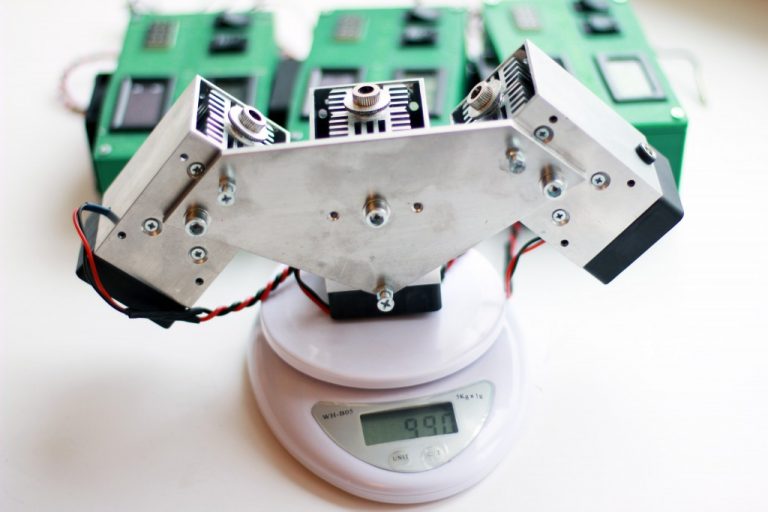

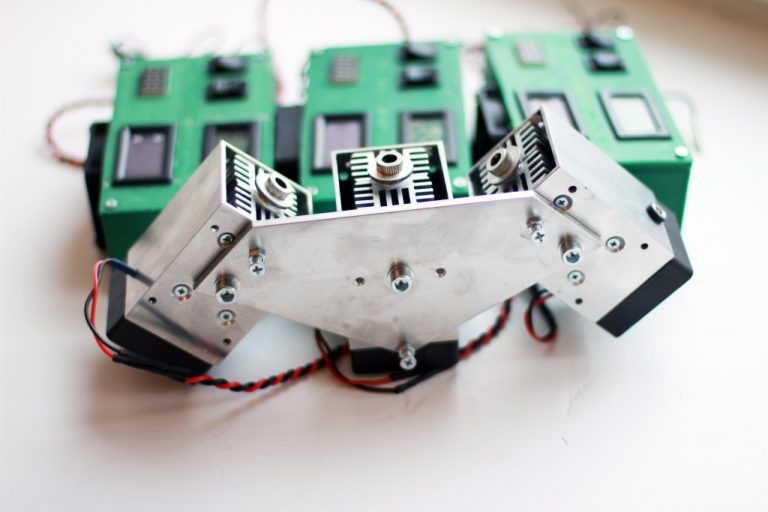

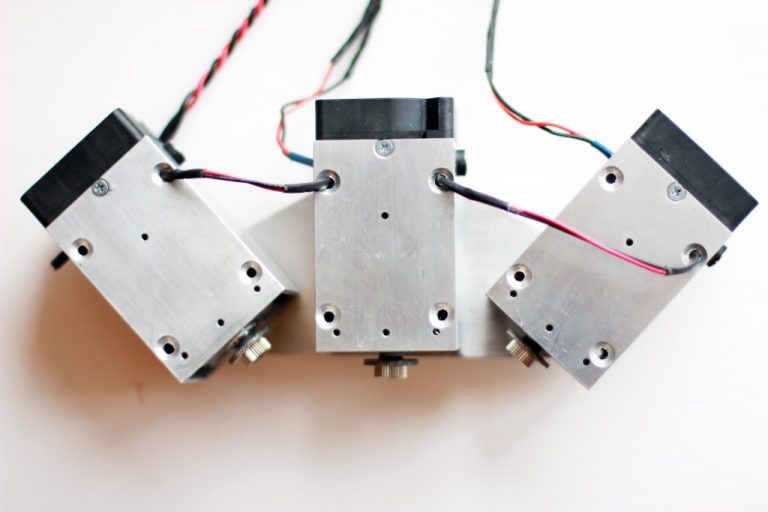

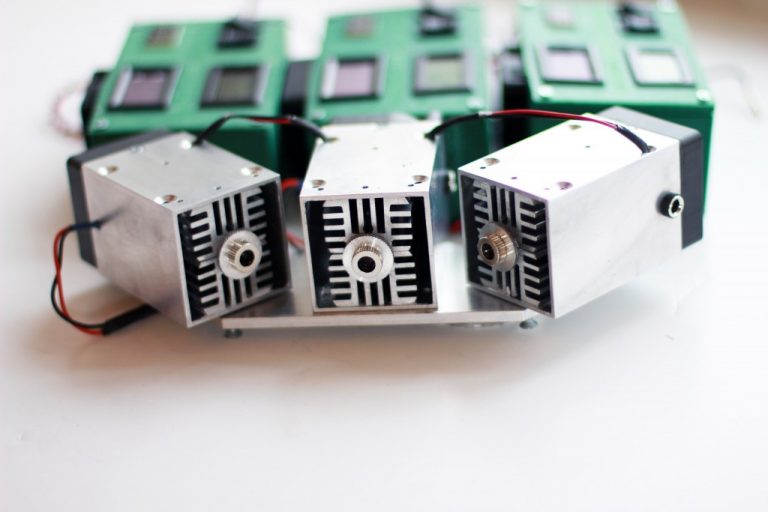

30 watt triple laser beam system allows combining 3 beams together under a small angle. Combining 3 beams together - increases power density on a spot and allows quick and efficient laser engraving on all surfaces without engraving paste (except brass and copper). For brass and copper, you would need engraving paste such as Cermark or Dry Lube Moly, or thermal grease.
Ultimate tech support for all Endurance customers!
Tech data specs for an Endurance 30 watt (30000 mw) triple laser beam module.
Laser Type: Nichia diode.
Laser Impulse Optical Power Output: 3x (10000mW ± 10%) = 30000 mW ± 10%.
Laser CW Optical Power Output: 3x (7000mW ± 10%) = 21000 mW ± 10%.
Focal Length: 6-8 cm (fixed) for 3 element lens.
Laser Wavelength: 445 nm.
Lens Type: 3 elements long focal lens.
Operation Time: Tested 48-72 hours continuously.
Voltage: 9-12 VDC.
Total Current Consumption:~12-15 Amps.
Cooling: Active airflow.
Mount: Compatible and universal.
Minimum Laser Pixel (spot) Size: ~0.175 mm (175 uM).
Power adjustment: Endurance Mo1 PCB.
Laser Driver: External inside the laser boxes.
Lifetime: 10 000 hours.
Maintenance: keep the laser lens clean.
Laser beam focusing for an Endurance 30 watt (triple) laser head. Aligning 3 beams together.
Abilities of 30 watt (30000 mw) laser module / attachment / upgrade / kit
- The Endurance 30 watt laser module is the best solution when it comes to a very fast engraving similar to Co2 laser machine.
- 30 watt laser engraves on stainless steel and soft metals like ABS, PLA, acrylic, plexiglass, etc.
ENDURANCE PROVIDES THE BEST TECH SUPPORT FOR OUR CUSTOMERS.
In the parcel - get all you need to get started.
We ship everything you need to get started. It will take 5-15 minutes to mount and wire the laser to your 3D printer or CNC machine.
Plug and play. 30 watt Endurance laser is ready to go!
All Endurance lasers are plug and play. Just mount the laser to the spindle or extruder without removing them. Connect wires to the fan / spindle / laser pin on your board.
Generate a g-code and run the laser from your computer or SD card.
Certification of an Endurance 30 watt (30000 mw) diode blue laser
The Endurance lasers are sold “AS IS” and in this case they there is no need for mandatory certification.
Tests and proof of work of an Endurance 30 watt (30000 mw) diode blue laser
All Endurance lasers are assembled and tested manually which reduces the risk of failure. Every single laser is been tested before shipment on a special stand.
Taxes and duties
All prices include all sales taxes and do not include EXTRA duties.
Laser Safety and security
Your safety and security is our top priority. All Endurance lasers are shipped with protective goggles. Operating lasers wearing protective goggles is secure and harmless.
However, if you want additional protection you may add an acrylic plate or window to your 3D printer or CNC router. It should be made out of black, green or red acrylic. It will not let the laser light go out and will make laser working more comfortable.
All Endurance lasers are class 4 lasers.
Laser cutting / engraving parameters for an Endurance 30 watt DIODE 445 nm blue laser attachment / head / module.
30 watt | Laser cutting | Laser engraving | ||
Material | Speed | Amount of repeats | Speed | Amount of repeats |
Wood / Plywood 2 mm | 100-150 | 1 | 500-1500 | 1 |
Wood / Plywood 3 mm | 100-150 | 1-2 times | 500-1500 | 1 |
Wood / Plywood 4 mm | 100-150 | 2-3 times | 500-1500 | 1 |
Wood / Plywood 5 mm | 100-150 | 3-5 times | 500-1500 | 1 |
Dark acrylic 2 mm | 150-350 | 1 | 500-1500 | 1 |
Dark acrylic 3 mm | 150-350 | 1 | 500-1500 | 1 |
Dark acrylic 5 mm | 150-350 | 1 | 500-1500 | 1 |
Dark acrylic 8 mm | 150-350 | 1-2 times | 500-1500 | 1 |
Stone | - | - | 100-500 | 1 |
Glass | - | - | 100-500 | 1 |
Stainless steel | - | - | 200-400 | 1 |
Copper | - | - | 200-400 | 1 |
Brass | - | - | 200-400 | 1 |
Anodized / painted aluminum | - | - | 500-1500 | 1 |
Polished aluminum | - | - | 200-400 | 1 |
