10 watt (10000 mw) "PLUS SE" laser module with an ultimate laser diode cooling system
10 watt (10000 mw) "PLUS SE" laser module with an ultimate laser diode cooling system
10 watt (10000 mw) "PLUS SE" laser module with an ultimate laser diode cooling system
10 watt (10000 mw) "PLUS SE" laser module with an ultimate laser diode cooling system
10 watt (10000 mw) "PLUS SE" laser module with an ultimate laser diode cooling system
10 watt (10000 mw) "PLUS SE" laser module with an ultimate laser diode cooling system
10 watt (10000 mw) "PLUS SE" laser module with an ultimate laser diode cooling system
10 watt (10000 mw) "PLUS SE" laser module with an ultimate laser diode cooling system

10 watt (10000 mw) "PLUS SE" laser module with an ultimate laser diode cooling system

Vendor
Endurance lasers
Regular price
$995.00
Sale price
$545.00
Tax included. Shipping calculated at checkout.
Quantity must be 1 or more

An advanced 10 watt (10000 mw) laser PLUS SE attachment for your 3D printer / CNC router or engraving machine.





10 watt SE laser installation on Ortur / CNC 3018 SainSmart and Universal laser engraver

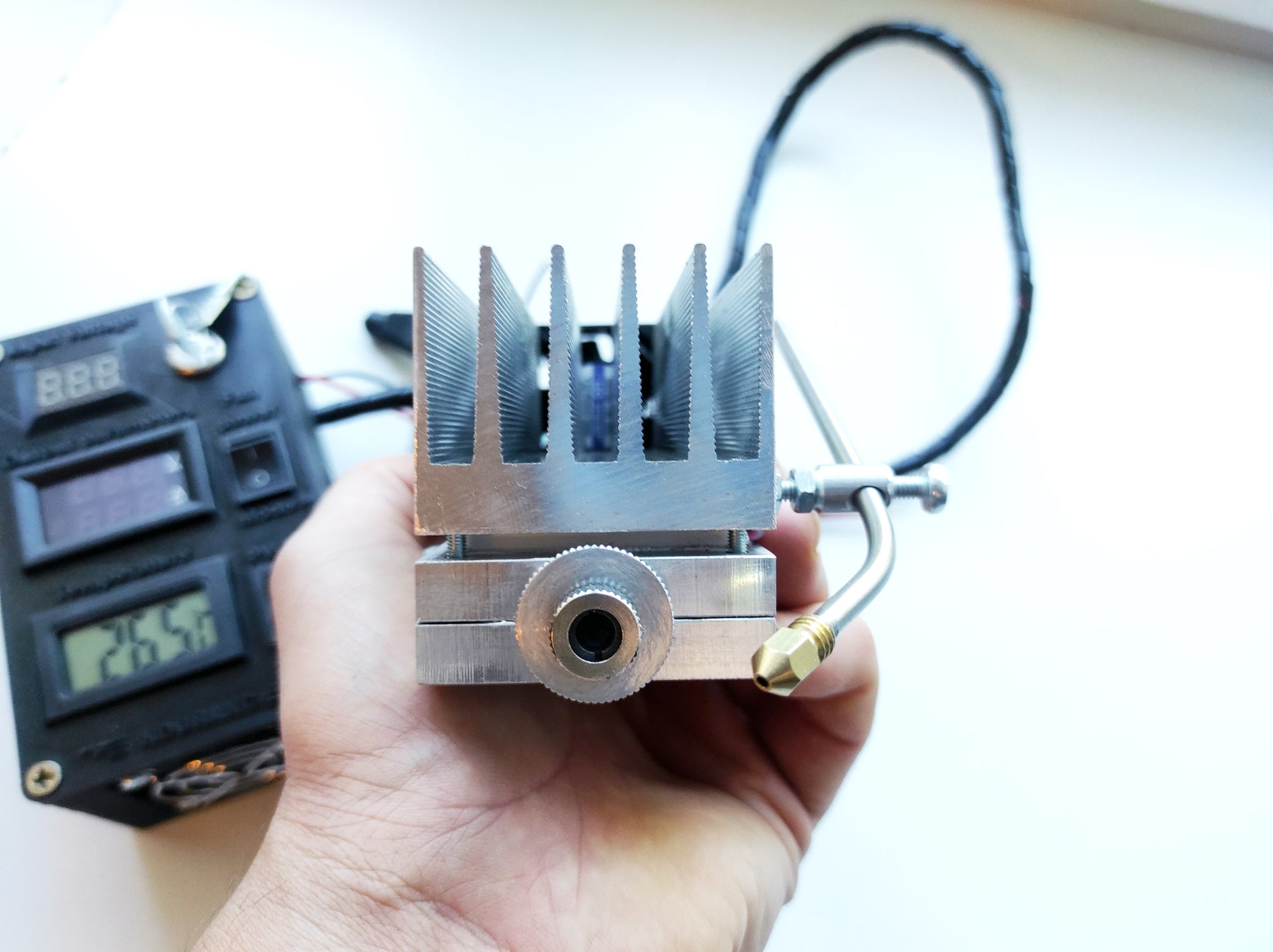

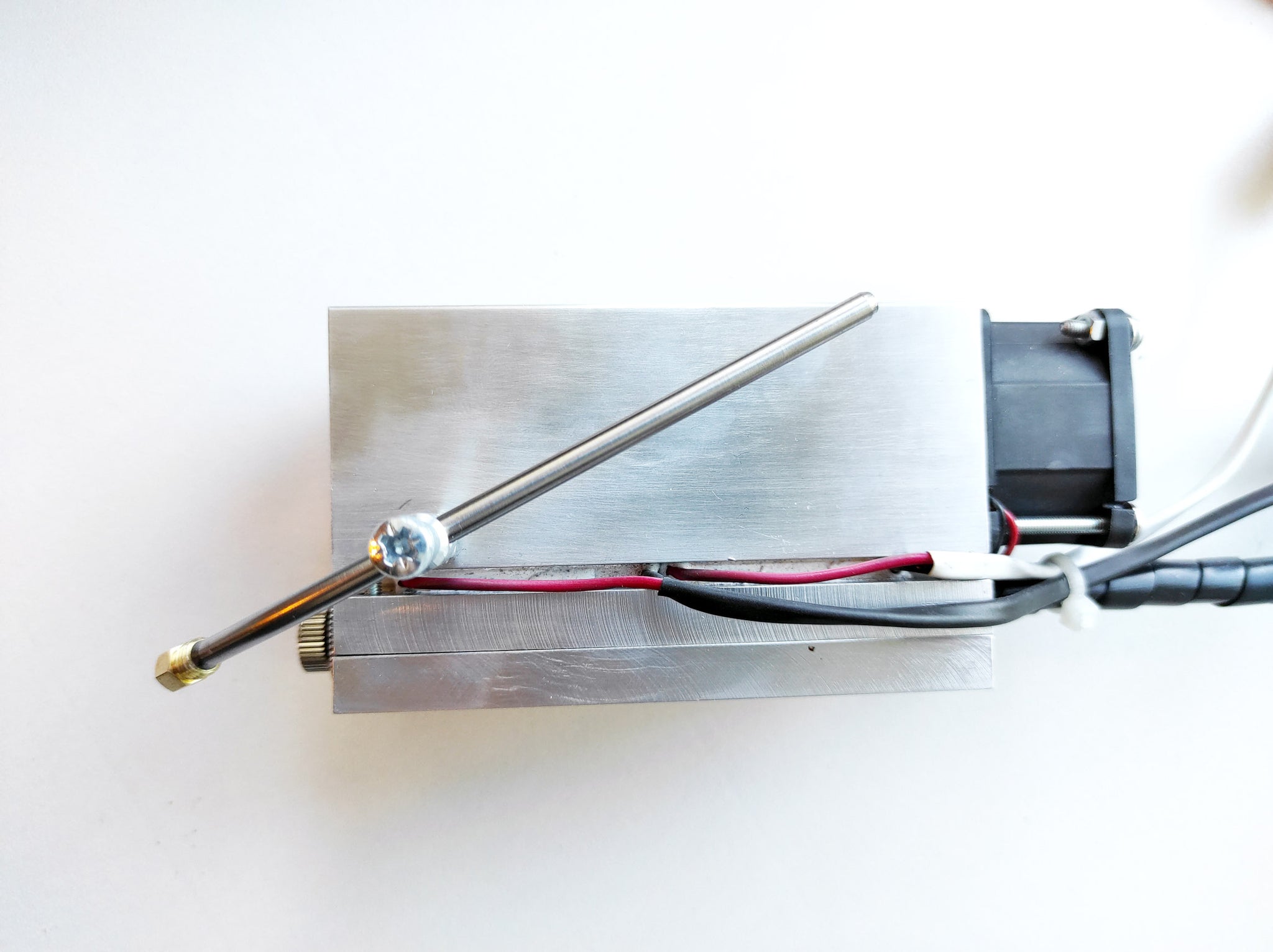

Meet an Endurance 10 watt PLUS SE laser head.

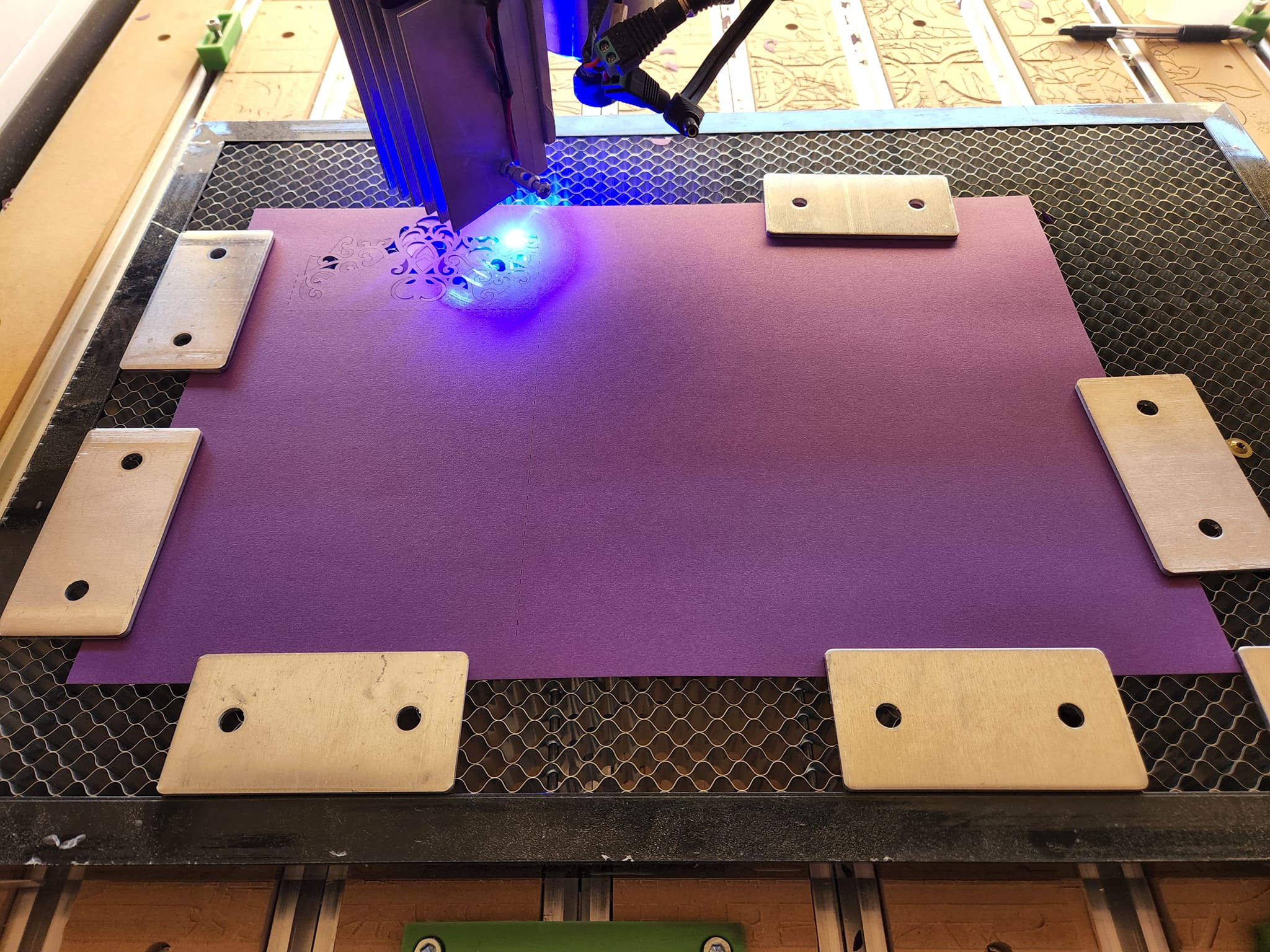

Laser cutting parameters:

400 mm/min, 92% power, and 3 passes for the cut. The material is 3.2mm dense plywood.



It was made by Endurance customer - Michail Gedon!



A powerful tool for laser cutting and laser engraving.

Allows fast and accurate wood/plywood/acrylic cutting.


Can be installed on almost all CNC frames & 3D printers.



Get everything you need in the package to get started! Easy to install and setup.

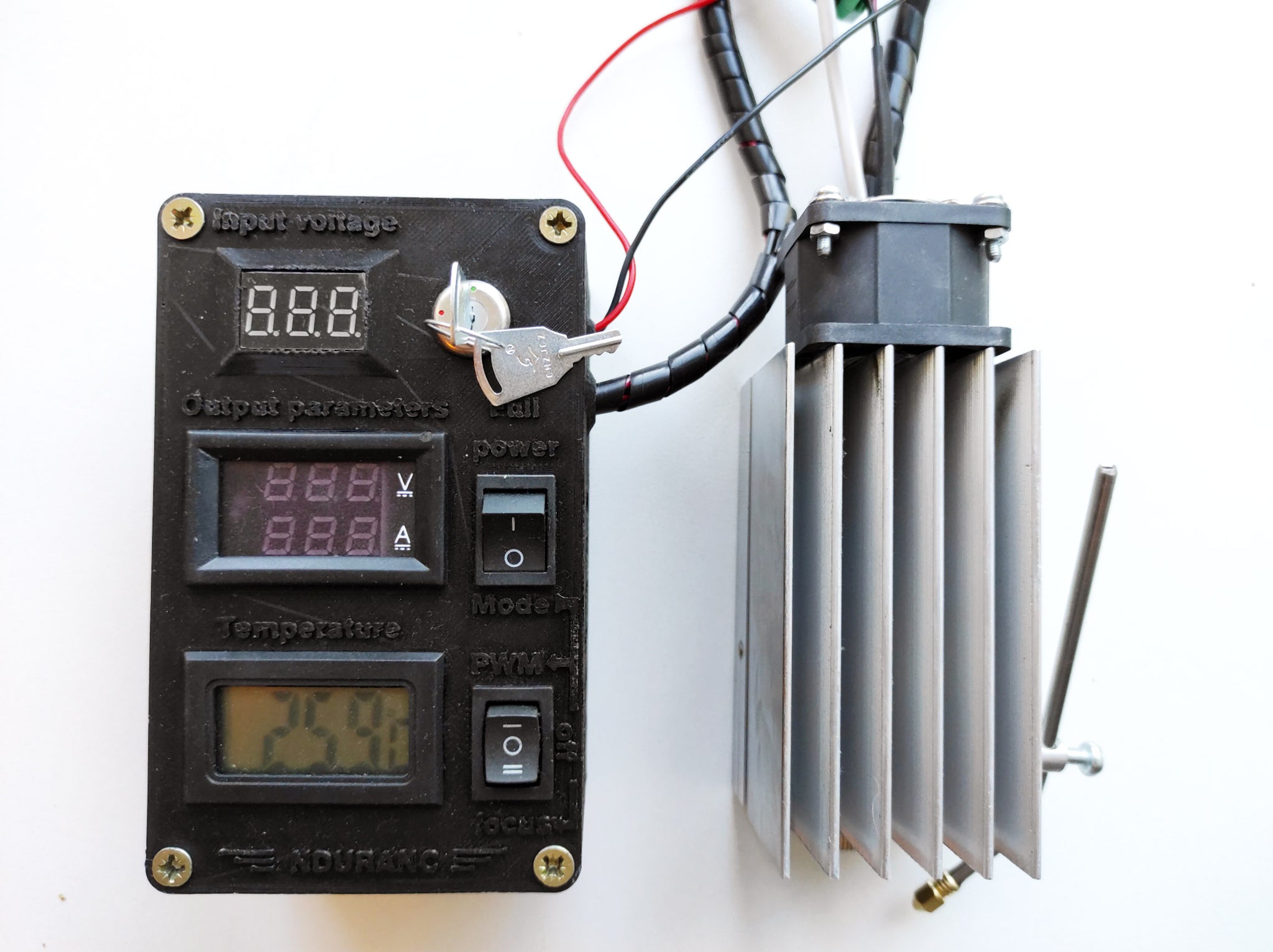

1. The diode 10 watt PLUS SE laser module 445 nm.

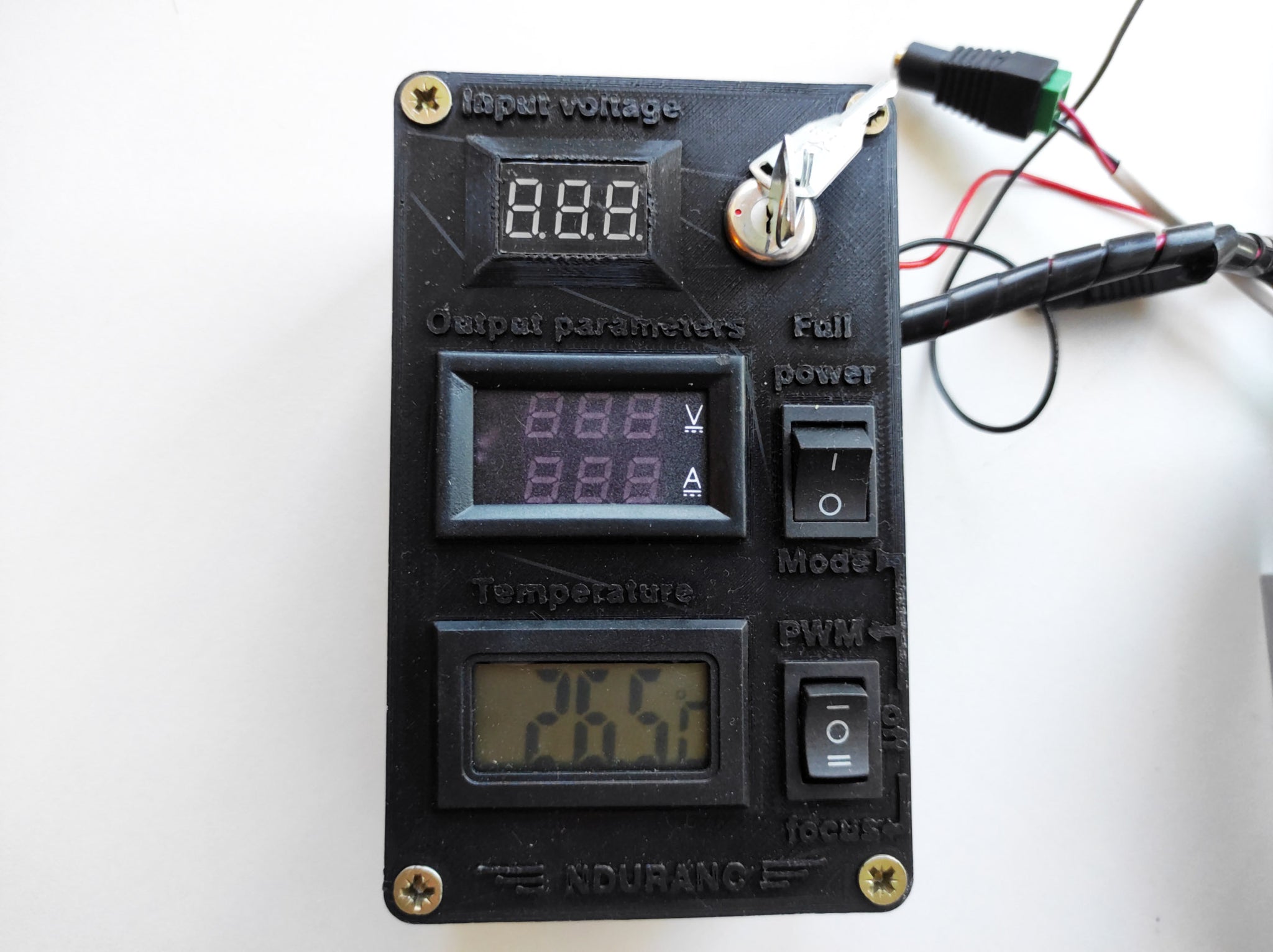

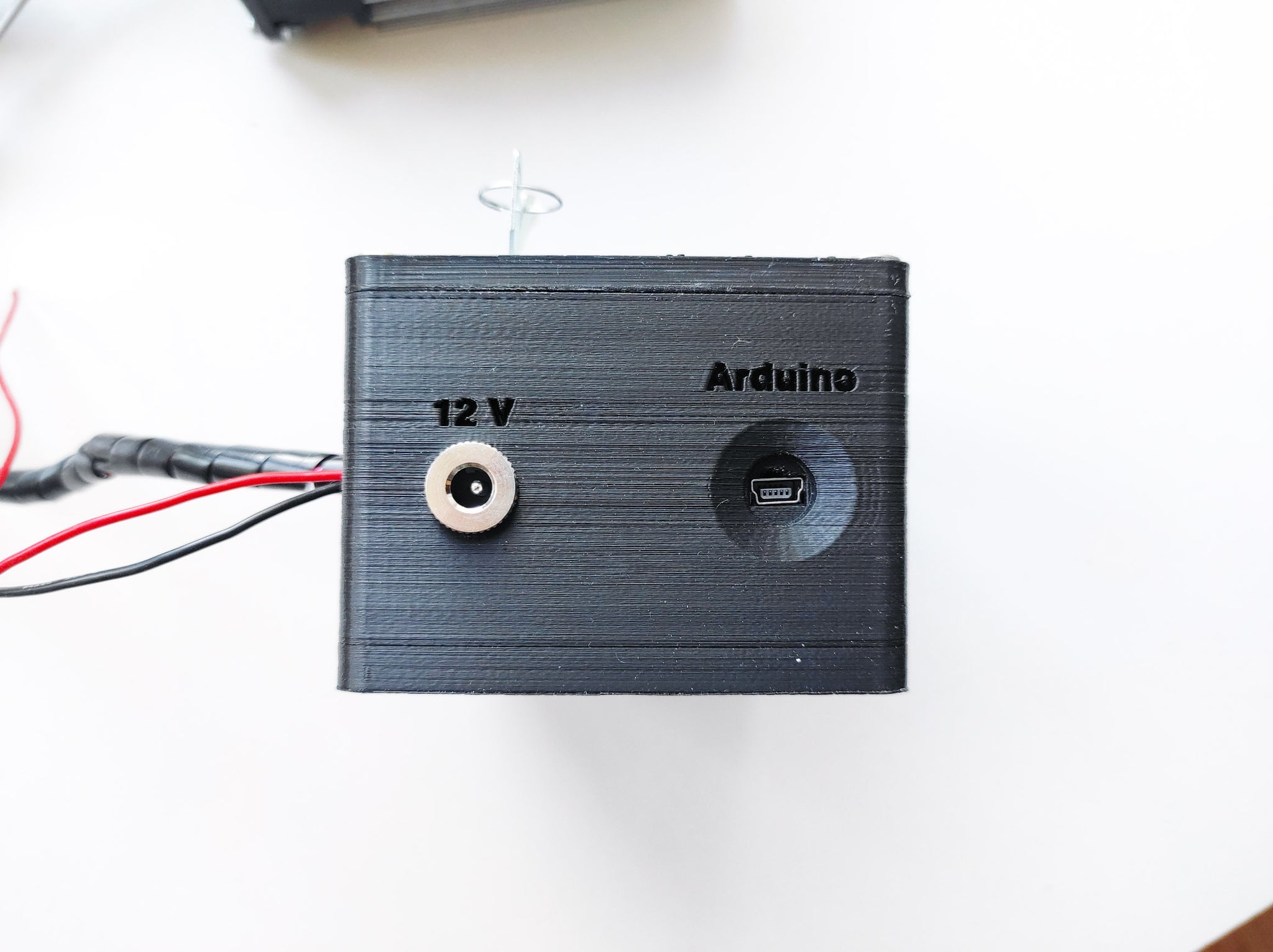

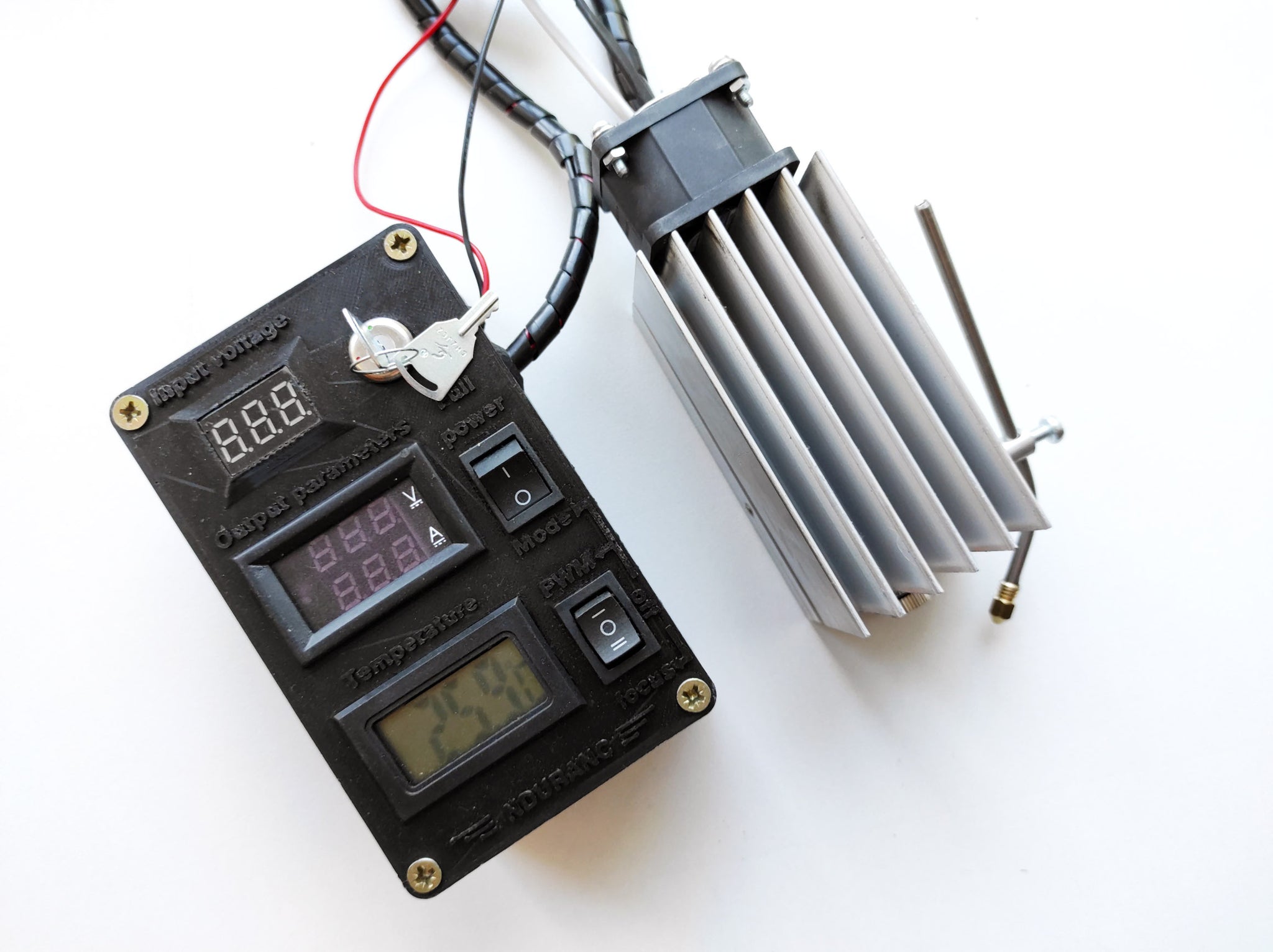

2. The laser box (laser driver) with Mo1 PWM.
3. The laser protective goggles.
4. The laser connectors for wiring to your board.
5. The laser power supply PSU (12V 6A + 12V 4A).
6. 3 fixation laser lens rings.
7. Protective gloves.
8. The aluminum focusing plate.

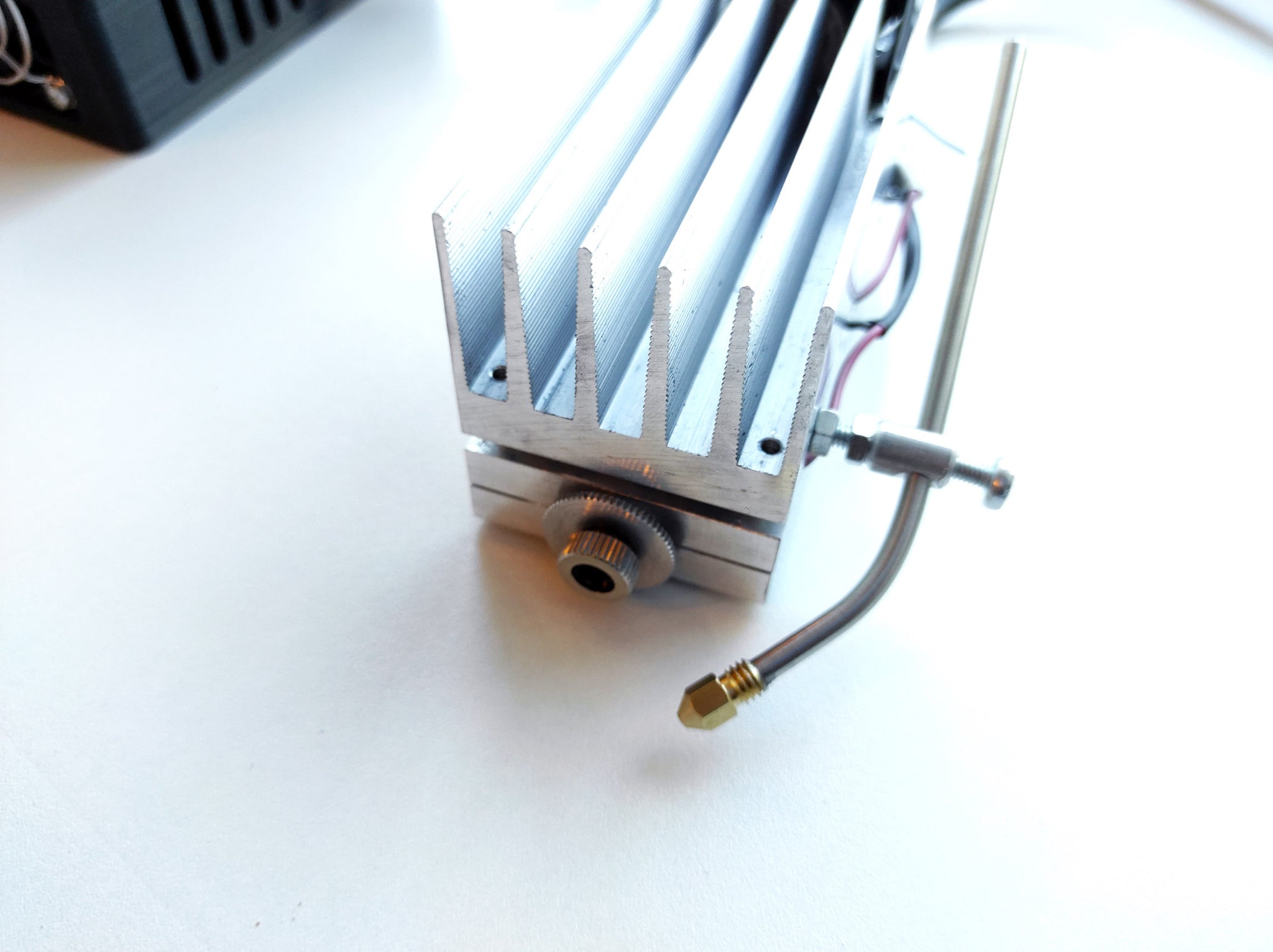

9. Air nozzle ver 1.0
10. Plastic mounts for hooking the laser.



Ultimate tech support for all Endurance customers!

Add some useful accessories for more effective laser cutting / laser engraving.


Air nozzles: https://www.endurance-lasers.com/collections/air-nozzle

Laser lens: https://www.endurance-lasers.com/collections/lens-and-optics
Laser mounts: https://www.endurance-lasers.com/collections/all-mounts

WHAT IS IT 10000 mW PLUS SE LASER GOOD FOR?
  • Fast and easy engraving on anodized aluminum, steel, stainless steel (without adding engraving paste), copper & brass (need an engraving paste-like Cermark or Dry Lube Moly spray).
  • Cuts 4-5 mm (1/5'') wood and plywood with 1-3 passes.
  • Cuts 8 mm (1/3'') dark acrylic (color) with 2-3 passes.

10 watt PLUS SE laser tech data specifications

Laser Type: Nichia diode.
Impulse Laser Optical Power Output: 10 000mW ± 10%.
Continuous Laser Optical Power Output: 000 - 8 000mW ± 10%.
Focal Length: 2-10 cm (1-4'') (variable) for 3 element lens | 5-30 mm (1/4-1") (variable) for G2 lens.
Laser Wavelength: 445 nm.
Lens Type: 3 elements long focal lens / G2 short focal lens / G7 / G8 lens.
Operation Time: Tested 48-72 hours continuously.
Voltage: 9-12 VDC.
Total Current Consumption (including TEC cooling): ~10 Amps.
Cooling: 2x 60 watt TEC cooling with an advanced heatsink and high-speed fans
Mount: Ultra compatible and universal (4 x M3 holes in the back).
Minimum Laser Pixel (spot) Size: ~0.1 mm (100 uM).
Power adjustment: Endurance Mo1 PCB PWM (TTL).
Laser Dimensions (W x L x H): 65 x 105 x 110 (115) mm [2.5 x 4.15 x 4.5]''.
Laser Driver: External (inside the laser box).
Lifetime: 10 000+ hours.
Maintenance: Keep the laser lens clean.

  • We deliver everything you need to get started with the laser.
  • Very easy to convert your 3D printer / CNC router into a laser cutting/engraving machine.
  • Unlike most Chinese lasers and engraving machines, an Endurance 10 watt PLUS SE laser can work continuously for up to 48-72 hours. Has an extended lifetime of 10 000+ hours.
  • The Real rated optical power output is 10 watt+ SE (10000+ mw).
  • Endurance provides ultimate customer support in many languages. LIVECHAT available 24x7!



ENDURANCE LASERS LLC PROVIDES THE BEST TECH SUPPORT FOR OUR CUSTOMERS.

1. Prompt responses about how to connect the laser to your 3D printer / CNC machine or XY plotter (WhatsappViberTelegramFacebook messengerTwitterSkypeE-mail).
2. Full and detailed guidance on how to prepare a G-code for laser cutting/laser engraving (video playlist).



Laser cutting/engraving parameters for an Endurance 10 watt PLUS SE laser module.

10 watt+ Laser cutting Laser engraving
Material Speed Amount of repeats Speed Amount of repeats
Wood / Plywood 2 mm 100-150 1 200-500 1
Wood / Plywood 3 mm 100-150 1-2 times 200-500 1
Wood / Plywood 4 mm 100-150 2-3 times 200-500 1
Wood / Plywood 5 mm 100-150 3-5 times 200-500 1

Dark acrylic 2 mm 150-350 1 200-500 1
Dark acrylic 3 mm 150-350 1 200-500 1
Dark acrylic 5 mm 150-350 1 200-500 1
Dark acrylic 8 mm 150-350 2-3 times 200-500 1

Stone - - 50-250 1
Glass - - 50-250 1
Stainless steel - - 20-50
1
Copper - - 20-50 1
Brass - - 20-50 1
Anodized / painted aluminum - - 25-100 1
Polished aluminum - - - -
