Endurance Lasers LLC present the most powerful single beam diode laser 445 nm module for laser cutting and laser engraving with an advanced laser control box.
Key features of 10 watt PLUS PRO version
- Double TEC cooling systems keep the laser diode cold all the time.
- Advanced electronics with Mo2 PCB (PWM / Analog inputs).
- Compatible with ALL CNC frames / XY plotters and most 3D printers.
- Equipped with an air nozzle and an air compressor for effective laser cutting.

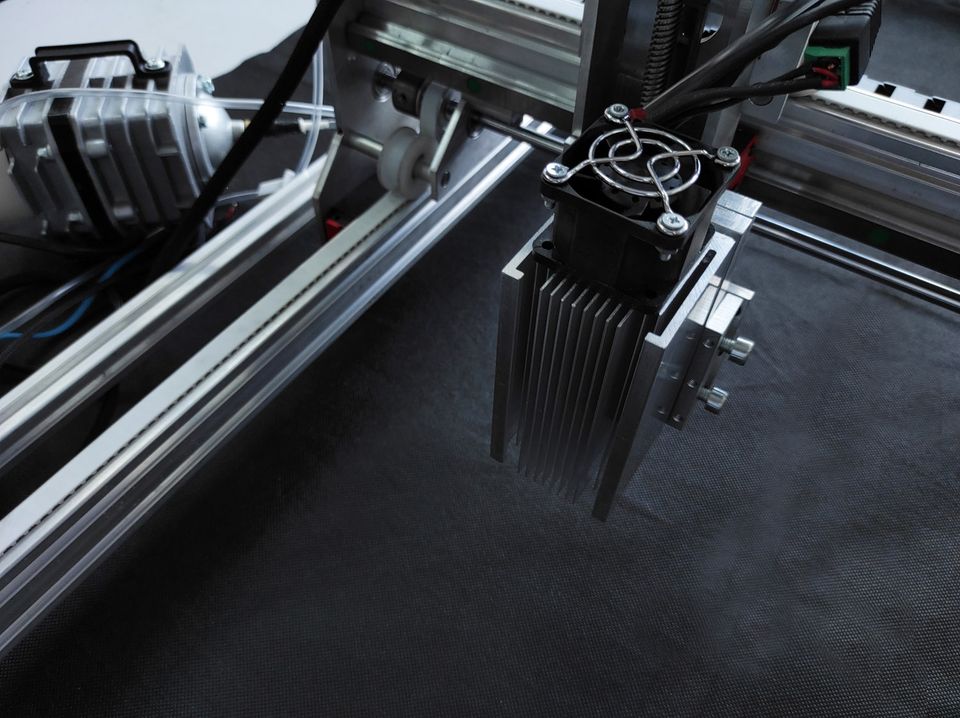

Laser cutting abilities of a 10 watt PLUS PRO laser with G2 lens and air compressor in use.
Max power. High reliability. The best fit for professionals - a great video review.
Enjoy your 10 watt PLUS PRO laser!

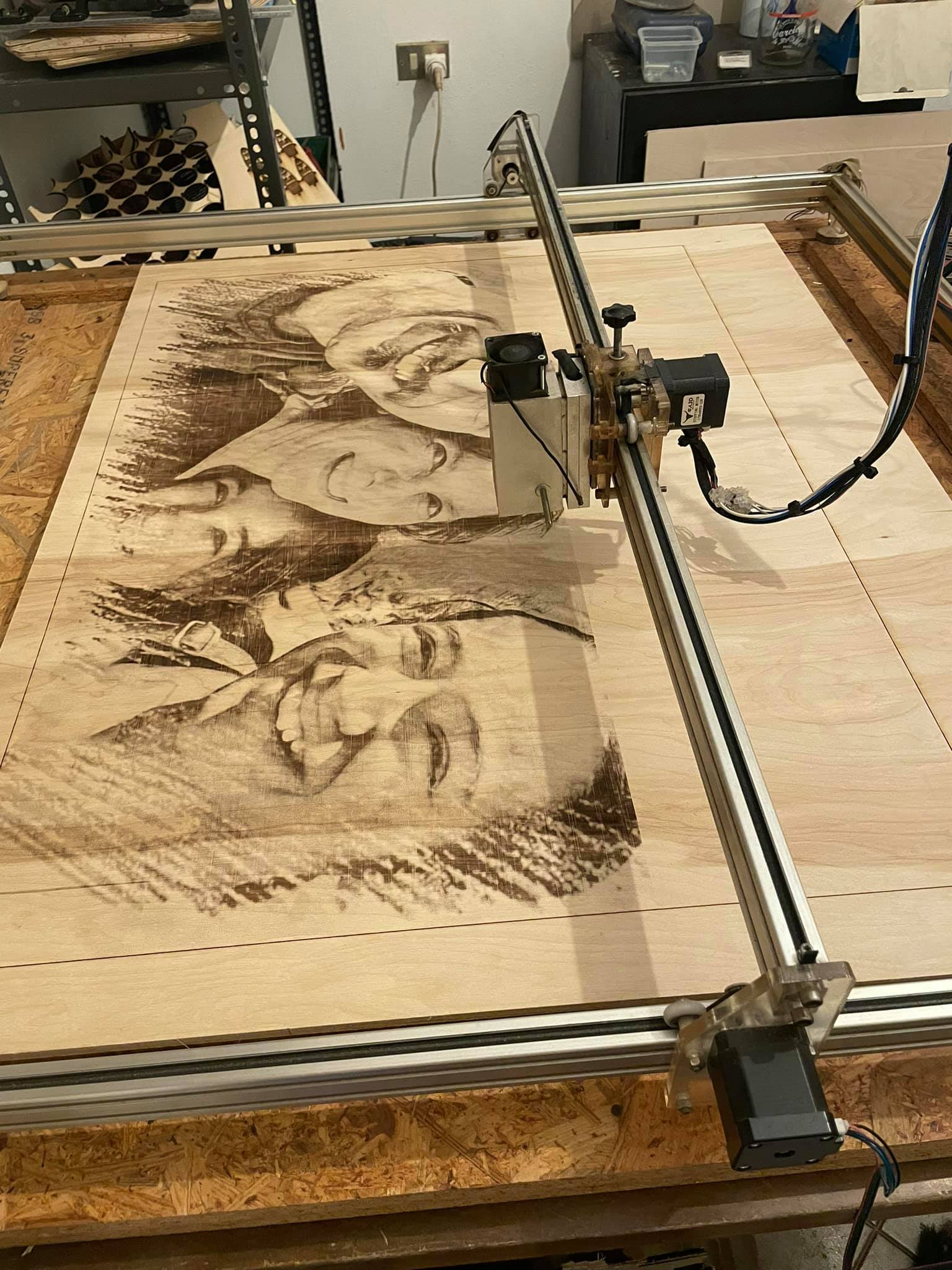

Wood / plywood laser engraving

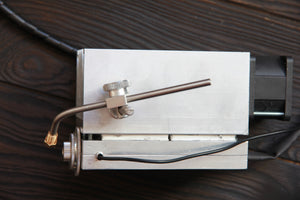

The design of an Endurance 10 watt PLUS PRO 445 nm blue professional laser module
The best solution for laser cutting!
Engraves on almost all surfaces. Cuts 4-5 mm (1/6'') of wood/plywood. 5-10 (1/3'') mm of dark acrylic. Fast and clean cutting of leather, felt, fabric, sailcloth.
10 watt PLUS PRO has a double TEC (Peltier) cooling that allows keeping the diode is really cold avoiding any risk of being overheated in a hot and humid place while continuously operating.
Endurance lasers’ professional design
We believe that Endurance lasers should be ahead of our customers’ expectations. We are building a new market for laser engravers and laser cutter enthusiasts and makers, now professionals.

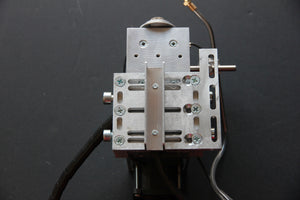

Convenient mounting holes
You may hook the laser anyhow you want.
All mounting holes allow you to make any custom mount or holder.
High-quality aluminum allows for better thermal conductivity
High heat distribution allows keeping the diode in a good temperature range.
Allows doing accurate laser cutting and laser engraving on a different range from a laser to a surface. G2 laser lens allows having the smallest laser beam spot of 63*130um (microns).

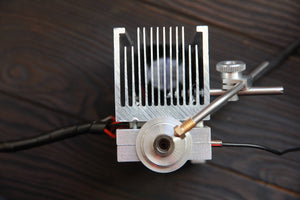

Bigger focusing ring & pre-set focus
A bigger focusing ring allows adjusting laser focus in an easy manner.
Pre-set focus allows focussing the laser on the range: 70-75 mm from the aluminum housing to a surface.

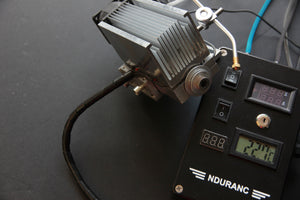

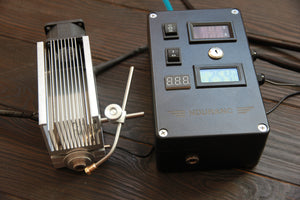

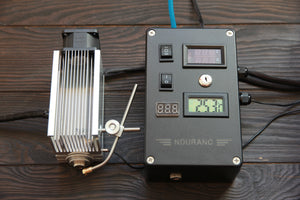

Laser box ver. 2.0 for 10 watt PLUS PRO laser module - wiring and switches.
An advanced metal laser box with a Mo2 PCB inside equipped with all necessary tools.
Measuring an incoming voltage, diode voltage, and current, protective lock key.
No fake and low-quality Chinese laser diodes that degrade very quickly.
Every laser is been tested personally on our laser testing stand.
We test every single laser module before shipment. Usually, the laser is working for 48-72 hours before the shipment.
Compatible laser brackets. Easy installation process.
Compatible mounts allow hooking the laser to any 3D printer / CNC machine or XY plotter. That allows reducing installation time to 5-10 minutes.
You get all you need to get started.
We take care of your time and we already thought about all you need to get started so you get all in the box.
Ultimate tech support & 30 days of money back option.
If you did not like our product simply send it back and we will issue a full refund.
Get all you need to get started with our 10 watt PLUS LASER:
· Laser box ver. 2.0
· A pair of a protective laser goggle
· Regular 3 element lens
· Bigger focusing rings x 3PCS
· Laser connectors
· 2 x 12V 8A AC DC (PSU) power supply
· Air compressor.
· Air nozzle ver 1.0
· Black anodized focusing plate.
· DC/DC for TEC cooling (extra temperature control)
Add useful accessories to get the best laser cutting and laser engraving result
Technical Data for an Endurance Laser box ver. 2.0
|Supply voltage||12 VDC+-10%|
|Minimum Current Power Supply (For laser diodes up to 10W)||5 A+-10%|
|Rated Output Current (For laser diodes up to 10W)||5 А|
|Max Output Current (Power supply current must be at least 10A)||8 А|
|Laser diode voltage max||5.5V|
|Laser diode voltage min||2V|
|Laser diode current||1A – 6A|
|Laser diode current max||8A*|
|Max. PWM Frequency||50 KHz|
|Min. PWM Frequency||90 Hz|
|(You need to know if you connect to a 3D printer controller)|
|Maximum PWM duty cycle||99,90%|
|(PWM frequency over 90Hz)|
|PWM Input Voltage (Left, Blue wire)||3V – 12V|
|PWM Input Voltage (Right, black wire)||3V – 24V|
|Rise Time||300 nS|
|(In relation to the input pulse of the PWM)|
|Analog Input Voltage||0V – 10V|
|PWM Duty Cycle Based on Analog Input Voltage||0% – 99,9%|
|PWM frequency when working with analog input||500 HZ|
|Laser focus mode||PWM Duty 0,1%|
|Protection of the output voltage of the laser diode min||4.5V|
|Protection of the output voltage of the laser diode max||5.5V|
|Delay range before starting the laser:||0-1.5 sec (adjustable)|
