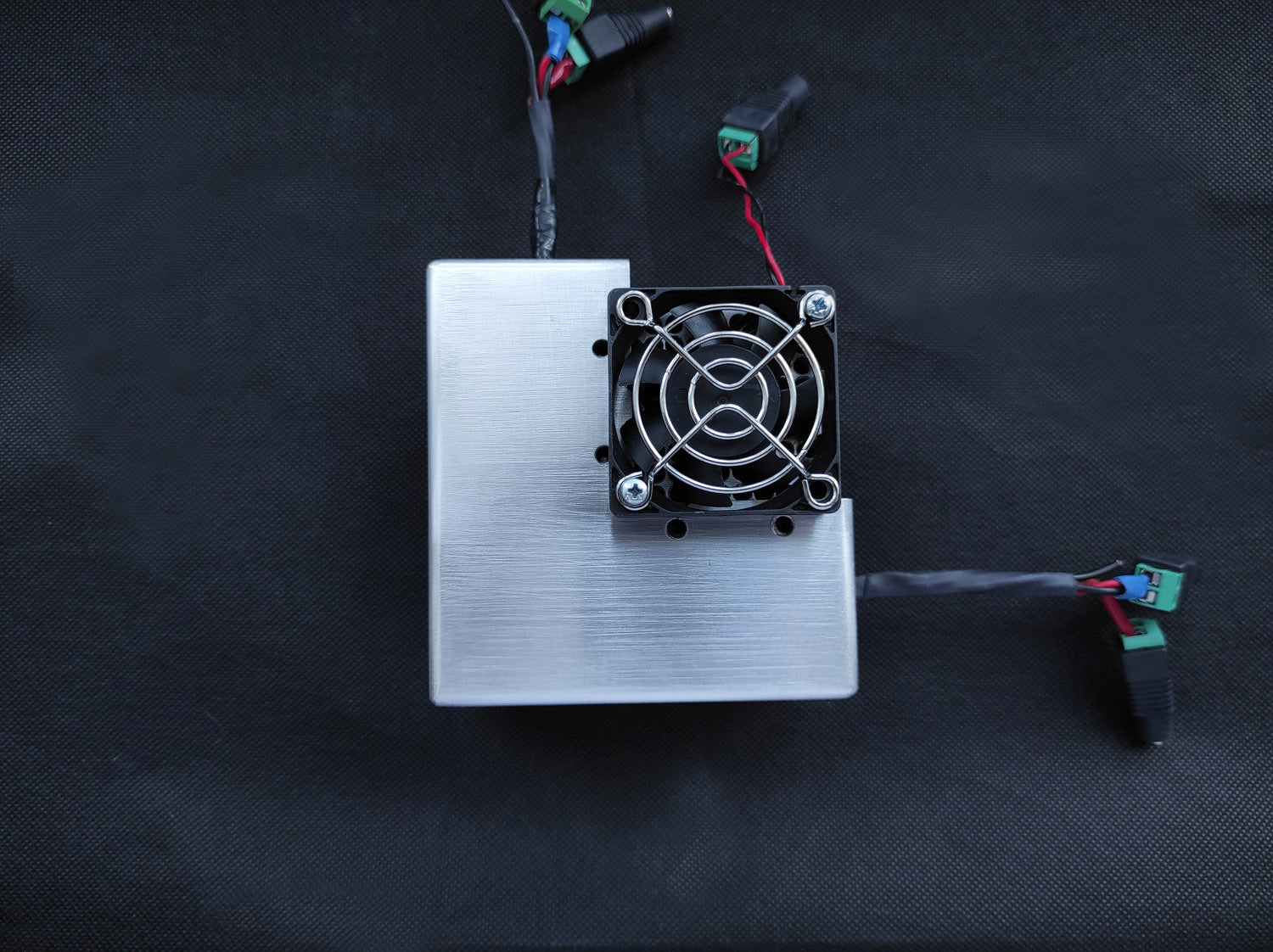

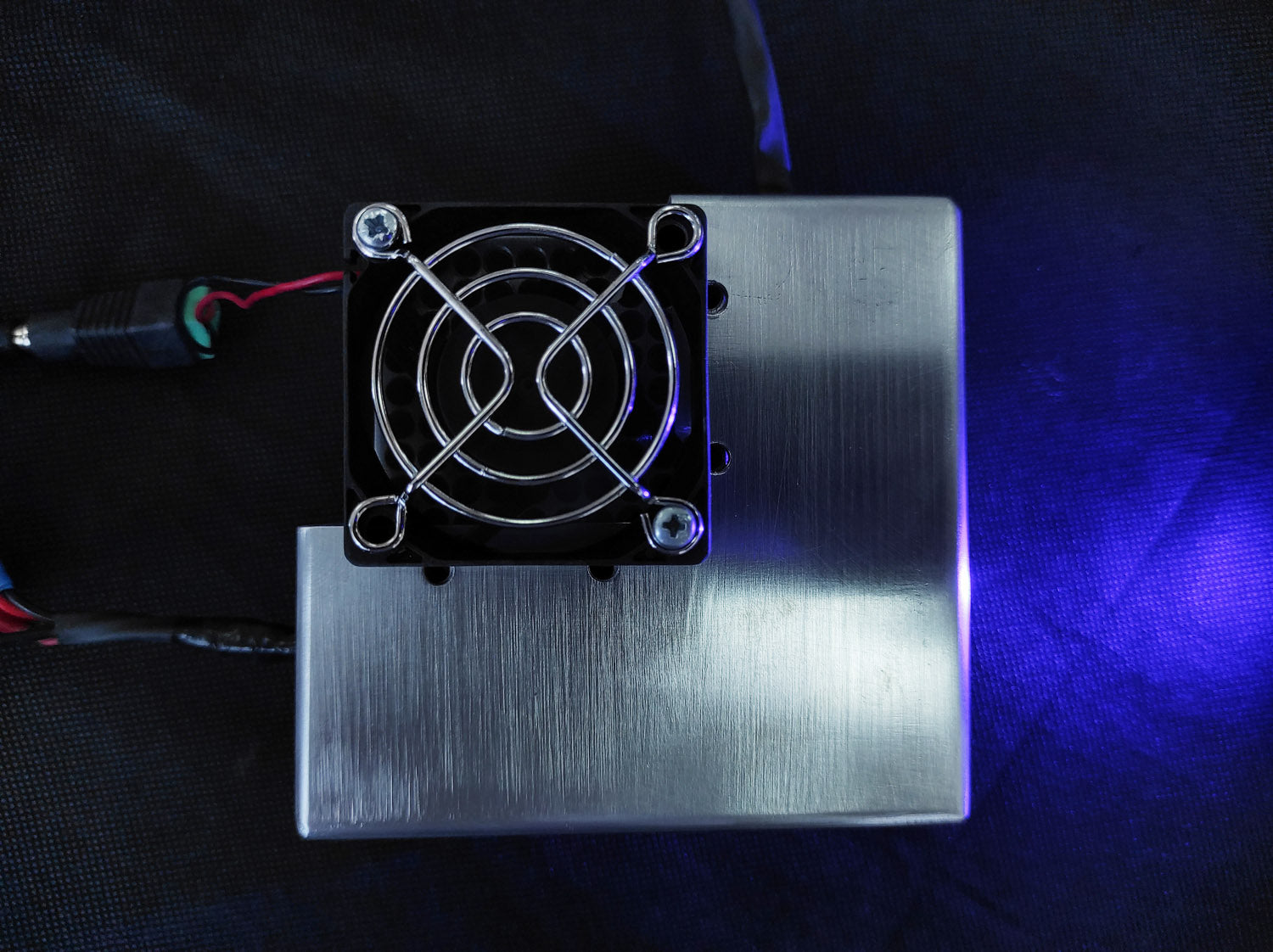

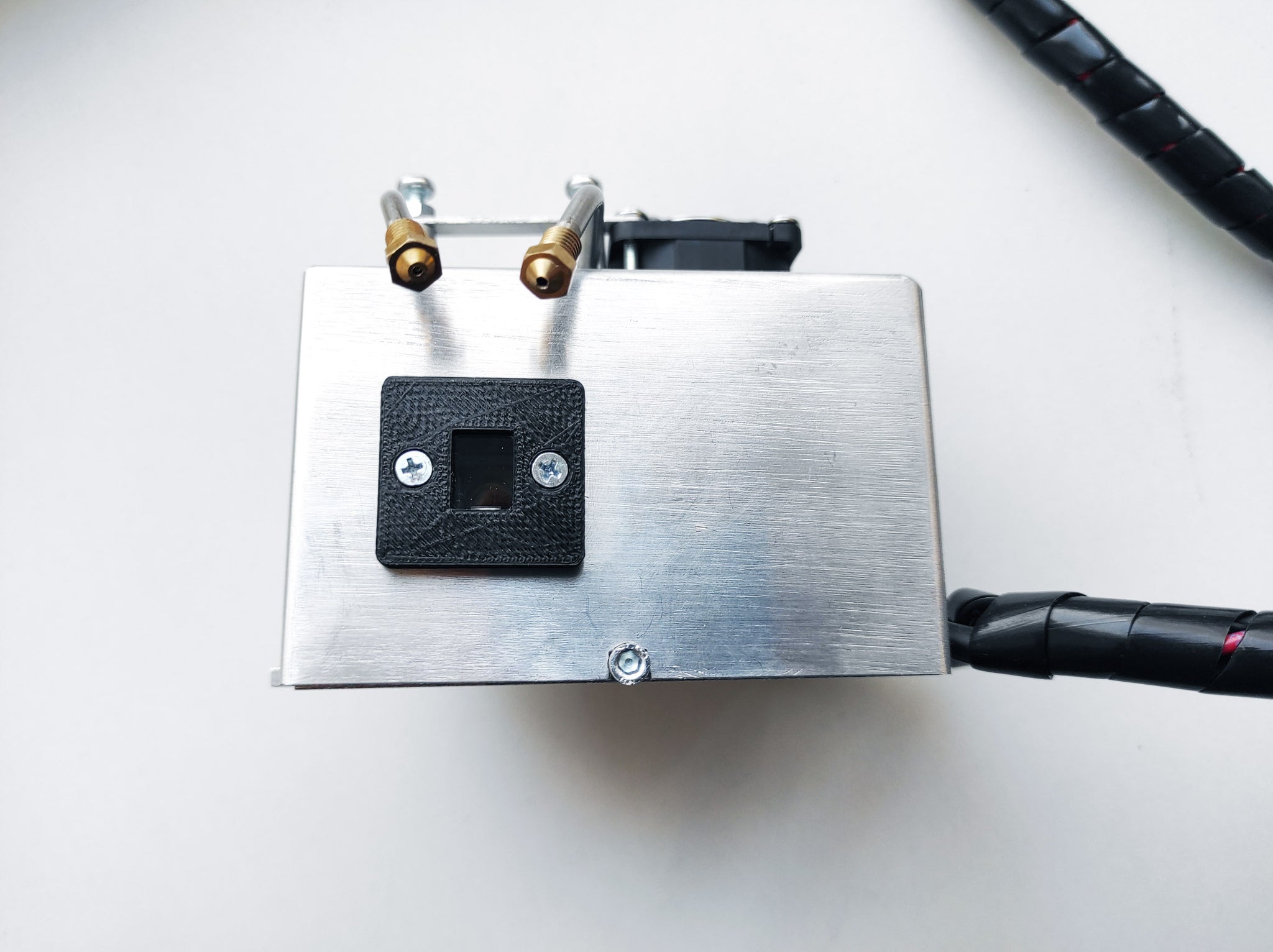

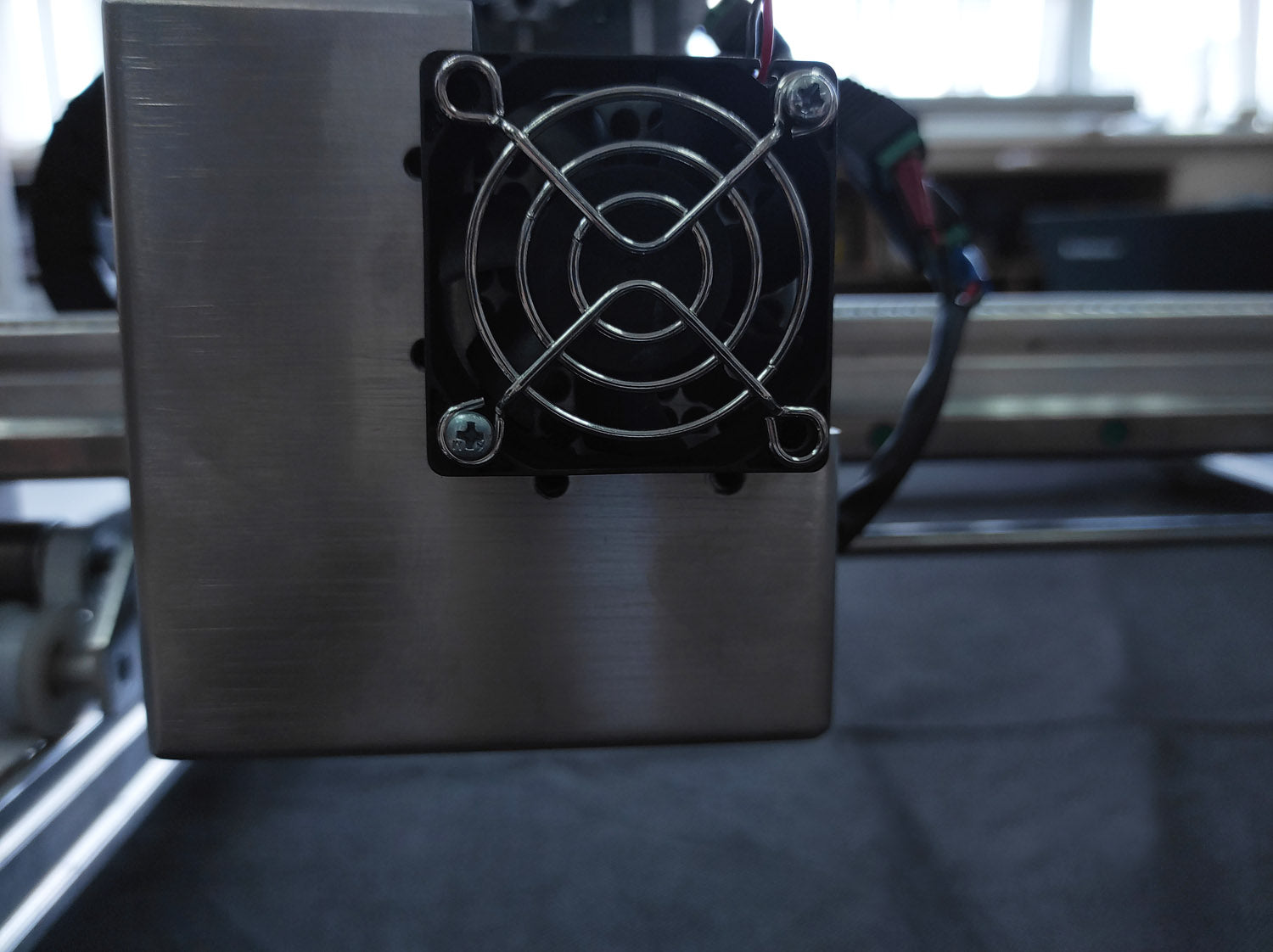

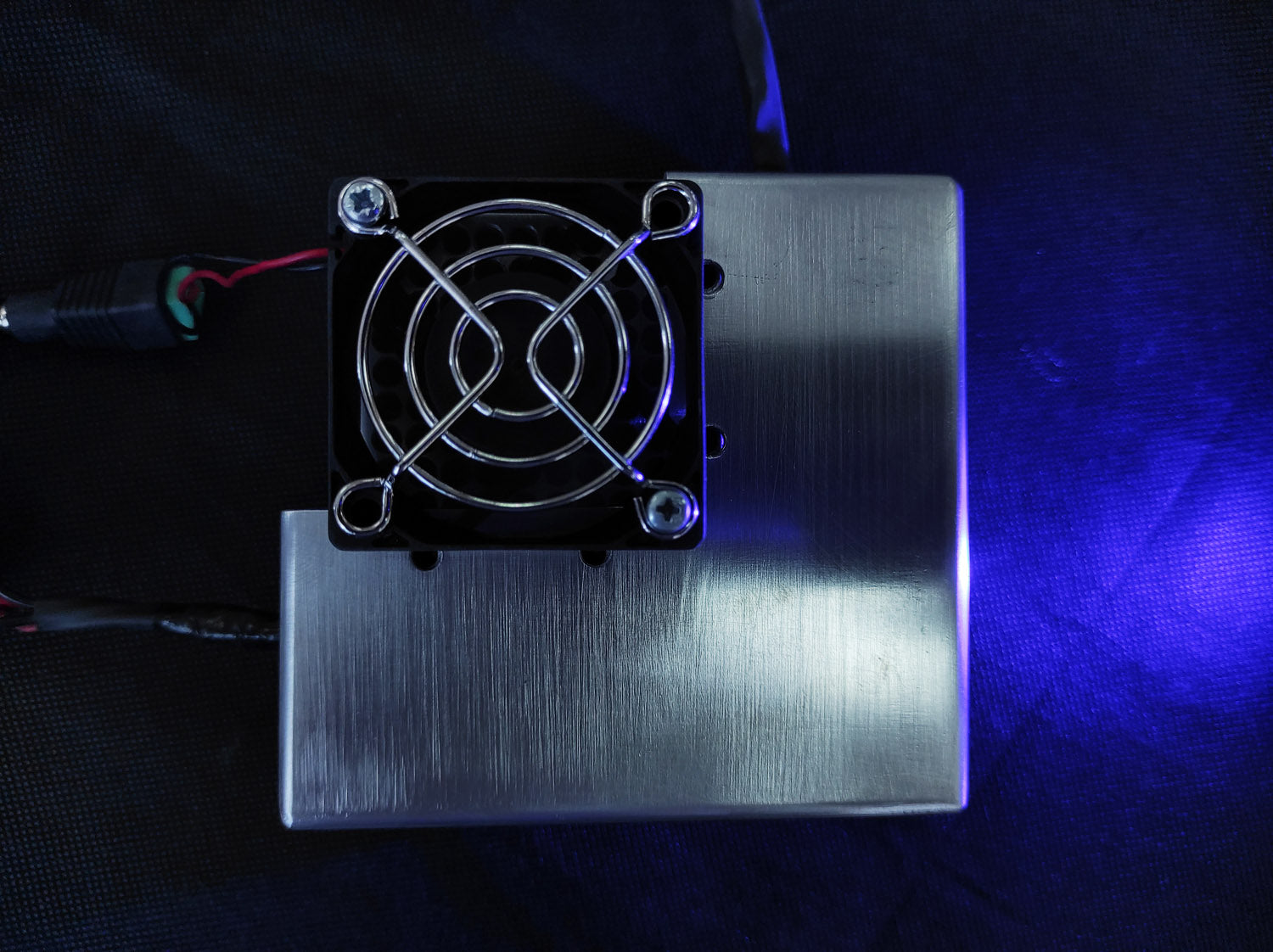

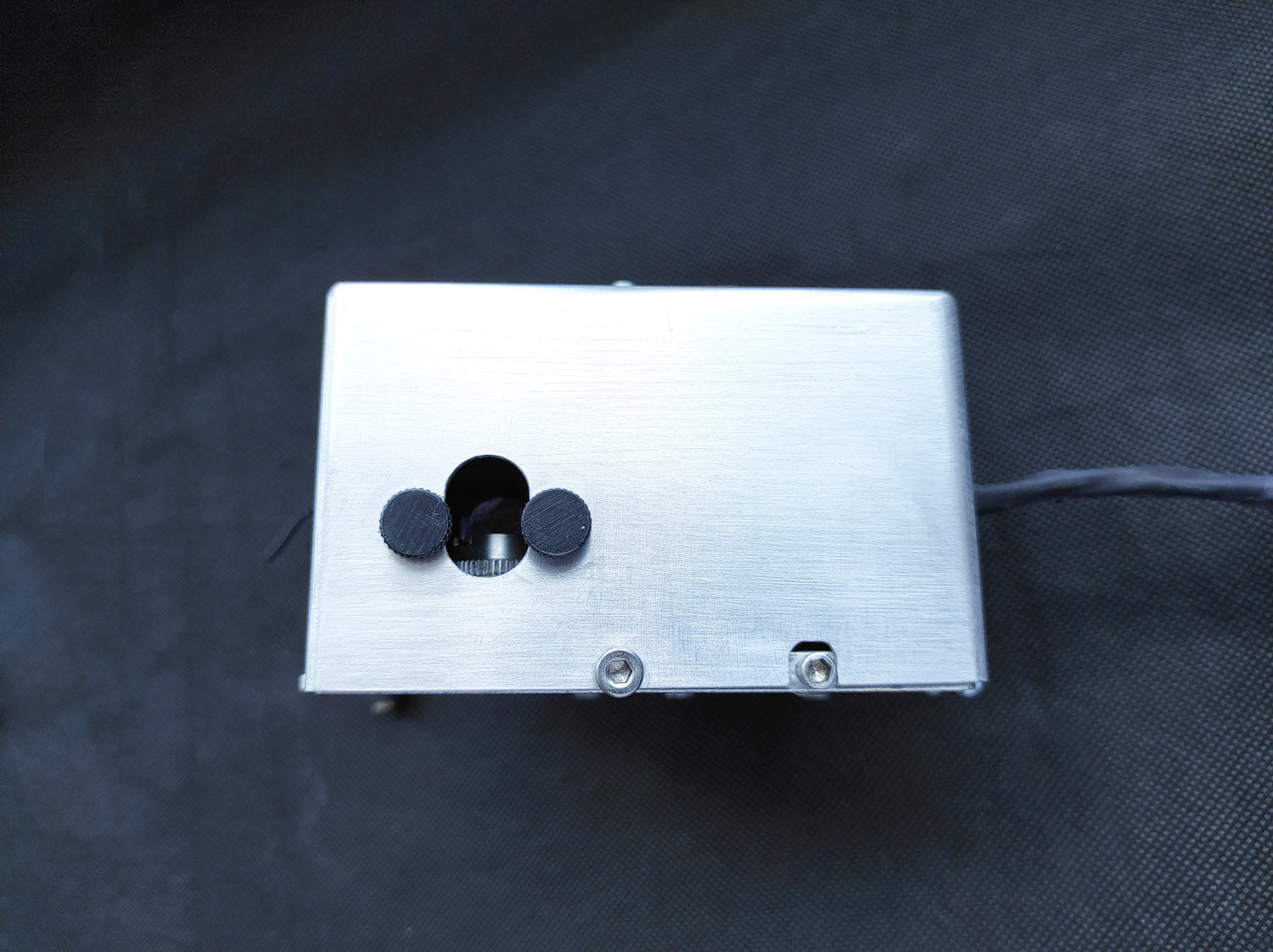

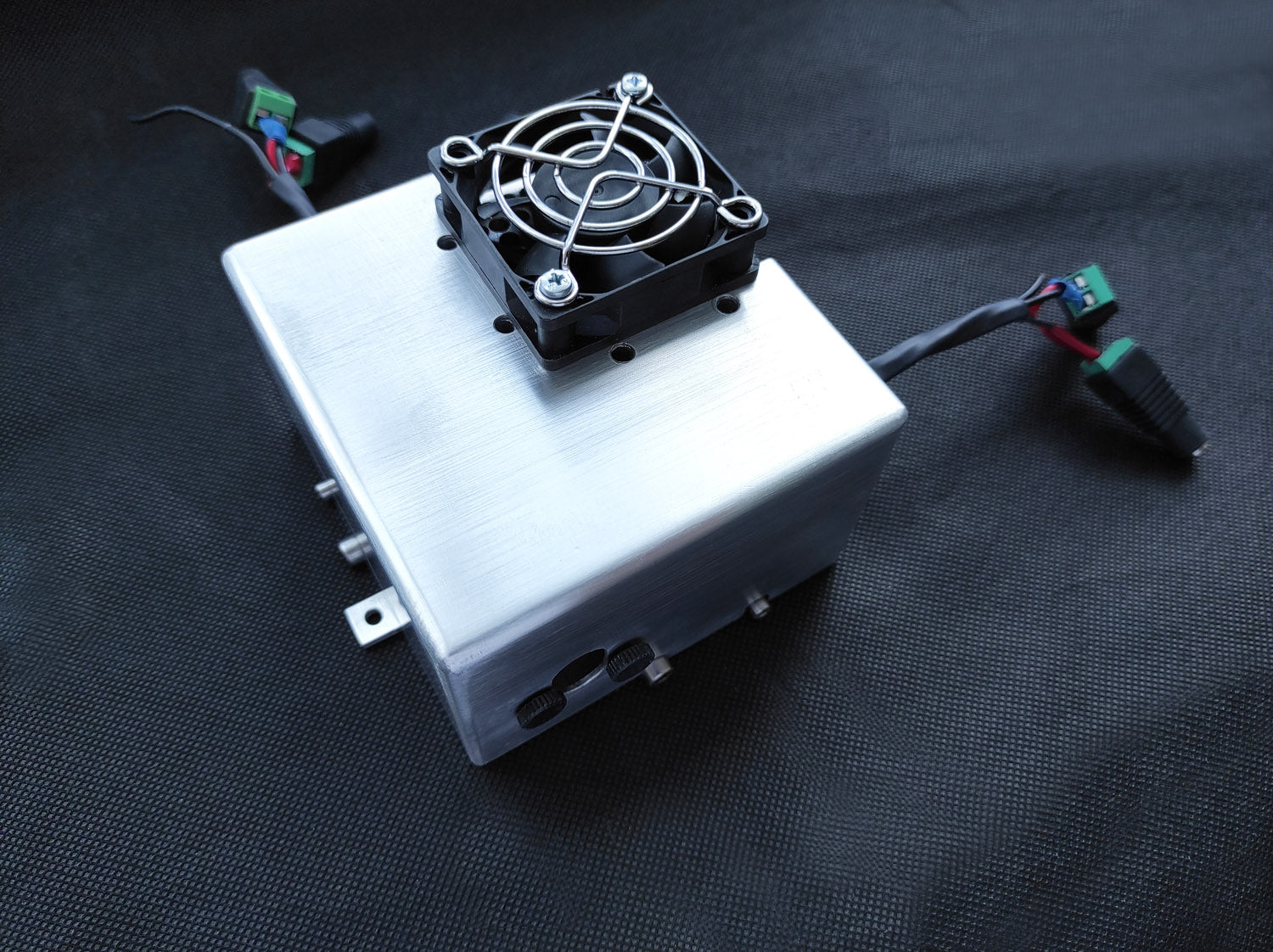

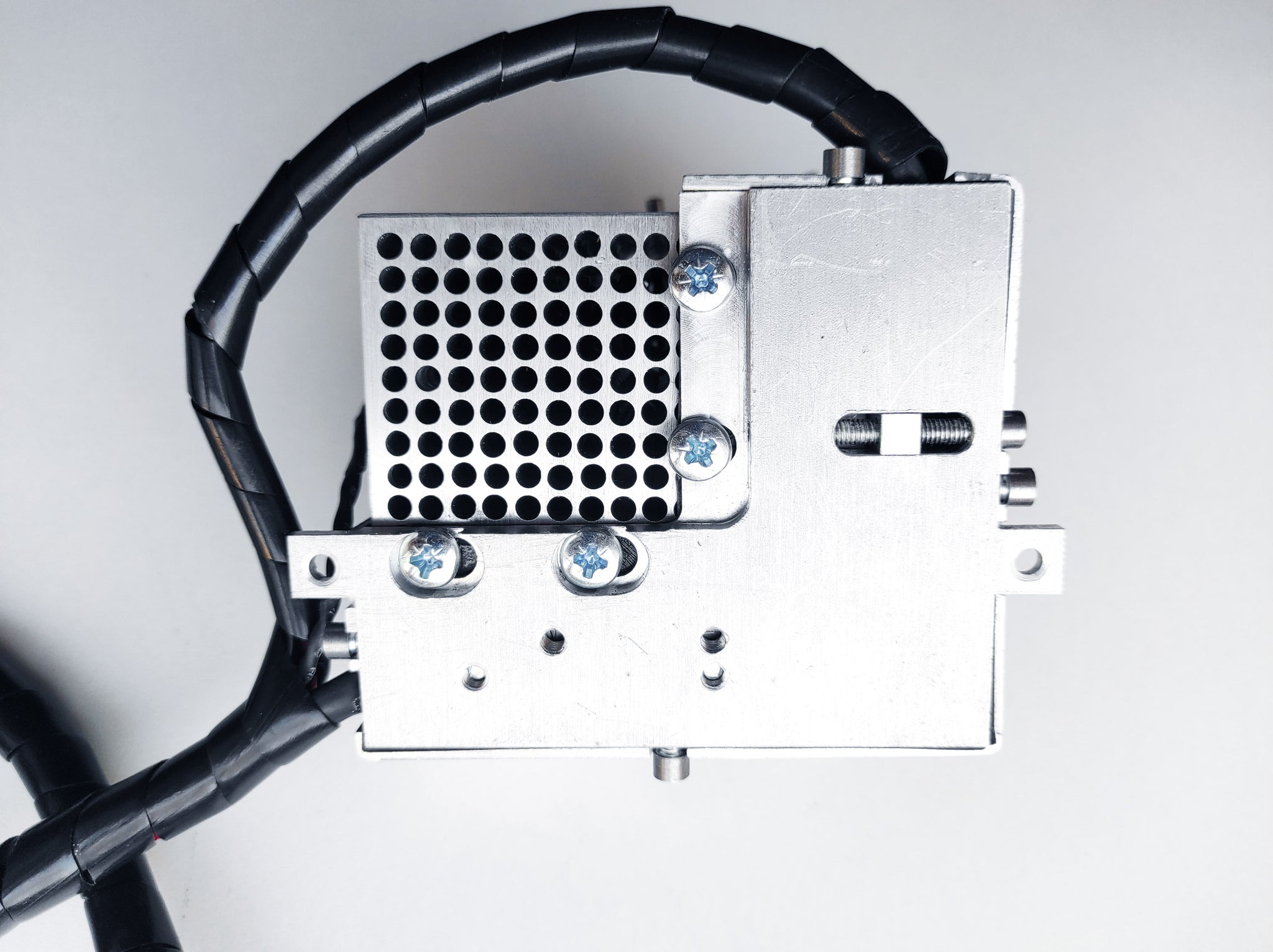

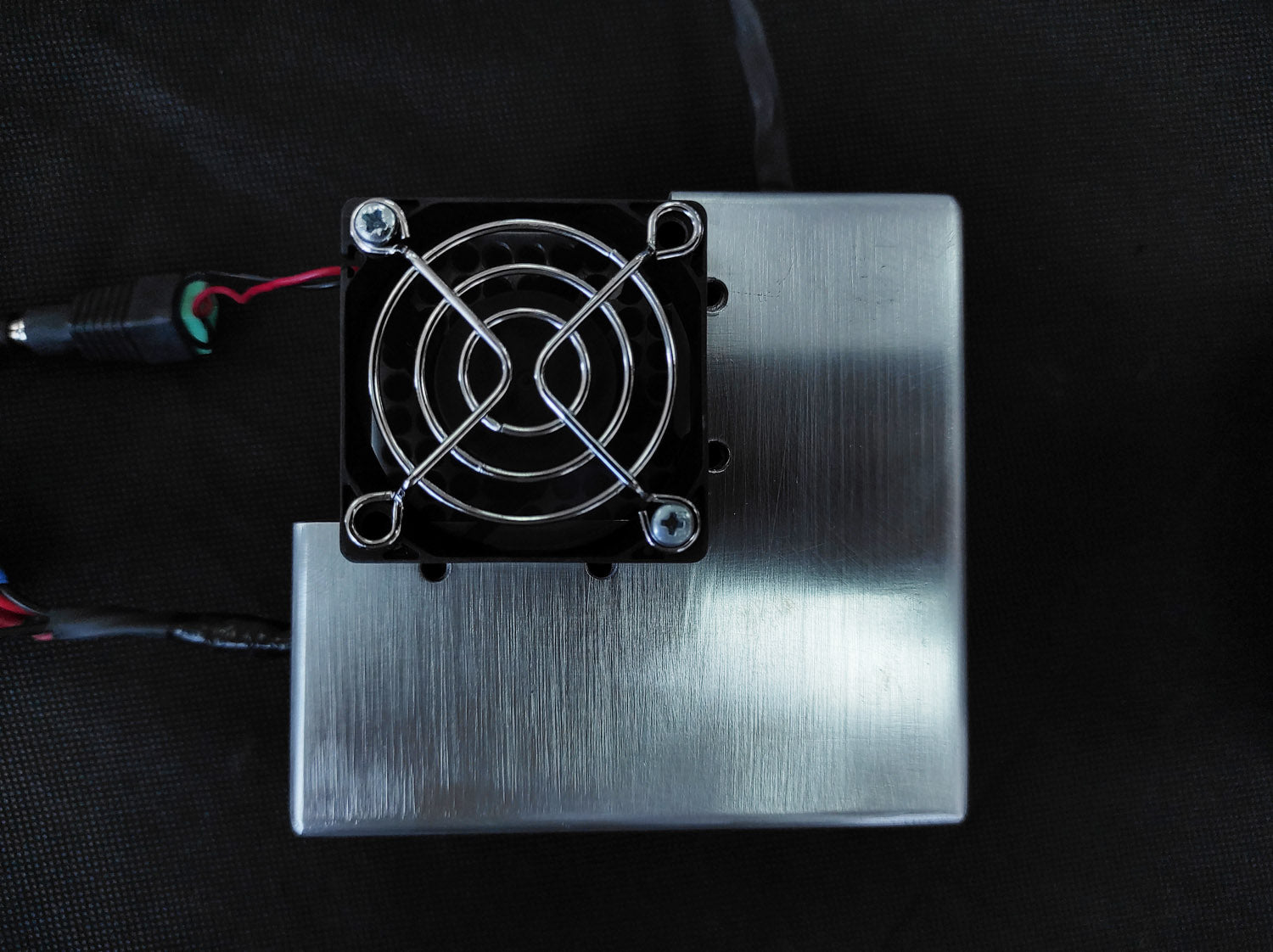

Endurance 15 (15000 mW) watt "Duos" laser beam head.
Endurance 15 (15000 mW) watt "Duos" laser beam head.
Endurance 15 (15000 mW) watt "Duos" laser beam head.
Endurance 15 (15000 mW) watt "Duos" laser beam head.
Endurance 15 (15000 mW) watt "Duos" laser beam head.
Endurance 15 (15000 mW) watt "Duos" laser beam head.
Endurance 15 (15000 mW) watt "Duos" laser beam head.
Endurance 15 (15000 mW) watt "Duos" laser beam head.
Endurance 15 (15000 mW) watt "Duos" laser beam head.

Endurance 15 (15000 mW) watt "Duos" laser beam head.

Vendor
Endurance lasers
Regular price
$1,295.00
Sale price
$995.00
Tax included. Shipping calculated at checkout.
Quantity must be 1 or more

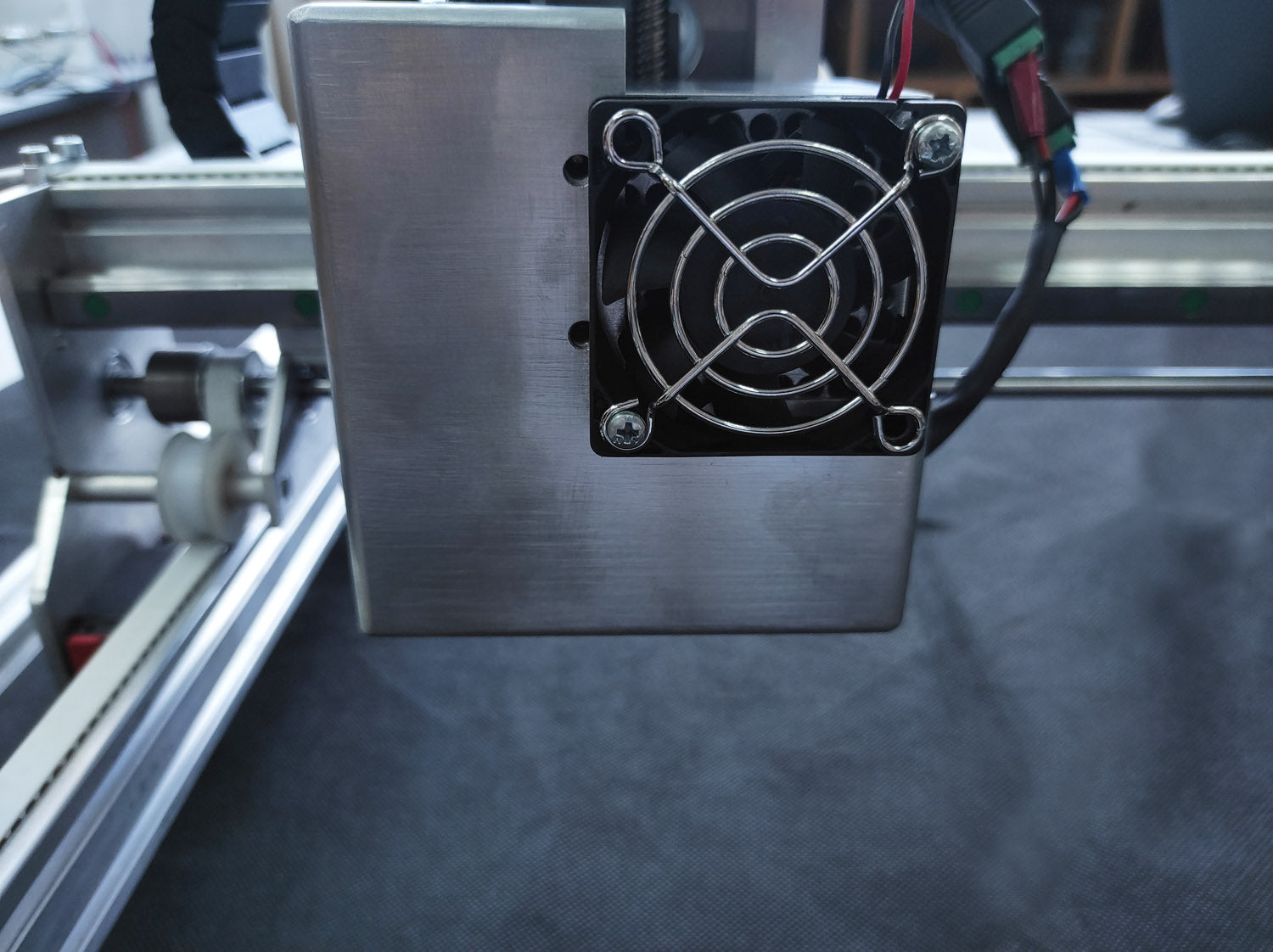

Infinite laser power on your 3D printer / CNC gantry / XY frame.

Dual laser system. 15 watts (15 000 mW) of optical laser power. Laser head for your 3D printer / CNC machine.





We combine two laser beams with S & P polarization in a prism and a get a one single laser beam. It allows the best laser beam spot.



Easy mounting. Easy wiring. Pre-set focus!



Metal engraving test with 15 watt "Duos" laser installed on CNC 3018 machine



Plywood & MDF cutting with an Endurance 15 watts "Duos" laser.

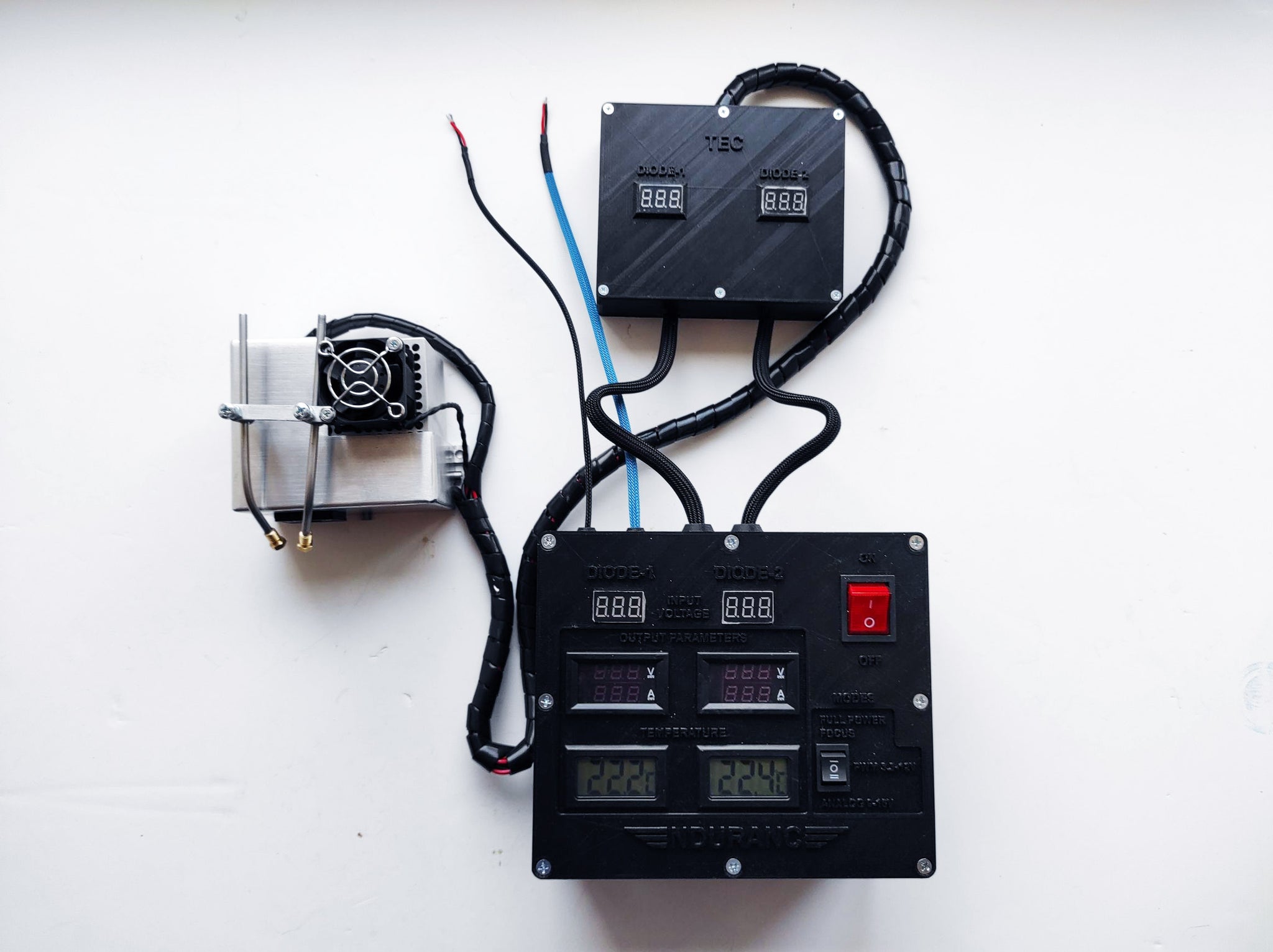

What do you get in the package:

  1. 1 x 15 watt "Duos" laser beam system.

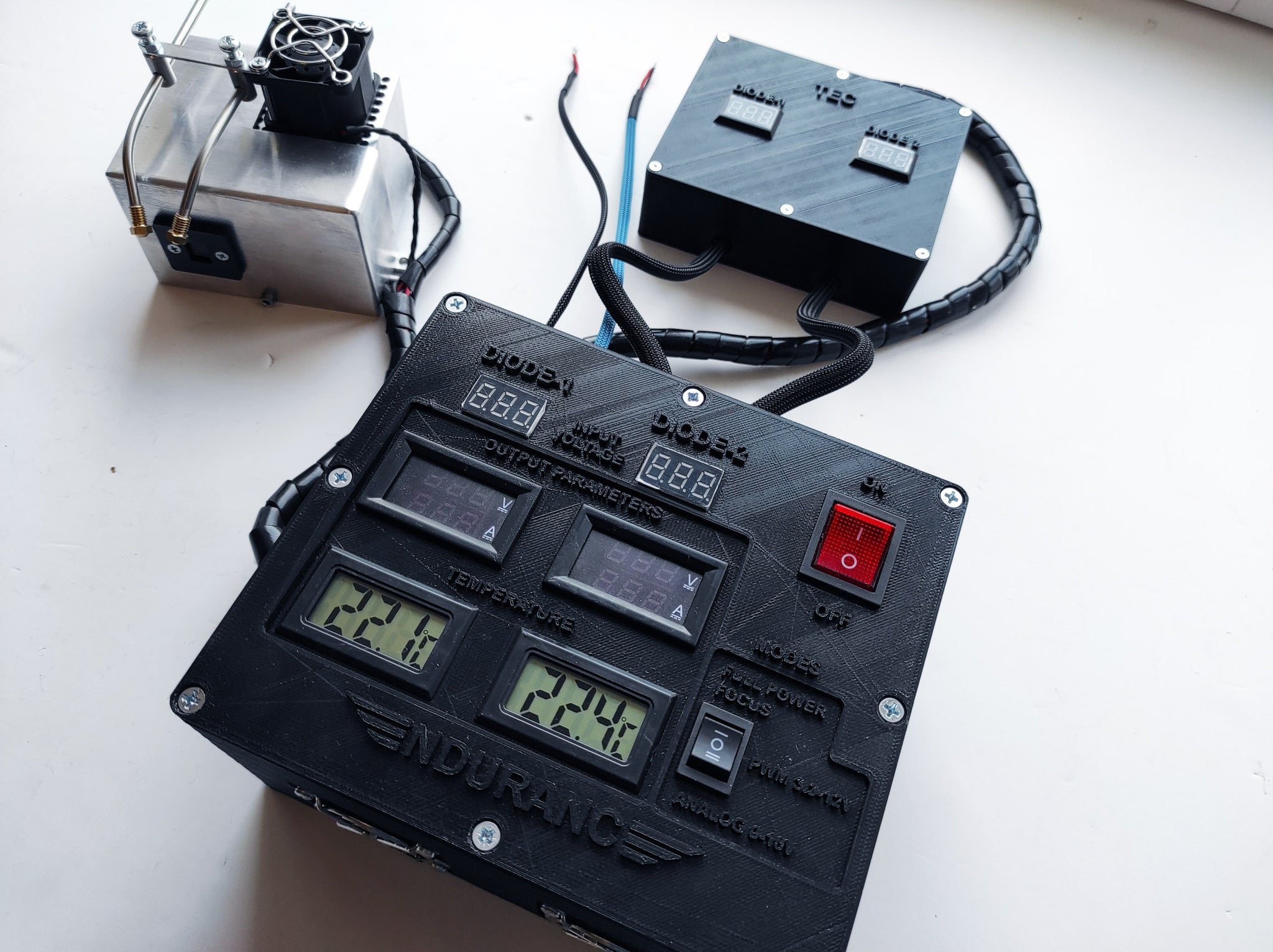

  2. 1 x Small & 1x big laser box (with Mo1 PCB [3-24PWM]).

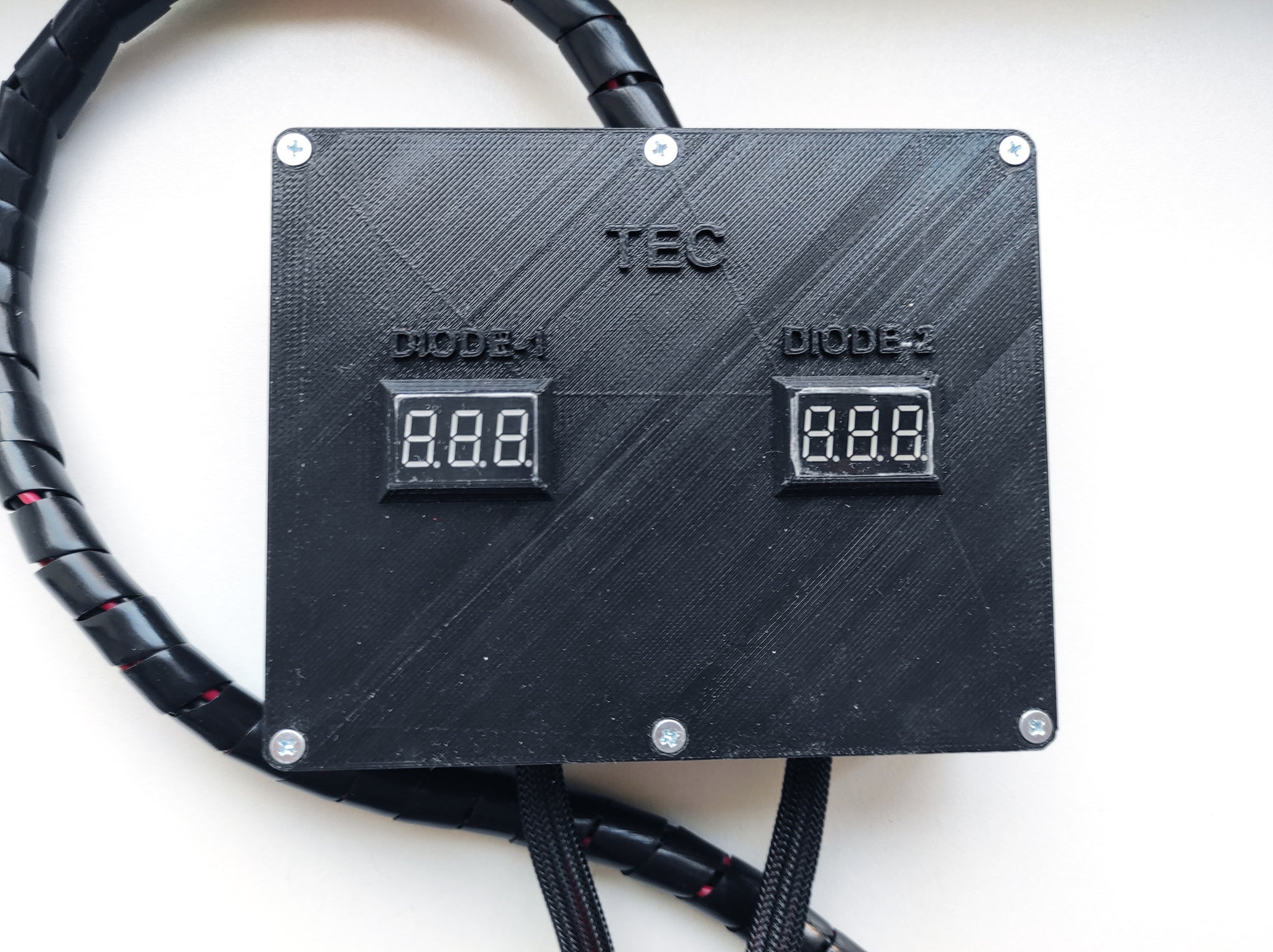

  3. 2 x DC/DC converters for the TEC cooling setup.
  4. 2 x power splitters.
  5. 2 x PSU (12V 8A AC/DC).

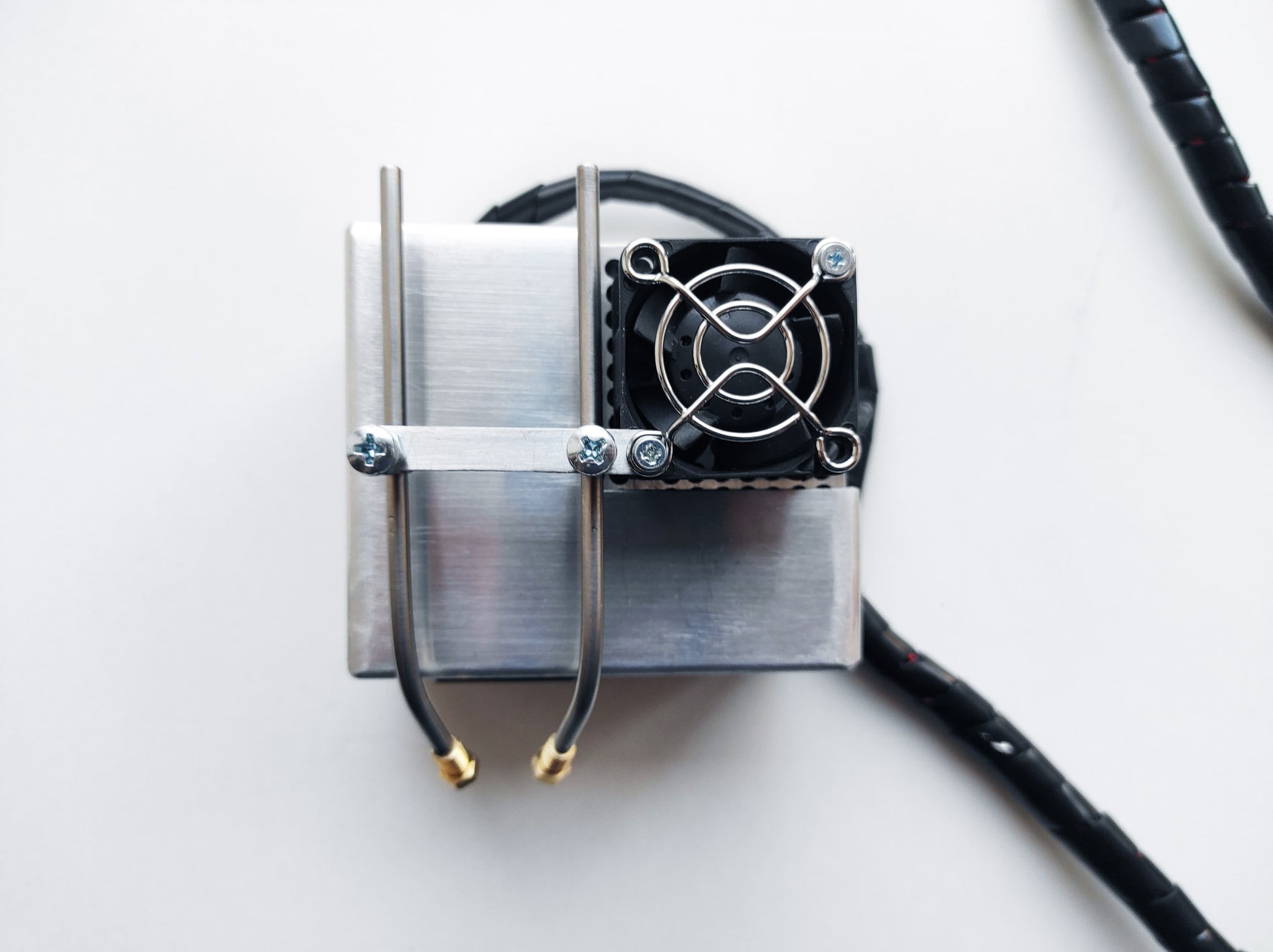

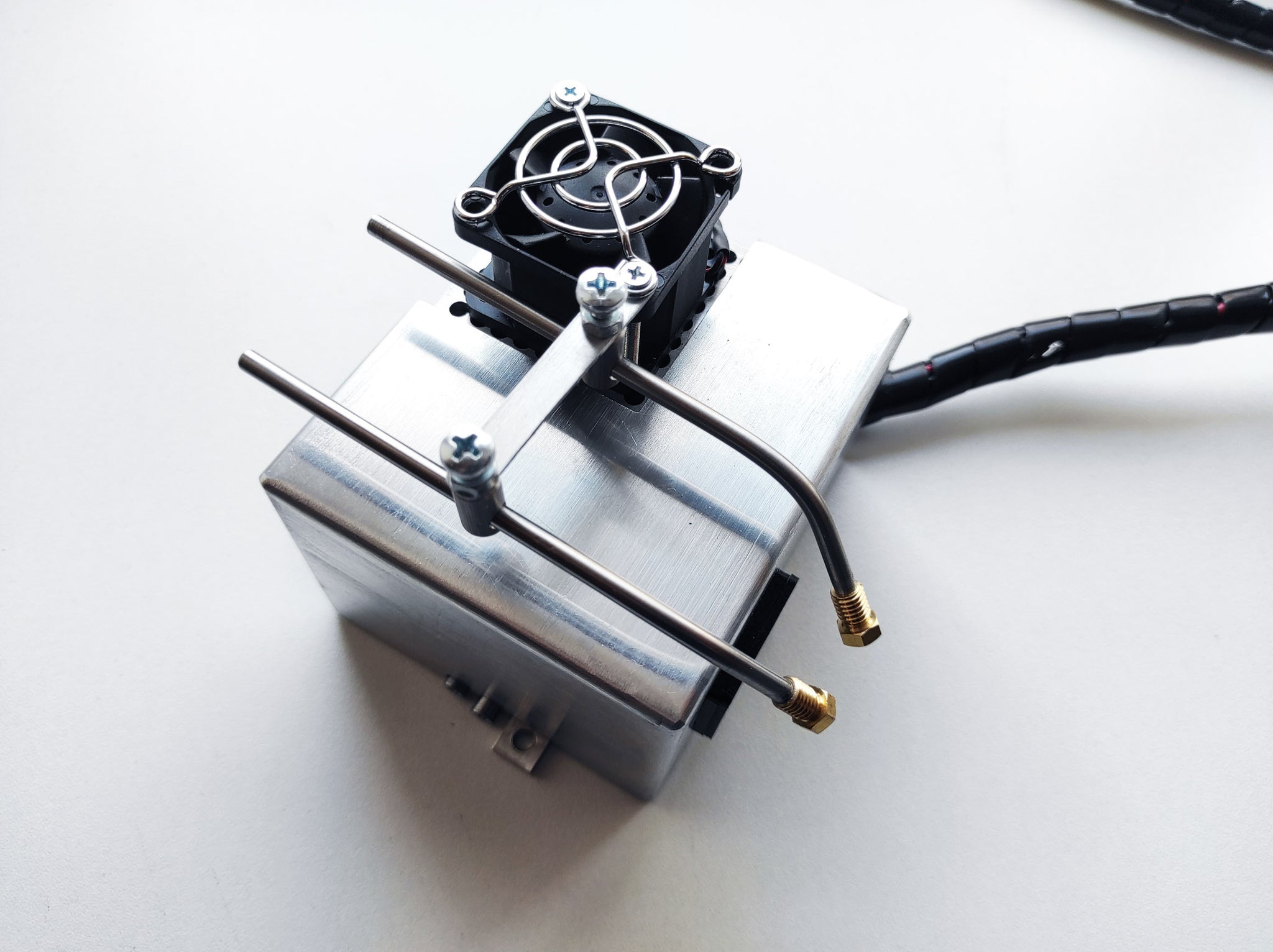

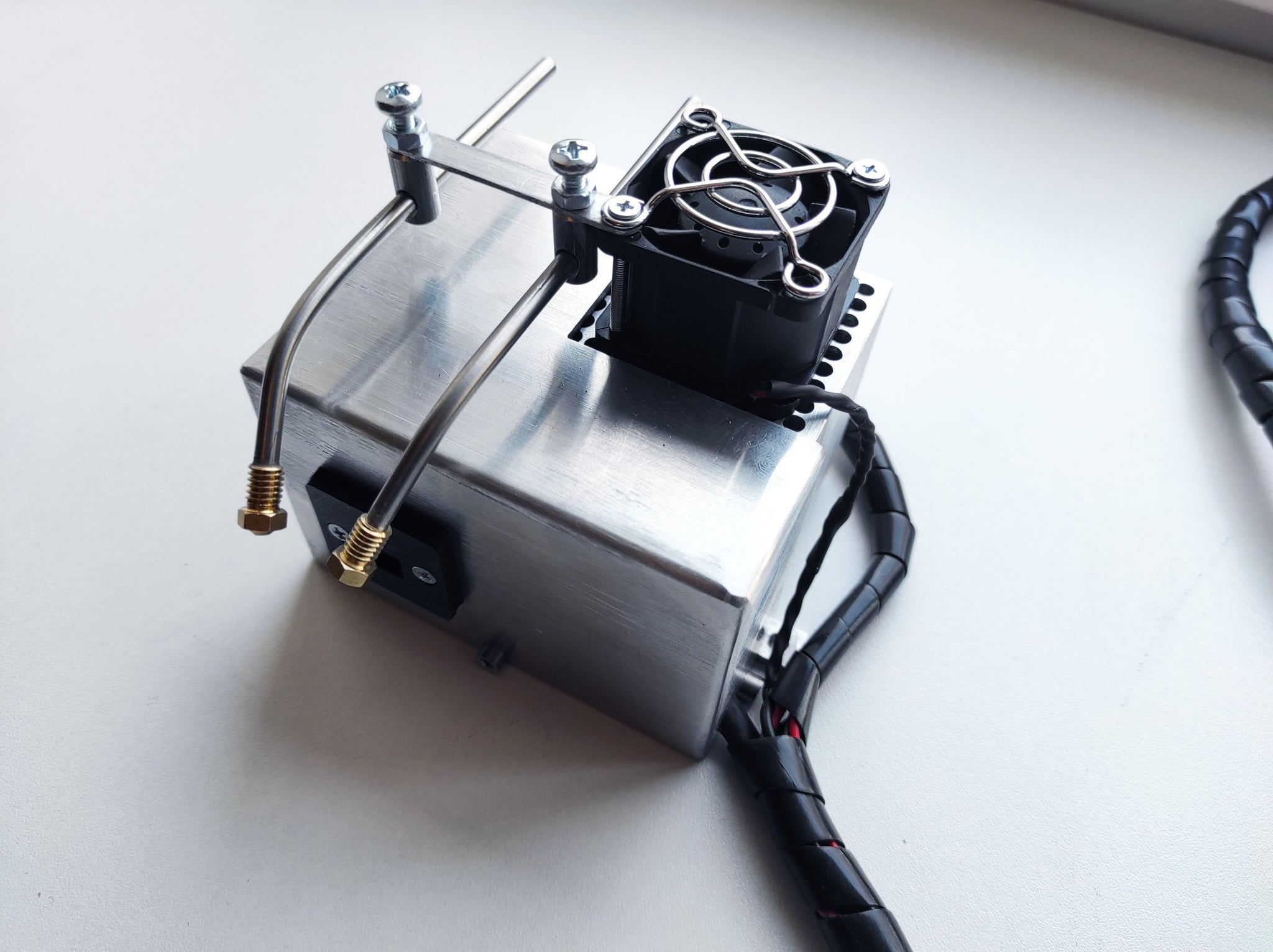

Air nozzle ver 1. upgrade available   https://www.endurance-lasers.com/collections/air-nozzle



Engrave on stainless steel, acrylic, ceramics as a professional!

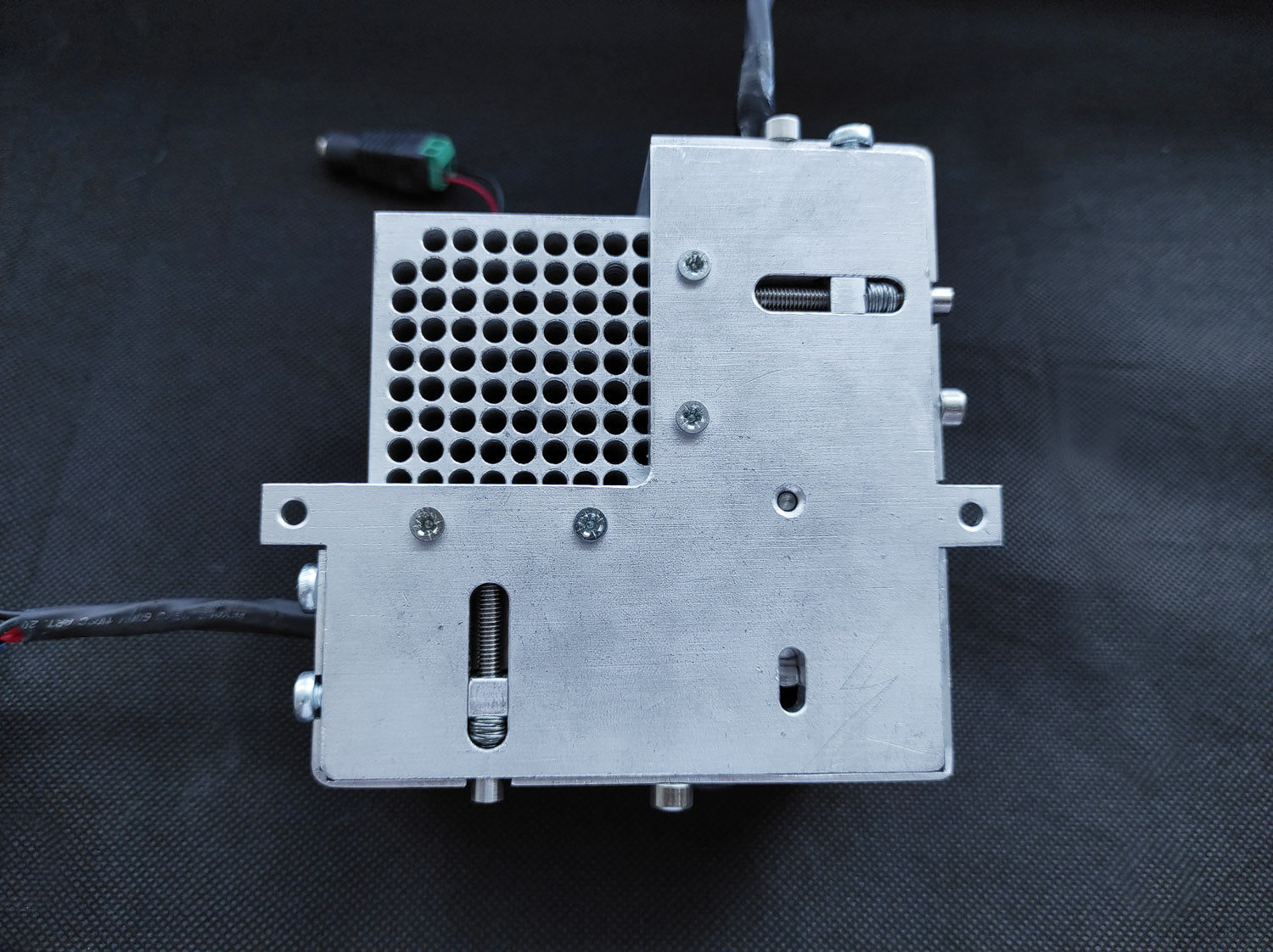

What is inside 15 watt laser?

The laser beam spot is 0.12-0.125 mm (120-125 uM)

Ultra-high precision for an effective laser cutting and laser engraving.



Comparing 15 watt vs. 10 watt diode laser.

2 beams are always better for cutting



Power: 100%

Speed cutting: 500 mm / min

Air assist: 60 Litres per min (Hailea air compressor)

Type of material Repeats
Name Thickness Density 15 watt (15000 mW) “Duos” laser system 10 watt (10000 mW)
Mm | inch g / cm^3 Min Max Min Max
Cedar plywood 3.5 | 1/7’’ 0.39 2 2 3 4
Moroccan plywood (3 ply) 2.5 | 1/10’’ 0.48 2 2 3 4
Birch plywood (3 ply) 3.5 | 1/7’’ 0.7 4 5 6 8
Marine Plywood (3-ply) 1 |1/25’’ 0.85 4 5
MDF 3 | 1/8’’ 0.87 9 10



Engraving on acrylic and glass.



Leather and ceramics engraving



Getting started

Sketch / drawing



We test every laser before the shipment





Technical information

Version 1.0
Laser Type Diode laser
Diode type NUBM44 / NUBM47
Laser Optical Peak Power Output (Impulse) 10000mW ± 10%
Laser Optical Average Power Output (CW) 7500mW ± 15%
Focal Range 30-40 mm
Laser Wavelength 445 +- 2 nm
Laser wavelength tolerance
Lens Type Combination G2 + 3 Element
Operation Time Tested 48-72 hours continuous
Heatup time 1 s
Voltage 9-18V DC
Total current consumption 15A (12V)
Cooling Effective fan (turbine) + double TEC cooling (adjustable)
Mount M4 holes on the back
Installation Process
Laser beam spot  120-125 uM (microns)
Power adjustment Endurance Mo1 PCB
Laser Dimensions (W x L x H) mm 117x84x96
Laser Weight 741 g (1.6 pounds)
Laser Driver External laser control box (small + big)
Lifetime 10 000 hours
Maintenance Keep the prism clean. Clean with ethanol
Air assist Endurance air nozzle ver 1.
The critical temperature for operating the laser 45-50C
Idle temperature 15-25C
